美国拉隆3225mm贴片石英一物多用RH100A-12.000-10-2020-EXT-TR

2023-06-29 17:46:19

RH100系列的SMD石英在3.2 x 2.5 mm四脚外壳中是最便宜和最可变的MINI SMD石英晶体，具有出色的可靠性。频率范围为10–65 MHz(基波截点)，频率容差为25°C，从±10ppm开始，温度稳定性从±10ppm@-20/+70°C或±15ppm@-40/+85°C开始。在-40/+105°C温度范围以上，最佳温度范围为-40/+125°C温度范围以上30ppm或50ppm。一年后的劣化程度为±1ppm, 10年后为±10ppm。对于KNX应用，还提供总体公差为±25ppm的版本。当然，汽车应用也有AECQ200兼容的解决方案，或者根据要求提供更高驱动电平(最大可达500 μ W)的产品版本。

由于价格非常实惠，在洁净室中制造的全能设备可用于任何需要非常便宜的SMD晶振、具有出色参数和出色耐用性的应用，如汽车、医疗、嵌入式、工业、商业、物联网、Wi-Fi、无线(WLAN、ISM、KNX、ZigBee、Z-Wave等)、消费者、电信部门等等。当然，Raltron Crystal的产品范围还包括32.768 kHz解决方案(石英和超低功率振荡器).

INFORMATION ABOUT AUTOMOTIVE CRYSTALS DESIGN AND MANUFACTURING

The process of manufacturing ASA-SMD series of Automotive Grade Surface Mount Microprocessor Crystals isperformed by using Advanced Product Quality Planning (APQP). This technique defines and establishes thefollowing actions:
• Product design activities communicating special characteristics to the process design activity, prior to designrelease, linking the DFMEA to PFMEA.
• Plan, acquire and install appropriate process equipment and tooling based on design tolerances provided bythe customer. – CPPD (Collaborative Product Process Design)
• Assembly personnel communicating suggestions on better ways to assemble a product prior to the completionof the design of the product. – DFA/M (Design for Assembly and Manufacturing)
• Manufacturing or Process Engineering establishing adequate Quality Controls for features of a product orparameters of a process, which still risk potential failure. – Control Plan Methodology
• Performing Stability and Capability studies on special characteristics to understand the variation present andpredict future performance. – SPC (Statistical Process Control and Process Capability)

作为对非常广泛的产品范围的补充，Raltron晶振的专家还提供有根据的产品建议。非常全面电路分析/电路模拟也可以根据需要由内部工程人员执行。这些分析是基于振荡晶体的DIN/IEC60444标准进行的，包括振荡安全测试(确定准确的振荡储备)、压电性能的确定等。最后，会有一份非常全面的报告，其中可能包括调整建议或确认待测电路的正确尺寸。对该系列的支持是与客户的工程、采购、生产和质量保证部门协调进行的。我们的目标是利用非常广泛的服务，帮助客户快速上市。

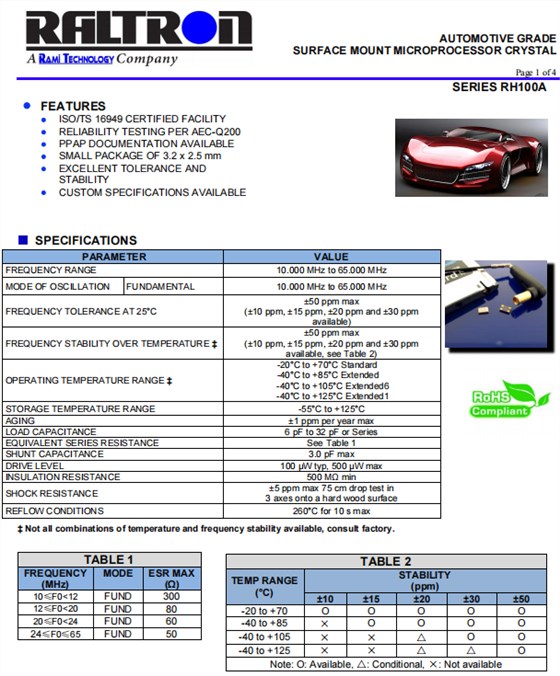

RH100A

Raltron原厂编码 型号 频率 尺寸 频率偏差 频率稳定度 负载 工作温度
RH100-8.000-20-3050-EXT-TR RH100 8.000MHz 3.2x 2.5mm ± 30 ppm ± 50 ppm 20 pF -40°C~+85°C
RH100-8.000-8-2020-TR RH100 8.000MHz 3.2x 2.5mm ± 20 ppm ± 20 ppm 8 pF -20°C~+70°C
RH100-8.000-10-1010-EXT-TR RH100 8.000MHz 3.2x 2.5mm ± 10 ppm ± 10 ppm 10 pF -40°C~+85°C
RH100-10.000-10-5050-TR RH100 10.000MHz 3.2x 2.5mm ± 50 ppm ± 50 ppm 10 pF -20°C~+70°C
RH100-10.000-18-3030-TR RH100 10.000MHz 3.2x 2.5mm ± 30 ppm ± 30 ppm 18 pF -20°C~+70°C
RH100-10.000-8-2020-TR RH100 10.000MHz 3.2x 2.5mm ± 20 ppm ± 20 ppm 8 pF -20°C~+70°C
RH100-11.0592-18-3030-EXT-TR RH100 11.0592MHz 3.2x 2.5mm ± 30 ppm ± 30 ppm 18 pF -20°C~+70°C
RH100-12.000-20-3030-EXT-TR RH100 12.000MHz 3.2x 2.5mm ± 30 ppm ± 30 ppm 20 pF -40°C~+85°C
RH100-12.000-9-1515-TR RH100 12.000MHz 3.2x 2.5mm ± 15 ppm ± 15 ppm 9 pF -20°C~+70°C
RH100-12.000-18-2020-TR RH100 12.000MHz 3.2x 2.5mm ± 20 ppm ± 20 ppm 18 pF -20°C~+70°C
RH100-12.000-9-1015-TR-NS1 RH100 12.000MHz 3.2x 2.5mm ± 10 ppm ± 15ppm 9 pF -20°C~+60°C
RH100-12.000-8-EXT-TR RH100 12.000MHz 3.2x 2.5mm ± 100 ppm ± 100 ppm 8 pF -40°C~+85°C
RH100-12.000-10-2020-EXT-TR RH100 12.000MHz 3.2x 2.5mm ± 20 ppm ± 20 ppm 10 pF -40°C~+85°C
RH100-12.000-18-2030-EXT-TR RH100 12.000MHz 3.2x 2.5mm ± 20 ppm ± 30 ppm 18 pF -40°C~+85°C
RH100-12.000-20-2030-TR RH100 12.000MHz 3.2x 2.5mm ± 20 ppm ± 30 ppm 20 pF -20°C~+70°C
RH100-12.000-12-1010-EXT-TR RH100 12.000MHz 3.2x 2.5mm ± 10 ppm ± 10 ppm 12 pF -40°C~+85°C
RH100-12.288-18-2030-EXT-TR RH100 12.288MHz 3.2x 2.5mm ± 20 ppm ± 30 ppm 18 pF -40°C~+85°C
RH100-12.288-12-1010-TR RH100 12.288MHz 3.2x 2.5mm ± 10 ppm ± 10 ppm 12 pF -20°C~+70°C
RH100-13.560-18-1010-TR RH100 13.560MHz 3.2x 2.5mm ± 10 ppm ± 10 ppm 18 pF -20°C~+70°C
RH100-13.560-10-1020-EXT-TR RH100 13.560MHz 3.2x 2.5mm ± 10 ppm ± 20 ppm 10 pF -40°C~+85°C
RH100-13.824-12-1010-EXT-TR RH100 13.824MHz 3.2x 2.5mm ± 10 ppm ± 10 ppm 12 pF -40°C~+85°C
RH100-14.31818-18-3030-EXT-TR RH100 14.31818MHz 3.2x 2.5mm ± 30 ppm ± 30 ppm 18 pF -40°C~+85°C
RH100-14.7456-18-TR RH100 14.7456MHz 3.2x 2.5mm ± 100 ppm ± 100 ppm 18 pF -20°C~+70°C
RH100-16.000-8-1010-TR RH100 16.000MHz 3.2x 2.5mm ± 10 ppm ± 10 ppm 8 pF -20°C~+70°C
RH100-16.000-9-1010-EXT-TR RH100 16.000MHz 3.2x 2.5mm ± 10 ppm ± 10 ppm 9 pF -40°C~+85°C
RH100-16.000-18-3050-TR RH100 16.000MHz 3.2x 2.5mm ± 30 ppm ± 50 ppm 18 pF -20°C~+70°C
RH100-16.000-16-3030-EXT-TR RH100 16.000MHz 3.2x 2.5mm ± 30 ppm ± 30 ppm 16 pF -40°C~+85°C
RH100-16.000-18-2030-EXT-TR RH100 16.000MHz 3.2x 2.5mm ± 20 ppm ± 30 ppm 18 pF -40°C~+85°C
RH100-16.000-20-5050-TR RH100 16.000MHz 3.2x 2.5mm ± 50 ppm ± 50 ppm 20 pF -20°C~+70°C
RH100-16.000-9-1010-TR RH100 16.000MHz 3.2x 2.5mm ± 10 ppm ± 10 ppm 9 pF -20°C~+70°C
RH100-16.000-10-1010-EXT-TR RH100 16.000MHz 3.2x 2.5mm ± 10 ppm ± 10 ppm 10 pF -40°C~+85°C
RH100-16.000-12-1010-EXT-TR RH100 16.000MHz 3.2x 2.5mm ± 10 ppm ± 10 ppm 12 pF -40°C~+85°C
RH100-18.432-18-2030-EXT-TR RH100 18.432MHz 3.2x 2.5mm ± 20 ppm ± 30 ppm 18 pF -40°C~+85°C
RH100-19.200-12-1010-EXT-TR RH100 19.200MHz 3.2x 2.5mm ± 10 ppm ± 10 ppm 12 pF -40°C~+85°C
RH100-20.000-10-1010-TR RH100 20.000MHz 3.2x 2.5mm ± 10 ppm ± 10 ppm 10 pF -20°C~+70°C
RH100-20.000-8-3030-EXT-TR RH100 20.000MHz 3.2x 2.5mm ± 30 ppm ± 30 ppm 8 pF -40°C~+85°C
RH100-20.000-16-3030-TR RH100 20.000MHz 3.2x 2.5mm ± 30 ppm ± 30 ppm 16 pF -20°C~+70°C
RH100-20.000-18-2020-TR RH100 20.000MHz 3.2x 2.5mm ± 20 ppm ± 20 ppm 18 pF -20°C~+70°C
RH100-20.000-12-1010-EXT-TR RH100 20.000MHz 3.2x 2.5mm ± 10 ppm ± 10 ppm 12 pF -40°C~+85°C
RH100-20.000-20-3030-TR RH100 20.000MHz 3.2x 2.5mm ± 30 ppm ± 30 ppm 20 pF -20°C~+70°C
RH100-24.000-9-1010-TR RH100 24.000MHz 3.2x 2.5mm ± 10 ppm ± 10 ppm 9 pF -20°C~+70°C
RH100-24.000-16-1010-TR RH100 24.000MHz 3.2x 2.5mm ± 10 ppm ± 10 ppm 16 pF -20°C~+70°C
RH100-24.000-8-1010-EXT-TR RH100 24.000MHz 3.2x 2.5mm ± 10 ppm ± 10 ppm 8 pF -40°C~+85°C
RH100-24.000-12-3030-EXT-TR RH100 24.000MHz 3.2x 2.5mm ± 30 ppm ± 30 ppm 12 pF -40°C~+85°C
RH100-24.000-18-2030-EXT-TR RH100 24.000MHz 3.2x 2.5mm ± 20 ppm ± 30 ppm 18 pF -40°C~+85°C
RH100-24.000-10-1010-TR RH100 24.000MHz 3.2x 2.5mm ± 10 ppm ± 10 ppm 10 pF -20°C~+70°C
RH100-24.000-20-3050-EXT-TR RH100 24.000MHz 3.2x 2.5mm ± 30 ppm ± 50 ppm 20 pF -40°C~+85°C
RH100-24.000-8-1530-EXT-TR RH100 24.000MHz 3.2x 2.5mm ± 15 ppm ± 30 ppm 8 pF -40°C~+85°C
RH100-24.000-18-1010-TR RH100 24.000MHz 3.2x 2.5mm ± 10 ppm ± 10 ppm 18 pF -20°C~+70°C
RH100-24.000-20-1010-TR RH100 24.000MHz 3.2x 2.5mm ± 10 ppm ± 10 ppm 20 pF -20°C~+70°C
RH100-24.000-9-1015-EXT-TR RH100 24.000MHz 3.2x 2.5mm ± 10 ppm ± 15 ppm 9 pF -40°C~+85°C
RH100-25.000-20-F-1010-TR RH100 25.000MHz 3.2x 2.5mm ± 10 ppm ± 10 ppm 20 pF -20°C~+70°C
RH100-25.000-20-F-1030-TR RH100 25.000MHz 3.2x 2.5mm ± 10 ppm ± 30 ppm 20 pF -20°C~+70°C
RH100-25.000-10-F-2030-EXT-TR RH100 25.000MHz 3.2x 2.5mm ± 20 ppm ± 30 ppm 10 pF -40°C~+85°C
RH100-25.000-18-F-2030-EXT-TR RH100 25.000MHz 3.2x 2.5mm ± 20 ppm ± 30 ppm 18 pF -40°C~+85°C
RH100-25.000-10-F-1010-EXT-TR RH100 25.000MHz 3.2x 2.5mm ± 10 ppm ± 10 ppm 10 pF -40°C~+85°C
RH100-25.000-12-F-1010-TR RH100 25.000MHz 3.2x 2.5mm ± 10 ppm ± 10 ppm 12 pF -20°C~+70°C
RH100-25.000-16-F-2020-EXT-TR RH100 25.000MHz 3.2x 2.5mm ± 20 ppm ± 20 ppm 16 pF -40°C~+85°C
RH100-25.000-18-F-1010-TR RH100 25.000MHz 3.2x 2.5mm ± 10 ppm ± 10 ppm 18 pF -20°C~+70°C
RH100-25.000-6-F-1010-TR RH100 25.000MHz 3.2x 2.5mm ± 10 ppm ± 10 ppm 6 pF -20°C~+70°C
RH100-25.000-8-F-1010-TR RH100 25.000MHz 3.2x 2.5mm ± 10 ppm ± 10 ppm 8 pF -20°C~+70°C
RH100-26.000-9-F-1015-EXT-TR RH100 26.000MHz 3.2x 2.5mm ± 10 ppm ± 15 ppm 9 pF -40°C~+85°C
RH100-26.000-8-F-1515-EXT-TR RH100 26.000MHz 3.2x 2.5mm ± 15 ppm ± 15 ppm 8 pF -40°C~+85°C
RH100-26.000-16-F-1015-EXT-TR RH100 26.000MHz 3.2x 2.5mm ± 10 ppm ± 15ppm 16 pF -40°C~+85°C
RH100-26.000-15-F-1015-TR RH100 26.000MHz 3.2x 2.5mm ± 10 ppm ± 15 ppm 15 pF -20°C~+70°C
RH100-26.000-10-F-2030-TR RH100 26.000MHz 3.2x 2.5mm ± 20 ppm ± 30 ppm 10 pF -20°C~+70°C
RH100-26.000-12-F-1010-EXT-TR RH100 26.000MHz 3.2x 2.5mm ± 10 ppm ± 10 ppm 12 pF -40°C~+85°C
RH100-26.000-10-F-1010-EXT-TR RH100 26.000MHz 3.2x 2.5mm ± 10 ppm ± 10 ppm 10 pF -40°C~+85°C
RH100-26.000-18-F-2030-EXT-TR RH100 26.000MHz 3.2x 2.5mm ± 20 ppm ± 30 ppm 18 pF -40°C~+85°C
RH100-26.000-20-F-1010-TR RH100 26.000MHz 3.2x 2.5mm ± 10 ppm ± 10 ppm 20 pF -20°C~+70°C
RH100-27.000-12-F-1010-TR RH100 27.000MHz 3.2x 2.5mm ± 10 ppm ± 10 ppm 12 pF -20°C~+70°C
RH100-27.000-18-F-2020-TR RH100 27.000MHz 3.2x 2.5mm ± 20 ppm ± 20 ppm 18 pF -20°C~+70°C
RH100-27.120-10-F-3030-TR RH100 27.120MHz 3.2x 2.5mm ± 30 ppm ± 30 ppm 10 pF -20°C~+70°C
RH100-27.120-18-F-3030-EXT-TR RH100 27.120MHz 3.2x 2.5mm ± 30 ppm ± 30 ppm 18 pF -40°C~+85°C
RH100-30.000-10-F-1010-TR RH100 30.000MHz 3.2x 2.5mm ± 10 ppm ± 10 ppm 10 pF -20°C~+70°C
RH100-32.000-12-F-1010-TR RH100 32.000MHz 3.2x 2.5mm ± 10 ppm ± 10 ppm 12 pF -20°C~+70°C
RH100-32.000-10-F-1010-TR RH100 32.000MHz 3.2x 2.5mm ± 10 ppm ± 10 ppm 10 pF -20°C~+70°C
RH100-32.000-16-F-1015-EXT-TR RH100 32.000MHz 3.2x 2.5mm ± 10 ppm ± 15 ppm 16 pF -40°C~+85°C
RH100-32.000-12-F-3030-TR RH100 32.000MHz 3.2x 2.5mm ± 30 ppm ± 30 ppm 12 pF -20°C~+70°C
RH100-32.000-8-F-1010-TR RH100 32.000MHz 3.2x 2.5mm ± 10 ppm ± 10 ppm 8 pF -20°C~+70°C
RH100-32.000-9-F-1010-TR RH100 32.000MHz 3.2x 2.5mm ± 10 ppm ± 10 ppm 9 pF -20°C~+70°C
RH100-32.000-18-F-1010-TR RH100 32.000MHz 3.2x 2.5mm ± 10 ppm ± 10 ppm 18 pF -20°C~+70°C
RH100-38.400-10-F-1010-TR RH100 38.400MHz 3.2x 2.5mm ± 10 ppm ± 10 ppm 10 pF -20°C~+70°C
RH100-40.000-10-F-1010-TR RH100 40.000MHz 3.2x 2.5mm ± 10 ppm ± 10 ppm 10 pF -20°C~+70°C
RH100-40.000-16-F-1010-TR RH100 40.000MHz 3.2x 2.5mm ± 10 ppm ± 10 ppm 16 pF -20°C~+70°C
RH100-40.000-8-F-1015-EXT-TR RH100 40.000MHz 3.2x 2.5mm ± 10 ppm ± 15 ppm 8 pF -40°C~+85°C
RH100-40.000-9-F-1010-EXT-TR RH100 40.000MHz 3.2x 2.5mm ± 10 ppm ± 10 ppm 9 pF -40°C~+85°C
RH100-40.000-6-F-1010-TR RH100 40.000MHz 3.2x 2.5mm ± 10 ppm ± 10 ppm 6 pF -20°C~+70°C
RH100-40.000-18-F-2050-TR RH100 40.000MHz 3.2x 2.5mm ± 20 ppm ± 50 ppm 18 pF -20°C~+70°C
RH100-40.000-12-F-1010-TR RH100 40.000MHz 3.2x 2.5mm ± 10 ppm ± 10 ppm 12 pF -20°C~+70°C
RH100-40.000-6-F-1010-EXT-TR RH100 40.000MHz 3.2x 2.5mm ± 10 ppm ± 10 ppm 6 pF -40°C~+85°C
RH100-48.000-10-F-1015-EXT-TR RH100 48.000MHz 3.2x 2.5mm ± 10 ppm ± 15 ppm 10 pF -40°C~+85°C
RH100-48.000-18-F-3030-TR RH100 48.000MHz 3.2x 2.5mm ± 30 ppm ± 30 ppm 18 pF -20°C~+70°C
RH100-48.000-8-F-1015-EXT-TR RH100 48.000MHz 3.2x 2.5mm ± 10 ppm ± 15ppm 8 pF -40°C~+85°C
RH100-48.000-10-F-TR-NS1 RH100 48.000MHz 3.2x 2.5mm ± 30 ppm ± 30 ppm 10 pF -20°C~+70°C
RH100-50.000-12-F-1010-TR RH100 50.000MHz 3.2x 2.5mm ± 10 ppm ± 10 ppm 12 pF -20°C~+70°C
RH100-50.000-10-F-1015-EXT-TR RH100 50.000MHz 3.2x 2.5mm ± 10 ppm ± 15 ppm 10 pF -40°C~+85°C
RH100-50.000-8-F-2030-EXT-TR RH100 50.000MHz 3.2x 2.5mm ± 20 ppm ± 30 ppm 8 pF -40°C~+85°C
