TXC晶振目前专业从事这些类别的产品：晶体（32.768kHz，基本兆赫，高精度的兆赫，汽车级晶振）
TXC晶振9HT10系列，编码9HT10-32.768KBZF-T，小体积晶振尺寸3.2x1.5x0.75mm，频率32.768k晶振，两脚贴片晶振，石英晶体谐振器，具有超小型，轻薄型，耐热及耐环境特性，高可靠的环境性能，符合RoHS标准/无铅，9HT10-32.768KDZF-T是各种汽车产品参考时钟的应用
9HT10-32.768KDZF-T是各种汽车产品参考时钟的应用
Manufacturer Part Number原厂编码
Manufacturer厂家
Series型号
Type 系列
Frequency
Operating Temperature 工作温度
9HT10-32.768KBZF-T
TXC CORPORATION
9HT10
kHz Crystal (Tuning Fork)
32.768kHz
-40°C ~ 85°C
9HT10-32.768KBZF-T
TXC CORPORATION
9HT10
kHz Crystal (Tuning Fork)
32.768kHz
-40°C ~ 85°C
9HT10-32.768KBZF-T
TXC CORPORATION
9HT10
kHz Crystal (Tuning Fork)
32.768kHz
-40°C ~ 85°C
9HT10-32.768KDZF-T
TXC CORPORATION
9HT10
kHz Crystal (Tuning Fork)
32.768kHz
-40°C ~ 85°C
9HT10-32.768KDZF-T
TXC CORPORATION
9HT10
kHz Crystal (Tuning Fork)
32.768kHz
-40°C ~ 85°C
9HT10-32.768KDZF-T
TXC晶振
9HT10
kHz Crystal (Tuning Fork)
32.768kHz
-40°C ~ 85°C
9HT10-32.768KEZF-T
TXC CORPORATION
9HT10
kHz Crystal (Tuning Fork)
32.768kHz
-40°C ~ 85°C
9HT10-32.768KEZF-T
TXC CORPORATION
9HT10
kHz Crystal (Tuning Fork)
32.768kHz
-40°C ~ 85°C
9HT10-32.768KEZF-T
TXC CORPORATION
9HT10
kHz Crystal (Tuning Fork)
32.768kHz
-40°C ~ 85°C
9HT10-32.768KAZF-T
TXC CORPORATION
9HT10
kHz Crystal (Tuning Fork)
32.768kHz
-40°C ~ 85°C
9HT10-32.768KAZF-T
TXC CORPORATION
9HT10
kHz Crystal (Tuning Fork)
32.768kHz
-40°C ~ 85°C
9HT10-32.768KAZF-T
TXC CORPORATION
9HT10
kHz Crystal (Tuning Fork)
32.768kHz
-40°C ~ 85°C
9HT10-32.768KBZB-T
TXC CORPORATION
9HT10
kHz Crystal (Tuning Fork)
32.768kHz
-40°C ~ 85°C
9HT10-32.768KBZB-T
TXC CORPORATION
9HT10
kHz Crystal (Tuning Fork)
32.768kHz
-40°C ~ 85°C
9HT10-32.768KBZB-T
TXC CORPORATION
9HT10
kHz Crystal (Tuning Fork)
32.768kHz
-40°C ~ 85°C
9HT10-32.768KBZC-T
TXC CORPORATION
9HT10
kHz Crystal (Tuning Fork)
32.768kHz
-40°C ~ 85°C
9HT10-32.768KBZC-T
TXC CORPORATION
9HT10
kHz Crystal (Tuning Fork)
32.768kHz
-40°C ~ 85°C
9HT10-32.768KBZC-T
TXC CORPORATION
9HT10
kHz Crystal (Tuning Fork)
32.768kHz
-40°C ~ 85°C
9HT10-32.768KBZY-T
TXC CORPORATION
9HT10
kHz Crystal (Tuning Fork)
32.768kHz
-40°C ~ 85°C

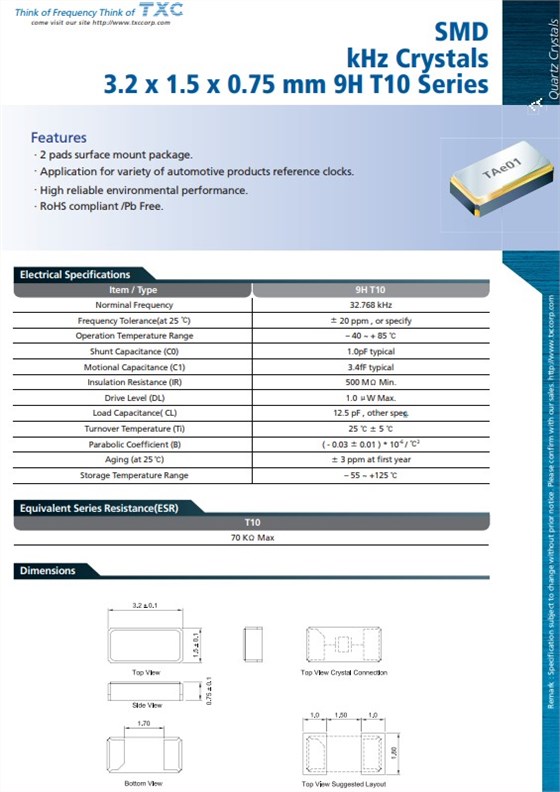

参数：
正常频率：32.768KHz钟表晶振
频率公差(25 ℃时)：20ppm，或指定
工作温度范围：–40℃至+85℃
并联电容(C0)：1.0pF(典型值)
运动电容(C1)：典型值3.4fF
绝缘电阻(IR)：最小500mω。
驱动电平(DL)：最大1.0 μW。
负载电容：12.5 pF，其他规格。
翻转温度(Ti)：25℃±5℃
抛物线系数(B)：(-0.03±0.01)10-6/℃
老化(25 ℃时)：第一年为3ppm
储存温度范围：–55℃至+125℃
石英晶体谐振器是使用石英组件所制造之电子被动组件，具备最高的质量因子(Quality factor)与不同温度变化下的频率稳定度，目前广泛运用于需求参考时钟，同步讯号等各类有线及无线电子产品或系统之上，例如：机械，通讯，电子，医疗以及消费性等市场，都有使用石英晶体谐振器各种应用产品。
| 9HT10-32.768KBZY-T | TXC CORPORATION | 9HT10 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| 9HT10-32.768KBZY-T | TXC CORPORATION | 9HT10 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| 9HT10-32.768KAZB-T | TXC CORPORATION | 9HT10 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| 9HT10-32.768KAZB-T | TXC CORPORATION | 9HT10 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| 9HT10-32.768KAZB-T | TXC CORPORATION | 9HT10 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| 9HT10-32.768KAZC-T | TXC CORPORATION | 9HT10 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| 9HT10-32.768KAZC-T | TXC CORPORATION | 9HT10 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| 9HT10-32.768KAZC-T | TXC CORPORATION | 9HT10 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| 9HT10-32.768KAZY-T | TXC CORPORATION | 9HT10 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| 9HT10-32.768KAZY-T | TXC CORPORATION | 9HT10 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| 9HT10-32.768KAZY-T | TXC CORPORATION | 9HT10 | kHz Crystal (Tuning Fork) | 32.768k | -40°C ~ 85°C |
| 9HT10-32.768KDZB-T | TXC CORPORATION | 9HT10 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| 9HT10-32.768KDZB-T | TXC CORPORATION | 9HT10 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| 9HT10-32.768KDZB-T | TXC CORPORATION | 9HT10 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| 9HT10-32.768KDZY-T | TXC CORPORATION | 9HT10 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| 9HT10-32.768KDZY-T | TXC CORPORATION | 9HT10 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| 9HT10-32.768KDZY-T | TXC CORPORATION | 9HT10 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| 9HT10-32.768KDZC-T | TXC CORPORATION | 9HT10 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| 9HT10-32.768KDZC-T | TXC CORPORATION | 9HT10 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| 9HT10-32.768KDZC-T | TXC CORPORATION | 9HT10 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
石英晶体谐振器是一种生活中随处可见的电子器件，诞生于20世纪20年代初，因具有较高的品质因数及良好的频率稳定性，被广泛应用于航天、通信、军事等工业领域。顾名思义，制造石英晶体谐振器的原材料就是石英，一种非常重要的压电材料。其主要特征是其原子或分子有规律排列，反映在宏观上是外形的对称性，在电场的作用下，石英晶体内部产生应力而形变，从而产生机械振动，获得特定的频率。
