Microchip Technology Inc.是微控制器，石英贴片晶振，模拟，FPGA，连接和电源管理半导体的领先供应商。其易于使用的开发工具和全面的产品组合使客户能够创建最佳设计，从而降低风险，同时降低总体系统成本和上市时间。该公司的解决方案为工业，汽车，消费品，航空航天和国防，通信和计算市场的130,000多家客户提供服务。Microchip总部位于亚利桑那州钱德勒，提供出色的技术支持以及可靠的交付和质量。CMOS振荡器DSC1003CI5-025.0000T是工业和便携式应用的理想选择

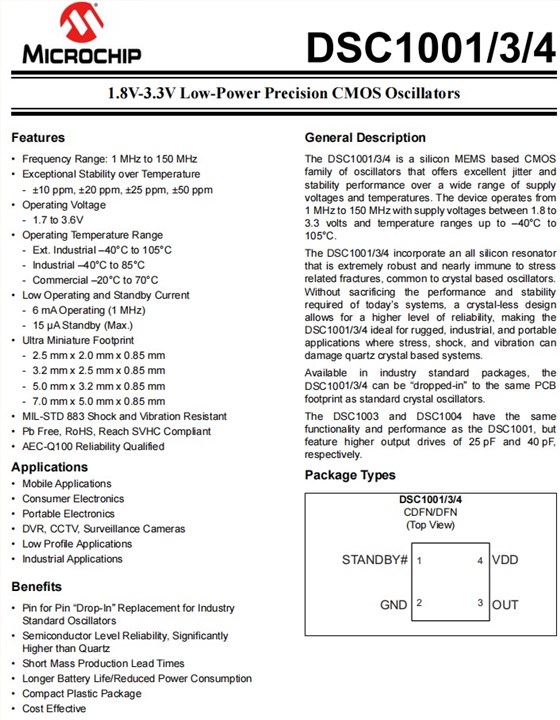

Microchip晶振DSC1003是一款基于硅MEMS的CMOS石英晶体振荡器，在宽电源电压和温度范围内具有出色的抖动和稳定性能。该器件的工作频率为1至150MHz，电源电压为1.8至3.3V，扩展温度范围为-40°C至105°C，DSC1003的功能和性能与DSC1001相同，但输出驱动更大(CL <25pf)。有源晶振DSC1003集成了一个全硅谐振器，非常坚固，几乎不受基于晶体振荡器常见的应力相关断裂的影响。在不牺牲当今系统所需的性能和稳定性的情况下，无晶体设计实现了更高水平的可靠性，使DSC1003成为应力、冲击和振动会损坏石英晶体系统的坚固、工业和便携式应用的理想选择。DSC1003采用工业标准封装，可以“嵌入”到与标准晶体振荡器相同的PCB尺寸中。CMOS振荡器DSC1003CI5-025.0000T是工业和便携式应用的理想选择
| 石英贴片晶振 | 品牌 | 型号 | 频率 | 电压 | Type 类型 |
| DSC1003DI2-100.0000 | Microchip晶振 | DSC1003 | 100MHz | 1.8 V ~ 3.3 V | MEMS (Silicon) |
| DSC1003CI2-050.0000 | Microchip晶振 | DSC1003 | 50MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
| DSC1003DL5-020.0000 | Microchip晶振 | DSC1003 | 20MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
| DSC1003DL5-025.0000 | Microchip晶振 | DSC1003 | 25MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
| DSC1003DL2-100.0000 | Microchip晶振 | DSC1003 | 100MHz | 1.8 V ~ 3.3 V | MEMS (Silicon) |
| DSC1003DE1-040.0000 | Microchip晶振 | DSC1003 | 40MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
| DSC1003CI2-025.0000 | Microchip晶振 | DSC1003 | 25MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
| DSC1003DI2-024.5760 | Microchip晶振 | DSC1003 | 24.576MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
| DSC1003DL2-070.0000 | Microchip晶振 | DSC1003 | 70MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
| DSC1003DL2-008.0000 | Microchip晶振 | DSC1003 | 8MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
| DSC1003CI5-025.0000 | Microchip晶振 | DSC1003 | 25MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
| DSC1003CI5-025.0000T | Microchip晶振 | DSC1003 | 25MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
| DSC1003DE1-050.0000T | Microchip晶振 | DSC1003 | 50MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
| DSC1003AI2-050.0000T | Microchip晶振 | DSC1003 | 50MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
| DSC1003BI1-060.0000T | Microchip晶振 | DSC1003 | 60MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
| DSC1003DL1-125.0000 | Microchip晶振 | DSC1003 | 125MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
| DSC1003DL1-125.0000T | Microchip晶振 | DSC1003 | 125MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
| DSC1003DI2-100.0000T | Microchip晶振 | DSC1003 | 100MHz | 1.8 V ~ 3.3 V | MEMS (Silicon) |
| DSC1003CI5-020.0000 | Microchip晶振 | DSC1003 | 20MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
| DSC1003CL1-048.0000T | Microchip晶振 | DSC1003 | 48MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
| DSC1003CI2-025.0000T | Microchip晶振 | DSC1003 | 25MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
| DSC1003CI2-050.0000T | Microchip晶振 | DSC1003 | 50MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
| DSC1003DI2-024.5760T | Microchip晶振 | DSC1003 | 24.576MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
| DSC1003CL1-095.0000T | Microchip晶振 | DSC1003 | 95MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
| DSC1003DL2-050.0000T | Microchip晶振 | DSC1003 | 50MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
| DSC1003DL2-025.0000 | Microchip晶振 | DSC1003 | 25MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
| DSC1003DL2-008.0000T | 进口晶振 | DSC1003 | 8MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
| DSC1003DL2-025.0000T | Microchip晶振 | DSC1003 | 25MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
| DSC1003DL5-020.0000T | Microchip晶振 | DSC1003 | 20MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
| DSC1003DL5-025.0000T | Microchip晶振 | DSC1003 | 25MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
| DSC1003DL2-148.5000T | Microchip晶振 | DSC1003 | 148.5MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
| DSC1003CI5-087.5000 | Microchip晶振 | DSC1003 | 87.5MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
| DSC1003DL2-090.0000T | Microchip晶振 | DSC1003 | 90MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
| DSC1003DL2-070.0000T | Microchip晶振 | DSC1003 | 70MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
| DSC1003DL2-100.0000T | Microchip晶振 | DSC1003 | 100MHz | 1.8 V ~ 3.3 V | MEMS (Silicon) |
| DSC1003DL5-100.0000 | Microchip晶振 | DSC1003 | 100MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
| DSC1003DL5-100.0000T | Microchip晶振 | DSC1003 | 100MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
| DSC1003DL5-125.0000 | Microchip晶振 | DSC1003 | 125MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
| DSC1003DL5-125.0000T | Microchip晶振 | DSC1003 | 125MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
| DSC1003DL5-148.5000 | Microchip晶振 | DSC1003 | 148.5MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
| DSC1003DL5-148.5000T | Microchip晶振 | DSC1003 | 148.5MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
| DSC1003AI1-050.0000 | Microchip晶振 | DSC1003 | 50MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
| DSC1003AI1-050.0000T | Microchip晶振 | DSC1003 | 50MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
| DSC1003BE2-012.0000 | Microchip晶振 | DSC1003 | 12MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
| DSC1003BE2-012.0000T | Microchip晶振 | DSC1003 | 12MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
| DSC1003BE2-027.0000 | Microchip晶振 | DSC1003 | 27MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
| DSC1003BE2-027.0000T | Microchip晶振 | DSC1003 | 27MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
| DSC1003CI1-025.0000 | Microchip晶振 | DSC1003 | 25MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
| DSC1003CI1-025.0000T | Microchip晶振 | DSC1003 | 25MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
| DSC1003CI1-050.0000 | Microchip晶振 | DSC1003 | 50MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
| DSC1003CI1-050.0000T | Microchip晶振 | DSC1003 | 50MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
| DSC1003CI5-020.0000T | Microchip晶振 | DSC1003 | 20MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
| DSC1003AE1-050.0000T | Microchip晶振 | DSC1003 | 50MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
| DSC1003AI2-040.0000T | Microchip晶振 | DSC1003 | 40MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
| DSC1003BE5-020.9450T | Microchip晶振 | DSC1003 | 20.945MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
| DSC1003BI1-040.0000T | Microchip晶振 | DSC1003 | 40MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
| DSC1003CL1-019.2000T | Microchip晶振 | DSC1003 | 19.2MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
| DSC1003DE1-048.0000T | Microchip晶振 | DSC1003 | 48MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
| DSC1003DL1-019.2000T | 移动通讯晶振 | DSC1003 | 19.2MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
| DSC1003DL1-025.0000T | Microchip晶振 | DSC1003 | 25MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
| DSC1003AI2-040.0000 | Microchip晶振 | DSC1003 | 40MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
| DSC1003BI1-040.0000 | Microchip晶振 | DSC1003 | 40MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
| DSC1003CL1-019.2000 | Microchip晶振 | DSC1003 | 19.2MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
| DSC1003DL1-019.2000 | Microchip晶振 | DSC1003 | 19.2MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
| DSC1003DL1-025.0000 | Microchip晶振 | DSC1003 | 25MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
| DSC1003AE2-024.0000T | Microchip晶振 | DSC1003 | 24MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
| DSC1003BI2-010.0000T | Microchip晶振 | DSC1003 | 10MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
| DSC1003CI1-070.0000T | Microchip晶振 | DSC1003 | 70MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
| DSC1003CI2-010.0000T | Microchip晶振 | DSC1003 | 10MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
| DSC1003CL2-020.0000T | Microchip晶振 | DSC1003 | 20MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
| DSC1003CL2-025.0000T | Microchip晶振 | DSC1003 | 25MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
| DSC1003DE2-024.0000T | Microchip晶振 | DSC1003 | 24MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
| DSC1003AE2-024.0000 | Microchip晶振 | DSC1003 | 24MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
| DSC1003BI2-010.0000 | Microchip晶振 | DSC1003 | 10MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
| DSC1003CI1-070.0000 | Microchip晶振 | DSC1003 | 70MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
| DSC1003CI2-010.0000 | Microchip晶振 | DSC1003 | 10MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
| DSC1003CL2-020.0000 | Microchip晶振 | DSC1003 | 20MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
| DSC1003CL2-025.0000 | Microchip晶振 | DSC1003 | 25MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
| DSC1003DE2-024.0000 | Microchip晶振 | DSC1003 | 24MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
| DSC1003CI5-087.5000T | Microchip晶振 | DSC1003 | 87.5MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
| DSC1003CL1-095.0000 | Microchip晶振 | DSC1003 | 95MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
| DSC1003DL2-050.0000 | Microchip晶振 | DSC1003 | 50MHz | 1.8 ~ 3.3V | MEMS (Silicon) |
CMOS振荡器DSC1003CI5-025.0000T是工业和便携式应用的理想选择
DSC1003产品特性：
频率范围:1至150MHz
10PPM、25PPM、50PPM
工作电压为1.7V至3.6V石英晶体振荡器
延伸文件系统工业-40℃至105℃
延伸文件系统商用-20°C至70°C
商用0°C至70°C
6mA运行(40MHz)
15 A备用

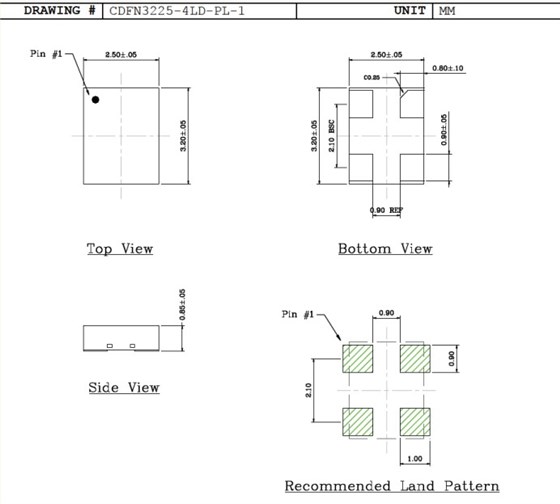

2.5毫米x2.0mm毫米x0.85mm毫米
3.2毫米x2.5mm毫米x0.85mm毫米
5.0毫米x3.2mm毫米x0.85mm毫米
7.0毫米x5.0mm毫米x0.85mm毫米
出色的抗冲击和振动性能
符合无铅、RoHS和Reach SVHC标准
