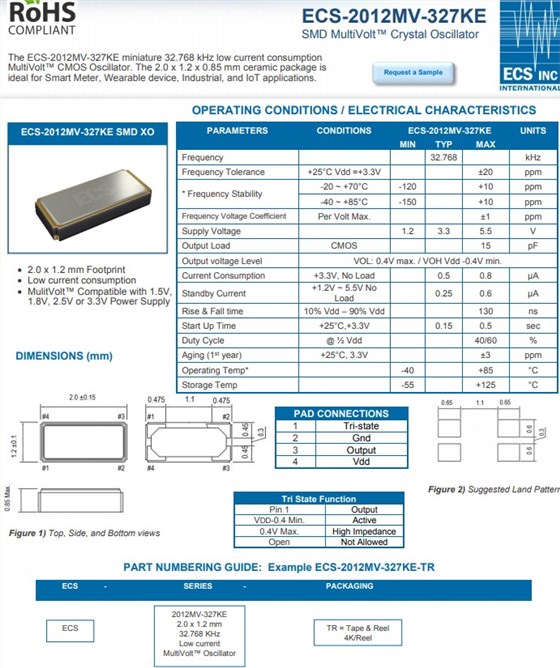

ECS晶振ECS-3215MV-327KE系列HCMOS振荡器，是在一个2.0毫米x1.2毫米x0.85毫米陶瓷封装提供多伏特™ 能力。
作为MultiVolt的一部分，这些电子元件在-40°C至+85°C的标准工业工作温度下提供32.768kHz的频率、10ppm的频率稳定性和0.5 A的低功耗™ECS-2012MV-327KE是振荡器系列，设计采用1.2V至5.5V的可变电源电压或标准1.8V、2.5V、3.0V或3.3V电源供电。该器件针对各种无补偿石英晶体振荡器提供更高的稳定性，是智能电表、可穿戴设备、工业和物联网应用的理想之选。
ECS-2012MV-327KE振荡器非常适合工业和物联网应用，微型32.768kHz低电流消耗 multi volt CMOS振荡器，小体积尺寸2.0x1.2x0.85mm陶瓷封装，非常适合智能电表、可穿戴设备、工业和物联网应用。
| 图像 | 零件号码 | 频率 |
频率 稳定性 |
操作的 温度 |
|
|
ECS-2012MV-327KE-TR | 32.768K晶振 |
20ppm |
-40℃至+85℃ |
| 原厂代码 | 品牌 | 型号 | 频率 | 工作温度 |
| ECS-3225S33-250-FN-TR | ECS Crystal | ECS-3225S | 25MHz | -40°C ~ 85°C |
| ECS-3225S33-250-FN-TR | ECS Crystal | ECS-3225S | 25MHz | -40°C ~ 85°C |
| ECS-3225S33-250-FN-TR | ECS Crystal | ECS-3225S | 25MHz | -40°C ~ 85°C |
| ECS-3225S33-260-FN-TR | ECS Crystal | ECS-3225S | 26MHz | -40°C ~ 85°C |
| ECS-3225S33-260-FN-TR | ECS Crystal | ECS-3225S | 26MHz | -40°C ~ 85°C |
| ECS-3225S33-260-FN-TR | ECS Crystal | ECS-3225S | 26MHz | -40°C ~ 85°C |
| ECS-3225S33-400-FN-TR | ECS Crystal | ECS-3225S | 40MHz | -40°C ~ 85°C |
| ECS-3225S33-400-FN-TR | ECS Crystal | ECS-3225S | 40MHz | -40°C ~ 85°C |
| ECS-3225S33-400-FN-TR | ECS Crystal | ECS-3225S | 40MHz | -40°C ~ 85°C |
| ECS-3225S25-240-FN-TR | ECS Crystal | ECS-3225S | 24MHz | -40°C ~ 85°C |
| ECS-3225S25-240-FN-TR | ECS Crystal | ECS-3225S | 24MHz | -40°C ~ 85°C |
| ECS-3225S25-240-FN-TR | ECS Crystal | ECS-3225S | 24MHz | -40°C ~ 85°C |
| ECS-3225S25-250-FN-TR | ECS Crystal | ECS-3225S | 25MHz | -40°C ~ 85°C |
| ECS-3225S25-250-FN-TR | ECS Crystal | ECS-3225S | 25MHz | -40°C ~ 85°C |
| ECS-3225S25-250-FN-TR | ECS Crystal | ECS-3225S | 25MHz | -40°C ~ 85°C |
| ECS-3225S18-160-FN-TR | ECS Crystal | ECS-3225S | 16MHz | -40°C ~ 85°C |
| ECS-3225S18-160-FN-TR | ECS Crystal | ECS-3225S | 16MHz | -40°C ~ 85°C |
| ECS-3225S18-160-FN-TR | ECS Crystal | ECS-3225S | 16MHz | -40°C ~ 85°C |
| ECS-3225S18-200-FN-TR | ECS Crystal | ECS-3225S | 20MHz | -40°C ~ 85°C |
| ECS-3225S18-200-FN-TR | ECS Crystal | ECS-3225S | 20MHz | -40°C ~ 85°C |
| ECS-3225S18-200-FN-TR | ECS Crystal | ECS-3225S | 20MHz | -40°C ~ 85°C |
| ECS-3225S18-240-FN-TR | ECS Crystal | ECS-3225S | 24MHz | -40°C ~ 85°C |
| ECS-3225S18-240-FN-TR | ECS Crystal | ECS-3225S | 24MHz | -40°C ~ 85°C |
| ECS-3225S18-240-FN-TR | ECS Crystal | ECS-3225S | 24MHz | -40°C ~ 85°C |
| ECS-3225S18-270-FN-TR | ECS Crystal | ECS-3225S | 27MHz | -40°C ~ 85°C |
| ECS-3225S18-270-FN-TR | ECS Crystal | ECS-3225S | 27MHz | -40°C ~ 85°C |
| ECS-3225S18-270-FN-TR | ECS Crystal | ECS-3225S | 27MHz | -40°C ~ 85°C |
| ECS-3225S18-320-FN-TR | ECS Crystal | ECS-3225S | 32MHz | -40°C ~ 85°C |
| ECS-3225S18-320-FN-TR | ECS Crystal | ECS-3225S | 32MHz | -40°C ~ 85°C |
| ECS-3225S18-320-FN-TR | ECS Crystal | ECS-3225S | 32MHz | -40°C ~ 85°C |
| ECS-3225S18-400-FN-TR | ECS Crystal | ECS-3225S | 40MHz | -40°C ~ 85°C |
特点:
2.0毫米x 1.2毫米x 0.85mm四脚贴片晶振
频率：32.768K
稳定性:-150至+10 ppm @-40℃至+85℃
温度范围:-40℃至+85℃
电流消耗:0.5A
多伏特铥支持+1.8 V、+2.5 V、+3.0 V或+3.3 V，或者1.2V ~5.5V供给
HCMOS输出
符合RoHS和REACH标准
应用于：物联网，产业的，无线的，衣服，智能电表，医疗(非维持生命)
