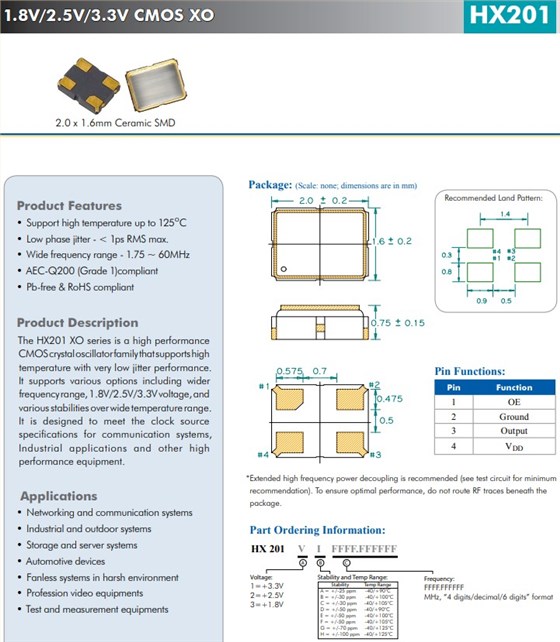

百利通亚陶晶振HX201 XO系列是高性能CMOS晶体振荡器系列，支持高温且抖动性能极低。超小型尺寸2.0x1.6mm、高温CMOS晶体振荡器。它支持各种选项，包括更宽的频率范围、8V/2.5V/3.3V电压以及在宽温度范围内的各种稳定性。它旨在满足通信系统、工业应用和其他高性能设备的时钟源规范。
特征：
支持高达125℃的高温 耐高温晶振
低相位抖动 - < 1ps RMS最大值。
宽频率范围 - 1.75 ~ 60MHz
更厚的晶体以提高可靠性
低电源电流 - 最大 20mA。
无铅且符合RoHS标准
应用：
网络系统
工业系统
专业视频设备
测试和测量
HX201系列支持高温且抖动性能极低,HX2013D0016.000000,低抖动晶振,ECERA晶振
KK3270042
Diodes Incorporated
SaRonix-eCera™ KK
32.768kHz
±50ppm
-40°C ~ 85°C
KK3270044
Diodes Incorporated
SaRonix-eCera™ KK
32.768kHz
±50ppm
-20°C ~ 70°C
KN3270027
Diodes Incorporated
SaRonix-eCera™ KN
32.768kHz
±20ppm
-20°C ~ 70°C
KD3270033
Diodes Incorporated
SaRonix-eCera™ KD
32.768kHz
±20ppm
-20°C ~ 70°C
KN3270030
Diodes Incorporated
SaRonix-eCera™ KN
32.768kHz
±20ppm
-20°C ~ 70°C
KD3270039
Diodes Incorporated
SaRonix-eCera™ KD
32.768kHz
±20ppm
-20°C ~ 70°C
KN3270023
Diodes Incorporated
SaRonix-eCera™ KN
32.768kHz
±50ppm
-40°C ~ 85°C
FNC500129
Diodes Incorporated
SaRonix-eCera™ FN
125MHz
±50ppm
-20°C ~ 70°C
KN3270036
Diodes Incorporated
SaRonix-eCera™ KN
32.768kHz
±25ppm
-40°C ~ 85°C
KN3270029
Diodes Incorporated
SaRonix-eCera™ KN
32.768kHz
±25ppm
-40°C ~ 85°C
KX2511B0032.768000
Diodes Incorporated
SaRonix-eCera™ KX
32.768kHz
±25ppm
-20°C ~ 70°C
KX2511C0032.768000
Diodes Incorporated
SaRonix-eCera™ KX
32.768kHz
±50ppm
-20°C ~ 70°C
KX2511E0032.768000
Diodes Incorporated
SaRonix-eCera™ KX
32.768kHz
±50ppm
-40°C ~ 85°C
KX2511H0032.768000
Diodes Incorporated
SaRonix-eCera™ KX
32.768kHz
±25ppm
0°C ~ 85°C
KX2513C0032.768000
Diodes Incorporated
SaRonix-eCera™ KX
32.768kHz
±50ppm
-20°C ~ 70°C
KX2513E0032.768000
Diodes Incorporated
SaRonix-eCera™ KX
32.768kHz
±50ppm
-40°C ~ 85°C
KX2513H0032.768000
Diodes Incorporated
SaRonix-eCera™ KX
32.768kHz
±25ppm
0°C ~ 85°C
KX2513B0032.768000
Diodes Incorporated
SaRonix-eCera™ KX
32.768kHz
±25ppm
-20°C ~ 70°C
KD3270038
Diodes Incorporated
SaRonix-eCera™ KD
32.768kHz
±25ppm
-20°C ~ 70°C
KD3270038
Diodes Incorporated
SaRonix-eCera™ KD
32.768kHz
±25ppm
-20°C ~ 70°C
KD3270038
Diodes Incorporated
SaRonix-eCera™ KD
32.768kHz
±25ppm
-20°C ~ 70°C
KN3270025
Diodes Incorporated
SaRonix-eCera™ KN
32.768kHz
±25ppm
-20°C ~ 70°C
KX2513A0032.768000
Diodes Incorporated
SaRonix-eCera™ KX
32.768kHz
±20ppm
-20°C ~ 70°C
KD3270041
Diodes Incorporated
SaRonix-eCera™ KD
32.768kHz
±20ppm
-20°C ~ 70°C
KN3270024
Diodes Incorporated
SaRonix-eCera™ KN
32.768kHz
±20ppm
-20°C ~ 70°C

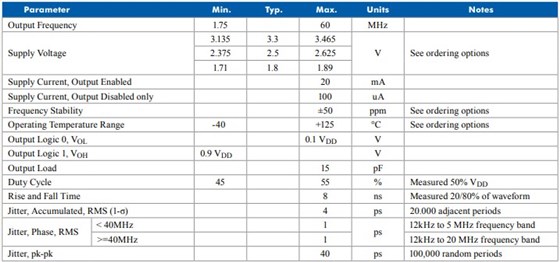

Product Parameters
| Subfamily | High Temp XO |
|---|---|
| Product Series | HX |
| Compliance(Only Automotive supports PPAP) | Standard |
| Freq Range (MHz) | 1 to 125 |
| Jitter RMS (ps) | <1 ps RMS |
| Stability (PPM) | 25 to 100 |
| Package Size (mm) | 2.0 x 1.6 x 0.75 |
| PkgType | Ceramic Seam |
| Output Logic | CMOS |
| Supply Voltage (V) | 3.3, 2.5, 1.8 |
| Pads | 4 |
HX201系列支持高温且抖动性能极低,HX2013D0016.000000,低抖动晶振,ECERA晶振
产品参数：
亚科 高温XO
产品系列 HX
合规性（仅汽车支持PPAP）标准
频率范围 1MHz到125MHz
抖动均方根 (ps) <1 ps RMS
稳定性 25PPM到100PPM
包装尺寸 2.0x1.6x0.75mm有源晶振
包装类型 陶瓷缝
输出逻辑 CMOS
电源电压 3.3V, 2.5V, 1.8V
垫 4脚
KK3270047
Diodes Incorporated
SaRonix-eCera™ KK
32.768kHz
±50ppm
-20°C ~ 70°C
KD3270044
Diodes Incorporated
SaRonix-eCera™ KD
32.768kHz
±25ppm
-40°C ~ 85°C
KD3270044
Diodes Incorporated
SaRonix-eCera™ KD
32.768kHz
±25ppm
-40°C ~ 85°C
KD3270044
Diodes Incorporated
SaRonix-eCera™ KD
32.768kHz
±25ppm
-40°C ~ 85°C
KN3270035
Diodes Incorporated
SaRonix-eCera™ KN
32.768kHz
±25ppm
-40°C ~ 85°C
KK3270007
Diodes Incorporated
SaRonix-eCera™ KK
32.768kHz
±25ppm
-20°C ~ 70°C
KK3270053
Diodes Incorporated
SaRonix-eCera™ KK
32.768kHz
±20ppm
-20°C ~ 70°C
KK3270041
Diodes Incorporated
SaRonix-eCera™ KK
32.768kHz
±20ppm
-20°C ~ 70°C
KK3270043
Diodes Incorporated
SaRonix-eCera™ KK
32.768kHz
±25ppm
-40°C ~ 85°C
S1700C-20.0000
Diodes Incorporated
SaRonix™ S1700
20MHz
±100ppm
0°C ~ 70°C
KK3270048
Diodes Incorporated
SaRonix-eCera™ KK
32.768kHz
±20ppm
-20°C ~ 70°C
KX3213H0032.768000
Diodes Incorporated
SaRonix-eCera™ KX
32.768kHz
±25ppm
0°C ~ 85°C
KX3213E0032.768000
Diodes Incorporated
SaRonix-eCera™ KX
32.768kHz
±50ppm
-40°C ~ 85°C
KX3213A0032.768000
Diodes Incorporated
SaRonix-eCera™ KX
32.768kHz
±20ppm
-20°C ~ 70°C
KX3213D0032.768000
Diodes Incorporated
SaRonix-eCera™ KX
32.768kHz
±25ppm
-40°C ~ 85°C
KX3213Z0032.768000
Diodes Incorporated
SaRonix-eCera™ KX
32.768kHz
-
-
KX2511G0032.768000
Diodes Incorporated
SaRonix-eCera™ KX
32.768kHz
±25ppm
0°C ~ 70°C
NX5011C0056.000000
Diodes Incorporated
SaRonix-eCera™ NX
56MHz
±50ppm
-20°C ~ 70°C
KX2511D0032.768000
Diodes Incorporated
SaRonix-eCera™ KX
32.768kHz
±25ppm
-40°C ~ 85°C
KX2511Z0032.768000
Diodes Incorporated
SaRonix-eCera™ KX
32.768kHz
-
-
NX7011E0059.000000
Diodes Incorporated
SaRonix-eCera™ NX
59MHz
±50ppm
-40°C ~ 85°C
FRSONT019
Diodes Incorporated
SaRonix-eCera™ FR
19.44MHz
±25ppm
-20°C ~ 70°C
FRXDSL035
Diodes Incorporated
SaRonix-eCera™ FR
35.328MHz
±25ppm
-20°C ~ 70°C
FRSONT038
Diodes Incorporated
SaRonix-eCera™ FR
38.88MHz
±25ppm
-20°C ~ 70°C
KX2013C0032.768000
Diodes Incorporated
SaRonix-eCera™ KX
32.768kHz
±50ppm
-20°C ~ 70°C
我们的高温晶体振荡器（HX系列）专门设计用于支持高达125℃的高温，以满足当今复杂系统的需求。该系列包括CMOS/TTL、LVPECL、LVDS、CML和HCSL贴片差分晶振 输出逻辑以及从2.0mmx1.6mm到7.0mmx5.0mm的各种尺寸。
HX201系列支持高温且抖动性能极低,HX2013D0016.000000,低抖动晶振,ECERA晶振
| KX2013E0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±50ppm | -40°C ~ 85°C |
| NX5011C0120.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 120MHz | ±50ppm | -20°C ~ 70°C |
| NX7012D0025.001875 | Diodes Incorporated | SaRonix-eCera™ NX | 25.001875MHz | ±25ppm | -40°C ~ 85°C |
| JT255CF0019.200000 | Diodes Incorporated | SaRonix-eCera™ JT | 19.2MHz | ±500ppb | -30°C ~ 85°C |
| JT255CF0019.200000 | Diodes Incorporated | SaRonix-eCera™ JT | 19.2MHz | ±500ppb | -30°C ~ 85°C |
| JT255CF0019.200000 | Diodes Incorporated | SaRonix-eCera™ JT | 19.2MHz | ±500ppb | -30°C ~ 85°C |
| JT255CF0016.368000 | Diodes Incorporated | SaRonix-eCera™ JT | 16.368MHz | ±500ppb | -30°C ~ 85°C |
| JT255CF0016.368000 | Diodes Incorporated | SaRonix-eCera™ JT | 16.368MHz | ±500ppb | -30°C ~ 85°C |
| JT255CF0016.368000 | Diodes Incorporated | SaRonix-eCera™ JT | 16.368MHz | ±500ppb | -30°C ~ 85°C |
| JT255CF0016.369000 | Diodes Incorporated | SaRonix-eCera™ JT | 16.369MHz | ±500ppb | -30°C ~ 85°C |
| NX7011E0091.500000 | Diodes Incorporated | SaRonix-eCera™ NX | 91.5MHz | ±50ppm | -40°C ~ 85°C |
| NX7011D0070.656000 | Diodes Incorporated | SaRonix-eCera™ NX | 70.656MHz | ±25ppm | -40°C ~ 85°C |
| NX7011D0104.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 104MHz | ±25ppm | -40°C ~ 85°C |
| NX7021E0125.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 125MHz | ±50ppm | -40°C ~ 85°C |
| SN10GE159 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 159.375MHz | ±50ppm | -20°C ~ 70°C |
| SNGPON155 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 155.52MHz | ±50ppm | -40°C ~ 85°C |
| LD10GE156 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 156.25MHz | ±50ppm | -40°C ~ 85°C |
| LDGPON155 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 155.52MHz | ±50ppm | -20°C ~ 70°C |
| LDF550001 | Diodes Incorporated | SaRonix-eCera™ LD | 155.52MHz | ±25ppm | -20°C ~ 70°C |
| PDF620004 | Diodes Incorporated | SaRonix-eCera™ PD | 156.25MHz | ±50ppm | -40°C ~ 85°C |
| S1613B-27.0000 | Diodes Incorporated | SaRonix-eCera™ FN | 27MHz | ±50ppm | -10°C ~ 70°C |
| KM3270002 | Diodes Incorporated | SaRonix-eCera™ KM | 32.768kHz | ±25ppm | -40°C ~ 85°C |
| KM3270003 | Diodes Incorporated | SaRonix-eCera™ KM | 32.768kHz | ±25ppm | -40°C ~ 85°C |
| PXA000010 | Diodes Incorporated | SaRonix-eCera™ PX | 100MHz | ±50ppm | -20°C ~ 70°C |
| PXA000010 | Diodes Incorporated | SaRonix-eCera™ PX | 100MHz | ±50ppm | -20°C ~ 70°C |
HX201系列支持高温且抖动性能极低,HX2013D0016.000000,低抖动晶振,ECERA晶振
HX201 25~100 2.0x 1.6x0.75 1到125 <1 CMOS 3.32.51.8 4 陶瓷缝 1.8V/2.5V/3.3V、2.0x1.6mm、高温CMOS晶体振荡器
HX251 25~100 2.5x 2.0x0.9 1至135 (1.8V); 1至162 (2.5/3.3V) <1 CMOS 3.32.51.8 4 陶瓷缝 1.8V/2.5V/3.3V、2.5x2.0mm、高温CMOS晶体振荡器
HX321 25~100 3.2x 2.5x1.0 1至135 (1.8V); 1至162 (2.5/3.3V) <1 CMOS 3.32.51.8 4 陶瓷缝 1.8V/2.5V/3.3V、3.2x2.5mm、高温CMOS晶体振荡器
HX322 25~100 3.2x 2.5x1.0 25至162 (2.5V/3.3V) <1 LVPECL 3.32.5 6 陶瓷缝 2.5V/3.3V、3.2x2.5mm、高温LVPECL晶体振荡器
HX323 25~100 3.2x 2.5x1.0 25至162 (1.8V/2.5V/3.3V) <1 LVDS 3.32.5 6 陶瓷缝 2.5V/3.3V、3.2x2.5mm、高温LVDS晶体振荡器
HX501 25~100 5.0x 3.2x1.2 1至135 (1.8V) ; 1至162 (2.5/3.3V) <1 CMOS 3.32.51.8 4 陶瓷缝 1.8V/2.5V/3.3V、5.0x3.2mm、高温CMOS晶体振荡器
HX502 25~100 5.0x 3.2x1.2 25至162 (2.5V/3.3V) <1 LVPECL 3.32.5 6 陶瓷缝 2.5V/3.3V、5.0x3.2mm、高温LVPECL晶体振荡器
HX503 25~100 5.0x 3.2x1.2 25至 162 (1.8V/2.5V/3.3V) <1 LVDS 3.32.5 6 陶瓷缝 2.5V/3.3V、5.0x3.2mm、高温LVDS晶体振荡器
HX701 25~100 7.0x5.0x1.4 1至135 (1.8V) ; 1 至 162 (2.5/3.3V) <1 CMOS 3.32.51.8 4 陶瓷缝 1.8V/2.5V/3.3V、7.0x5.0mm、高温CMOS晶体振荡器
HX702 25~100 7.0x5.0x1.4 25至162 (2.5V/3.3V) <1 LVPECL 3.32.5 6 陶瓷缝 2.5V/3.3V、7.0x5.0mm、高温LVPECL晶体振荡器
HX703 25~100 7.0x5.0x1.4 25至162 (1.8V/2.5V/3.3V) <1 LVDS 3.32.5 6 陶瓷缝 2.5V/3.3V、7.0x5.0mm、高温LVDS晶体振荡器
