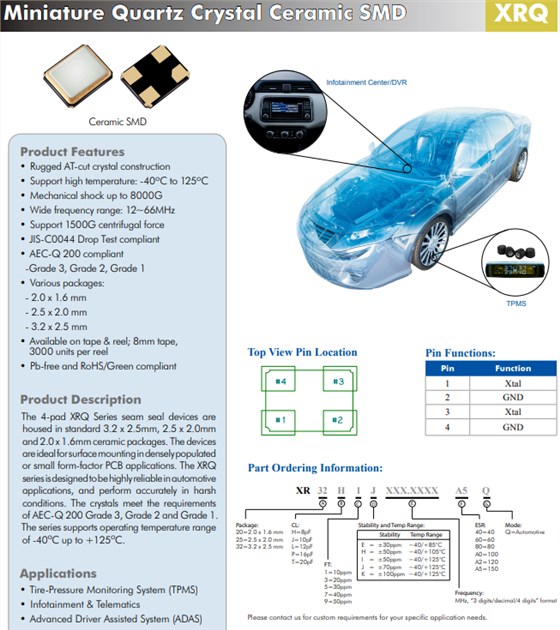

百利通亚陶晶振XRQ系列接缝密封装置采用标准3.2x2.5mm、2.5x2.0mm和2.0x1.6mm陶瓷封装。这些器件非常适合在密集或小型PCB应用中进行表面贴装。XRQ系列旨在在汽车应用中高度可靠，车载晶振，并在恶劣条件下准确运行。晶体符合AEC-Q200 3级、2级和1级的要求。该系列支持-40℃至+125℃的工作温度范围。
特征：
坚固的AT切割晶体结构
支持高温：-40℃至125℃耐高温晶振
机械冲击高达8000G
宽频率范围：12~66MHz
支持1500G 离心力
符合JIS-C0044跌落测试
AEC-Q 200 兼容 - 3级、2级、1级
各种封装：2.0x1.6毫米，2.5x2.0毫米，3.2x2.5毫米
8 毫米胶带，每卷3000个单位
无铅且符合 RoHS/Green标准
应用程序：
胎压监测系统(TPMS)
信息娱乐和远程信息处理
高级驾驶员辅助系统 (ADAS)
XRQ系列非常适合汽车应用中高度的可靠性,XR20J3E024.0000A5Q,汽车电子晶振,ECERA超小型晶振
