亚陶晶振FKQ系列1.8V时钟晶体振荡器,FK2450016,FKA620005,ECERA车载晶振

2022-07-13 16:57:19 康华尔电子

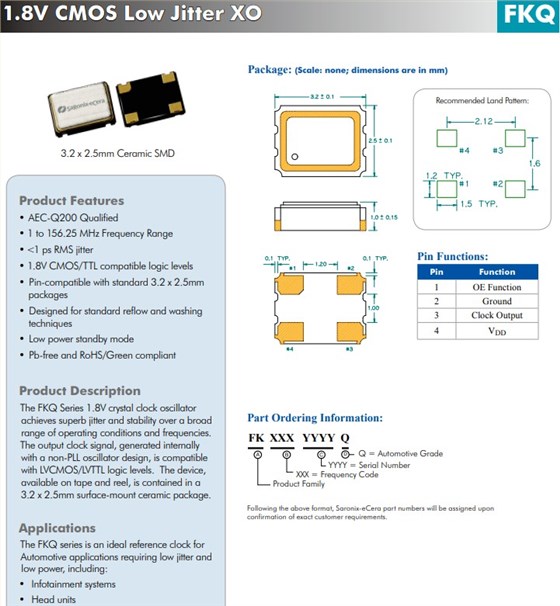

亚陶晶振FKQ系列1.8V时钟晶体振荡器可在广泛的工作条件和频率范围内实现出色的抖动和稳定性。小体积晶振尺寸3.2x2.5mm、汽车级CMOS晶体振荡器，使用非PLL振荡器设计在内部生成的输出时钟信号与LVCMOS/LVTTL逻辑电平兼容。该器件采用卷带包装，采用3.2x2.5mm表面贴装陶瓷封装。FKQ系列是需要低抖动和低功耗的汽车应用的理想参考时钟

产品特点
符合AEC-Q200标准 汽车晶振
频率范围：1至156.25MHz
<1 ps RMS 抖动
1.8V CMOS/TTL 兼容逻辑电平
与标准3.2x2.5mm封装引脚兼容
专为标准回流和清洗技术而设计
低功耗待机模式
无铅且符合RoHS/Green标准
应用：信息娱乐系统，主机

亚陶晶振FKQ系列1.8V时钟晶体振荡器,FK2450016,FKA620005,ECERA车载晶振

NX5031E0125.000000 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±50ppm -40°C ~ 85°C
FD0100003 Diodes Incorporated SaRonix-eCera™ FD 1MHz ±50ppm -20°C ~ 70°C
FD0180008 Diodes Incorporated SaRonix-eCera™ FD 1.8432MHz ±50ppm -20°C ~ 70°C
FD0180009 Diodes Incorporated SaRonix-eCera™ FD 1.8432MHz ±25ppm -20°C ~ 70°C
FD0180010 Diodes Incorporated SaRonix-eCera™ FD 1.8432MHz ±50ppm -40°C ~ 85°C
FD0200013 Diodes Incorporated SaRonix-eCera™ FD 2.048MHz ±25ppm -20°C ~ 70°C
FD0200014 Diodes Incorporated SaRonix-eCera™ FD 2.048MHz ±50ppm -40°C ~ 85°C
FD0200015 Diodes Incorporated SaRonix-eCera™ FD 2.048MHz ±50ppm -20°C ~ 70°C
FD0350006 Diodes Incorporated SaRonix-eCera™ FD 3.579545MHz ±50ppm -20°C ~ 70°C
FD0360017 Diodes Incorporated SaRonix-eCera™ FD 3.6864MHz ±50ppm -20°C ~ 70°C
FD0360018 Diodes Incorporated SaRonix-eCera™ FD 3.6864MHz ±25ppm -20°C ~ 70°C
FD0360019 Diodes Incorporated SaRonix-eCera™ FD 3.6864MHz ±50ppm -40°C ~ 85°C
FD0400021 Diodes Incorporated SaRonix-eCera™ FD 4MHz ±25ppm -20°C ~ 70°C
FD0500003 Diodes Incorporated SaRonix-eCera™ FD 5MHz ±50ppm -20°C ~ 70°C
FD0600006 Diodes Incorporated SaRonix-eCera™ FD 6MHz ±25ppm -20°C ~ 70°C
FD0610002 Diodes Incorporated SaRonix-eCera™ FD 6.144MHz ±20ppm -20°C ~ 70°C
FD0730013 Diodes Incorporated SaRonix-eCera™ FD 7.3728MHz ±50ppm -20°C ~ 70°C
FD0800013 Diodes Incorporated SaRonix-eCera™ FD 8MHz ±50ppm -40°C ~ 85°C
FD0810003 Diodes Incorporated SaRonix-eCera™ FD 8.192MHz ±50ppm -20°C ~ 70°C
FD0810004 Diodes Incorporated SaRonix-eCera™ FD 8.192MHz ±25ppm -20°C ~ 70°C
FD0810005 Diodes Incorporated SaRonix-eCera™ FD 8.192MHz ±50ppm -40°C ~ 85°C
FD0820001 Diodes Incorporated SaRonix-eCera™ FD 8.25MHz ±50ppm -20°C ~ 70°C
FD1000015 Diodes Incorporated SaRonix-eCera™ FD 10MHz ±50ppm -20°C ~ 70°C
FD1000016 Diodes Incorporated SaRonix-eCera™ FD 10MHz ±25ppm -20°C ~ 70°C
FD1000017 Diodes Incorporated SaRonix-eCera™ FD 10MHz ±50ppm -40°C ~ 85°C

1

2

FD1100008 Diodes Incorporated SaRonix-eCera™ FD 11.0592MHz ±50ppm -40°C ~ 85°C
FD1120009 Diodes Incorporated SaRonix-eCera™ FD 11.2896MHz ±50ppm -20°C ~ 70°C
FD1200028 Diodes Incorporated SaRonix-eCera™ FD 12MHz ±50ppm -20°C ~ 70°C
FD1200029 Diodes Incorporated SaRonix-eCera™ FD 12MHz ±25ppm -20°C ~ 70°C
FD1200030 Diodes Incorporated SaRonix-eCera™ FD 12MHz ±50ppm -40°C ~ 85°C
FD1220014 Diodes Incorporated SaRonix-eCera™ FD 12.288MHz ±50ppm -20°C ~ 70°C
FD1220015 Diodes Incorporated SaRonix-eCera™ FD 12.288MHz ±50ppm -40°C ~ 85°C
FD1220016 Diodes Incorporated SaRonix-eCera™ FD 12.288MHz ±25ppm -20°C ~ 70°C
FD1350007 Diodes Incorporated SaRonix-eCera™ FD 13.5MHz ±50ppm -20°C ~ 70°C
FD1430016 Diodes Incorporated SaRonix-eCera™ FD 14.3181MHz ±50ppm -20°C ~ 70°C
FD1430018 Diodes Incorporated SaRonix-eCera™ FD 14.3181MHz ±50ppm -40°C ~ 85°C
FD1470015 Diodes Incorporated SaRonix-eCera™ FD 14.7456MHz ±50ppm -20°C ~ 70°C
FD1470017 Diodes Incorporated SaRonix-eCera™ FD 14.7456MHz ±50ppm -40°C ~ 85°C
FD1600015 Diodes Incorporated SaRonix-eCera™ FD 16MHz ±50ppm -20°C ~ 70°C
FD1600016 Diodes Incorporated SaRonix-eCera™ FD 16MHz ±25ppm -20°C ~ 70°C
FD1600017 Diodes Incorporated SaRonix-eCera™ FD 16MHz ±50ppm -40°C ~ 85°C
FD1630009 Diodes Incorporated SaRonix-eCera™ FD 16.384MHz ±50ppm -20°C ~ 70°C
FD1630010 Diodes Incorporated SaRonix-eCera™ FD 16.384MHz ±25ppm -20°C ~ 70°C
FD1630011 Diodes Incorporated SaRonix-eCera™ FD 16.384MHz ±50ppm -40°C ~ 85°C
FD1630012 Diodes Incorporated SaRonix-eCera™ FD 16.384MHz ±50ppm -40°C ~ 85°C
FD1650001 Diodes Incorporated SaRonix-eCera™ FD 16.5MHz ±50ppm -20°C ~ 70°C
FD1800003 Diodes Incorporated SaRonix-eCera™ FD 18MHz ±50ppm -40°C ~ 85°C
FD1840014 Diodes Incorporated SaRonix-eCera™ FD 18.432MHz ±50ppm -20°C ~ 70°C
FD1940001 Diodes Incorporated SaRonix-eCera™ FD 19.44MHz ±50ppm -20°C ~ 70°C
FD1940002 Diodes Incorporated SaRonix-eCera™ FD 19.44MHz ±25ppm -20°C ~ 70°C

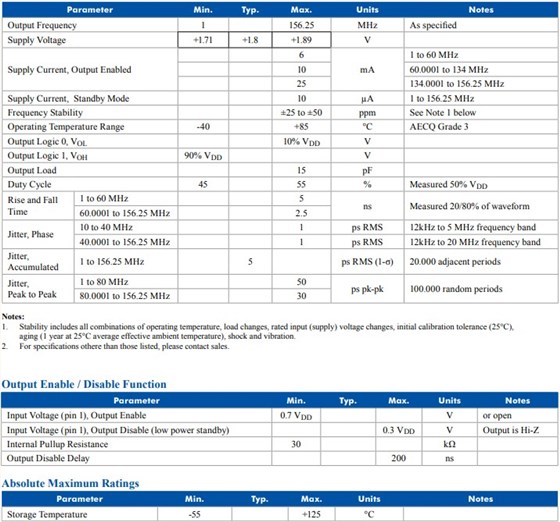

Product Parameters

Subfamily General XO
Product Series FKQ
Compliance(Only Automotive supports PPAP) Automotive
Freq Range (MHz) 1 to 135
Jitter RMS (ps) <1
Stability (PPM) 20to50
Package Size (mm) 3.2 x 2.5
PkgType Ceramic Seam
Output Logic CMOS
Supply Voltage (V) 1.8
Pads 4

亚陶晶振FKQ系列1.8V时钟晶体振荡器,FK2450016,FKA620005,ECERA车载晶振

产品参数：

类别 XO将军
产品系列 FKQ
合规性（仅汽车支持PPAP）汽车
频率范围 1MHz到135MHz
抖动均方根 (ps) <1
稳定性 20PPM到50PPM
包装尺寸 3.2x2.5mm小体积石英晶体
包装类型 陶瓷缝
输出逻辑 CMOS
电源电压 1.8V
垫 4
FD1940004 Diodes Incorporated SaRonix-eCera™ FD 19.44MHz ±50ppm -40°C ~ 85°C
FD2000046 Diodes Incorporated SaRonix-eCera™ FD 20MHz ±50ppm -20°C ~ 70°C
FD2000048 Diodes Incorporated SaRonix-eCera™ FD 20MHz ±50ppm -40°C ~ 85°C
FD2000049 Diodes Incorporated SaRonix-eCera™ FD 20MHz ±25ppm -20°C ~ 70°C
FD2400022 Diodes Incorporated SaRonix-eCera™ FD 24MHz ±50ppm -20°C ~ 70°C
FD2400023 Diodes Incorporated SaRonix-eCera™ FD 24MHz ±50ppm -40°C ~ 85°C
FD2400024 Diodes Incorporated SaRonix-eCera™ FD 24MHz ±25ppm -20°C ~ 70°C
FD2450018 Diodes Incorporated SaRonix-eCera™ FD 24.576MHz ±50ppm -20°C ~ 70°C
FD2450019 Diodes Incorporated SaRonix-eCera™ FD 24.576MHz ±25ppm -20°C ~ 70°C
FD2500049 Diodes Incorporated SaRonix-eCera™ FD 25MHz ±25ppm -20°C ~ 70°C
FD2500052 Diodes Incorporated SaRonix-eCera™ FD 25MHz ±50ppm -40°C ~ 85°C
FD2500054 Diodes Incorporated SaRonix-eCera™ FD 25MHz ±50ppm -40°C ~ 85°C
FD2500057 Diodes Incorporated SaRonix-eCera™ FD 25.0012MHz ±25ppm -20°C ~ 70°C
FD2500058 Diodes Incorporated SaRonix-eCera™ FD 25MHz ±50ppm -20°C ~ 70°C
FD2500061 Diodes Incorporated SaRonix-eCera™ FD 25MHz ±25ppm -20°C ~ 70°C
FD2600027 Diodes Incorporated SaRonix-eCera™ FD 26MHz ±50ppm -20°C ~ 70°C
FD2600028 Diodes Incorporated SaRonix-eCera™ FD 26MHz ±25ppm -20°C ~ 70°C
FD2600030 Diodes Incorporated SaRonix-eCera™ FD 26MHz ±50ppm -40°C ~ 85°C
FD2600031 Diodes Incorporated SaRonix-eCera™ FD 26MHz ±25ppm -20°C ~ 70°C
FD2660003 Diodes Incorporated SaRonix-eCera™ FD 26.66MHz ±25ppm -20°C ~ 70°C
FD2700033 Diodes Incorporated SaRonix-eCera™ FD 27MHz ±25ppm -20°C ~ 70°C
FD2700034 Diodes Incorporated SaRonix-eCera™ FD 27MHz ±50ppm -40°C ~ 85°C
FD2700035 Diodes Incorporated SaRonix-eCera™ FD 27MHz ±50ppm -20°C ~ 70°C
FD2700038 Diodes Incorporated SaRonix-eCera™ FD 27MHz ±50ppm -20°C ~ 70°C
FD2700043 Diodes Incorporated SaRonix-eCera™ FD 27MHz ±50ppm -20°C ~ 70°C

亚陶晶振FKQ系列1.8V时钟晶体振荡器,FK2450016,FKA620005,ECERA车载晶振

FDQ 1.8V 20~50 5.0x3.2 CMOS 1.8 4 1.8V、5.0x3.2mm、汽车级CMOS晶体振荡器
FDQ 2.5V 20~50 5.0x3.2 CMOS 2.5 4 2.5V、5.0x3.2mm、汽车级CMOS晶体振荡器
FDQ 3.3V 20~50 5.0x3.2 CMOS 3.3 4 3.3V、5.0x3.2mm、汽车级CMOS晶体振荡器
FKQ 1.8V 20~50 3.2x2.5 CMOS 1.8 4 1.8V、3.2x2.5mm、汽车级CMOS晶体振荡器
FKQ 2.5V 20~50 3.2x2.5 CMOS 2.5 4 2.5V、3.2x2.5mm、汽车级CMOS晶体振荡器
FKQ 3.3V 20~50 3.2x2.5 CMOS 3.3 4 3.3V、3.2x2.5mm、汽车级CMOS晶体振荡器
FNQ 1.8V 20~50 7.0x5.0 CMOS 1.8 4 1.8V、7.0x5.0mm、汽车级CMOS晶体振荡器
FNQ 2.5V 20~50 7.0x5.0 CMOS 2.5 4 2.5V、7.0x5.0mm、汽车级CMOS晶体振荡器
FNQ 3.3V 20~50 7.0x5.0 CMOS 3.3 4 3.3V、7.0x5.0mm、汽车级CMOS晶体振荡器

FD2860005 Diodes Incorporated SaRonix-eCera™ FD 28.6363MHz ±50ppm -20°C ~ 70°C
FD2860006 Diodes Incorporated SaRonix-eCera™ FD 28.63636MHz ±50ppm -40°C ~ 85°C
FD3000014 Diodes Incorporated SaRonix-eCera™ FD 30MHz ±25ppm -20°C ~ 70°C
FD3000015 Diodes Incorporated SaRonix-eCera™ FD 30MHz ±50ppm -40°C ~ 85°C
FD3000016 Diodes Incorporated SaRonix-eCera™ FD 30MHz ±50ppm -20°C ~ 70°C
FD3120001 Diodes Incorporated SaRonix-eCera™ FD 31.25MHz ±25ppm -20°C ~ 70°C
FD3300021 Diodes Incorporated SaRonix-eCera™ FD 33MHz ±50ppm -20°C ~ 70°C
FD3300022 Diodes Incorporated SaRonix-eCera™ FD 33MHz ±25ppm -20°C ~ 70°C
FD3300023 Diodes Incorporated SaRonix-eCera™ FD 33MHz ±50ppm -40°C ~ 85°C
FD3330016 Diodes Incorporated SaRonix-eCera™ FD 33.333MHz ±25ppm -20°C ~ 70°C
FD3330017 Diodes Incorporated SaRonix-eCera™ FD 33.333MHz ±50ppm -40°C ~ 85°C
FD3330018 Diodes Incorporated SaRonix-eCera™ FD 33.3333MHz ±50ppm -20°C ~ 70°C
FD3330019 Diodes Incorporated SaRonix-eCera™ FD 33.3333MHz ±25ppm -20°C ~ 70°C
FD3330020 Diodes Incorporated SaRonix-eCera™ FD 33.3333MHz ±50ppm -40°C ~ 85°C
FD3330022 Diodes Incorporated SaRonix-eCera™ FD 33.333MHz ±50ppm -20°C ~ 70°C
FD3330024 Diodes Incorporated SaRonix-eCera™ FD 33.333333MHz ±25ppm -20°C ~ 70°C
FD3330026 Diodes Incorporated SaRonix-eCera™ FD 33.333MHz ±50ppm -40°C ~ 85°C
FD3430001 Diodes Incorporated SaRonix-eCera™ FD 34.368MHz ±25ppm -20°C ~ 70°C
FD3530003 Diodes Incorporated SaRonix-eCera™ FD 35.328MHz ±50ppm -20°C ~ 70°C
FD3530004 Diodes Incorporated SaRonix-eCera™ FD 35.328MHz ±25ppm -20°C ~ 70°C
FD3530005 Diodes Incorporated SaRonix-eCera™ FD 35.328MHz ±50ppm -40°C ~ 85°C
FD3600009 Diodes Incorporated SaRonix-eCera™ FD 36MHz ±25ppm -20°C ~ 70°C
FD3680001 Diodes Incorporated SaRonix-eCera™ FD 36.864MHz ±50ppm -20°C ~ 70°C
FD3680002 Diodes Incorporated SaRonix-eCera™ FD 36.864MHz ±25ppm -20°C ~ 70°C
FD3680003 Diodes Incorporated SaRonix-eCera™ FD 36.864MHz ±50ppm -40°C ~ 85°C

亚陶晶振FKQ系列1.8V时钟晶体振荡器,FK2450016,FKA620005,ECERA车载晶振

我们的汽车兼容晶体振荡器(XO)旨在满足汽车应用的严格要求，并在其部件号中以“Q”区分。它们是在经过严格IATF 16949标准认证的设施中制造的，并且能够根据VDA6.3进行客户审核。这些零件均受PPAP（生产零件批准流程）文档支持，从而满足汽车电子行业的所有要求。
此外，汽车电子晶振，所有符合汽车标准的晶体振荡器(XO)均已使用AECQ-200和QAP-81进行了认证，以涵盖石英谐振器和XO IC，而不是使用AEC-Q100（仅针对 IC 定义）。我们计划在2022年开始为我们新的符合汽车标准的 XO 产品逐步采用AECQ-104认证标准，但它不会将以前符合AECQ-200 + QAP-81的产品重新认证为AEC-Q104（AECQ- 200 + QAP-81 资格标准和AECQ-0104资格标准是测试数量和添加 X 射线检查）。
