CWX823-033.333M,7050mm,ConnorWinfield振荡器,蓝牙模块晶振，美国ConnorWinfield晶振，康纳温菲尔德晶振，型号：CWX8xx系列，编码为：CWX823-033.333M，频率为：33.333MHz，频率稳定性：±50ppm，工作电压：3.3V，工作温度范围:-20℃至+70℃，小体积晶振尺寸：7.0x5.0mm表面安装，四脚贴片晶振，7050晶振，时钟振荡器，有源晶振，石英晶振，CMOS输出晶振，石英晶体振荡器（XO）。具有超小型，轻薄型，高精度，高性能，高品质，高稳定性，低抖动等特点。被广泛用于：蓝牙模块晶振，汽车电子晶振，导航仪晶振，医疗设备晶振，无线应用等。

CWX823-033.333M,7050mm,ConnorWinfield振荡器,蓝牙模块晶振，美国ConnorWinfield晶振，康纳温菲尔德晶振，型号：CWX8xx系列，编码为：CWX823-033.333M，频率为：33.333MHz，频率稳定性：±50ppm，工作电压：3.3V，工作温度范围:-20℃至+70℃，小体积晶振尺寸：7.0x5.0mm表面安装，四脚贴片晶振，7050晶振，时钟振荡器，有源晶振，石英晶振，CMOS输出晶振，石英晶体振荡器（XO）。具有超小型，轻薄型，高精度，高性能，高品质，高稳定性，低抖动等特点。被广泛用于：蓝牙模块晶振，汽车电子晶振，导航仪晶振，医疗设备晶振，无线应用等。

CWX823-033.333M,7050mm,ConnorWinfield振荡器,蓝牙模块晶振，产品特点：

CWX8xx型-系列，5.0x7.0mm表面安装封装

3.3V或5.0V操作，CMOS输出贴片晶振

可用频率稳定性：+/-25ppm 或 +/-50ppm

温度范围：-20至70°C

低抖动<1pS RMS，三态启用/禁用，胶带和卷轴包装

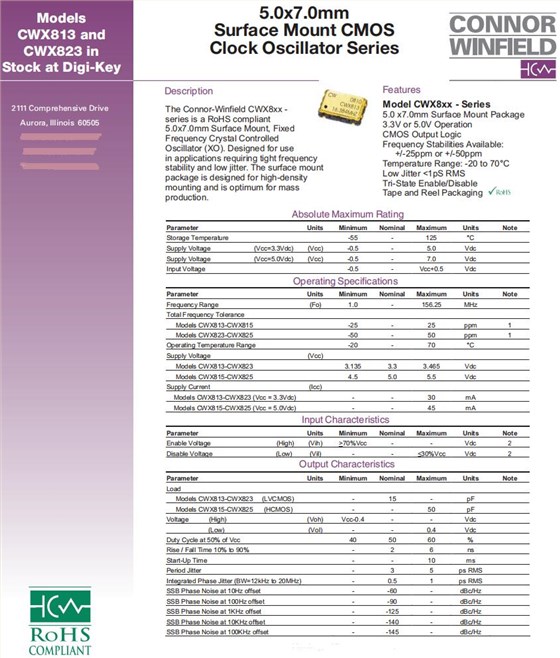

CWX823-033.333M,7050mm,ConnorWinfield振荡器,蓝牙模块晶振,参数表

型号	CWX823
频率	33.333MHz
电源电压	3.3V
输入电压	Vcc+0.5
输出	CMOS
工作温度	-20 °C ~ +70 °C
保存温度	-55 °C ~ +125 °C

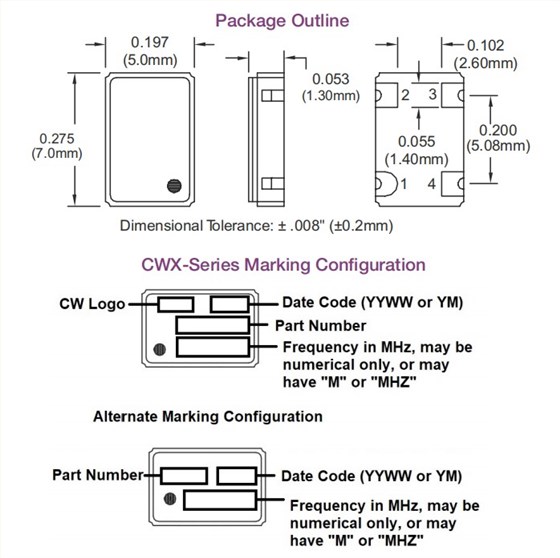

CWX823-033.333M,7050mm,ConnorWinfield振荡器,蓝牙模块晶振,尺寸图

原厂代码	品牌	型号	频率	工作温度
CWX823-012.0M	ConnorWinfield晶振	CWX823	12MHz	-20°C ~ 70°C
CWX823-024.0M	ConnorWinfield晶振	CWX823	24MHz	-20°C ~ 70°C
CWX823-050.0M	ConnorWinfield晶振	CWX823	50MHz	-20°C ~ 70°C
CWX823-032.768M	ConnorWinfield晶振	CWX823	32.768MHz	-20°C ~ 70°C
CWX823-018.432M	ConnorWinfield晶振	CWX823	18.432MHz	-20°C ~ 70°C
CWX823-049.152M	ConnorWinfield晶振	CWX823	49.152MHz	-20°C ~ 70°C
CWX823-016.0M	ConnorWinfield晶振	CWX823	16MHz	-20°C ~ 70°C
CWX823-012.288M	ConnorWinfield晶振	CWX823	12.288MHz	-20°C ~ 70°C
CWX823-020.0M	ConnorWinfield晶振	CWX823	20MHz	-20°C ~ 70°C
CWX823-027.0M	进口晶振	CWX823	27MHz	-20°C ~ 70°C
CWX823-033.333M	ConnorWinfield晶振	CWX823	33.333MHz	-20°C ~ 70°C
CWX823-100.0M	ConnorWinfield晶振	CWX823	100MHz	-20°C ~ 70°C
CWX823-001.544M	ConnorWinfield晶振	CWX823	1.544MHz	-20°C ~ 70°C
CWX823-040.0M	ConnorWinfield晶振	CWX823	40MHz	-20°C ~ 70°C
CWX823-033.0M	ConnorWinfield晶振	CWX823	33MHz	-20°C ~ 70°C
CWX823-004.0M	ConnorWinfield晶振	CWX823	4MHz	-20°C ~ 70°C
CWX823-025.0M	ConnorWinfield晶振	CWX823	25MHz	-20°C ~ 70°C
CWX823-001.8432M	ConnorWinfield晶振	CWX823	1.8432MHz	-20°C ~ 70°C
CWX823-064.0M	ConnorWinfield晶振	CWX823	64MHz	-20°C ~ 70°C
CWX823-125.0M	ConnorWinfield晶振	CWX823	125MHz	-20°C ~ 70°C
CWX823-156.25M	ConnorWinfield晶振	CWX823	156.25MHz	-20°C ~ 70°C
CWX823-010.0M	ConnorWinfield晶振	CWX823	10MHz	-20°C ~ 70°C
CWX823-029.4912M	ConnorWinfield晶振	CWX823	29.4912MHz	-20°C ~ 70°C
CWX823-060.0M	ConnorWinfield晶振	CWX823	60MHz	-20°C ~ 70°C
CWX823-024.576M	ConnorWinfield晶振	CWX823	24.576MHz	-20°C ~ 70°C
CWX823-008.0M	ConnorWinfield晶振	CWX823	8MHz	-20°C ~ 70°C
CWX823-007.3728M	ConnorWinfield晶振	CWX823	7.3728MHz	-20°C ~ 70°C
CWX823-066.6666M	ConnorWinfield晶振	CWX823	66.6666MHz	-20°C ~ 70°C
CWX823-032.0M	ConnorWinfield晶振	CWX823	32MHz	-20°C ~ 70°C
CWX823-080.0M	ConnorWinfield晶振	CWX823	80MHz	-20°C ~ 70°C
CWX823-016.384M	ConnorWinfield晶振	CWX823	16.384MHz	-20°C ~ 70°C
CWX823-030.0M	ConnorWinfield晶振	CWX823	30MHz	-20°C ~ 70°C
CWX823-044.736M	ConnorWinfield晶振	CWX823	44.736MHz	-20°C ~ 70°C
CWX823-003.6864M	ConnorWinfield晶振	CWX823	3.6864MHz	-20°C ~ 70°C
CWX823-014.31818M	ConnorWinfield晶振	CWX823	14.31818MHz	-20°C ~ 70°C
CWX823-015.36M	ConnorWinfield晶振	CWX823	15.36MHz	-20°C ~ 70°C
CWX823-019.44M	ConnorWinfield晶振	CWX823	19.44MHz	-20°C ~ 70°C
CWX823-020.48M	ConnorWinfield晶振	CWX823	20.48MHz	-20°C ~ 70°C
CWX823-045.0M	ConnorWinfield晶振	CWX823	45MHz	-20°C ~ 70°C
CWX823-072.0M	ConnorWinfield晶振	CWX823	72MHz	-20°C ~ 70°C
