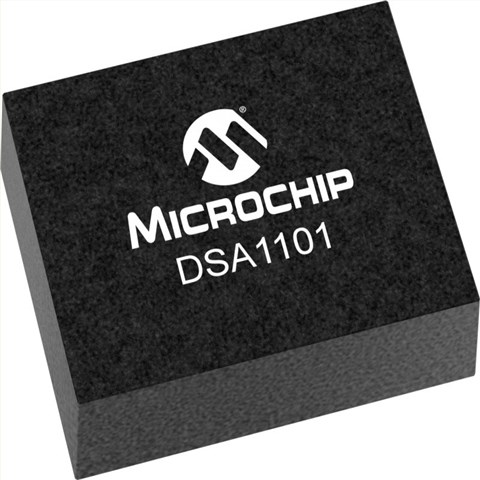

DSA1101BL2-027.0000TVAO|低功耗CMOS振荡器|汽车摄像头模块晶振,Microchip晶振,DSA1101低功耗晶振,DSA1101BL2-027.0000TVAO晶振,5032贴片晶振,低相噪晶振,低抖动晶振,CMOS石英晶体振荡器,频率27MHz,电压3.3V,频率稳定性25ppm,工作温度-40~105°C,汽车信息娱乐系统晶振, 汽车ADAS应用晶振, 汽车摄像头模块晶振,汽车激光雷达和雷达晶振.

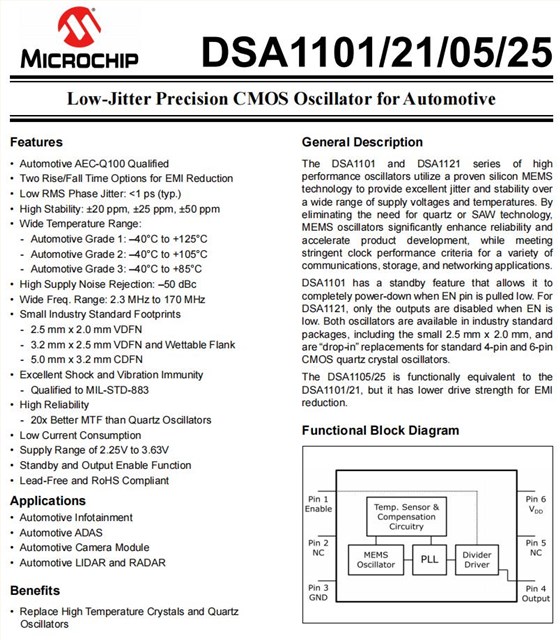

DSA1101BL2-027.0000TVAO|低功耗CMOS振荡器|汽车摄像头模块晶振特点：
•汽车AEC-Q100认证
•两个上升/下降时间选项，用于降低EMI
•低均方根相位抖动:< 1 ps(典型值)
•频率范围:2.3 MHz至170 MHz
•高稳定性 - 20 ppm、25 ppm、50 ppm
•工作电压范围2.25至3.63V
•高电源噪声抑制:–50 dBc
•工作温度范围
-汽车级1:–40°C至+125°
-汽车级2:–40°C至105°C
-汽车级3:–40°C至85°C
•低工作和待机电流
- 6mA工作电流(1MHz)
- 15µA待机(最大值)
•超小型尺寸
-2.5x 2.0mmVDFN
- 3.2x 2.5mmVDFN
- 5.0x 3.2x mmCDFN
•出色的抗冲击和振动能力
-符合MIL-STD 883
•无铅、符合RoHS、Reach SVHC标准
•高可靠性
-MTF比石英振荡器高20倍
DSA1101BL2-027.0000TVAO|低功耗CMOS振荡器|汽车摄像头模块晶振参数图
| 项目 | 规格说明 | 条件 |
| 额定频率 | 27MHz | 请联系我们以便获取其它可用频率的相关信息 |
| 电源电压 | 3.3V |
|
| 储存温度 | -40℃~+150℃ | 裸存 |
| 工作温度 | -40℃~ +105℃ |
|
| 频率稳定度 | ±25ppm | 所有温度范围 |
| 老化 |
±5ppm |
1 year @ +25°C |
| 电流 | 35mAMax | EN pin high, output is enabled CL = 15 pF, FO = 100 MHz |
| 占空比 | 45%~55% |
|
| 输出逻辑电平低（Vol） |
0.1 x VDDV Max |
I = ±6 mA |
| 输出逻辑电平高（Voh） | 0.9x VDDVMin | |
| 起始时间 | 5ms Max |
T = +25°C |
| 输出上升下降时间 | 2.0ns Max |
3.3V, CL=15pF; T=25°C 20%/80%*VDD |
| 周期抖动 | 3ps RMS Max |
f= 125 MHz |
| 积分相位噪声 | 0.3ps Typ |
200 kHz to 20 MHz @ 125 MHz |

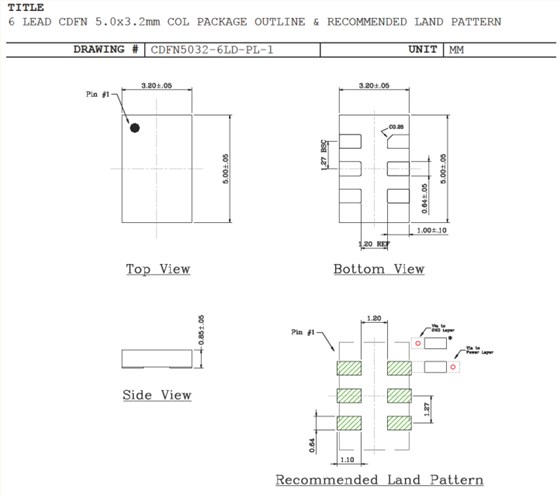

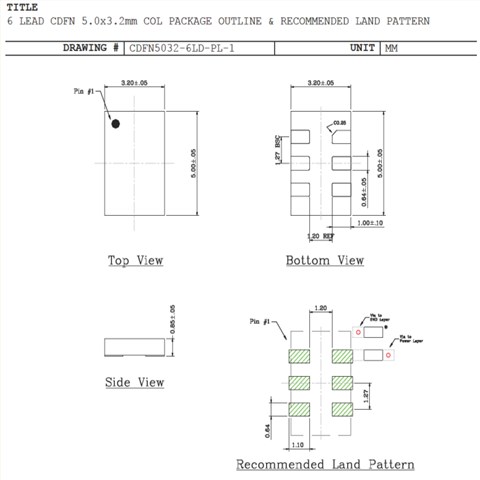

DSA1101BL2-027.0000TVAO|低功耗CMOS振荡器|汽车摄像头模块晶振尺寸图
