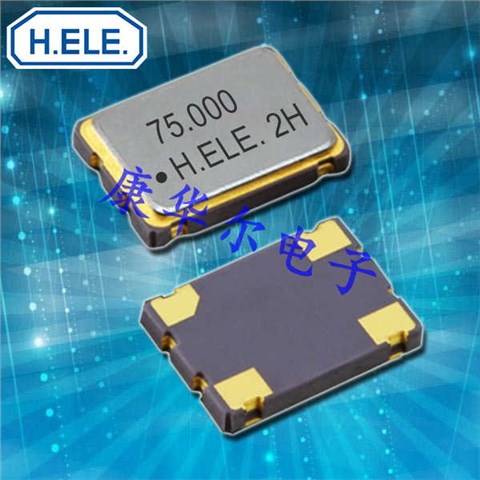

SSR008192I3CHE-TC晶振,加高有源四脚晶振,汽车辅助驾驶晶振

SSR008192I3CHE-TC晶振,加高有源四脚晶振,汽车辅助驾驶晶振，台湾HELE晶振公司，贴片石英晶振，有源晶振，7050晶振，超小型晶振，SMD晶振，低损耗晶振，高品质晶振，高精度晶振，汽车晶振，HSO751S晶振，进口晶振，耐热性晶振，SSR008192I3CHE-TC晶振，高稳定性晶振，6G无线应用晶振，射频应用晶振，物料网应用晶振，RFID应用晶振.特点:超小型贴片型晶体器件。精度高，可靠性好，耐热性好。适用于设计空间有限的智能手机应用程序、初始化无线模块设备、RFID应用程序和其他基于消费者的产品.

SSR008192I3CHE-TC晶振,加高有源四脚晶振,汽车辅助驾驶晶振

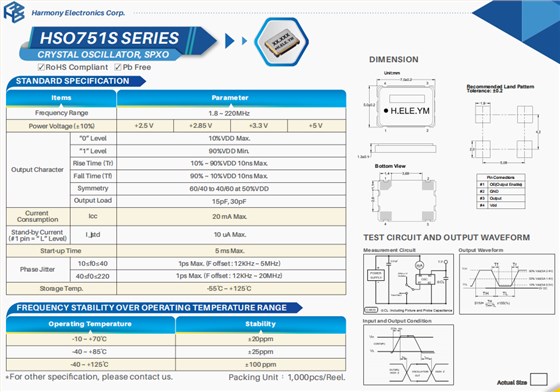

频率范围		1.8 ~ 220MHz
电源电压(±10%)		+2.5 V	+2.85 V	+3.3 V	+5 V
输出特征	“0” Level	10%VDD Max.
	“1” Level	90%VDD Min.
	上升时间	10% ~ 90%VDD 10ns Max.
	下降时间	90% ~ 10%VDD 10ns Max.
	对称性	60/40 to 40/60 at 50%VDD
	输出负载	15pF, 30pF
电流消耗量	Icc	20 mA Max.
备用电流(#1 pin =“ L”Level)	I_std	10 uA Max.
启动时间		5 ms Max.
相位抖动	10≤f0≤40	1ps Max. (F offset : 12KHz ~ 5MHz)
	40≤f0≤220	1ps Max. (F offset : 12KHz ~ 20MHz)
储存温度		-55 C ~ +125 C

20180109173140_2357

SSR008192I3CHE-TC晶振,加高有源四脚晶振,汽车辅助驾驶晶振

原厂编码	生产商	型号	频率	频率容差	负载电容	工作温度
X2B026000M81H-HS	加高晶振	HSX221SA	26 MHz	±7ppm	8pF	-
X2B016000BA1H-U	加高晶振	HSX221SA	16 MHz	±10ppm	10pF	-30°C ~ 85°C
X2B012000BC1H-U	加高晶振	HSX221SA	12 MHz	±10ppm	12pF	-40°C ~ 105°C
X2B040000BC1H-DHZ	加高晶振	HSX221SA	40 MHz	±10ppm	12pF	-30°C ~ 85°C
X2B012000B91H-U	加高晶振	HSX221SA	12 MHz	±10ppm	9pF	-20°C ~ 70°C
X2B012000DC1H-X	加高晶振	HSX221SA	12 MHz	±20ppm	12pF	-10°C ~ 60°C
X2B016000B91H-HU	加高晶振	HSX221SA	16 MHz	±10ppm	9pF	-20°C ~ 70°C
X2B016000BC1H-HV	加高晶振	HSX221SA	16 MHz	±20ppm	12pF	-20°C ~ 75°C
X2B019200BZ1H-CHZ	加高晶振	HSX221SA	19.2 MHz	±12ppm	7pF	-30°C ~ 85°C
X2B024000BC1HA-V	加高晶振	HSX221SA	24 MHz	±20ppm	12pF	-20°C ~ 75°C
X2B024000BC1H-HV	加高晶振	HSX221SA	24 MHz	±30ppm	12pF	-30°C ~ 85°C
X2B024000BCIH-HV	加高晶振	HSX221SA	24 MHz	±30ppm	12pF	-40°C ~ 85°C
X2B024000FK1H-V	加高晶振	HSX221SA	24 MHz	±30ppm	20pF	-20°C ~ 75°C
X2B025000BI1H-U	加高晶振	HSX221SA	25 MHz	±20ppm	18pF	-40°C ~ 85°C
X2B026000B71HZ-HPR	加高晶振	HSX221SA	26 MHz	±10ppm	7.2pF	-20°C ~ 75°C
X2B026000B81H-CHZ	加高晶振	HSX221SA	26 MHz	±11ppm	8pF	-30°C ~ 85°C
X2B026000B91H-HR	加高晶振	HSX221SA	26 MHz	±10ppm	9pF	-20°C ~ 75°C
X2B026000B91H-HV	加高晶振	HSX221SA	26 MHz	±15ppm	9pF	-20°C ~ 75°C
X2B026000B91H-HZ	加高晶振	HSX221SA	26 MHz	±10ppm	9pF	-30°C ~ 85°C
X2B026000B91H-U	加高晶振	HSX221SA	26 MHz	±20ppm	9pF	-40°C ~ 85°C
X2B026000L91H-S	加高晶振	HSX221SA	26 MHz	±12ppm	9pF	-20°C ~ 75°C
X2B026000B71HZ	加高晶振	HSX221SA	26 MHz	±10ppm	11.5pF	-10°C ~ 60°C
X2B026000BC1H-Z	加高晶振	HSX221SA	26 MHz	±10ppm	12pF	-20°C ~ 85°C
X2B027000BC1H-HU	加高晶振	HSX221SA	27 MHz	±10ppm	12pF	-10°C ~ 70°C
X2B02863ADC1H-W	加高晶振	HSX221SA	28.6363 MHz	±20ppm	12pF	-20°C ~ 70°C
X2B030000BA1H-HW	加高晶振	HSX221SA	30 MHz	±20ppm	10pF	-20°C ~ 70°C
X2B030000BA1H-U	加高晶振	HSX221SA	30 MHz	±10ppm	10pF	-20°C ~ 70°C
X2B030000FA1H-X	加高晶振	HSX221SA	30 MHz	±30ppm	10pF	-20°C ~ 70°C
X2B032000C81H-HU	加高晶振	HSX221SA	32 MHz	±15ppm	8pF	-20°C ~ 75°C
X2B032000D81H-U	加高晶振	HSX221SA	32 MHz	±20ppm	8pF	-30°C ~ 85°C
X2B032000BC1H-HZ	加高晶振	HSX221SA	32 MHz	±12ppm	12pF	-30°C ~ 85°C
X2B038400BA1H-U	加高晶振	HSX221SA	38.4 MHz	±10ppm	10pF	-20°C ~ 70°C
X2B040000B91H-U	加高晶振	HSX221SA	40 MHz	±10ppm	9pF	-20°C ~ 70°C
X2B040000BC1H-DHZ	加高晶振	HSX221SA	40 MHz	±10ppm	12pF	-30°C ~ 85°C
X2B04000BF1H-HZ	加高晶振	HSX221SA	40 MHz	±10ppm	15pF	-30°C ~ 85°C
X2B040000BF1H-HT	加高晶振	HSX221SA	40 MHz	±18ppm	15pF	0°C ~ 85°C
X2B040000BF1H-HZ	加高晶振	HSX221SA	40 MHz	±10ppm	15pF	-30°C ~ 85°C
X2B012000B91H-U	加高晶振	HSX221SA	12 MHz	±10ppm	9pF	-20°C ~ 70°C
X2B016000B91H-HU	加高晶振	HSX221SA	16 MHz	±10ppm	9pF	-20°C ~ 70°C
X2B016000BC1H-HV	加高晶振	HSX221SA	16 MHz	±20ppm	12pF	-20°C ~ 75°C
X2B024000BCIH-HV	加高晶振	HSX221SA	24 MHz	±30ppm	12pF	-40°C ~ 85°C
X2B024000FK1H-V	加高晶振	HSX221SA	24 MHz	±30ppm	20pF	-20°C ~ 75°C
X2B026000B81H-CHZ	加高晶振	HSX221SA	26 MHz	±11ppm	8pF	-30°C ~ 85°C
X2B026000B91H-U	加高晶振	HSX221SA	26 MHz	±20ppm	9pF	-40°C ~ 85°C
X2B030000BA1H-HW	加高晶振	HSX221SA	30 MHz	±20ppm	10pF	-20°C ~ 70°C
X2B030000BA1H-U	加高晶振	HSX221SA	30 MHz	±10ppm	10pF	-20°C ~ 70°C
X2B030000FA1H-X	加高晶振	HSX221SA	30 MHz	±30ppm	10pF	-20°C ~ 70°C
X2B040000BC1H-DHZ	加高晶振	HSX221SA	40 MHz	±10ppm	12pF	-30°C ~ 85°C
X2B040000BF1H-H	加高晶振	HSX221SA	40 MHz	±18ppm	15pF	0°C ~ 85°C
