X1E0002510011/FA-118T/1612mm/26MHz/8pF/±10ppm移动电话晶振

X1E0002510011/FA-118T/1612mm/26MHz/8pF/±10ppm移动电话晶振，日本进口晶振，EPSON爱普生晶振，型号FA-118T，编码为X1E0002510011，频率为：26MHz，是一款小体积晶振尺寸1.6x1.2mm封装，四脚贴片晶振，石英晶振，无源晶振，石英晶体谐振器，无铅环保晶振，超小型晶振，轻薄型晶振，FA-118T已经作为通信模块的参考时钟商业化，它需要高精度，作为无线通信的时钟，以及需要微型化应用的微型计算机（TWS（真无线立体声）、智能手表等）。使用多年培育的高精度加工技术创造的产品有助于提高客户系统的性能，应用于：消费电子晶振，工业，小型通信模块，可穿戴设备晶振，单片机晶振，时钟模块晶振，小型便捷式设备，手机贴片晶振等应用。

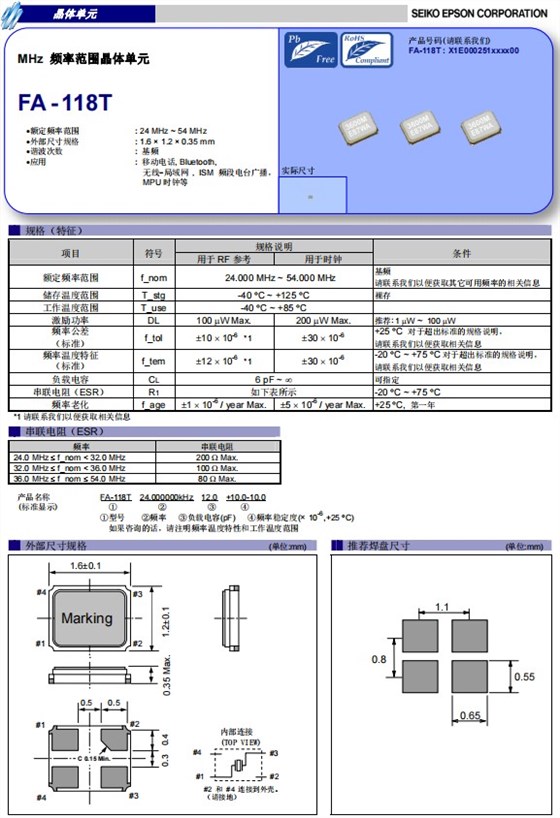

X1E0002510011/FA-118T/1612mm/26MHz/8pF/±10ppm移动电话晶振，参数图

型号	FA-118T 规格说明			用于RF参考用于时钟条件
额定频率范围	f_nom	24.000 MHz ~ 54.000 MHz		基频
				请联系我们以便获取其它可用频率的相关信息
储存温度范围	T_stg	-40°C ~ +125°C		裸存
工作温度范围	T_use	-40°C ~ +85°C
激励功率	DL	100mW Max.	200mW Max.	推荐:1mW ~ 100mW
频率公差	f_tol	±10x10-6*1	±30x10-6	+25°C对于超出标准的规格说明，请联系我们以便获取相关信息
（标准）
频率温度特征	f_tem	±12x10-6*1	±30x10-6	-20°C ~ +75°C对于超出标准的规格说明，请联系我们以便获取相关信息
（标准）
负载电容	CL	6 pF ~¥		可指定
串联电阻（ESR）	R1	如下表所示		-20°C ~ +75°C
频率老化	f_age	±1x10-6 / year Max.	±5x10-6 / year Max.	+25°C,第一年

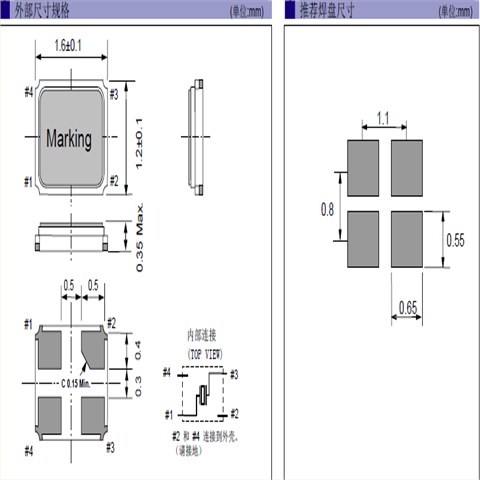

X1E0002510011/FA-118T/1612mm/26MHz/8pF/±10ppm移动电话晶振，尺寸图

贴片石英晶体	尺寸	型号	频率	负载	频率 @+25°C	工作温度
X1E0002510009	1.6x1.2x0.35mm	FA-118T	27.120000 MHz	10 pF	+/-30 ppm	-20 to +75 °C
X1E0002510011	1.6x1.2x0.35mm	FA-118T	26.000000 MHz	8 pF	+/-10 ppm	-20 to +75 °C
X1E0002510013	1.6x1.2x0.35mm	FA-118T	27.120000 MHz	10 pF	+/-50 ppm	-20 to +85 °C
X1E0002510014	1.6x1.2x0.35mm	FA-118T	26.000000 MHz	9 pF	+/-10 ppm	-20 to +75 °C
X1E0002510016	1.6x1.2x0.35mm	FA-118T	37.400000 MHz	16 pF	+/-10 ppm	-20 to +85 °C
X1E0002510017	1.6x1.2x0.35mm	FA-118T	37.400000 MHz	16 pF	+/-10 ppm	-20 to +70 °C
X1E0002510031	1.6x1.2x0.35mm	FA-118T	37.400000 MHz	16 pF	+/-7 ppm	-30 to +85 °C
X1E0002510032	1.6x1.2x0.35mm	FA-118T	40.000000 MHz	10 pF	+/-10 ppm	-20 to +75 °C
X1E0002510034	1.6x1.2x0.35mm	FA-118T	25.000000 MHz	9 pF	+/-30 ppm	-20 to +75 °C
X1E0002510035	1.6x1.2x0.35mm	FA-118T	30.000000 MHz	8 pF	+/-20 ppm	-20 to +75 °C
X1E0002510046	1.6x1.2x0.35mm	FA-118T	24.000000 MHz	12 pF	+/-10 ppm	-20 to +75 °C
X1E0002510050	1.6x1.2x0.35mm	FA-118T	32.000000 MHz	9 pF	+/-10 ppm	-20 to +75 °C
X1E0002510056	1.6x1.2x0.35mm	FA-118T	52.000000 MHz	9 pF	+/-15 ppm	-20 to +75 °C
X1E0002510057	1.6x1.2x0.35mm	FA-118T	25.000000 MHz	7 pF	+/-30 ppm	-20 to +75 °C
X1E0002510058	1.6x1.2x0.35mm	FA-118T	32.000000 MHz	8 pF	+/-15 ppm	-30 to +85 °C
X1E0002510059	1.6x1.2x0.35mm	FA-118T	32.000000 MHz	8 pF	+/-10 ppm	-20 to +75 °C
X1E0002510060	1.6x1.2x0.35mm	FA-118T	48.000000 MHz	10 pF	+/-30 ppm	-20 to +75 °C
X1E0002510064	1.6x1.2x0.35mm	FA-118T	26.000000 MHz	12 pF	+/-10 ppm	-20 to +75 °C
X1E0002510068	1.6x1.2x0.35mm	FA-118T	24.000000 MHz	8 pF	+/-30 ppm	-20 to +75 °C
X1E0002510069	1.6x1.2x0.35mm	FA-118T	24.000000 MHz	10 pF	+/-30 ppm	-20 to +75 °C
X1E0002510071	1.6x1.2x0.35mm	FA-118T	40.000000 MHz	12 pF	+/-8 ppm	-30 to +85 °C
X1E0002510075	1.6x1.2x0.35mm	FA-118T	26.000000 MHz	8 pF	+/-10 ppm	-30 to +85 °C
X1E0002510077	1.6x1.2x0.35mm	FA-118T	25.000000 MHz	9 pF	+/-10 ppm	-20 to +75 °C
X1E0002510078	1.6x1.2x0.35mm	FA-118T	40.000000 MHz	7 pF	+/-10 ppm	-20 to +75 °C
X1E0002510079	1.6x1.2x0.35mm	FA-118T	32.000000 MHz	9 pF	+/-10 ppm	-20 to +75 °C
X1E0002510080	1.6x1.2x0.35mm	FA-118T	32.000000 MHz	6 pF	+/-10 ppm	-20 to +75 °C
X1E0002510086	1.6x1.2x0.35mm	FA-118T	32.000000 MHz	8 pF	+/-20 ppm	-20 to +75 °C
X1E0002510092	1.6x1.2x0.35mm	FA-118T	27.000000 MHz	10 pF	+/-30 ppm	-20 to +75 °C
X1E0002510093	1.6x1.2x0.35mm	FA-118T	24.000000 MHz	8 pF	+/-30 ppm	-20 to +70 °C
X1E0002510100	1612晶振	FA-118T	27.120000 MHz	9 pF	+/-10 ppm	-20 to +75 °C
X1E0002510102	1.6x1.2x0.35mm	FA-118T	50.000000 MHz	8 pF	+/-30 ppm	-40 to +85 °C
X1E0002510104	1.6x1.2x0.35mm	FA-118T	32.000000 MHz	10 pF	+/-20 ppm	-40 to +85 °C
X1E0002510110	1.6x1.2x0.35mm	FA-118T	25.000000 MHz	12.5 pF	+/-30 ppm	-20 to +75 °C
X1E0002510111	1.6x1.2x0.35mm	FA-118T	25.000000 MHz	10 pF	+/-50 ppm	-20 to +75 °C
X1E0002510113	1.6x1.2x0.35mm	FA-118T	25.000000 MHz	8 pF	+/-10 ppm	-30 to +85 °C
X1E0002510121	1.6x1.2x0.35mm	FA-118T	24.000000 MHz	8 pF	+/-10 ppm	-20 to +85 °C
X1E0002510123	1.6x1.2x0.35mm	FA-118T	24.000000 MHz	9 pF	+/-10 ppm	-40 to +85 °C
X1E0002510126	1.6x1.2x0.35mm	FA-118T	24.000000 MHz	7 pF	+/-30 ppm	-20 to +75 °C
X1E0002510136	1.6x1.2x0.35mm	FA-118T	24.000000 MHz	8 pF	+/-15 ppm	-20 to +105 °C
X1E0002510138	1.6x1.2x0.35mm	FA-118T	32.000000 MHz	6 pF	+/-10 ppm	-20 to +70 °C
X1E0002510141	1.6x1.2x0.35mm	FA-118T	32.000000 MHz	8 pF	+/-20 ppm	-40 to +85 °C
X1E0002510144	1.6x1.2x0.35mm	FA-118T	24.000000 MHz	20 pF	+/-30 ppm	-20 to +75 °C
X1E0002510145	1.6x1.2x0.35mm	FA-118T	25.000000 MHz	20 pF	+/-30 ppm	-20 to +75 °C
X1E0002510148	1.6x1.2x0.35mm	FA-118T	25.000000 MHz	8 pF	+/-10 ppm	-20 to +75 °C
X1E0002510150	1.6x1.2x0.35mm	FA-118T	38.400000 MHz	20 pF	+/-10 ppm	-20 to +75 °C
X1E0002510152	1.6x1.2x0.35mm	FA-118T	48.000000 MHz	8 pF	+/-10 ppm	-40 to +85 °C
X1E0002510153	1.6x1.2x0.35mm	FA-118T	24.000000 MHz	8 pF	+/-10 ppm	-40 to +85 °C
X1E0002510154	1.6x1.2x0.35mm	FA-118T	50.000000 MHz	12 pF	+/-30 ppm	-40 to +85 °C
X1E0002510155	1.6x1.2x0.35mm	FA-118T	32.000000 MHz	9 pF	+/-30 ppm	-20 to +75 °C
X1E0002510157	1.6x1.2x0.35mm	FA-118T	26.000000 MHz	8 pF	+/-10 ppm	-40 to +85 °C
X1E0002510158	1.6x1.2x0.35mm	FA-118T	50.000000 MHz	12 pF	+/-10 ppm	-40 to +85 °C
X1E0002510159	1.6x1.2x0.35mm	FA-118T	48.000000 MHz	8 pF	+/-15 ppm	-40 to +85 °C
X1E0002510160	1.6x1.2x0.35mm	FA-118T	30.000000 MHz	4 pF	+/-70 ppm	-40 to +85 °C
X1E0002510161	1.6x1.2x0.35mm	FA-118T	37.400000 MHz	8 pF	+/-10 ppm	-30 to +85 °C
X1E0002510166	1.6x1.2x0.35mm	FA-118T	32.000000 MHz	10 pF	+/-10 ppm	-30 to +85 °C
X1E0002510169	1.6x1.2x0.35mm	FA-118T	25.000000 MHz	10 pF	+/-50 ppm	-40 to +85 °C
X1E0002510033	1.6x1.2x0.35mm	FA-118T	25.000000 MHz	10 pF	+/-30 ppm	-20 to +75 °C
X1E0002510065	1.6x1.2x0.35mm	FA-118T	32.000000 MHz	10 pF	+/-10 ppm	-20 to +75 °C
X1E0002510099	1.6x1.2x0.35mm	FA-118T	48.000000 MHz	6 pF	+/-30 ppm	-20 to +75 °C
X1E0002510134	1.6x1.2x0.35mm	FA-118T	32.000000 MHz	8 pF	+/-10 ppm	-20 to +85 °C
X1E0002510190	1.6x1.2x0.35mm	FA-118T	40.000000 MHz	12 pF	+/-10 ppm	-30 to +85 °C
X1E0002510197	1.6x1.2x0.35mm	FA-118T	32.000000 MHz	6 pF	+/-10 ppm	-20 to +75 °C
X1E0002510201	1.6x1.2x0.35mm	FA-118T	38.400000 MHz	8 pF	+/-10 ppm	-20 to +85 °C
X1E0002510212	1.6x1.2x0.35mm	FA-118T	40.000000 MHz	6 pF	+/-10 ppm	-40 to +85 °C
X1E0002510215	1.6x1.2x0.35mm	FA-118T	32.000000 MHz	6 pF	+/-20 ppm	-40 to +85 °C
X1E0002510219	1.6x1.2x0.35mm	FA-118T	40.000000 MHz	10 pF	+/-10 ppm	-40 to +85 °C
