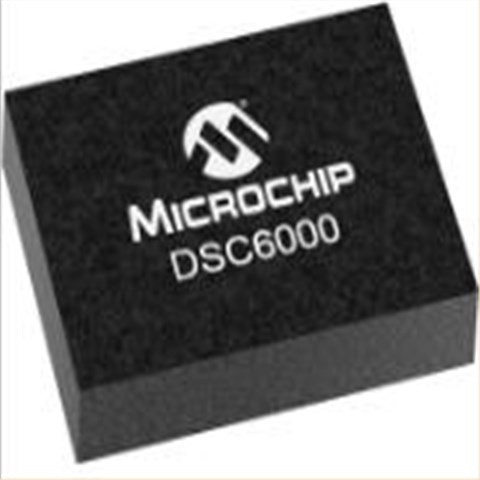

DSC6001JI2A-125.0000T,6G以太网晶振,2520mm,低功耗晶振,美国晶振,Microchip石英贴片晶体,DSC60XX有源晶振,DSC6001JI2A-125.0000T晶振,2520mm晶振,超小型晶体振荡器,频率125MHz,电压3.3V,频率稳定性25ppm,工作温度-40~85°C,高可靠性晶振,无铅环保晶振,低功耗晶振,6G以太网晶振,物联网晶振,智能设备晶振,家庭医疗保健晶振,健身设备晶振,汽车信息娱乐系统晶振.

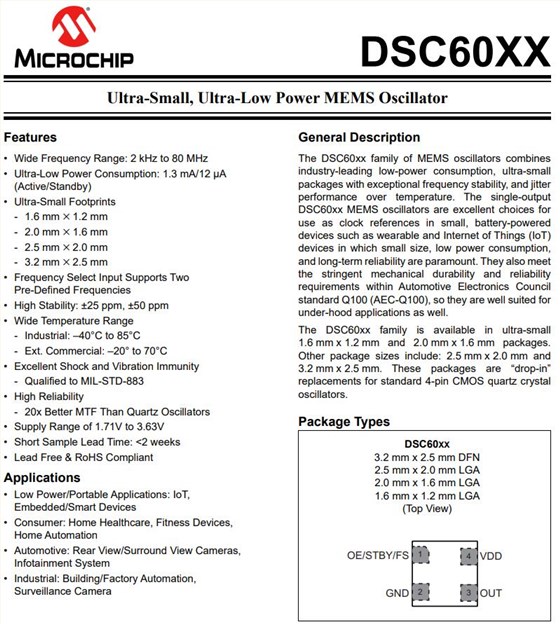

DSC6001JI2A-125.0000T,6G以太网晶振,2520mm,低功耗晶振特点：
•宽频率范围:2 kHz至80 MHz
•超低功耗:1.3 mA/12µA(备份)
•超小足迹
- 1.6 mm×1.2 mm
- 2.0 mm×1.6 mm
- 2.5 mm×2.0 mm
- 3.2 mm×2.5 mm
•频率选择输入支持两个预定义的频率
•高稳定性:±25 ppm，±50 ppm
•宽温度范围
-工业:- 40℃~ 85℃
-外商用:- 20°至70°C
•卓越的抗冲击和抗振动能力
-符合MIL-STD-883标准
•高可靠性
- MTF比石英振荡器好20倍
•电源范围1.71V至3.63V
•样品交货时间短:<2周
•无铅和符合RoHS标准
DSC6001JI2A-125.0000T,6G以太网晶振,2520mm,低功耗晶振参数图
| 项目 | 规格说明 | 条件 |
| 额定频率 | 125MHz | 请联系我们以便获取其它可用频率的相关信息 |
| 电源电压 | 3.3V |
|
| 储存温度 | -55℃~+150℃ | 裸存 |
| 工作温度 | -40℃~ +85℃ |
|
| 频率稳定度 | ±25ppm | 所有温度范围 |
| 老化 |
±5ppm |
1 year @ +25°C |
| 电流 | 1.3mATyp | FOUT = 24 MHz, VDD = 1.8V, No Load |
| 占空比 | 45%~55% |
|
| 输出逻辑电平低（Vol） |
0.2 x VDDV Max |
I=±1mA |
| 输出逻辑电平高（Voh） | 0.8 x VDDVMin | |
| 起始时间 | 1.3ms Max |
From 90% VDD to valid clock output, T = +25° C |
| 输出上升下降时间 | 1.2ns Max |
DSC60x1 Std. Drive, 20% to 80% CL = 10 pF |
| Cycle-to-Cycle抖动(峰值) | 150ps Max | DSC60x1 Std. Drive, FOUT = 27 MHz |
|
周期抖动 |
28ps |
DSC60x1 Std. Drive, FOUT = 27 MHzRMS |

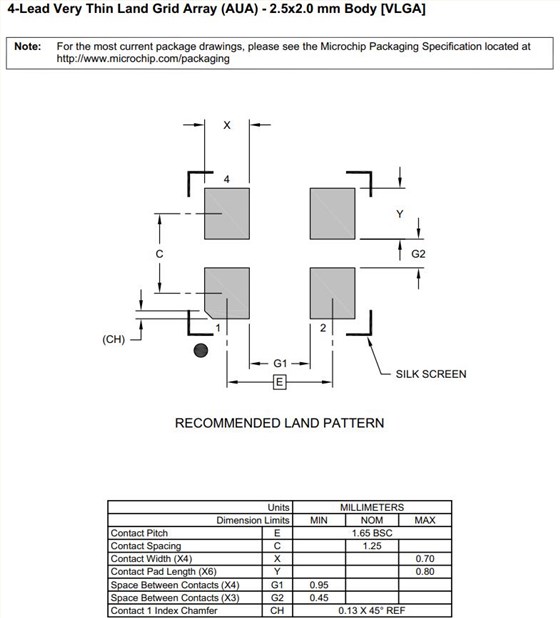

DSC6001JI2A-125.0000T,6G以太网晶振,2520mm,低功耗晶振尺寸图
