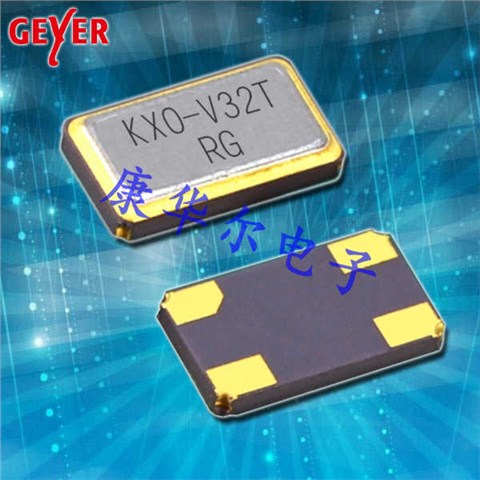

格耶音叉晶体,智能手表晶振,12.75000有源晶振

格耶有源晶振,数码相机晶振,12.75000音叉晶振，丹麦格耶晶振公司，GEYER晶振，有源晶振，进口晶振，KXO-V32T晶体，3215晶振，工业设备晶振，安全设备晶体，音叉晶振，32.768KHz晶振，四脚晶振，贴片晶振，石英晶振，3215晶振，航空航天晶振，高精度晶振，6G通讯卫星晶振。贴片石英晶体,体积小,焊接可采用自动贴片系统,产品本身小型,表面贴片晶振,特别适用于有小型化要求的电子数码产品市场领域,因产品小型,薄型优势,耐环境特性,包括耐高温,耐冲击性等,在移动通信领域得到了广泛的应用,晶振产品本身可发挥优良的电气特性,满足无铅焊接的高温回流温度曲线要求.

格耶有源晶振,数码相机晶振,12.75000音叉晶振

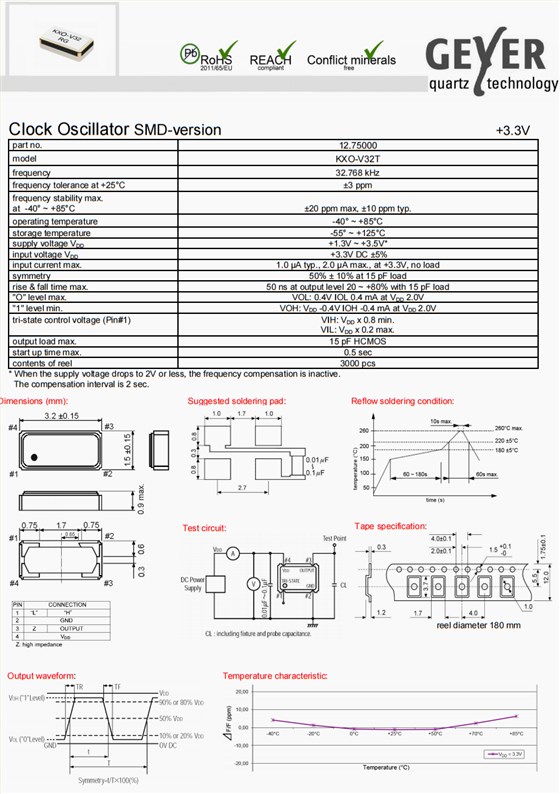

编码	12.7500
型号	KXO-V32T
频率	32.768 kHz
频率容差	±3 ppm
频率稳定度	±20 ppm max, ±10 ppm typ.
工作温度	-40° ~ +85°C
储存温度	-55° ~ +125°C
电源电压	+1.3V ~ +3.5V*
输入电压	+3.3V DC ±5%
输入电流	1.0 µA typ., 2.0 µA max., at +3.3V, no load
对称性	50% ± 10% at 15 pF load
上升＆下降最大值	50 ns at output level 20 ~ +80% with 15 pF load
“O”最大电平	VOL: 0.4V IOL 0.4 mA at VDD 2.0V
“1”级别最小值。	VOH: VDD -0.4V IOH -0.4 mA at VDD 2.0V
三态控制电压	VIH: VDD x 0.8 min. VIL: VDD x 0.2 max.
输出负载最大值	15 pF HCMOS
启动时间最大值	0.5 sec

格耶有源晶振,数码相机晶振,12.75000音叉晶振

原厂编码	生产商品牌	型号	类型	频率	输出	电源电压	频率稳定度	工作温度
12.95582	Geyer晶振	KXO-V95	XO	14.7456 MHz	-	-	±50ppm	-40°C ~ 85°C
12.95549	Geyer晶振	KXO-V95T	XO	32 MHz	-	-	±50ppm	-40°C ~ 85°C
12.95531	Geyer晶振	KXO-V95T	XO	3.6864 MHz	-	-	±50ppm	-40°C ~ 85°C
12.90328	Geyer晶振	KXO-V94T	XO	16 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
12.90321	Geyer晶振	KXO-V94	XO	14.7456 MHz	HCMOS	3.3V	±50ppm	-40°C ~ 85°C
12.95545	Geyer晶振	KXO-V95T	XO	20 MHz	-	-	±50ppm	-40°C ~ 85°C
12.95103	Geyer晶振	KXO-V96T	XO	32 MHz	-	-	±50ppm	-40°C ~ 85°C
12.9558	Geyer晶振	KXO-V95	XO	3.579545 MHz	-	-	±50ppm	-20°C ~ 70°C
12.95094	Geyer晶振	KXO-V96T	XO	14.31818 MHz	-	-	±50ppm	-40°C ~ 85°C
12.95034	Geyer晶振	KXO-V96T	XO	20 MHz	-	-	±50ppm	-40°C ~ 85°C
12.95542	Geyer晶振	KXO-V95T	XO	12 MHz	-	-	±50ppm	-40°C ~ 85°C
12.94474	Geyer晶振	KXO-V97T	XO	27 MHz	-	-	±100ppm	-40°C ~ 85°C
12.90343	Geyer晶振	KXO-V94T	XO	12 MHz	-	-	±50ppm	-40°C ~ 85°C
12.90325	Geyer晶振	KXO-V94	XO	3.6864 MHz	HCMOS	3.3V	±50ppm	-40°C ~ 85°C
12.90311	Geyer晶振	KXO-V94	XO	14.7456 MHz	HCMOS	3.3V	±100ppm	-40°C ~ 85°C
12.95128	Geyer晶振	KXO-V96E	XO	27 MHz	-	-	±50ppm	-40°C ~ 85°C
12.95102	Geyer晶振	KXO-V96T	XO	80 MHz	-	-	±50ppm	-40°C ~ 85°C
12.90333	Geyer晶振	KXO-V94T	XO	40 MHz	-	-	±50ppm	-40°C ~ 85°C
12.90337	Geyer晶振	KXO-V94T	XO	26 MHz	-	-	±50ppm	-40°C ~ 85°C
12.94273	Geyer晶振	KXO-V97T	XO	32 MHz	-	-	±100ppm	-40°C ~ 85°C
12.94365	Geyer晶振	KXO-V97T	XO	14.31818 MHz	-	-	±100ppm	-40°C ~ 85°C
12.95546	Geyer晶振	KXO-V95T	XO	26 MHz	-	-	±50ppm	-40°C ~ 85°C
12.92106	Geyer晶振	KXO-V97T	XO	65 MHz	-	-	±100ppm	-40°C ~ 85°C
12.95571	Geyer晶振	KXO-V95T	XO	32.768 kHz	-	-	±30ppm	-40°C ~ 85°C
12.90344	Geyer晶振	KXO-V94T	XO	4 MHz	-	-	±50ppm	-40°C ~ 85°C
12.95538	Geyer晶振	KXO-V95	XO	27.12 MHz	-	-	±50ppm	-20°C ~ 70°C
12.94364	Geyer晶振	KXO-V97T	XO	48 MHz	-	-	±100ppm	-40°C ~ 85°C
12.95568	Geyer晶振	KXO-V95F	XO	48 MHz	-	-	±50ppm	-40°C ~ 85°C
12.90324	Geyer晶振	KXO-V94	XO	27 MHz	HCMOS	3.3V	±50ppm	-40°C ~ 85°C
12.94609	Geyer晶振	KXO-V99	XO	1 MHz	-	-	±50ppm	-40°C ~ 85°C
12.95101	Geyer晶振	KXO-V96T	XO	48 MHz	-	-	±50ppm	-40°C ~ 85°C
12.92146	Geyer晶振	KXO-V97T	XO	22.1184 MHz	-	-	±100ppm	-40°C ~ 85°C
12.90327	Geyer晶振	KXO-V94T	XO	48 MHz	HCMOS	3.3V	±50ppm	-40°C ~ 85°C
12.95091	Geyer晶振	KXO-V96T	XO	10 MHz	-	-	±50ppm	-40°C ~ 85°C
12.94449	Geyer晶振	KXO-V97T	XO	18.432 MHz	-	-	±100ppm	-40°C ~ 85°C
12.94456	Geyer晶振	KXO-V97T	XO	3.6864 MHz	-	-	±100ppm	-40°C ~ 85°C
12.95551	Geyer晶振	KXO-V95T	XO	48 MHz	-	-	±50ppm	-40°C ~ 85°C
12.90322	Geyer晶振	KXO-V94T	XO	20 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
12.95524	Geyer晶振	KXO-V95E	XO	25 MHz	-	-	±100ppm	-40°C ~ 85°C
12.9034	Geyer晶振	KXO-V94T	XO	32.768 kHz	-	-	±20ppm	-40°C ~ 85°C
12.95543	Geyer晶振	KXO-V95T	XO	14.31818 MHz	-	-	±50ppm	-40°C ~ 85°C
12.95104	Geyer晶振	KXO-V96-18	XO	32.768 kHz	-	-	±50ppm	-20°C ~ 70°C
12.94422	Geyer晶振	KXO-V97T	XO	11.0592 MHz	-	-	±100ppm	-40°C ~ 85°C
12.95548	Geyer晶振	KXO-V95T	XO	4 MHz	-	-	±50ppm	-40°C ~ 85°C
12.90307	Geyer晶振	KXO-V94	XO	1.8432 MHz	HCMOS	3.3V	±50ppm	-40°C ~ 85°C
12.70004	Geyer晶振	KXO-56T	XO	33 MHz	-	3.3V	±50ppm	-40°C ~ 85°C
12.96745	Geyer晶振	KXO-75R	VCXO	24.576 MHz	-	3.3V	±50ppm	0°C ~ 70°C
12.94201	Geyer晶振	KXO-97	XO	2.4576 MHz	-	5V	±50ppm	-20°C ~ 70°C
12.94202	Geyer晶振	KXO-97	XO	3.6864 MHz	-	5V	±50ppm	-20°C ~ 70°C
12.94205	Geyer晶振	KXO-97	XO	6 MHz	-	5V	±50ppm	-20°C ~ 70°C
12.94206	Geyer晶振	KXO-97	XO	6.144 MHz	-	5V	±50ppm	-20°C ~ 70°C
12.94207	Geyer晶振	KXO-97	XO	8 MHz	-	5V	±50ppm	-20°C ~ 70°C
12.94209	Geyer晶振	KXO-97	XO	10 MHz	-	5V	±50ppm	-20°C ~ 70°C
12.94210	Geyer晶振	KXO-97	XO	11.0592 MHz	-	5V	±50ppm	-20°C ~ 70°C
12.94211	Geyer晶振	KXO-97	XO	12 MHz	-	5V	±50ppm	-20°C ~ 70°C
12.94212	Geyer晶振	KXO-97	XO	12.288 MHz	-	5V	±50ppm	-20°C ~ 70°C
12.94213	Geyer晶振	KXO-97	XO	14.31818 MHz	-	5V	±50ppm	-20°C ~ 70°C
12.94214	Geyer晶振	KXO-97	XO	14.7456 MHz	-	5V	±50ppm	-20°C ~ 70°C
12.94215	Geyer晶振	KXO-97	XO	16 MHz	-	5V	±50ppm	-20°C ~ 70°C
12.94216	Geyer晶振	KXO-97	XO	18.432 MHz	-	5V	±50ppm	-20°C ~ 70°C
12.94219	Geyer晶振	KXO-97	XO	20 MHz	-	5V	±50ppm	-20°C ~ 70°C
12.94220	Geyer晶振	KXO-97	XO	22.1184 MHz	-	5V	±50ppm	-20°C ~ 70°C
12.94221	Geyer晶振	KXO-97	XO	24 MHz	-	5V	±50ppm	-20°C ~ 70°C
12.94222	Geyer晶振	KXO-97	XO	30 MHz	-	5V	±50ppm	-20°C ~ 70°C
12.94223	Geyer晶振	KXO-97	XO	32 MHz	-	5V	±50ppm	-20°C ~ 70°C
12.94227	Geyer晶振	KXO-97	XO	48 MHz	-	5V	±50ppm	-20°C ~ 70°C
12.94228	Geyer晶振	KXO-97	XO	50 MHz	-	5V	±50ppm	-20°C ~ 70°C
12.94229	Geyer晶振	KXO-97	XO	64 MHz	-	5V	±50ppm	-20°C ~ 70°C
12.94230	Geyer晶振	KXO-97	XO	66 MHz	-	5V	±50ppm	-20°C ~ 70°C
12.94239	Geyer晶振	KXO-97	XO	3.579545 MHz	-	5V	±50ppm	-20°C ~ 70°C
12.94242	Geyer晶振	KXO-97	XO	24.576 MHz	-	5V	±50ppm	-20°C ~ 70°C
12.94259	Geyer晶振	KXO-97	XO	9.8304 MHz	-	5V	±50ppm	-20°C ~ 70°C
12.94267	Geyer晶振	KXO-97	XO	60 MHz	-	5V	±50ppm	-20°C ~ 70°C
12.94287	Geyer晶振	KXO-97T	XO	20 MHz	-	5V	±100ppm	-40°C ~ 85°C
12.94289	Geyer晶振	KXO-97T	XO	16 MHz	-	5V	±100ppm	-40°C ~ 85°C
12.94295	Geyer晶振	KXO-97T	XO	40 MHz	-	5V	±100ppm	-40°C ~ 85°C
12.94591	Geyer晶振	KXO-97T	XO	64 MHz	-	5V	±50ppm	-40°C ~ 85°C
12.91528	Geyer晶振	KXO-210	XO	32 MHz	-	5V	±100ppm	-20°C ~ 70°C
12.75000	Geyer晶振	KXO-V32T	XO	32.768 kHz	-	3.3V	±20ppm	-40°C ~ 85°C
12.93400	Geyer晶振	KXO-V63T	VCXO	74.25 MHz	LVDS	3.3V	±50ppm	-40°C ~ 85°C
12.93401	Geyer晶振	KXO-V63T	VCXO	74.176 MHz	LVDS	3.3V	±50ppm	-40°C ~ 85°C
12.73000	Geyer晶振	KXO-V93T	XO	20 MHz	-	3.3V	±30ppm	-40°C ~ 85°C
12.73002	Geyer晶振	KXO-V93T	XO	40 MHz	-	3.3V	±30ppm	-40°C ~ 85°C
12.73003	Geyer晶振	KXO-V93T	XO	50 MHz	-	3.3V	±30ppm	-40°C ~ 85°C
12.73004	Geyer晶振	KXO-V93T	XO	48 MHz	-	3.3V	±30ppm	-40°C ~ 85°C
12.73009	Geyer晶振	KXO-V93T	XO	24 MHz	-	3.3V	±30ppm	-40°C ~ 85°C
12.73010	Geyer晶振	KXO-V93T	XO	8 MHz	-	3.3V	±30ppm	-40°C ~ 85°C
12.73011	Geyer晶振	KXO-V93T	XO	3.6864 MHz	-	3.3V	±30ppm	-40°C ~ 85°C
12.73012	Geyer晶振	KXO-V93T	XO	16 MHz	-	3.3V	±30ppm	-40°C ~ 85°C
12.73013	Geyer晶振	KXO-V93T	XO	25 MHz	-	3.3V	±30ppm	-40°C ~ 85°C
12.90305	Geyer晶振	KXO-V94	XO	20 MHz	-	3.3V	±50ppm	-20°C ~ 70°C
12.90308	Geyer晶振	KXO-V94	XO	3.6864 MHz	-	3.3V	±50ppm	-20°C ~ 70°C
12.90309	Geyer晶振	KXO-V94	XO	25 MHz	-	3.3V	±50ppm	-20°C ~ 70°C
12.9031	Geyer晶振	KXO-V94	XO	1.8432 MHz	-	3.3V	±50ppm	-20°C ~ 70°C
12.90302	Geyer晶振	KXO-V94T	XO	8 MHz	-	3.3V	±50ppm	-40°C ~ 85°C
12.90323	Geyer晶振	KXO-V94T	XO	25 MHz	-	3.3V	±50ppm	-40°C ~ 85°C
12.90329	Geyer晶振	KXO-V94T	XO	32 MHz	-	3.3V	±50ppm	-40°C ~ 85°C
12.9033	Geyer晶振	KXO-V94T	XO	10 MHz	-	3.3V	±100ppm	-40°C ~ 85°C
12.9034	Geyer晶振	KXO-V94T	XO	32.768 kHz	-	3.3V	±20ppm	-40°C ~ 85°C
12.90345	Geyer晶振	KXO-V94T	XO	50 MHz	-	3.3V	±50ppm	-40°C ~ 85°C
12.95508	Geyer晶振	KXO-V95	XO	14.31818 MHz	-	3.3V	±50ppm	-20°C ~ 70°C
12.95510	Geyer晶振	KXO-V95	XO	24 MHz	-	3.3V	±50ppm	-20°C ~ 70°C
12.95519	Geyer晶振	KXO-V95T	XO	8 MHz	-	3.3V	±50ppm	-40°C ~ 85°C
12.95533	Geyer晶振	KXO-V95T	XO	25 MHz	-	3.3V	±50ppm	-40°C ~ 85°C
12.95534	Geyer晶振	KXO-V95T	XO	6 MHz	-	3.3V	±50ppm	-40°C ~ 85°C
12.95544	Geyer晶振	KXO-V95T	XO	16 MHz	-	3.3V	±50ppm	-40°C ~ 85°C
12.9555	Geyer晶振	KXO-V95T	XO	40 MHz	-	3.3V	±50ppm	-40°C ~ 85°C
12.95562	Geyer晶振	KXO-V95T	XO	80 MHz	-	3.3V	±50ppm	-40°C ~ 85°C
12.95565	Geyer晶振	KXO-V95T	XO	1.8432 MHz	-	3.3V	±50ppm	-40°C ~ 85°C
12.95047	Geyer晶振	KXO-V96	XO	26 MHz	-	3.3V	±50ppm	-20°C ~ 70°C
12.95127	Geyer晶振	KXO-V96F	XO	25 MHz	-	3.3V	±50ppm	-40°C ~ 125°C
12.95141	Geyer晶振	KXO-V96F	XO	27 MHz	-	3.3V	±50ppm	-40°C ~ 125°C
12.95027	Geyer晶振	KXO-V96T	XO	50 MHz	-	3.3V	±50ppm	-40°C ~ 85°C
12.95028	Geyer晶振	KXO-V96T	XO	12 MHz	-	3.3V	±50ppm	-40°C ~ 85°C
12.95049	Geyer晶振	KXO-V96T	XO	25 MHz	-	3.3V	±50ppm	-40°C ~ 85°C
12.9505	Geyer晶振	KXO-V96T	XO	8 MHz	-	3.3V	±50ppm	-40°C ~ 85°C
12.95059	Geyer晶振	KXO-V96T	XO	66 MHz	-	3.3V	±50ppm	-40°C ~ 85°C
12.95081	Geyer晶振	KXO-V96T	XO	100 MHz	-	3.3V	±50ppm	-40°C ~ 85°C
12.95089	Geyer晶振	KXO-V96T	XO	13.56 MHz	-	3.3V	±50ppm	-40°C ~ 85°C
12.95092	Geyer晶振	KXO-V96T	XO	11.0592 MHz	-	3.3V	±50ppm	-40°C ~ 85°C
12.95093	Geyer晶振	KXO-V96T	XO	125 MHz	-	3.3V	±50ppm	-40°C ~ 85°C
12.95095	Geyer晶振	KXO-V96T	XO	16 MHz	-	3.3V	±50ppm	-40°C ~ 85°C
12.95100	Geyer晶振	KXO-V96T	XO	40 MHz	-	3.3V	±50ppm	-40°C ~ 85°C
12.95115	Geyer晶振	KXO-V96T	XO	24.576 MHz	-	3.3V	±50ppm	-40°C ~ 85°C
12.95134	Geyer晶振	KXO-V96T	XO	32.768 kHz	-	3.3V	±50ppm	-40°C ~ 85°C
12.95139	Geyer晶振	KXO-V96T	XO	133 MHz	-	3.3V	±50ppm	-40°C ~ 85°C
12.94264	Geyer晶振	KXO-V97	XO	14.31818 MHz	-	3.3V	±50ppm	-20°C ~ 70°C
12.94269	Geyer晶振	KXO-V97	XO	3.579545 MHz	-	3.3V	±50ppm	-20°C ~ 70°C
12.94272	Geyer晶振	KXO-V97	XO	16 MHz	-	3.3V	±50ppm	-20°C ~ 70°C
12.94274	Geyer晶振	KXO-V97	XO	40 MHz	-	3.3V	±50ppm	-20°C ~ 70°C
12.94277	Geyer晶振	KXO-V97	XO	50 MHz	-	3.3V	±50ppm	-20°C ~ 70°C
12.94335	Geyer晶振	KXO-V97	XO	25 MHz	-	3.3V	±50ppm	-20°C ~ 70°C
12.94336	Geyer晶振	KXO-V97	XO	27 MHz	-	3.3V	±50ppm	-20°C ~ 70°C
12.94338	Geyer晶振	KXO-V97	XO	1.8432 MHz	-	3.3V	±50ppm	-20°C ~ 70°C
12.94340	Geyer晶振	KXO-V97	XO	24 MHz	-	3.3V	±50ppm	-20°C ~ 70°C
12.94346	Geyer晶振	KXO-V97	XO	10 MHz	-	3.3V	±50ppm	-20°C ~ 70°C
12.94354	Geyer晶振	KXO-V97	XO	5 MHz	-	3.3V	±50ppm	-20°C ~ 70°C
12.94355	Geyer晶振	KXO-V97	XO	100 MHz	-	3.3V	±50ppm	-20°C ~ 70°C
12.94361	Geyer晶振	KXO-V97	XO	28.63636 MHz	-	3.3V	±50ppm	-20°C ~ 70°C
12.94371	Geyer晶振	KXO-V97	XO	7.3728 MHz	-	3.3V	±50ppm	-20°C ~ 70°C
12.94372	Geyer晶振	KXO-V97	XO	8 MHz	-	3.3V	±50ppm	-20°C ~ 70°C
12.94374	Geyer晶振	KXO-V97	XO	4.9152 MHz	-	3.3V	±50ppm	-20°C ~ 70°C
12.94376	Geyer晶振	KXO-V97	XO	2.4576 MHz	-	3.3V	±50ppm	-20°C ~ 70°C
12.94377	Geyer晶振	KXO-V97	XO	3.6864 MHz	-	3.3V	±50ppm	-20°C ~ 70°C
12.94383	Geyer晶振	KXO-V97	XO	33.333 MHz	-	3.3V	±50ppm	-20°C ~ 70°C
12.94384	Geyer晶振	KXO-V97	XO	18.432 MHz	-	3.3V	±50ppm	-20°C ~ 70°C
12.94446	Geyer晶振	KXO-V97	XO	29.4912 MHz	-	3.3V	±100ppm	-20°C ~ 70°C
12.94450	Geyer晶振	KXO-V97	XO	10 MHz	-	3.3V	±100ppm	-20°C ~ 70°C
12.94451	Geyer晶振	KXO-V97	XO	98.304 MHz	-	3.3V	±100ppm	-20°C ~ 70°C
12.94471	Geyer晶振	KXO-V97	XO	98.304 MHz	-	1.8V	±50ppm	-20°C ~ 70°C
12.94496	Geyer晶振	KXO-V97	XO	32.768 kHz	-	3.3V	±50ppm	-20°C ~ 70°C
12.94555	Geyer晶振	KXO-V97	XO	100 MHz	-	2.5V	±50ppm	-20°C ~ 70°C
12.92112	Geyer晶振	KXO-V97T	XO	90 MHz	-	3.3V	±100ppm	-40°C ~ 85°C
12.92125	Geyer晶振	KXO-V97T	XO	156.25 MHz	-	3.3V	±50ppm	-40°C ~ 85°C
12.94108	Geyer晶振	KXO-V97T	XO	50 MHz	-	3.3V	±100ppm	-40°C ~ 85°C
12.94394	Geyer晶振	KXO-V97T	XO	4 MHz	-	3.3V	±100ppm	-40°C ~ 85°C
12.94403	Geyer晶振	KXO-V97T	XO	25 MHz	-	3.3V	±100ppm	-40°C ~ 85°C
12.94408	Geyer晶振	KXO-V97T	XO	66 MHz	-	3.3V	±100ppm	-40°C ~ 85°C
12.94415	Geyer晶振	KXO-V97T	XO	1.8432 MHz	-	3.3V	±100ppm	-40°C ~ 85°C
12.94419	Geyer晶振	KXO-V97T	XO	60 MHz	-	3.3V	±100ppm	-40°C ~ 85°C
12.94425	Geyer晶振	KXO-V97T	XO	98.304 MHz	-	3.3V	±100ppm	-40°C ~ 85°C
12.94428	Geyer晶振	KXO-V97T	XO	7.3728 MHz	-	3.3V	±100ppm	-40°C ~ 85°C
12.94429	Geyer晶振	KXO-V97T	XO	14.7456 MHz	-	3.3V	±100ppm	-40°C ~ 85°C
12.94445	Geyer晶振	KXO-V97T	XO	12.288 MHz	-	3.3V	±100ppm	-40°C ~ 85°C
12.94462	Geyer晶振	KXO-V97T	XO	125 MHz	-	3.3V	±100ppm	-40°C ~ 85°C
12.94470	Geyer晶振	KXO-V97T	XO	8 MHz	-	3.3V	±100ppm	-40°C ~ 85°C
12.94514	Geyer晶振	KXO-V97T	XO	32.768 kHz	-	3.3V	±100ppm	-40°C ~ 85°C
12.94583	Geyer晶振	KXO-V97T	XO	10 MHz	-	3.3V	±50ppm	-40°C ~ 85°C
12.94585	Geyer晶振	KXO-V97T	XO	14.7456 MHz	-	3.3V	±50ppm	-40°C ~ 85°C
12.94587	Geyer晶振	KXO-V97T	XO	3.6864 MHz	-	3.3V	±50ppm	-40°C ~ 85°C
12.94604	Geyer晶振	KXO-V99	XO	50 MHz	-	3.3V	±50ppm	-20°C ~ 70°C
12.94605	Geyer晶振	KXO-V99	XO	80 MHz	-	3.3V	±50ppm	-20°C ~ 70°C
12.94606	Geyer晶振	KXO-V99	XO	100 MHz	-	3.3V	±50ppm	-20°C ~ 70°C
12.94608	Geyer晶振	KXO-V99	XO	25 MHz	-	3.3V	±50ppm	-20°C ~ 70°C
12.94628	Geyer晶振	KXO-V99	XO	24 MHz	-	3.3V	±50ppm	-20°C ~ 70°C
12.94636	Geyer晶振	KXO-V99	XO	100 MHz	-	2.5V	±50ppm	-20°C ~ 70°C
12.94645	Geyer晶振	KXO-V99	XO	98.304 MHz	-	1.8V	±50ppm	-20°C ~ 70°C
