松图晶振,5032石英晶振,SXT53212BB38-37.400M,6G低成本晶振,松图晶振,SXT532无源晶振,5032石英晶振,SXT53212BB38-37.400M晶振,石英晶体谐振器,频率37.4MHz,负载12pF,频率偏差30ppm,工作温度-30~85°C,低老化晶振,高可靠性晶振,6G低成本晶振,通信设备晶振,测试与测量设备晶振,无线路由器晶振.
松图晶振,5032石英晶振,SXT53212BB38-37.400M,6G低成本晶振特点：
•±10 ppm /±10 ppm(公差/稳定)可用
•超小型封装
•AT-Cut基本原理
•磁带和卷轴

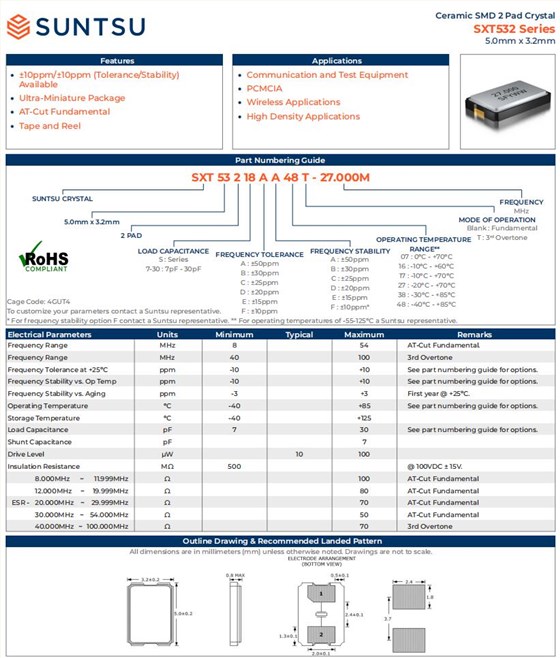

松图晶振,5032石英晶振,SXT53212BB38-37.400M,6G低成本晶振参数图
| 项目 | 符号 | 数值 |
| 频率 | f0 | 37.4MHz |
| 频率公差 | △f/f0 | ±30ppm |
| 温度稳定性 | TC | ±30ppm |
| 并联电容 | CO | 7pF Max |
| 负载电容 | CL | 12pF |
| 工作温度 | TOPR | -30℃～＋85℃ |
| 保存温度 | TSTR | －40℃～＋125℃ |
| 串联阻力 | R1 | 50Ω Max |
| 驱动级别 | DL | 100μW Max |
| 老化（第一年） | △f/f0 | ±3ppm Max. |

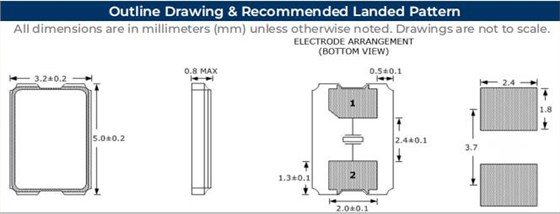

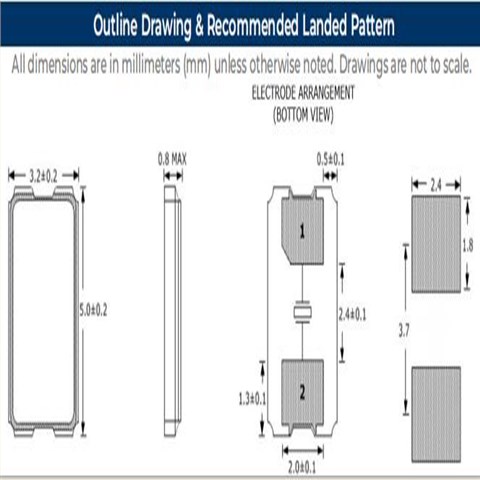

松图晶振,5032石英晶振,SXT53212BB38-37.400M,6G低成本晶振尺寸图
| SUNTSU晶振编码 | 尺寸 | 负载 | 频率公差 | 频率稳定度 | 工作温度 | 频率 |
| SXT22410AA07-12.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 12.000M |
| SXT22410AA07-12.288M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 12.288M |
| SXT22410AA07-13.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 13.000M |
| SXT22410AA07-13.560M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 13.560M |
| SXT22410AA07-14.31818M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 14.31818M |
| SXT22410AA07-14.7456M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 14.7456M |
| SXT22410AA07-16.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 16.000M |
| SXT22410AA07-16.384M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 16.384M |
| SXT22410AA07-18.432M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 18.432M |
| SXT22410AA07-19.200M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 19.200M |
| SXT22410AA07-20.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 20.000M |
| SXT22410AA07-22.1184M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 22.1184M |
| SXT22410AA07-24.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 24.000M |
| SXT22410AA07-24.576M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 24.576M |
| SXT22410AA07-25.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 25.000M |
| SXT22410AA07-26.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 26.000M |
| SXT22410AA07-27.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 27.000M |
| SXT22410AA07-27.120M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 27.120M |
| SXT22410AA07-30.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 30.000M |
| SXT22410AA07-32.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 32.000M |
| SXT22410AA07-37.400M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 37.400M |
| SXT22410AA07-38.400M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 38.400M |
| SXT22410AA07-40.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 40.000M |
| SXT22410AA07-48.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 48.000M |
| SXT22410AA07-50.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 50.000M |
| SXT22410AA16-12.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +60°C | 12.000M |
| SXT22410AA16-12.288M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +60°C | 12.288M |
| SXT22410AA16-13.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +60°C | 13.000M |
| SXT22410AA16-13.560M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +60°C | 13.560M |
| SXT22410AA16-14.31818M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +60°C | 14.31818M |
| SXT22410AA16-14.7456M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +60°C | 14.7456M |
| SXT22410AA16-16.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +60°C | 16.000M |
| SXT22410AA16-16.384M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +60°C | 16.384M |
| SXT22410AA16-18.432M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +60°C | 18.432M |
| SXT22410AA16-19.200M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +60°C | 19.200M |
| SXT22410AA16-20.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +60°C | 20.000M |
| SXT22410AA16-22.1184M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +60°C | 22.1184M |
| SXT22410AA16-24.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +60°C | 24.000M |
| SXT22410AA16-24.576M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +60°C | 24.576M |
| SXT22410AA16-25.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10℃ - +60℃ | 25.000M |
| SXT22410AA16-26.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10℃ - +60℃ | 26.000M |
| SXT22410AA16-27.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10℃ - +60℃ | 27.000M |
| SXT22410AA16-27.120M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10℃ - +60℃ | 27.120M |
| SXT22410AA16-30.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10℃ - +60℃ | 30.000M |
| SXT22410AA16-32.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10℃ - +60℃ | 32.000M |
| SXT22410AA16-37.400M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10℃ - +60℃ | 37.400M |
| SXT22410AA16-38.400M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10℃ - +60℃ | 38.400M |
| SXT22410AA16-40.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10℃ - +60℃ | 40.000M |
| SXT22410AA16-48.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10℃ - +60℃ | 48.000M |
| SXT22410AA16-50.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10℃ - +60℃ | 50.000M |
| SXT22410AA17-12.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10℃ - +70℃ | 12.000M |
| SXT22410AA17-12.288M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10℃ - +70℃ | 12.288M |
| SXT22410AA17-13.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10℃ - +70℃ | 13.000M |
| SXT22410AA17-13.560M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10℃ - +70℃ | 13.560M |
| SXT22410AA17-14.31818M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10℃ - +70℃ | 14.31818M |
| SXT22410AA17-14.7456M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10℃ - +70℃ | 14.7456M |
| SXT22410AA17-16.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10℃ - +70℃ | 16.000M |
| SXT22410AA17-16.384M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10℃ - +70℃ | 16.384M |
| SXT22410AA17-18.432M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10℃ - +70℃ | 18.432M |
| SXT22410AA17-19.200M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10℃ - +70℃ | 19.200M |
| SXT22410AA17-20.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10℃ - +70℃ | 20.000M |
| SXT22410AA17-22.1184M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10℃ - +70℃ | 22.1184M |
| SXT22410AA17-24.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10℃ - +70℃ | 24.000M |
| SXT22410AA17-24.576M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10℃ - +70℃ | 24.576M |
| SXT22410AA17-25.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10℃ - +70℃ | 25.000M |
| SXT22410AA17-26.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10℃ - +70℃ | 26.000M |
| SXT22410AA17-27.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10℃ - +70℃ | 27.000M |
| SXT22410AA17-27.120M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10℃ - +70℃ | 27.120M |
| SXT22410AA17-30.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10℃ - +70℃ | 30.000M |
| SXT22410AA17-32.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10℃ - +70℃ | 32.000M |
| SXT22410AA17-37.400M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10℃ - +70℃ | 37.400M |
| SXT22410AA17-38.400M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10℃ - +70℃ | 38.400M |
| SXT22410AA17-40.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10℃ - +70℃ | 40.000M |
| SXT22410AA17-48.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10℃ - +70℃ | 48.000M |
| SXT22410AA17-50.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10℃ - +70℃ | 50.000M |
| SXT22410AA27-12.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20℃ - +70℃ | 12.000M |
| SXT22410AA27-12.288M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20℃ - +70℃ | 12.288M |
| SXT22410AA27-13.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20℃ - +70℃ | 13.000M |
| SXT22410AA27-13.560M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20℃ - +70℃ | 13.560M |
| SXT22410AA27-14.31818M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20℃ - +70℃ | 14.31818M |
| SXT22410AA27-14.7456M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20℃ - +70℃ | 14.7456M |
| SXT22410AA27-16.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20℃ - +70℃ | 16.000M |
| SXT22410AA27-16.384M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20℃ - +70℃ | 16.384M |
| SXT22410AA27-18.432M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20℃ - +70℃ | 18.432M |
| SXT22410AA27-19.200M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20℃ - +70℃ | 19.200M |
| SXT22410AA27-20.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20℃ - +70℃ | 20.000M |
| SXT22410AA27-22.1184M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20℃ - +70℃ | 22.1184M |
| SXT22410AA27-24.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20℃ - +70℃ | 24.000M |
| SXT22410AA27-24.576M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20℃ - +70℃ | 24.576M |
| SXT22410AA27-25.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20℃ - +70℃ | 25.000M |
| SXT22410AA27-26.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20℃ - +70℃ | 26.000M |
| SXT22410AA27-27.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20℃ - +70℃ | 27.000M |
| SXT22410AA27-27.120M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20℃ - +70℃ | 27.120M |
| SXT22410AA27-30.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20℃ - +70℃ | 30.000M |
| SXT22410AA27-32.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20℃ - +70℃ | 32.000M |
| SXT22410AA27-37.400M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20℃ - +70℃ | 37.400M |
| SXT22410AA27-38.400M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20℃ - +70℃ | 38.400M |
| SXT22410AA27-40.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20℃ - +70℃ | 40.000M |
| SXT22410AA27-48.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20℃ - +70℃ | 48.000M |
| SXT22410AA27-50.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20℃ - +70℃ | 50.000M |
| SXT22410AA38-12.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30℃ - +85℃ | 12.000M |
| SXT22410AA38-12.288M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30℃ - +85℃ | 12.288M |
| SXT22410AA38-13.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30℃ - +85℃ | 13.000M |
| SXT22410AA38-13.560M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30℃ - +85℃ | 13.560M |
| SXT22410AA38-14.31818M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30℃ - +85℃ | 14.31818M |
| SXT22410AA38-14.7456M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30℃ - +85℃ | 14.7456M |
| SXT22410AA38-16.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30℃ - +85℃ | 16.000M |
| SXT22410AA38-16.384M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30℃ - +85℃ | 16.384M |
| SXT22410AA38-18.432M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30℃ - +85℃ | 18.432M |
| SXT22410AA38-19.200M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30℃ - +85℃ | 19.200M |
| SXT22410AA38-20.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30℃ - +85℃ | 20.000M |
| SXT22410AA38-22.1184M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30℃ - +85℃ | 22.1184M |
| SXT22410AA38-24.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30℃ - +85℃ | 24.000M |
| SXT22410AA38-24.576M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30℃ - +85℃ | 24.576M |
| SXT22410AA38-25.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30℃ - +85℃ | 25.000M |
| SXT22410AA38-26.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30℃ - +85℃ | 26.000M |
| SXT22410AA38-27.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30℃ - +85℃ | 27.000M |
| SXT22410AA38-27.120M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30℃ - +85℃ | 27.120M |
| SXT22410AA38-30.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30℃ - +85℃ | 30.000M |
| SXT22410AA38-32.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30℃ - +85℃ | 32.000M |
| SXT22410AA38-37.400M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30℃ - +85℃ | 37.400M |
| SXT22410AA38-38.400M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30℃ - +85℃ | 38.400M |
| SXT22410AA38-40.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30℃ - +85℃ | 40.000M |
| SXT22410AA38-48.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30℃ - +85℃ | 48.000M |
| SXT22410AA38-50.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30℃ - +85℃ | 50.000M |
| SXT22410AA48-12.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40℃ - +85℃ | 12.000M |
| SXT22410AA48-12.288M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40℃ - +85℃ | 12.288M |
| SXT22410AA48-13.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40℃ - +85℃ | 13.000M |
| SXT22410AA48-13.560M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40℃ - +85℃ | 13.560M |
| SXT22410AA48-14.31818M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40℃ - +85℃ | 14.31818M |
| SXT22410AA48-14.7456M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40℃ - +85℃ | 14.7456M |
| SXT22410AA48-16.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40℃ - +85℃ | 16.000M |
| SXT22410AA48-16.384M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40℃ - +85℃ | 16.384M |
| SXT22410AA48-18.432M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40℃ - +85℃ | 18.432M |
| SXT22410AA48-19.200M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40℃ - +85℃ | 19.200M |
| SXT22410AA48-20.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40℃ - +85℃ | 20.000M |
| SXT22410AA48-22.1184M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40℃ - +85℃ | 22.1184M |
| SXT22410AA48-24.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40℃ - +85℃ | 24.000M |
| SXT22410AA48-24.576M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40℃ - +85℃ | 24.576M |
| SXT22410AA48-25.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40°C - +85°C | 25.000M |
| SXT22410AA48-26.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40°C - +85°C | 26.000M |
| SXT22410AA48-27.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40°C - +85°C | 27.000M |
| SXT22410AA48-27.120M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40°C - +85°C | 27.120M |
| SXT22410AA48-30.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40°C - +85°C | 30.000M |
| SXT22410AA48-32.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40°C - +85°C | 32.000M |
| SXT22410AA48-37.400M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40°C - +85°C | 37.400M |
| SXT22410AA48-38.400M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40°C - +85°C | 38.400M |
| SXT22410AA48-40.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40°C - +85°C | 40.000M |
| SXT22410AA48-48.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40°C - +85°C | 48.000M |
| SXT22410AA48-50.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40°C - +85°C | 50.000M |
| SXT22410BA07-12.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 12.000M |
| SXT22410BA07-12.288M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 12.288M |
| SXT22410BA07-13.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 13.000M |
| SXT22410BA07-13.560M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 13.560M |
| SXT22410BA07-14.31818M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 14.31818M |
| SXT22410BA07-14.7456M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 14.7456M |
| SXT22410BA07-16.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 16.000M |
| SXT22410BA07-16.384M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 16.384M |
| SXT22410BA07-18.432M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 18.432M |
| SXT22410BA07-19.200M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 19.200M |
| SXT22410BA07-20.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 20.000M |
| SXT22410BA07-22.1184M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 22.1184M |
| SXT22410BA07-24.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 24.000M |
| SXT22410BA07-24.576M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 24.576M |
| SXT22410BA07-25.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 25.000M |
| SXT22410BA07-26.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 26.000M |
| SXT22410BA07-27.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 27.000M |
| SXT22410BA07-27.120M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 27.120M |
| SXT22410BA07-30.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 30.000M |
| SXT22410BA07-32.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 32.000M |
| SXT22410BA07-38.400M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 38.400M |
| SXT22410BA07-40.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 40.000M |
| SXT22410BA07-48.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 48.000M |
| SXT22410BA07-50.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 50.000M |
富士晶振,插件石英晶振,HC-49/US晶振
KDS晶振,贴片晶振,DST310S晶振
KDS晶振,石英晶振,DSX221G晶振
KDS晶振,贴片晶振,DSX221S晶振
京瓷晶振,贴片晶振,CX1210SB晶振
精工晶振,32.768K晶振,SSP-T7-F晶振
EPSON晶振,32.768K晶振,MC-405晶振,MC-406晶振
富士晶振,贴片晶振,FSX-7M晶振
ConnorWinfield晶振CS-018,CS-018-114.285M小体积3225晶振
百利通亚陶晶振,石英晶振,FYQ晶振
