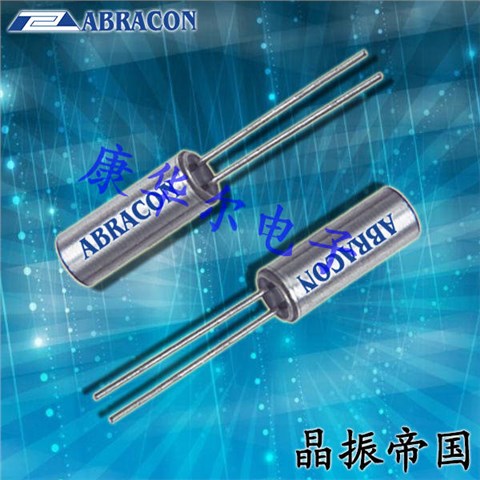

Abracon晶振,AB308圆柱晶振,AB308-16.000MHZ,6G模块晶振

Abracon晶振,AB308圆柱晶振,AB308-16.000MHZ,6G模块晶振,Abracon晶振,AB308无源晶振,AB308-16.000MHZ晶振,圆柱插件晶振,石英晶体谐振器,负载16pF,频率偏差30ppm,工作温度-10~60°C,高稳定性晶振,无铅环保晶振,6G模块晶振,消费电子产品晶振,测试设备晶振,计算机外围设备晶振,微处理器时钟晶振.

Abracon晶振,AB308圆柱晶振,AB308-16.000MHZ,6G模块晶振特点：

•真空密封，稳定性高

•微型高频圆柱形晶体

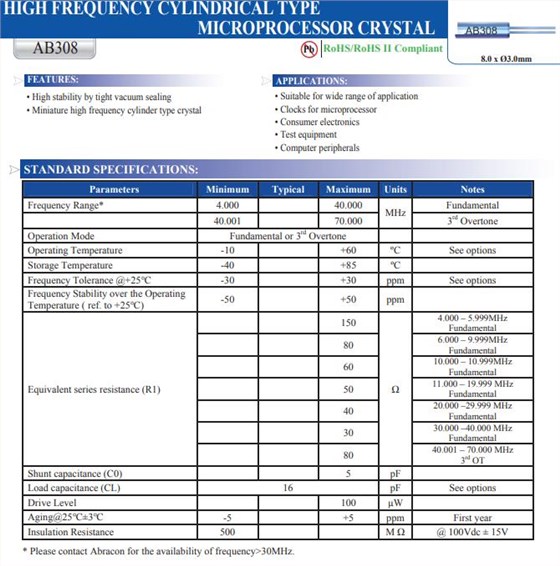

Abracon晶振,AB308圆柱晶振,AB308-16.000MHZ,6G模块晶振参数图

规格参数			MAX(除非有特殊说明)
频率			16MHz
操作模式			Fundamentalor 3rdOvertone
工作温度			-10°Cto+60°C
保存温度			-40°Cto+85°C
频率公差@+25°C			±30PPM
等效串联电阻(R1)			50Ω
并联电容(C0)			5.00pF
负载电容 (CL)			16pF
激励功率			100μW
老化性			±5ppm
绝缘电阻			500 Mohms at 100 Vdc ± 15V

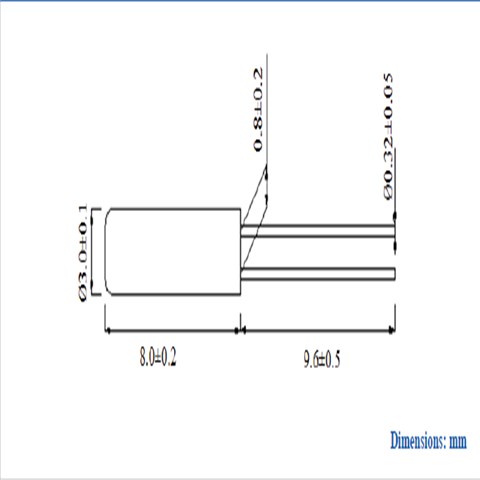

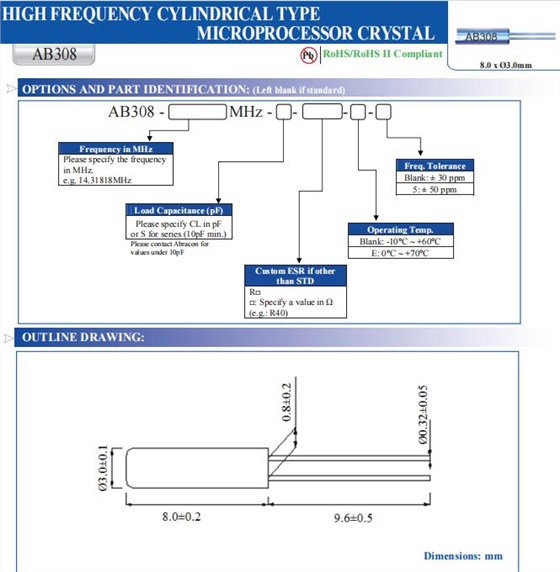

Abracon晶振,AB308圆柱晶振,AB308-16.000MHZ,6G模块晶振尺寸图

原厂编码	生产厂家	型号	频率	频率偏差	负载电容	工作温度
AB38T-32.768KHZ	Abracon晶振	AB38T	32.768kHz	±20ppm	12.5pF	-10°C ~ 60°C
AB26TRQ-32.768KHZ-T	Abracon晶振	AB26TRQ	32.768kHz	±20ppm	12.5pF	-40°C ~ 85°C
AB26TRQ-32.768KHZ-T	Abracon晶振	AB26TRQ	32.768kHz	±20ppm	12.5pF	-40°C ~ 85°C
AB26T-32.768KHZ	Abracon晶振	AB26T	32.768kHz	±20ppm	12.5pF	-10°C ~ 60°C
AB26TRB-32.768KHZ-T	Abracon晶振	AB26TRB	32.768kHz	±20ppm	12.5pF	-40°C ~ 85°C
AB26TRB-32.768KHZ-T	Abracon晶振	AB26TRB	32.768kHz	±20ppm	12.5pF	-40°C ~ 85°C
AB15T-32.768KHZ	Abracon晶振	AB15T	32.768kHz	±20ppm	12.5pF	-20°C ~ 70°C
AB308-4.000MHZ	Abracon晶振	AB308	4MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-10.000MHZ	Abracon晶振	AB308	10MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-12.000MHZ	Abracon晶振	AB308	12MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-12.288MHZ	Abracon晶振	AB308	12.288MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-12.352MHZ	Abracon晶振	AB308	12.352MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-14.31818MHZ	Abracon晶振	AB308	14.31818MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-14.7456MHZ	Abracon晶振	AB308	14.7456MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-16.000MHZ	Abracon晶振	AB308	16MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-16.257MHZ	Abracon晶振	AB308	16.257MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-16.667MHZ	Abracon晶振	AB308	16.667MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-20.000MHZ	Abracon晶振	AB308	20MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-4.9152MHZ	Abracon晶振	AB308	4.9152MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-5.000MHZ	Abracon晶振	AB308	5MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-6.000MHZ	Abracon晶振	AB308	6MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-7.3728MHZ	Abracon晶振	AB308	7.3728MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-8.000MHZ	Abracon晶振	AB308	8MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-28.000MHZ	Abracon晶振	AB308	28MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-28.6363MHZ	Abracon晶振	AB308	28.6363MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-29.4912MHZ	Abracon晶振	AB308	29.4912MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-53.125MHZ	Abracon晶振	AB308	53.125MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-8.000MHZ	Abracon晶振	AB308	8MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-10.000MHZ	Abracon晶振	AB308	10MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-12.000MHZ	Abracon晶振	AB308	12MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-16.000MHZ	Abracon晶振	AB308	16MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-20.000MHZ	Abracon晶振	AB308	20MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-5.000MHZ	Abracon晶振	AB308	5MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-6.000MHZ	Abracon晶振	AB308	6MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-7.3728MHZ	Abracon晶振	AB308	7.3728MHz	±30ppm	16pF	-10°C ~ 60°C
