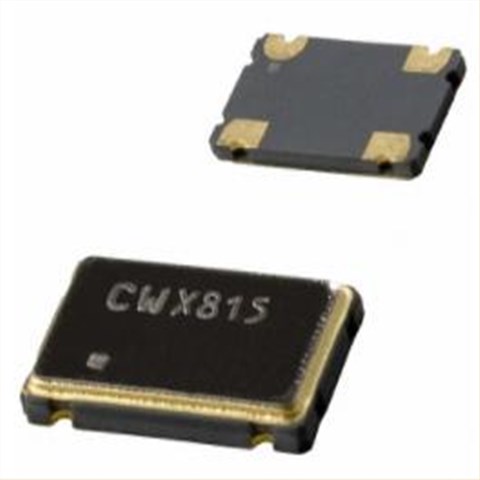

CWX815-72.0M,ConnorWinfield电信晶振,7050mm,导航仪晶振,美国进口晶振,ConnorWinfield晶振,康纳温菲尔德晶振,型号:CWX8xx系列,编码为:CWX815-72.0M,频率为:72MHz,频率稳定性:±25ppm,工作电压:5.0V,工作温度范围:-20℃至+70℃,小体积晶振尺寸:7.0x5.0mm表面安装,四脚贴片晶振,时钟振荡器,石英晶振,CMOS输出晶振,进口有源晶振,石英晶体振荡器(XO)。设计用于需要紧密的频率稳定性和低抖动的应用程序。被广泛用于:通信设备晶振,蓝牙模块晶振,导航仪晶振,GPS定位系统,物联网等应用。
CWX815-72.0M,ConnorWinfield电信晶振,7050mm,导航仪晶振,产品特点:
CWX8xx型-系列,5.0x7.0mm表面安装封装
3.3V或5.0V操作,CMOS输出石英晶体振荡器
可用频率稳定性:+/-25ppm 或 +/-50ppm
温度范围:-20至70°C
低抖动<1pS RMS,三态启用/禁用,胶带和卷轴包装
CWX815-72.0M,ConnorWinfield电信晶振,7050mm,导航仪晶振,参数表
型号 | CWX815 |
频率 | 72MHz |
电源电压 | 5.0V |
输入电压 | Vcc+0.5 |
输出 | CMOS |
工作温度 | -20 °C ~ +70 °C |
保存温度 | -55 °C ~ +125 °C |
原厂代码 | 品牌 | 型号 | 频率 | 工作温度 |
CWX815-1.544M | ConnorWinfield晶振 | CWX815 | 1.544MHz | -20°C ~ 70°C |
CWX815-1.8432M | ConnorWinfield晶振 | CWX815 | 1.8432MHz | -20°C ~ 70°C |
CWX815-3.6864M | ConnorWinfield晶振 | CWX815 | 3.6864MHz | -20°C ~ 70°C |
CWX815-4.0M | ConnorWinfield晶振 | CWX815 | 4MHz | -20°C ~ 70°C |
CWX815-7.3728M | ConnorWinfield晶振 | CWX815 | 7.3728MHz | -20°C ~ 70°C |
CWX815-8.0M | ConnorWinfield晶振 | CWX815 | 8MHz | -20°C ~ 70°C |
CWX815-10.0M | ConnorWinfield晶振 | CWX815 | 10MHz | -20°C ~ 70°C |
CWX815-12.0M | ConnorWinfield晶振 | CWX815 | 12MHz | -20°C ~ 70°C |
CWX815-12.288M | ConnorWinfield晶振 | CWX815 | 12.288MHz | -20°C ~ 70°C |
CWX815-14.31818M | 7050晶振 | CWX815 | 14.31818MHz | -20°C ~ 70°C |
CWX815-15.36M | ConnorWinfield晶振 | CWX815 | 15.36MHz | -20°C ~ 70°C |
CWX815-16.0M | ConnorWinfield晶振 | CWX815 | 16MHz | -20°C ~ 70°C |
CWX815-16.384M | ConnorWinfield晶振 | CWX815 | 16.384MHz | -20°C ~ 70°C |
CWX815-18.432M | ConnorWinfield晶振 | CWX815 | 18.432MHz | -20°C ~ 70°C |
CWX815-19.44M | ConnorWinfield晶振 | CWX815 | 19.44MHz | -20°C ~ 70°C |
CWX815-20.0M | ConnorWinfield晶振 | CWX815 | 20MHz | -20°C ~ 70°C |
CWX815-20.48M | ConnorWinfield晶振 | CWX815 | 20.48MHz | -20°C ~ 70°C |
CWX815-24.0M | ConnorWinfield晶振 | CWX815 | 24MHz | -20°C ~ 70°C |
CWX815-24.576M | ConnorWinfield晶振 | CWX815 | 24.576MHz | -20°C ~ 70°C |
CWX815-25.0M | ConnorWinfield晶振 | CWX815 | 25MHz | -20°C ~ 70°C |
CWX815-27.0M | ConnorWinfield晶振 | CWX815 | 27MHz | -20°C ~ 70°C |
CWX815-29.4912M | ConnorWinfield晶振 | CWX815 | 29.4912MHz | -20°C ~ 70°C |
CWX815-30.0M | ConnorWinfield晶振 | CWX815 | 30MHz | -20°C ~ 70°C |
CWX815-32.0M | ConnorWinfield晶振 | CWX815 | 32MHz | -20°C ~ 70°C |
CWX815-32.768M | ConnorWinfield晶振 | CWX815 | 32.768MHz | -20°C ~ 70°C |
CWX815-33.0M | ConnorWinfield晶振 | CWX815 | 33MHz | -20°C ~ 70°C |
CWX815-33.333M | ConnorWinfield晶振 | CWX815 | 33.333MHz | -20°C ~ 70°C |
CWX815-40.0M | ConnorWinfield晶振 | CWX815 | 40MHz | -20°C ~ 70°C |
CWX815-44.736M | ConnorWinfield晶振 | CWX815 | 44.736MHz | -20°C ~ 70°C |
CWX815-45.0M | ConnorWinfield晶振 | CWX815 | 45MHz | -20°C ~ 70°C |
CWX815-49.152M | ConnorWinfield晶振 | CWX815 | 49.152MHz | -20°C ~ 70°C |
CWX815-50.0M | ConnorWinfield晶振 | CWX815 | 50MHz | -20°C ~ 70°C |
CWX815-60.0M | ConnorWinfield晶振 | CWX815 | 60MHz | -20°C ~ 70°C |
CWX815-64.0M | ConnorWinfield晶振 | CWX815 | 64MHz | -20°C ~ 70°C |
CWX815-66.6666M | ConnorWinfield晶振 | CWX815 | 66.6666MHz | -20°C ~ 70°C |
CWX815-72.0M | ConnorWinfield晶振 | CWX815 | 72MHz | -20°C ~ 70°C |
CWX815-80.0M | ConnorWinfield晶振 | CWX815 | 80MHz | -20°C ~ 70°C |
CWX815-100.0M | ConnorWinfield晶振 | CWX815 | 100MHz | -20°C ~ 70°C |
