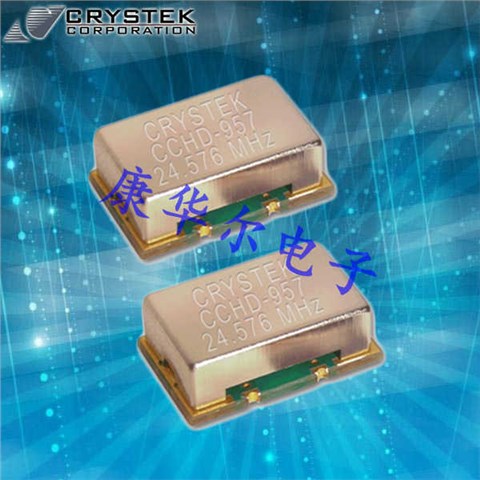

Crystek晶振,CCHD-950-50-80.000,HCMOS输出晶振,6G模块晶振,Crystek晶振,CCHD-950智能贴片晶振,CCHD-950-50-80.000晶振,进口有源晶振,石英晶体振荡器,HCMOS输出晶振,频率80MHz,电压3.3V,工作温度0~70°C,频率稳定性50ppm,低电源电压晶振,低相噪晶振,6G模块晶振,高清晰度电视晶振,航空电子设备晶振,低相位信号源晶振,测试与测量设备晶振.

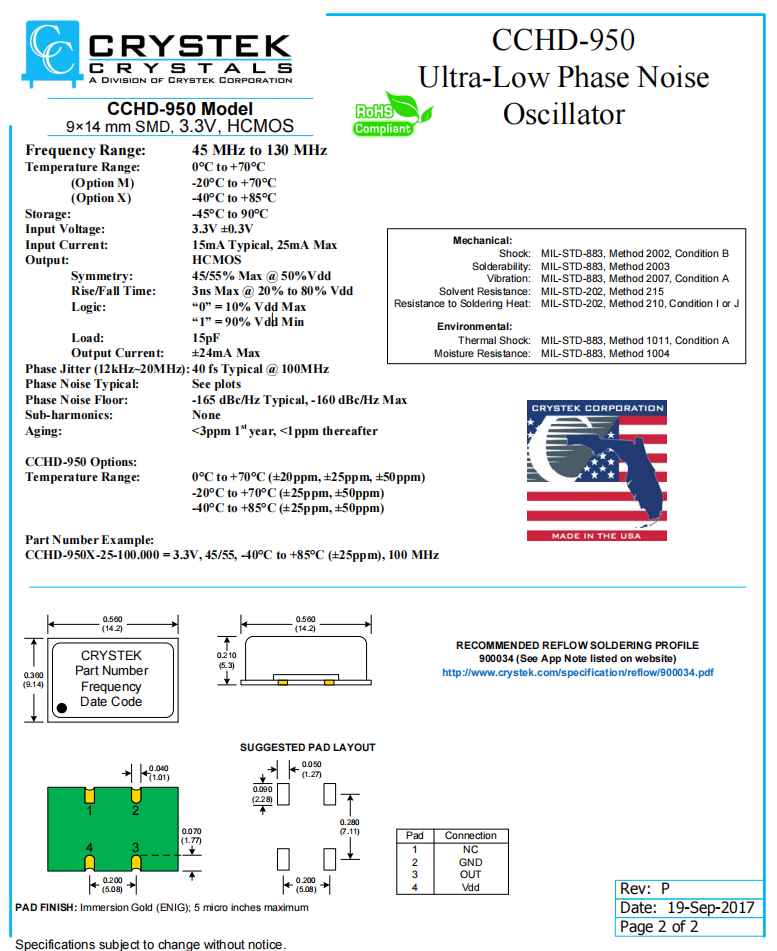

Crystek晶振,CCHD-950-50-80.000,HCMOS输出晶振,6G模块晶振规格表
| 项目 | 规格说明 | 条件 |
| 额定频率 | 80MHz | 请联系我们以便获取其它可用频率的相关信息 |
| 电源电压 | 3.3V |
|
| 储存温度 | -45℃~+90℃ | 开封裸存 |
| 工作温度 | 0℃~ +70℃ |
|
| 频率稳定度 | ±50 ppm |
|
| 输入电流 | 15mA Max | 无负载条件 |
| 相位抖动 |
40 fs RMS Typical @ 100 MHz
|
12kHz~80MHz
|
| 负载 | 15pF Max |
|
| 上升/下降时间 | 3ns Max. |
@ 20% to 80% Vdd
|
| 启动时间 |
10ms Max
|
|
| 频率老化 | <3ppm 1styear | <1ppmevery year thereafter |

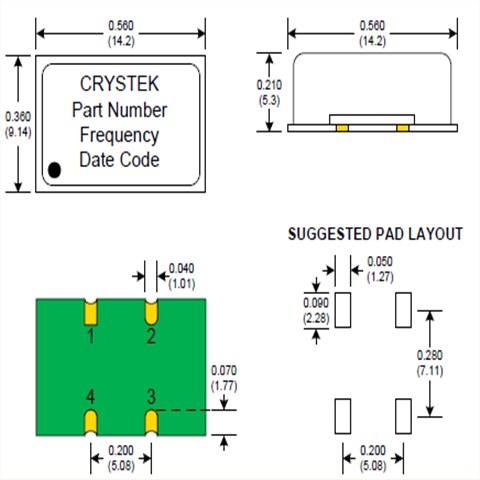

Crystek晶振,CCHD-950-50-80.000,HCMOS输出晶振,6G模块晶振尺寸图
| 原厂代码 | 制造品牌 | 型号 | Type 类型 | 频率 | 频率稳定度 | 工作温度 | 尺寸 |
| CCHD-575-50-100.000 | CRYSTEK晶振 | CCHD-575 | XO (Standard) | 100MHz | ±50ppm | 0°C ~ 70°C | 0.295" L x 0.200" W (7.50mm x 5.08mm) |
| CCHD-575-50-80.000 | CRYSTEK晶振 | CCHD-575 | XO (Standard) | 80MHz | ±50ppm | 0°C ~ 70°C | 0.295" L x 0.200" W (7.50mm x 5.08mm) |
| CCHD-575-25-24.576 | CRYSTEK晶振 | CCHD-575 | XO (Standard) | 24.576MHz | - | 0°C ~ 70°C | 0.295" L x 0.200" W (7.50mm x 5.08mm) |
| CCHD-950-50-45.1584 | CRYSTEK晶振 | CCHD-950 | XO (Standard) | 45.1584MHz | ±50ppm | 0°C ~ 70°C | 0.559" L x 0.360" W (14.20mm x 9.14mm) |
| CCHD-950-50-80.000 | CRYSTEK晶振 | CCHD-950 | XO (Standard) | 80MHz | ±50ppm | 0°C ~ 70°C | 0.559" L x 0.360" W (14.20mm x 9.14mm) |
| CCHD-957-25-22.5792 | CRYSTEK晶振 | CCHD-957 | XO (Standard) | 22.5792MHz | ±25ppm | 0°C ~ 70°C | 0.559" L x 0.360" W (14.20mm x 9.14mm) |
| CCHD-950-50-100.000 | CRYSTEK晶振 | CCHD-950 | XO (Standard) | 100MHz | ±50ppm | 0°C ~ 70°C | 0.559" L x 0.360" W (14.20mm x 9.14mm) |
| CCHD-575-25-22.5792 | CRYSTEK晶振 | CCHD-575 | XO (Standard) | 22.5792MHz | - | 0°C ~ 70°C | 0.295" L x 0.200" W (7.50mm x 5.08mm) |
| CCHD-575-50-125.000 | CRYSTEK晶振 | CCHD-575 | XO (Standard) | 125MHz | ±50ppm | 0°C ~ 70°C | 0.295" L x 0.200" W (7.50mm x 5.08mm) |
| CCHD-950-50-49.152 | CRYSTEK晶振 | CCHD-950 | XO (Standard) | 49.152MHz | ±50ppm | 0°C ~ 70°C | 0.559" L x 0.360" W (14.20mm x 9.14mm) |
| CCHD-957-25-24.576 | CRYSTEK晶振 | CCHD-957 | XO (Standard) | 24.576MHz | ±25ppm | 0°C ~ 70°C | 0.559" L x 0.360" W (14.20mm x 9.14mm) |
| CCHD-957-25-45.1584 | CRYSTEK晶振 | CCHD-957 | XO (Standard) | 45.1584MHz | ±25ppm | 0°C ~ 70°C | 0.559" L x 0.360" W (14.20mm x 9.14mm) |
| CCHD-957-25-49.152 | CRYSTEK晶振 | CCHD-957 | XO (Standard) | 49.152MHz | ±25ppm | 0°C ~ 70°C | 0.559" L x 0.360" W (14.20mm x 9.14mm) |
| CCHD-950-25-50.000 | CRYSTEK晶振 | CCHD-950 | XO (Standard) | 50MHz | ±25ppm | 0°C ~ 70°C | 0.559" L x 0.360" W (14.20mm x 9.14mm) |
| CCHD-950-25-54.000 | CRYSTEK晶振 | CCHD-950 | XO (Standard) | 54MHz | ±25ppm | 0°C ~ 70°C | 0.559" L x 0.360" W (14.20mm x 9.14mm) |
| CCHD-950-25-60.000 | CRYSTEK晶振 | CCHD-950 | XO (Standard) | 60MHz | ±25ppm | 0°C ~ 70°C | 0.559" L x 0.360" W (14.20mm x 9.14mm) |
| CCHD-950-25-70.000 | CRYSTEK晶振 | CCHD-950 | XO (Standard) | 70MHz | ±25ppm | 0°C ~ 70°C | 0.559" L x 0.360" W (14.20mm x 9.14mm) |
| CCHD-950-25-74.1758 | CRYSTEK晶振 | CCHD-950 | XO (Standard) | 74.1758MHz | ±25ppm | 0°C ~ 70°C | 0.559" L x 0.360" W (14.20mm x 9.14mm) |
| CCHD-950-25-74.250 | CRYSTEK晶振 | CCHD-950 | XO (Standard) | 74.25MHz | ±25ppm | 0°C ~ 70°C | 0.559" L x 0.360" W (14.20mm x 9.14mm) |
| CCHD-950-25-80.000 | CRYSTEK晶振 | CCHD-950 | XO (Standard) | 80MHz | ±25ppm | 0°C ~ 70°C | 0.559" L x 0.360" W (14.20mm x 9.14mm) |
| CCHD-950X-50-80.000 | CRYSTEK晶振 | CCHD-950 | XO (Standard) | 80MHz | ±50ppm | 0°C ~ 70°C | 0.559" L x 0.360" W (14.20mm x 9.14mm) |
| CCHD-575-20-125.000 | CRYSTEK晶振 | CCHD-575 | XO (Standard) | 125MHz | ±20ppm | 0°C ~ 70°C | 0.295" L x 0.200" W (7.50mm x 5.08mm) |
| CCHD-950-25-100.000 | CRYSTEK晶振 | CCHD-950 | XO (Standard) | 100MHz | ±25ppm | 0°C ~ 70°C | 0.559" L x 0.360" W (14.20mm x 9.14mm) |
| CCHD-950X-50-100.000 | CRYSTEK晶振 | CCHD-950 | XO (Standard) | 100MHz | ±50ppm | 0°C ~ 70°C | 0.559" L x 0.360" W (14.20mm x 9.14mm) |
| CCHD-950X-25-80.000 | CRYSTEK晶振 | CCHD-950 | XO (Standard) | 80MHz | ±25ppm | 0°C ~ 70°C | 0.559" L x 0.360" W (14.20mm x 9.14mm) |
| CCHD-950X-25-100.000 | CRYSTEK晶振 | CCHD-950 | XO (Standard) | 100MHz | ±25ppm | 0°C ~ 70°C | 0.559" L x 0.360" W (14.20mm x 9.14mm) |
| CCHD-950-20-104.000 | CRYSTEK晶振 | CCHD-950 | XO (Standard) | 104MHz | ±20ppm | 0°C ~ 70°C | 0.559" L x 0.360" W (14.20mm x 9.14mm) |
