Crystek晶振,CE3390-33.333,HCMOS输出晶振,6G基站晶振规格表
| 项目 | 规格说明 | 条件 |
| 额定频率 | 33.333MHz | 请联系我们以便获取其它可用频率的相关信息 |
| 电源电压 | 3.3V |
|
| 储存温度 | -45℃~+90℃ | 开封裸存 |
| 工作温度 | -40℃~ +85℃ |
|
| 频率稳定度 | ±25 ppm |
|
| 输入电流 | 18mA Max | 无负载条件 |
| 相位抖动 |
0.5ps Typical, 1ps Max
|
12kHz~80MHz
|
| 负载 | 15pF Max |
|
| 上升/下降时间 | 3ns Max. |
@ 20% to 80% Vdd
|
| 启动时间 |
10ms Max
|
|
| 频率老化 | <3ppm 1styear | <1ppmevery year thereafter |

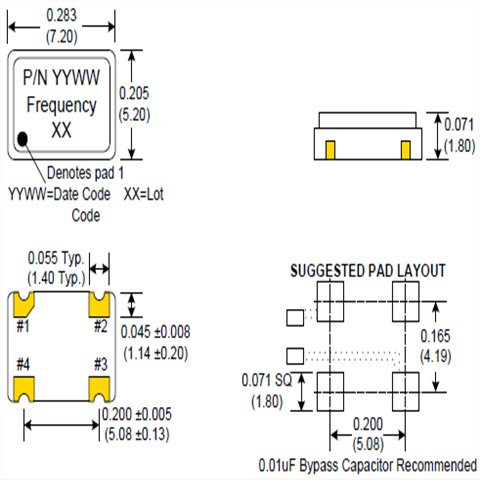

Crystek晶振,CE3390-33.333,HCMOS输出晶振,6G基站晶振尺寸图
| 原厂代码 | 制造品牌 | 型号 | Type 类型 | 频率 | 频率稳定度 | 工作温度 | 尺寸 |
| CE3391-8.000 | CRYSTEK晶振 | C33 | XO (Standard) | 8MHz | ±25ppm | -40°C ~ 85°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3391-4.096 | CRYSTEK晶振 | C33 | XO (Standard) | 4.096MHz | ±25ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3391-4.096 | CRYSTEK晶振 | C33 | XO (Standard) | 4.096MHz | ±25ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3390-1.544 | CRYSTEK晶振 | C33 | XO (Standard) | 1.544MHz | ±100ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3390-1.843200 | CRYSTEK晶振 | C33 | XO (Standard) | 1.8432MHz | ±100ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3390-10.000 | CRYSTEK晶振 | C33 | XO (Standard) | 10MHz | ±100ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3390-12.000 | CRYSTEK晶振 | C33 | XO (Standard) | 12MHz | ±100ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3390-12.288 | CRYSTEK晶振 | C33 | XO (Standard) | 12.288MHz | ±100ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3390-12.352 | CRYSTEK晶振 | C33 | XO (Standard) | 12.352MHz | ±100ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3390-14.318180 | CRYSTEK晶振 | C33 | XO (Standard) | 14.31818MHz | ±100ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3390-15.360 | CRYSTEK晶振 | C33 | XO (Standard) | 15.36MHz | ±100ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3390-16.000 | CRYSTEK晶振 | C33 | XO (Standard) | 16MHz | ±100ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3390-16.384 | CRYSTEK晶振 | C33 | XO (Standard) | 16.384MHz | ±100ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3390-18.432 | CRYSTEK晶振 | C33 | XO (Standard) | 18.432MHz | ±100ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3390-19.440 | CRYSTEK晶振 | C33 | XO (Standard) | 19.44MHz | ±100ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3390-2.048 | CRYSTEK晶振 | C33 | XO (Standard) | 2.048MHz | ±100ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3390-20.000 | CRYSTEK晶振 | C33 | XO (Standard) | 20MHz | ±100ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3390-20.480 | CRYSTEK晶振 | C33 | XO (Standard) | 20.48MHz | ±100ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3390-24.000 | CRYSTEK晶振 | C33 | XO (Standard) | 24MHz | ±100ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3390-24.576 | CRYSTEK晶振 | C33 | XO (Standard) | 24.576MHz | ±100ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3390-24.704 | CRYSTEK晶振 | C33 | XO (Standard) | 24.704MHz | ±100ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3390-25.000 | CRYSTEK晶振 | C33 | XO (Standard) | 25MHz | ±100ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3390-3.686400 | CRYSTEK晶振 | C33 | XO (Standard) | 3.6864MHz | ±100ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3390-30.000 | CRYSTEK晶振 | C33 | XO (Standard) | 30MHz | ±100ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3390-32.000 | CRYSTEK晶振 | C33 | XO (Standard) | 32MHz | ±100ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3390-32.768 | CRYSTEK晶振 | C33 | XO (Standard) | 32.768MHz | ±100ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3390-33.000 | CRYSTEK晶振 | C33 | XO (Standard) | 33MHz | ±100ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3390-33.333 | CRYSTEK晶振 | C33 | XO (Standard) | 33.333MHz | ±100ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3390-34.368 | CRYSTEK晶振 | C33 | XO (Standard) | 34.368MHz | ±100ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3390-35.000 | CRYSTEK晶振 | C33 | XO (Standard) | 35MHz | ±100ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3390-35.328 | CRYSTEK晶振 | C33 | XO (Standard) | 35.328MHz | ±100ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3390-4.000 | CRYSTEK晶振 | C33 | XO (Standard) | 4MHz | ±100ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3390-4.096 | CRYSTEK晶振 | C33 | XO (Standard) | 4.096MHz | ±100ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3390-40.000 | CRYSTEK晶振 | C33 | XO (Standard) | 40MHz | ±100ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3390-44.736 | CRYSTEK晶振 | C33 | XO (Standard) | 44.736MHz | ±100ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3390-45.000 | CRYSTEK晶振 | C33 | XO (Standard) | 45MHz | ±100ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3390-49.152 | CRYSTEK晶振 | C33 | XO (Standard) | 49.152MHz | ±100ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3390-50.000 | CRYSTEK晶振 | C33 | XO (Standard) | 50MHz | ±100ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3390-51.840 | CRYSTEK晶振 | C33 | XO (Standard) | 51.84MHz | ±100ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3390-6.176 | CRYSTEK晶振 | C33 | XO (Standard) | 6.176MHz | ±100ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3390-7.372800 | CRYSTEK晶振 | C33 | XO (Standard) | 7.3728MHz | ±100ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3390-8.000 | CRYSTEK晶振 | C33 | XO (Standard) | 8MHz | ±100ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3390-8.064 | CRYSTEK晶振 | C33 | XO (Standard) | 8.064MHz | ±100ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3390-8.192 | CRYSTEK晶振 | C33 | XO (Standard) | 8.192MHz | ±100ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3392-1.544 | CRYSTEK晶振 | C33 | XO (Standard) | 1.544MHz | ±50ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3392-1.843200 | CRYSTEK晶振 | C33 | XO (Standard) | 1.8432MHz | ±50ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3392-10.000 | CRYSTEK晶振 | C33 | XO (Standard) | 10MHz | ±50ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3392-12.000 | CRYSTEK晶振 | C33 | XO (Standard) | 12MHz | ±50ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3392-12.288 | CRYSTEK晶振 | C33 | XO (Standard) | 12.288MHz | ±50ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3392-12.352 | CRYSTEK晶振 | C33 | XO (Standard) | 12.352MHz | ±50ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3392-14.318180 | CRYSTEK晶振 | C33 | XO (Standard) | 14.31818MHz | ±50ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3392-15.360 | CRYSTEK晶振 | C33 | XO (Standard) | 15.36MHz | ±50ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3392-16.0000 | CRYSTEK晶振 | C33 | XO (Standard) | 16MHz | ±50ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3392-16.384 | CRYSTEK晶振 | C33 | XO (Standard) | 16.384MHz | ±50ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3392-18.432 | CRYSTEK晶振 | C33 | XO (Standard) | 18.432MHz | ±50ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3392-19.440 | CRYSTEK晶振 | C33 | XO (Standard) | 19.44MHz | ±50ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3392-2.048 | CRYSTEK晶振 | C33 | XO (Standard) | 2.048MHz | ±50ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3392-20.000 | CRYSTEK晶振 | C33 | XO (Standard) | 20MHz | ±50ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3392-20.480 | CRYSTEK晶振 | C33 | XO (Standard) | 20.048MHz | ±50ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3392-24.000 | CRYSTEK晶振 | C33 | XO (Standard) | 24MHz | ±50ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3392-24.576 | CRYSTEK晶振 | C33 | XO (Standard) | 24.576MHz | ±50ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3392-24.704 | CRYSTEK晶振 | C33 | XO (Standard) | 24.704MHz | ±50ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3392-25.000 | CRYSTEK晶振 | C33 | XO (Standard) | 25MHz | ±50ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3392-3.686400 | CRYSTEK晶振 | C33 | XO (Standard) | 3.6864MHz | ±50ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3392-30.000 | CRYSTEK晶振 | C33 | XO (Standard) | 30MHz | ±50ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3392-32.000 | CRYSTEK晶振 | C33 | XO (Standard) | 32MHz | ±50ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3392-32.768 | CRYSTEK晶振 | C33 | XO (Standard) | 32.768MHz | ±50ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3392-33.000 | CRYSTEK晶振 | C33 | XO (Standard) | 33MHz | ±50ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3392-33.333 | CRYSTEK晶振 | C33 | XO (Standard) | 33.333MHz | ±50ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3392-34.368 | CRYSTEK晶振 | C33 | XO (Standard) | 34.368MHz | ±50ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3392-35.000 | CRYSTEK晶振 | C33 | XO (Standard) | 35MHz | ±50ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3392-35.328 | CRYSTEK晶振 | C33 | XO (Standard) | 35.328MHz | ±50ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3392-4.000 | CRYSTEK晶振 | C33 | XO (Standard) | 4MHz | ±50ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3392-4.096 | CRYSTEK晶振 | C33 | XO (Standard) | 4.096MHz | ±50ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3392-40.000 | CRYSTEK晶振 | C33 | XO (Standard) | 40MHz | ±50ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3392-44.736 | CRYSTEK晶振 | C33 | XO (Standard) | 44.736MHz | ±50ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3392-45.000 | CRYSTEK晶振 | C33 | XO (Standard) | 45MHz | ±50ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3392-49.152 | CRYSTEK晶振 | C33 | XO (Standard) | 49.152MHz | ±50ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3392-50.000 | CRYSTEK晶振 | C33 | XO (Standard) | 50MHz | ±50ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3392-51.840 | CRYSTEK晶振 | C33 | XO (Standard) | 51.84MHz | ±50ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3392-6.176 | CRYSTEK晶振 | C33 | XO (Standard) | 6.176MHz | ±50ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3392-7.372800 | CRYSTEK晶振 | C33 | XO (Standard) | 7.3728MHz | ±50ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3392-8.000 | CRYSTEK晶振 | C33 | XO (Standard) | 8MHz | ±50ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3392-8.064 | CRYSTEK晶振 | C33 | XO (Standard) | 8.064MHz | ±50ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3392-8.192 | CRYSTEK晶振 | C33 | XO (Standard) | 8.192MHz | ±50ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3392-60.000 | CRYSTEK晶振 | C33 | XO (Standard) | 60MHz | ±50ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3392-64.000 | CRYSTEK晶振 | C33 | XO (Standard) | 64MHz | ±50ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3392-66.000 | CRYSTEK晶振 | C33 | XO (Standard) | 66MHz | ±50ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3392-66.666600 | CRYSTEK晶振 | C33 | XO (Standard) | 66.6666MHz | ±50ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3390-60.000 | CRYSTEK晶振 | C33 | XO (Standard) | 60MHz | ±100ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3390-62.500 | CRYSTEK晶振 | C33 | XO (Standard) | 62.5MHz | ±100ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3390-64.000 | CRYSTEK晶振 | C33 | XO (Standard) | 64MHz | ±100ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3390-66.000 | CRYSTEK晶振 | C33 | XO (Standard) | 66MHz | ±100ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3390-66.666600 | CRYSTEK晶振 | C33 | XO (Standard) | 66.6666MHz | ±100ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3392-75.000 | CRYSTEK晶振 | C33 | XO (Standard) | 75MHz | ±50ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3390-75.000 | CRYSTEK晶振 | C33 | XO (Standard) | 75MHz | ±100ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| C3390-80.000 | CRYSTEK晶振 | C33 | XO (Standard) | 80MHz | ±100ppm | 0°C ~ 70°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| CE3390-1.544 | CRYSTEK晶振 | C33 | XO (Standard) | 1.544MHz | ±100ppm | -40°C ~ 85°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| CE3390-1.843200 | CRYSTEK晶振 | C33 | XO (Standard) | 1.8432MHz | ±100ppm | -40°C ~ 85°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| CE3390-10.000 | CRYSTEK晶振 | C33 | XO (Standard) | 10MHz | ±100ppm | -40°C ~ 85°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| CE3390-12.000 | CRYSTEK晶振 | C33 | XO (Standard) | 12MHz | ±100ppm | -40°C ~ 85°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| CE3390-12.288 | CRYSTEK晶振 | C33 | XO (Standard) | 12.288MHz | ±100ppm | -40°C ~ 85°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| CE3390-12.352 | CRYSTEK晶振 | C33 | XO (Standard) | 12.352MHz | ±100ppm | -40°C ~ 85°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| CE3390-14.318180 | CRYSTEK晶振 | C33 | XO (Standard) | 14.31818MHz | ±100ppm | -40°C ~ 85°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| CE3390-15.360 | CRYSTEK晶振 | C33 | XO (Standard) | 15.36MHz | ±100ppm | -40°C ~ 85°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| CE3390-16.000 | CRYSTEK晶振 | C33 | XO (Standard) | 16MHz | ±100ppm | -40°C ~ 85°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| CE3390-16.384 | CRYSTEK晶振 | C33 | XO (Standard) | 16.384MHz | ±100ppm | -40°C ~ 85°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| CE3390-18.432 | CRYSTEK晶振 | C33 | XO (Standard) | 18.432MHz | ±100ppm | -40°C ~ 85°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| CE3390-19.440 | CRYSTEK晶振 | C33 | XO (Standard) | 19.44MHz | ±100ppm | -40°C ~ 85°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| CE3390-2.048 | CRYSTEK晶振 | C33 | XO (Standard) | 2.048MHz | ±100ppm | -40°C ~ 85°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| CE3390-20.000 | CRYSTEK晶振 | C33 | XO (Standard) | 20MHz | ±100ppm | -40°C ~ 85°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
| CE3390-20.480 | CRYSTEK晶振 | C33 | XO (Standard) | 20.48MHz | ±100ppm | -40°C ~ 85°C | 0.283" L x 0.198" W (7.20mm x 5.02mm) |
