鸿星晶振,E49B32E000022E,HC-49SMD晶振,6G以太网晶振特点：

•微型AT切割条形晶体单元

•低轮廓包装是电阻焊

•低成本，行业标准

•宽频率范围，有着优秀的老化

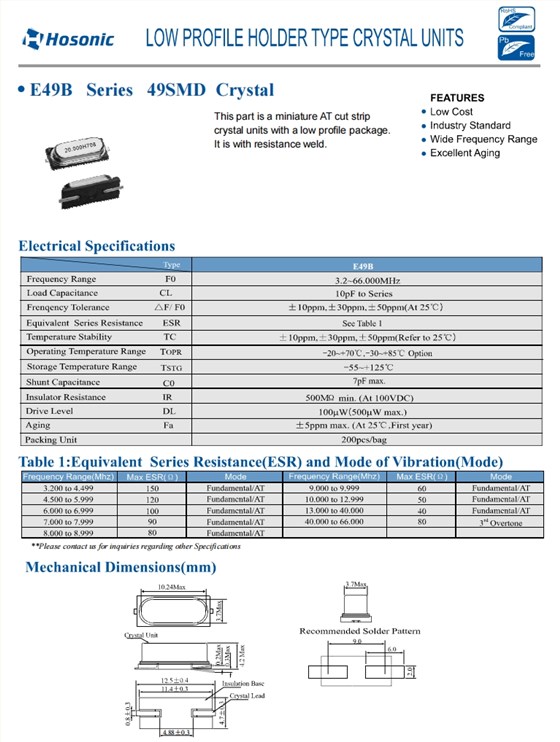

鸿星晶振,E49B32E000022E,HC-49SMD晶振,6G以太网晶振参数图

项目	符号	E49B
频率	f0	32MHz
频率公差	△f/f0	±30ppm
温度稳定性	TC	±30ppm
并联电容	CO	7pF Max
负载电容	CL	10pF
工作温度	TOPR	－20℃～＋70℃
保存温度	TSTR	－55℃～＋125℃
串联阻力	R1	40Ω Max
驱动级别	DL	500μW Max
老化（第一年）	△f/f0	±5ppm Max.

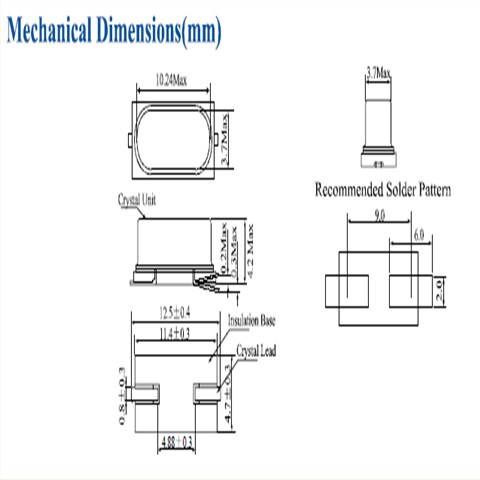

鸿星晶振,E49B32E000022E,HC-49SMD晶振,6G以太网晶振尺寸图

原厂编码	制造厂家	型号	频率	负载电容	频率容差	频率稳定度	尺寸	工作温度
E49B12E000022E	Hosonic晶振	E49B	12 MHz	10 pF	±30 ppm	±30 ppm	11.4 x 4.7 x 4.5 mm	-20 to +70 °C
E49B13E000022E	Hosonic晶振	E49B	13 MHz	10 pF	±30 ppm	±30 ppm	11.4 x 4.7 x 4.5 mm	-20 to +70 °C
E49B14E000022E	Hosonic晶振	E49B	14 MHz	10 pF	±30 ppm	±30 ppm	11.4 x 4.7 x 4.5 mm	-20 to +70 °C
E49B15E000022E	Hosonic晶振	E49B	15 MHz	10 pF	±30 ppm	±30 ppm	11.4 x 4.7 x 4.5 mm	-20 to +70 °C
E49B16E000022E	Hosonic晶振	E49B	16 MHz	10 pF	±30 ppm	±30 ppm	11.4 x 4.7 x 4.5 mm	-20 to +70 °C
E49B17E000022E	Hosonic晶振	E49B	17 MHz	10 pF	±30 ppm	±30 ppm	11.4 x 4.7 x 4.5 mm	-20 to +70 °C
E49B18E000022E	Hosonic晶振	E49B	18 MHz	10 pF	±30 ppm	±30 ppm	11.4 x 4.7 x 4.5 mm	-20 to +70 °C
E49B19E000022E	Hosonic晶振	E49B	19 MHz	10 pF	±30 ppm	±30 ppm	11.4 x 4.7 x 4.5 mm	-20 to +70 °C
E49B20E000022E	Hosonic晶振	E49B	20 MHz	10 pF	±30 ppm	±30 ppm	11.4 x 4.7 x 4.5 mm	-20 to +70 °C
E49B21E000022E	Hosonic晶振	E49B	21 MHz	10 pF	±30 ppm	±30 ppm	11.4 x 4.7 x 4.5 mm	-20 to +70 °C
E49B22E000022E	Hosonic晶振	E49B	22 MHz	10 pF	±30 ppm	±30 ppm	11.4 x 4.7 x 4.5 mm	-20 to +70 °C
E49B23E000022E	Hosonic晶振	E49B	23 MHz	10 pF	±30 ppm	±30 ppm	11.4 x 4.7 x 4.5 mm	-20 to +70 °C
E49B24E000022E	Hosonic晶振	E49B	24 MHz	10 pF	±30 ppm	±30 ppm	11.4 x 4.7 x 4.5 mm	-20 to +70 °C
E49B25E000022E	Hosonic晶振	E49B	25 MHz	10 pF	±30 ppm	±30 ppm	11.4 x 4.7 x 4.5 mm	-20 to +70 °C
E49B26E000022E	Hosonic晶振	E49B	26 MHz	10 pF	±30 ppm	±30 ppm	11.4 x 4.7 x 4.5 mm	-20 to +70 °C
E49B27E000022E	Hosonic晶振	E49B	27 MHz	10 pF	±30 ppm	±30 ppm	11.4 x 4.7 x 4.5 mm	-20 to +70 °C
E49B28E000022E	Hosonic晶振	E49B	28 MHz	10 pF	±30 ppm	±30 ppm	11.4 x 4.7 x 4.5 mm	-20 to +70 °C
E49B29E000022E	Hosonic晶振	E49B	29 MHz	10 pF	±30 ppm	±30 ppm	11.4 x 4.7 x 4.5 mm	-20 to +70 °C
E49B30E000022E	Hosonic晶振	E49B	30 MHz	10 pF	±30 ppm	±30 ppm	11.4 x 4.7 x 4.5 mm	-20 to +70 °C
E49B31E000022E	Hosonic晶振	E49B	31 MHz	10 pF	±30 ppm	±30 ppm	11.4 x 4.7 x 4.5 mm	-20 to +70 °C
E49B32E000022E	Hosonic晶振	E49B	32 MHz	10 pF	±30 ppm	±30 ppm	11.4 x 4.7 x 4.5 mm	-20 to +70 °C
E49B33E000022E	Hosonic晶振	E49B	33 MHz	10 pF	±30 ppm	±30 ppm	11.4 x 4.7 x 4.5 mm	-20 to +70 °C
E49B34E000022E	Hosonic晶振	E49B	34 MHz	10 pF	±30 ppm	±30 ppm	11.4 x 4.7 x 4.5 mm	-20 to +70 °C
E49B35E000022E	Hosonic晶振	E49B	35 MHz	10 pF	±30 ppm	±30 ppm	11.4 x 4.7 x 4.5 mm	-20 to +70 °C
E49B36E000022E	Hosonic晶振	E49B	36 MHz	10 pF	±30 ppm	±30 ppm	11.4 x 4.7 x 4.5 mm	-20 to +70 °C
E49B37E000022E	Hosonic晶振	E49B	37 MHz	10 pF	±30 ppm	±30 ppm	11.4 x 4.7 x 4.5 mm	-20 to +70 °C
E49B38E000022E	Hosonic晶振	E49B	38 MHz	10 pF	±30 ppm	±30 ppm	11.4 x 4.7 x 4.5 mm	-20 to +70 °C
E49B39E000022E	Hosonic晶振	E49B	39 MHz	10 pF	±30 ppm	±30 ppm	11.4 x 4.7 x 4.5 mm	-20 to +70 °C
E49B40E000022E	Hosonic晶振	E49B	40 MHz	10 pF	±30 ppm	±30 ppm	11.4 x 4.7 x 4.5 mm	-20 to +70 °C
E49B41E000022E	Hosonic晶振	E49B	41 MHz	10 pF	±30 ppm	±30 ppm	11.4 x 4.7 x 4.5 mm	-20 to +70 °C
E49B42E000022E	Hosonic晶振	E49B	42 MHz	10 pF	±30 ppm	±30 ppm	11.4 x 4.7 x 4.5 mm	-20 to +70 °C
E49B43E000022E	Hosonic晶振	E49B	43 MHz	10 pF	±30 ppm	±30 ppm	11.4 x 4.7 x 4.5 mm	-20 to +70 °C
E49B44E000022E	Hosonic晶振	E49B	44 MHz	10 pF	±30 ppm	±30 ppm	11.4 x 4.7 x 4.5 mm	-20 to +70 °C
E49B45E000022E	Hosonic晶振	E49B	45MHz	10 pF	±30 ppm	±30 ppm	11.4 x 4.7 x 4.5 mm	-20 to +70 °C
E49B46E000022E	Hosonic晶振	E49B	46MHz	10 pF	±30 ppm	±30 ppm	11.4 x 4.7 x 4.5 mm	-20 to +70 °C
E49B47E000022E	Hosonic晶振	E49B	47MHz	10 pF	±30 ppm	±30 ppm	11.4 x 4.7 x 4.5 mm	-20 to +70 °C
E49B48E000022E	Hosonic晶振	E49B	48MHz	10 pF	±30 ppm	±30 ppm	11.4 x 4.7 x 4.5 mm	-20 to +70 °C
E49B49E000022E	Hosonic晶振	E49B	49MHz	10 pF	±30 ppm	±30 ppm	11.4 x 4.7 x 4.5 mm	-20 to +70 °C
E49B50E000022E	Hosonic晶振	E49B	50MHz	10 pF	±30 ppm	±30 ppm	11.4 x 4.7 x 4.5 mm	-20 to +70 °C
E49B51E000022E	Hosonic晶振	E49B	51MHz	10 pF	±30 ppm	±30 ppm	11.4 x 4.7 x 4.5 mm	-20 to +70 °C
E49B52E000022E	Hosonic晶振	E49B	52MHz	10 pF	±30 ppm	±30 ppm	11.4 x 4.7 x 4.5 mm	-20 to +70 °C
