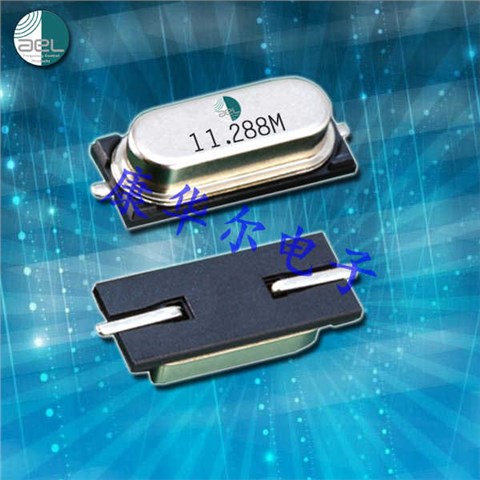

ELLS-13.560MHz-10-R35-A4Y-F-T,AEL通讯晶振,SMD石英晶体谐振器

产品简介

ELLS-13.560MHz-10-R35-A4Y-F-T,AEL通讯晶振,SMD石英晶体谐振器，AEL晶振，艾尔晶振，英国进口晶振，型号：ELLS系列晶振，编码为：ELLS-13.560MHz-10-R35-A4Y-F-T，频率为：13.56MHz，负载电容：10pF，频率稳定性：±30ppm，频率容差：±30ppm，工作温度范围：-10℃至+60℃，小体积晶振尺寸：12.7x4.7x4.2mm封装，两脚贴片晶振，无源晶振，椭圆形石英晶振，石英晶体谐振器，SMD晶体，无铅环保晶振。具有小体积，轻薄型，高性能，高品质，高可靠性等特点。被广泛应用于：通讯设备晶振，汽车电子晶振，智能家居晶振，无线蓝牙晶振，物联网晶振，安防设备等应用。

产品详情

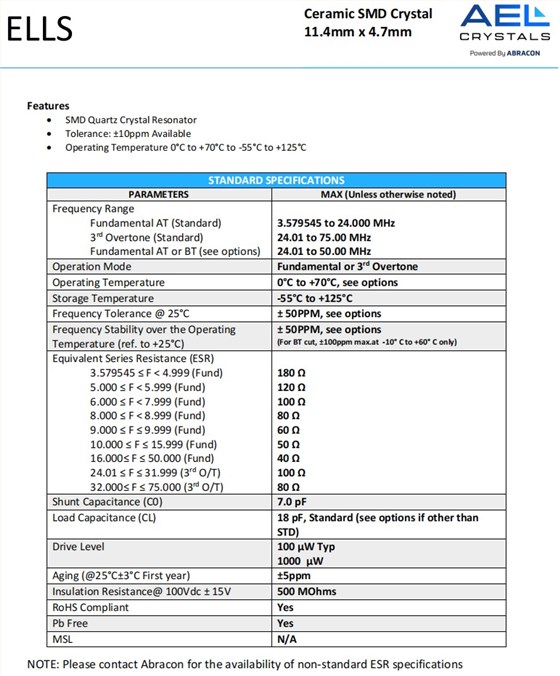

ELLS-13.560MHz-10-R35-A4Y-F-T,AEL通讯晶振,SMD石英晶体谐振器,参数表

STANDARD SPECIFICATIONS

PARAMETERS

MAX (Unless otherwise noted)

Frequency Range
Fundamental AT (Standard)
3rdOvertone (Standard)
Fundamental AT or BT (see options)

13.56 MHz
24.01 to 75.00 MHz
24.01 to 50.00 MHz

Operation Mode

Fundamental or 3rdOvertone

Operating Temperature

0°C to +70°C, see options

Storage Temperature

-55°C to +125°C

Frequency Tolerance @ 25°C

± 50PPM, see options

Frequency Stability over the Operating
Temperature (ref. to +25°C)

± 50PPM, see options
(For BT cut, ±100ppm max.at -10° C to +60° C only)

Equivalent Series Resistance (ESR)
3.579545 ≤ F < 4.999 (Fund)
5.000 ≤ F < 5.999 (Fund)
6.000 ≤ F < 7.999 (Fund)
8.000 ≤ F < 8.999 (Fund)
9.000 ≤ F ≤ 9.999 (Fund)
10.000 ≤ F ≤ 15.999 (Fund)
16.000≤ F ≤ 50.000 (Fund)
24.01 ≤ F ≤ 31.999 (3rdO/T)
32.000≤ F ≤ 75.000 (3rdO/T)

180Ω
120Ω
100Ω
80Ω
60Ω
50Ω
40Ω
100Ω
80Ω

Shunt Capacitance (C0)

7.0 pF

Load Capacitance (CL)

18 pF, Standard (see options if other than
STD)

Drive Level

100 μWTyp
1000 μW

Aging (@25°C±3°C First year)

±5ppm

Insulation Resistance@ 100Vdc ± 15V

500 MOhms

RoHS Compliant

Yes

Pb Free

Yes

MSL

N/A

20180109173140_2357

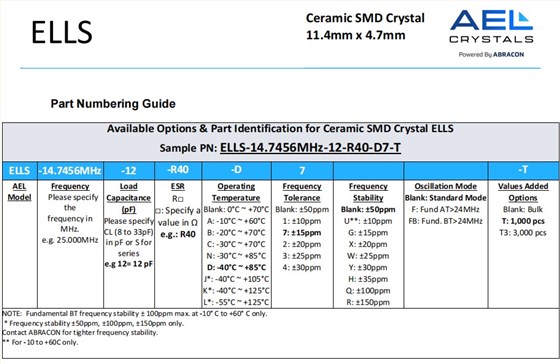

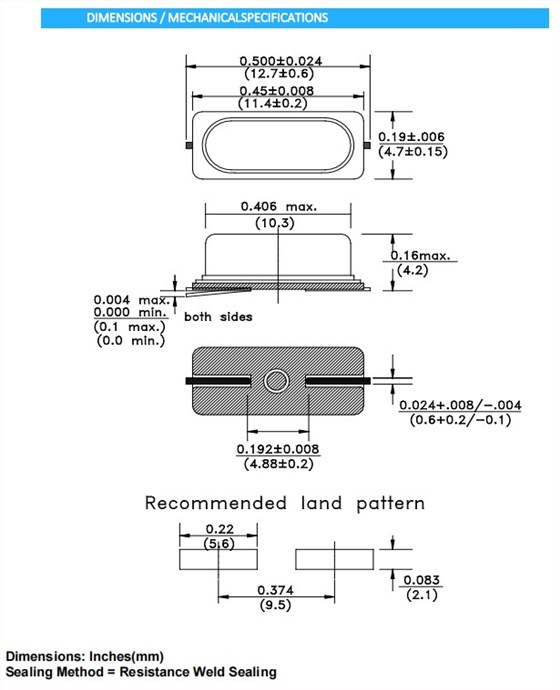

ELLS-13.560MHz-10-R35-A4Y-F-T,AEL通讯晶振,SMD石英晶体谐振器,尺寸图

产品编码	品牌	型号	频率	负载电容
ELLS-10.000MHz-20-R60-J-Q-F-T	AEL晶振	ELLS	10 MHz	20 pF
ELLS-12.000MHz-18-R60-A-4-F-T	AEL晶振	ELLS	12 MHz	18 pF
ELLS-13.560MHz-10-R35-A4Y-F-T	AEL晶振	ELLS	13.56 MHz	10 pF
ELLS-30.000MHz-10-R50-B1U-F-T	AEL晶振	ELLS	30 MHz	10 pF
ELLS-4.000MHz-16-R120-A4-F-T	石英晶体	ELLS	4 MHz	16 pF
ELLS-4.000MHz-16-R120-B1X-F-T	AEL晶振	ELLS	4 MHz	16 pF
ELLS-4.000MHz-30-R120-D4-F-T	AEL晶振	ELLS	4 MHz	30 pF
ELLS-8.000MHz-16-R45-D4-F-T	AEL晶振	ELLS	8 MHz	16 pF
ELM10-16.000MHz-8-R60-2-D20-T	AEL晶振	ELM10	16 MHz	8 pF
ELM10-24.000MHz-16-R100-X-N15-T	AEL晶振	ELM10	24 MHz	16 pF
ELM11-32.000MHz-10-R60-D1X-T	AEL晶振	ELM11	32 MHz	10 pF
ELM12W-24.000MHz-6-R120-D7X-T	AEL晶振	ELM12W	24 MHz	6 pF
ELM3-12.000MHz-30-R80-D4Y-T	AEL晶振	ELM3	12 MHz	30 pF
ELM3-14.000MHz-30-R80-D4H-T	AEL晶振	ELM3	14 MHz	30 pF
ELM3-24.000MHz-18-R40-D4H-T	AEL晶振	ELM3	24 MHz	18 pF
ELM3-8.057MHz-18-R100-B4Y-T	AEL晶振	ELM3	8.057 MHz	18 pF
