高品质ILSI晶振,HC49USM-FF5F18-3.6864MHZ晶振,遥遥领先的电车充电桩晶振

高品质ILSI晶振,HC49USM-FF5F18-3.6864MHZ晶振,遥遥领先的电车充电桩晶振，美国ILSI晶振公司，贴片晶振，HC49USM晶振，石英晶振，6G路由器晶振，无人机晶振，高品质晶振，低功耗晶振，智能穿戴设备晶振，北斗卫星晶振，无源晶振,二脚晶振,移动通信终端晶振，电车充电枪晶振，石英晶体谐振器，网络服务器晶振，无线局域网晶振.外观完全使用金属材料封装的,产品本身采用全自动石英晶体检测仪,以及跌落,漏气等苛刻实验.产品本身具有高稳定性,高可靠性的石英晶体谐振器,焊接方面支持表面贴装,外观采用金属封装,具有充分的密封性能,晶振本身能确保其高可靠性,采用编带包装,可对应产品应用到自动贴片机告诉安装,满足无铅焊接的高温回流温度曲线要求.

高品质ILSI晶振,HC49USM-FF5F18-3.6864MHZ晶振,遥遥领先的电车充电桩晶振

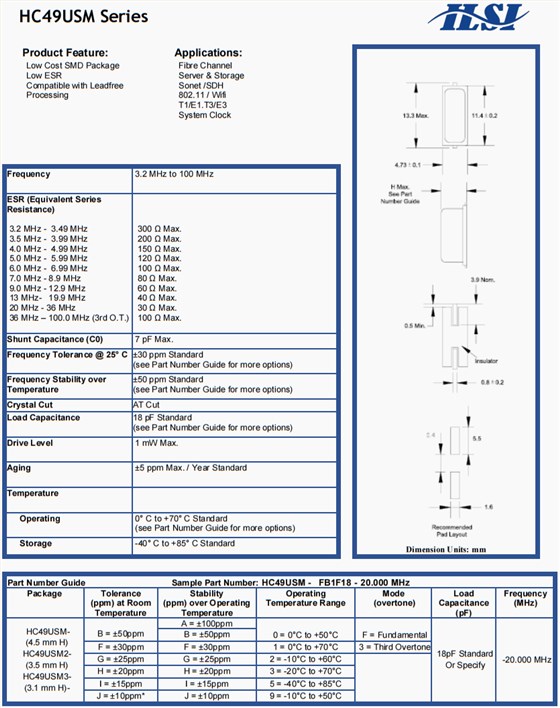

频率	3.2 MHz to 100 MHz
分流电容	7 pF Max.
频率容差	±30 ppm Standard(see Part Number Guide for more options)
温度范围内的频率稳定度	±50 ppm Standard(see Part Number Guide for more options)
水晶切割	AT Cut
负载电容	18 pF Standard(see Part Number Guide for more options)
驱动电平	1 mW Max.
老化	±5 ppm Max. / Year Standard
工作温度范围	0° C to +70° C Standard(see Part Number Guide for more options)
储存温度范围	-40 ° C to +85° C Standard

高品质ILSI晶振,HC49USM-FF5F18-3.6864MHZ晶振,遥遥领先的电车充电桩晶振

原厂编码	生产商品牌	型号	频率	频率稳定度	频率容差	负载电容	工作温度范围
HC49USM-FF3F18-27.000MHZ	ILSI	HC49USM	27 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49USM-FF3F18-8.000MHZ	ILSI	HC49USM	8 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49USM-FF5F18-3.6864MHZ	ILSI	HC49USM	3.6864 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
ILCX13-FF5F10-16.384MHZ	ILSI	ILCX13	16.384 MHz	±30ppm	±30ppm	10pF	-40°C ~ 85°C
ILCX13-FF5F10-12.000MHZ	ILSI	ILCX13	12 MHz	±30ppm	±30ppm	10pF	-40°C ~ 85°C
IXA16-HBFF12-25.000MHZ	ILSI	IXA16	25 MHz	±50ppm	±20ppm	12pF	-40°C ~ 125°C
IXA16-HBFF12-16.000MHZ	ILSI	IXA16	16 MHz	±50ppm	±20ppm	12pF	-40°C ~ 125°C
IXA16-HF5F12-12.000 MHZ	ILSI	IXA16	12 MHz	±30ppm	±20ppm	12pF	-40°C ~ 85°C
IXA16-HBFF12-24.000MHZ	ILSI	IXA16	24 MHz	±50ppm	±20ppm	12pF	-40°C ~ 125°C
IXA20-HF5F12-16.000MHZ	ILSI	IXA20	16 MHz	±30ppm	±20ppm	12pF	-40°C ~ 85°C
IXA18-FBFF8-16.000MHZ	ILSI	IXA18	16 MHz	±50ppm	±30ppm	8pF	-40°C ~ 125°C
HC49USM-FF5F18-18.4320MHZ	ILSI	HC49USM	18.432 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
ILCX13-FF5F10-27.000MHZ	ILSI	ILCX13	27 MHz	±30ppm	±30ppm	10pF	-40°C ~ 85°C
ILCX13-FF5F10-20.000MHZ	ILSI	ILCX13	20 MHz	±30ppm	±30ppm	10pF	-40°C ~ 85°C
IXA16-HBFF12-18.432MHZ	ILSI	IXA16	18.432 MHz	±50ppm	±20ppm	12pF	-40°C ~ 125°C
IXA18-FBFF8-10.000 MHZ	ILSI	IXA18	10 MHz	±50ppm	±30ppm	8pF	-40°C ~ 125°C
IL3W-HX5F9-32.768KHZ	ILSI	IL3W	32.768 kHz	-	±20ppm	9pF	-40°C ~ 85°C
IL3X2-HX5F7- 32.768 KHZ	ILSI	IL3X2	32.768 kHz	-	±20ppm	7pF	-40°C ~ 85°C
HC49USM-FF3F18-11.0592MHZ	ILSI	HC49USM	11.0592 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49USM-FF3F18-7.3728MHZ	ILSI	HC49USM	7.3728 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49USM-FF3F18-20.000MHZ	ILSI	HC49USM	20 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
ILCX13-FF5F10-26.000MHZ	ILSI	ILCX13	26 MHz	±30ppm	±30ppm	10pF	-40°C ~ 85°C
HC49USM-FF3F18-16.000MHZ	ILSI	HC49USM	16 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49USM-FF5F18-14.7456MHZ	ILSI	HC49USM	14.7456 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49USM-FF5F18-27.000MHZ	ILSI	HC49USM	27 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49USM-FF5F18-16.000MHZ	ILSI	HC49USM	16 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49USM-FF5F18-12.000MHZ	ILSI	HC49USM	12 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
ILCX19-FF5F10-27.120MHZ	ILSI	ILCX19	27.12 MHz	±30ppm	±30ppm	10pF	-40°C ~ 85°C
IXA16-HBFF12-12.288MHZ	ILSI	IXA16	12.288 MHz	±50ppm	±20ppm	12pF	-40°C ~ 125°C
IXA16-HBFF12-27.000MHZ	ILSI	IXA16	27 MHz	±50ppm	±20ppm	12pF	-40°C ~ 125°C
IXA16-HBFF12-26.000MHZ	ILSI	IXA16	26 MHz	±50ppm	±20ppm	12pF	-40°C ~ 125°C
IXA12-FBFF10-27.000MHZ	ILSI	IXA12	27 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
IXA16-HF5F12-18.432MHZ	ILSI	IXA16	18.432 MHz	±30ppm	±20ppm	12pF	-40°C ~ 85°C
IXA12-FBFF10-32.000MHZ	ILSI	IXA12	32 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
IXA16-HF5F12-28.63636MHZ	ILSI	IXA16	28.63636 MHz	±30ppm	±20ppm	12pF	-40°C ~ 85°C
IXA16-HF5F12-20.000MHZ	ILSI	IXA16	20 MHz	±30ppm	±20ppm	12pF	-40°C ~ 85°C
IXA16-HF5F12-12.288MHZ	ILSI	IXA16	12.288 MHz	±30ppm	±20ppm	12pF	-40°C ~ 85°C
IXA16-HF5F12-26.000MHZ	ILSI	IXA16	26 MHz	±30ppm	±20ppm	12pF	-40°C ~ 85°C
IXA12-FBFF10-27.120MHZ	ILSI	IXA12	27.12 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
IXA12-FBFF10-24.576 MHZ	ILSI	IXA12	24.576 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
IXA10-HF5F10-26.000MHZ	ILSI	IXA10	26 MHz	±30ppm	±20ppm	10pF	-40°C ~ 85°C
IXA10-HF5F10-27.000MHZ	ILSI	IXA10	27 MHz	±30ppm	±20ppm	10pF	-40°C ~ 85°C
IXA10-FBFF10-26.000MHZ	ILSI	IXA10	26 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
ILCX13-FF5F10-25.000MHZ	ILSI	ILCX13	25 MHz	±30ppm	±30ppm	10pF	-40°C ~ 85°C
ILCX19-FF5F10-54.000MHZ	ILSI	ILCX19	54 MHz	±30ppm	±30ppm	10pF	-40°C ~ 85°C
IXA12-HF5F10-20.000MHZ	ILSI	IXA12	20 MHz	±30ppm	±20ppm	10pF	-40°C ~ 85°C
IXA12-HF5F10-24.576MHZ	ILSI	IXA12	24.576 MHz	±30ppm	±20ppm	10pF	-40°C ~ 85°C
IXA12-HF5F10-24.000MHZ	ILSI	IXA12	24 MHz	±30ppm	±20ppm	10pF	-40°C ~ 85°C
IXA12-HF5F10-32.000MHZ	ILSI	IXA12	32 MHz	±30ppm	±20ppm	10pF	-40°C ~ 85°C
IXA12-HF5F10-26.000MHZ	ILSI	IXA12	26 MHz	±30ppm	±20ppm	10pF	-40°C ~ 85°C
IXA12-HF5F10-25.000MHZ	ILSI	IXA12	25 MHz	±30ppm	±20ppm	10pF	-40°C ~ 85°C
IXA16-HBFF12-30.000MHZ	ILSI	IXA16	30 MHz	±50ppm	±20ppm	12pF	-40°C ~ 125°C
IXA16-HBFF12-12.000MHZ	ILSI	IXA16	12 MHz	±50ppm	±20ppm	12pF	-40°C ~ 125°C
IXA16-HBFF12-24.576MHZ	ILSI	IXA16	24.576 MHz	±50ppm	±20ppm	12pF	-40°C ~ 125°C
IXA12-HF5F10-19.200MHZ	ILSI	IXA12	19.2 MHz	±30ppm	±20ppm	10pF	-40°C ~ 85°C
IXA16-HBFF12-32.000MHZ	ILSI	IXA16	32 MHz	±50ppm	±20ppm	12pF	-40°C ~ 125°C
