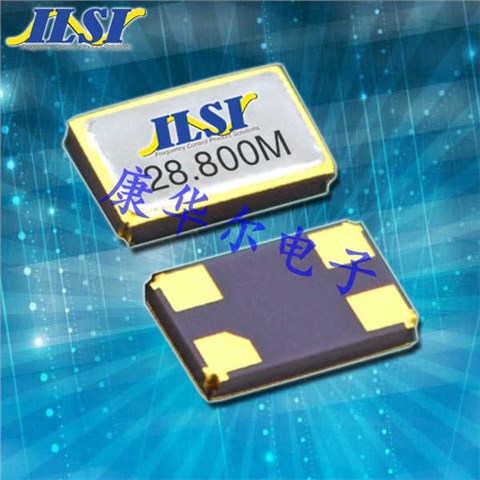

ILCX07激光雷达晶振,ILSI美国进口晶体,ILCX07-FF3F16-9.984MHz环保晶振

ILCX07激光雷达晶振,ILSI美国进口晶体,ILCX07-FF3F16-9.984MHz环保晶振，美国ILSI晶振公司，艾尔西晶振，ILCX07晶振，ILCX07-FF3F16- 9.984 MHz晶振，6035晶振，智能手机晶振，无线通信晶振，卫星晶振，ILSI晶振，贴片晶振，WIFI用晶体，进口晶振，四脚晶振，插件晶振，欧美晶振，无源晶振，外观完全使用金属材料封装的，产品本身采用全自动石英晶体检测仪，以及跌落，漏气等苛刻实验。产品本身具有高稳定性，高可靠性的石英晶体谐振器。

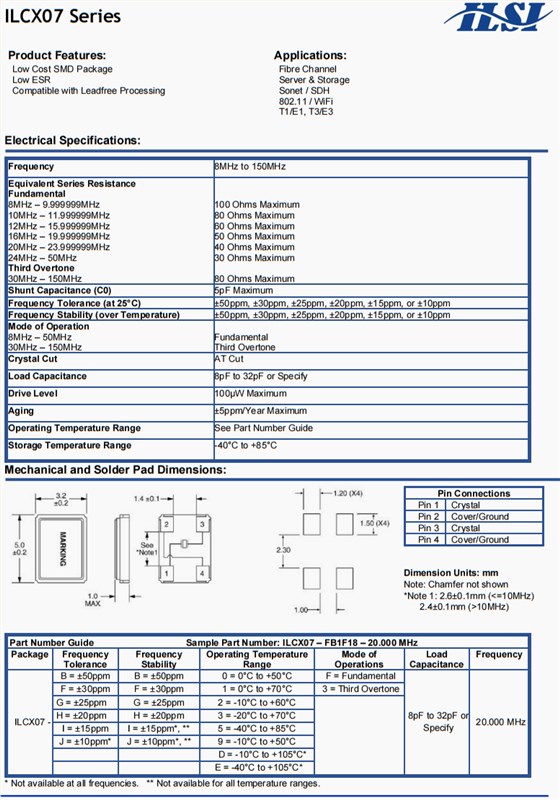

频率	8MHz to 150MHz
分流电容	5pF Maximum
频率容差	±50ppm, ±30ppm, ±25ppm, ±20ppm, ±15ppm, or ±10ppm
频率稳定度	±50ppm, ±30ppm, ±25ppm, ±20ppm, ±15ppm, or ±10ppm
工作模式 8MHz – 50MHz 30MHz – 150MHz	Fundamental Third Overtone
晶体切割	AT Cut
负载电容	8pF to 32pF or Specify
驱动电平	100µW Maximum
老化	±5ppm/Year Maximum
工作温度范围	See Part Number Guide
储存温度范围	-40°C to +85°C

ILCX07激光雷达晶振,ILSI美国进口晶体,ILCX07-FF3F16-9.984MHz环保晶振

编码	品牌	型号	工作温度	频率	频率稳定度	频率容差	负载
HC49USM-BA1F12- 24.000 MHz	ILSI	HC49USM	0°C ~ 70°C	24 MHz	±100ppm	±50ppm	12 pF
HC49USM-BA3F18- 25.000 MHz	ILSI	HC49USM	-20°C ~ 70°C	25 MHz	±100ppm	±50ppm	18 pF
HC49USM-BA5F18- 8.000 MHz	ILSI	HC49USM	-40°C ~ 85°C	8 MHz	±100ppm	±50ppm	18 pF
HC49USM-BB3F10- 13.52313 MHz	ILSI	HC49USM	-20°C ~ 70°C	13.52313 MHz	±50ppm	±50ppm	10 pF
HC49USM-BB5F20- 11.0592 MHz	ILSI	HC49USM	-40°C ~ 85°C	11.0592 MHz	±50ppm	±50ppm	20 pF
HC49USM-FB1F18- 8.000 MHz	ILSI	HC49USM	0°C ~ 70°C	8 MHz	±50ppm	±30ppm	18 pF
HC49USM-FB1F18- 28.224 MHz	ILSI	HC49USM	0°C ~ 70°C	28.224 MHz	±50ppm	±30ppm	18 pF
HC49USM-FB1F20- 3.6864 MHz	ILSI	HC49USM	0°C ~ 70°C	3.6864 MHz	±50ppm	±30ppm	20 pF
HC49USM-FB2F30- 4.000 MHz	ILSI	HC49USM	-10°C ~ 60°C	4 MHz	±50ppm	±30ppm	30 pF
HC49USM-FB2F30- 8.000 MHz	ILSI	HC49USM	-10°C ~ 60°C	8 MHz	±50ppm	±30ppm	30 pF
HC49USM-FB3F10- 9.650 MHz	ILSI	HC49USM	-20°C ~ 70°C	9.65 MHz	±50ppm	±30ppm	10 pF
HC49USM-FB3F18- 4.545 MHz	ILSI	HC49USM	-20°C ~ 70°C	4.545 MHz	±50ppm	±30ppm	18 pF
HC49USM-FB3F18- 25.000 MHz	ILSI	HC49USM	-20°C ~ 70°C	25 MHz	±50ppm	±30ppm	18 pF
HC49USM-FB3F18- 25.175 MHz	ILSI	HC49USM	-20°C ~ 70°C	25.175 MHz	±50ppm	±30ppm	18 pF
HC49USM-FB3F20- 6.000 MHz	ILSI	HC49USM	-20°C ~ 70°C	6 MHz	±50ppm	±30ppm	20 pF
HC49USM-FB3F20- 8.000 MHz	ILSI	HC49USM	-20°C ~ 70°C	8 MHz	±50ppm	±30ppm	20 pF
HC49USM-FB3F20- 25.000 MHz	ILSI	HC49USM	-20°C ~ 70°C	25 MHz	±50ppm	±30ppm	20 pF
HC49USM-FB5F18- 3.579545 MHz	ILSI	HC49USM	-40°C ~ 85°C	3.579545 MHz	±50ppm	±30ppm	18 pF
HC49USM-FB5F18- 4.194304 MHz	ILSI	HC49USM	-40°C ~ 85°C	4.194304 MHz	±50ppm	±30ppm	18 pF
HC49USM-FB5F18- 12.000 MHz	ILSI	HC49USM	-40°C ~ 85°C	12 MHz	±50ppm	±30ppm	18 pF
HC49USM-FB5F18- 20.000 MHz	ILSI	HC49USM	-40°C ~ 85°C	20 MHz	±50ppm	±30ppm	18 pF
HC49USM-FB5F20- 3.6864 MHz	ILSI	HC49USM	-40°C ~ 85°C	3.6864 MHz	±50ppm	±30ppm	20 pF
HC49USM-FB5F20- 8.000 MHz	ILSI	HC49USM	-40°C ~ 85°C	8 MHz	±50ppm	±30ppm	20 pF
HC49USM-FB5F20- 12.000 MHz	ILSI	HC49USM	-40°C ~ 85°C	12 MHz	±50ppm	±30ppm	20 pF
HC49USM-FB5F20- 12.288 MHz	ILSI	HC49USM	-40°C ~ 85°C	12.288 MHz	±50ppm	±30ppm	20 pF
HC49USM-FB5F20- 16.000 MHz	ILSI	HC49USM	-40°C ~ 85°C	16 MHz	±50ppm	±30ppm	20 pF
HC49USM-FF3F18- 3.6864 MHz	ILSI	HC49USM	-20°C ~ 70°C	3.6864 MHz	±30ppm	±30ppm	18 pF
HC49USM-FF3F18- 4.000 MHz	ILSI	HC49USM	-20°C ~ 70°C	4 MHz	±30ppm	±30ppm	18 pF
HC49USM-FF3F18- 4.9152 MHz	ILSI	HC49USM	-20°C ~ 70°C	4.9152 MHz	±30ppm	±30ppm	18 pF
HC49USM-FF3F18- 6.000 MHz	ILSI	HC49USM	-20°C ~ 70°C	6 MHz	±30ppm	±30ppm	18 pF
HC49USM-FF3F18- 6.144 MHz	ILSI	HC49USM	-20°C ~ 70°C	6.144 MHz	±30ppm	±30ppm	18 pF
HC49USM-FF3F18- 7.3728 MHz	ILSI	HC49USM	-20°C ~ 70°C	7.3728 MHz	±30ppm	±30ppm	18 pF
HC49USM-FF3F18- 8.000 MHz	ILSI	HC49USM	-20°C ~ 70°C	8 MHz	±30ppm	±30ppm	18 pF
HC49USM-FF3F18- 11.0592 MHz	ILSI	HC49USM	-20°C ~ 70°C	11.0592 MHz	±30ppm	±30ppm	18 pF
HC49USM-FF3F18- 12.000 MHz	ILSI	HC49USM	-20°C ~ 70°C	12 MHz	±30ppm	±30ppm	18 pF
HC49USM-FF3F18- 14.7456 MHz	ILSI	HC49USM	-20°C ~ 70°C	14.7456 MHz	±30ppm	±30ppm	18 pF
HC49USM-FF3F18- 16.000 MHz	ILSI	HC49USM	-20°C ~ 70°C	16 MHz	±30ppm	±30ppm	18 pF
HC49USM-FF3F18- 18.432 MHz	ILSI	HC49USM	-20°C ~ 70°C	18.432 MHz	±30ppm	±30ppm	18 pF
HC49USM-FF3F18- 20.000 MHz	ILSI	HC49USM	-20°C ~ 70°C	20 MHz	±30ppm	±30ppm	18 pF
HC49USM-FF3F18- 25.000 MHz	ILSI	HC49USM	-20°C ~ 70°C	25 MHz	±30ppm	±30ppm	18 pF
HC49USM-FF3F18- 9.909116 MHz	ILSI	HC49USM	-20°C ~ 70°C	9.909116 MHz	±30ppm	±30ppm	18 pF
HC49USM-FF5F10- 9.81713 MHz	ILSI	HC49USM	-40°C ~ 85°C	9.81713 MHz	±30ppm	±30ppm	10 pF
HC49USM-FF5F18- 3.6864 MHz	ILSI	HC49USM	-40°C ~ 85°C	3.6864 MHz	±30ppm	±30ppm	18 pF
HC49USM-FF5F18- 3.93216 MHz	ILSI	HC49USM	-40°C ~ 85°C	3.93216 MHz	±30ppm	±30ppm	18 pF
HC49USM-FF5F18- 4.000 MHz	ILSI	HC49USM	-40°C ~ 85°C	4 MHz	±30ppm	±30ppm	18 pF
HC49USM-FF5F18- 6.000 MHz	ILSI	HC49USM	-40°C ~ 85°C	6 MHz	±30ppm	±30ppm	18 pF
HC49USM-FF5F18- 7.3728 MHz	ILSI	HC49USM	-40°C ~ 85°C	7.3728 MHz	±30ppm	±30ppm	18 pF
HC49USM-FF5F18- 8.000 MHz	ILSI	HC49USM	-40°C ~ 85°C	8 MHz	±30ppm	±30ppm	18 pF
HC49USM-FF5F18- 10.000 MHz	ILSI	HC49USM	-40°C ~ 85°C	10 MHz	±30ppm	±30ppm	18 pF
HC49USM-FF5F18- 11.0592 MHz	ILSI	HC49USM	-40°C ~ 85°C	11.0592 MHz	±30ppm	±30ppm	18 pF
HC49USM-FF5F18- 12.000 MHz	ILSI	HC49USM	-40°C ~ 85°C	12 MHz	±30ppm	±30ppm	18 pF
HC49USM-FF5F18- 14.7456 MHz	ILSI	HC49USM	-40°C ~ 85°C	14.7456 MHz	±30ppm	±30ppm	18 pF
HC49USM-FF5F18- 16.000 MHz	ILSI	HC49USM	-40°C ~ 85°C	16 MHz	±30ppm	±30ppm	18 pF
HC49USM-FF5F18- 18.432 MHz	ILSI	HC49USM	-40°C ~ 85°C	18.432 MHz	±30ppm	±30ppm	18 pF
HC49USM-FF5F18- 20.000 MHz	ILSI	HC49USM	-40°C ~ 85°C	20 MHz	±30ppm	±30ppm	18 pF
HC49USM-FF5F18- 25.000 MHz	ILSI	HC49USM	-40°C ~ 85°C	25 MHz	±30ppm	±30ppm	18 pF
