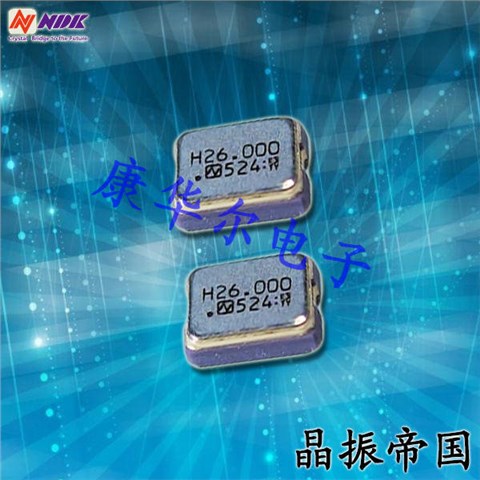

NZ2016SH-24.000MHZNSC5022C|2016|24M|1.8V~3.3V|-40℃~+125℃，日本进口NDK晶振NZ2016SH，编码NZ2016SH-24.000MHZNSC5022C，是一款小体积晶振尺寸2.0x1.6x0.7mm四脚贴片晶振，石英晶体振荡器，有源晶振，无铅环保晶振，支持宽温度范围从-40到+125°C，超小型轻薄型，重量：0.01g，频率范围：1.5MHz至80MHz。这种晶体时钟振荡器可以支持低频（从1.5MHz），与相同尺寸的晶体单元不容易实现。低相位抖动(Typ。100fs（12kHz至20MHz），磁带装置可自动安装红外回流（无导线）。符合AEC-Q100/Q200的标准，该贴片晶振具有超小型，轻薄型，耐热耐振、耐冲击等优良的耐环境特性，满足无铅焊接的高温回流温度曲线要求。适用于汽车导航系统，汽车音响设备和针对智能手机的照相机，平板电脑，笔记本电脑，个人电脑卡，音频设备，用于SDH/声波仪，WiMAX，LTE等通信设备的无线模块，数据控制系统和“基站”等应用。
NZ2016SH-24.000MHZNSC5022C|2016|24M|1.8V~3.3V|-40℃~+125℃，参数图

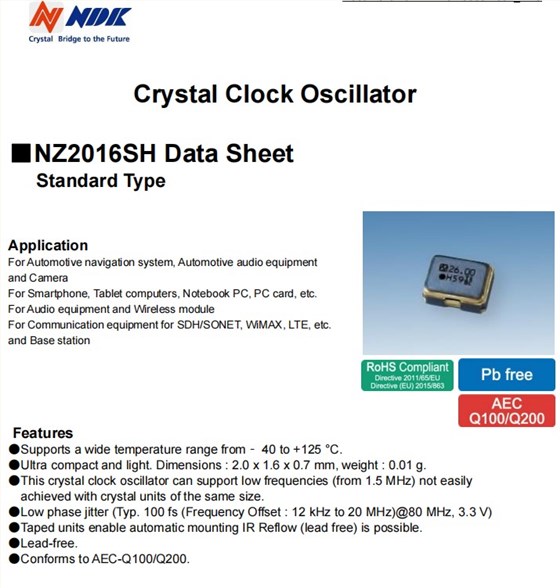

NZ2016SH
ElectricalSpec.
Parameters
SYM
min
typ
max
Units
Notes
NominalFrequency
fnom
1.5
80
MHz
SupplyVoltage
VCC
+1.8to+3.3
V
Current Consumption
(Operating)
ICC
SeeTable.2
mA
at 25℃
Current Consumption
(Stand-by)
IST
20
mA
at 25℃
OutputLevel
-
CMOS
LoadCapacitance
CL
15
pF
Operating Temperature
Range
Topr
[-10to+60]to[-40to+125]
℃
Table.1
Overall Frequency
Tolerance
Df/fnom
±20to±100
ppm
Table.1*1
OutputVoltage
VOL
0.1VCC
V
VOH
0.9VCC
V
Rise Time(tr),
Fall Time(tf)
tr/tf
5
ns
+2.5 V to +3.3 V
0.1 VCCto 0.9 VCC
6
ns
+1.8 V
0.1 VCC to 0.9 VCC
Symmetry
SYM
45
55
%
at1/2VCC
Start-upTime
tsu
4
ms
OutputWaveForm
-
Squarewave
Stand-byFunction
#1PADinput
#3PADoutput
Hlevel(0.7VCCtoVCC)oropenLlevel(0.3VCCmax)
Operating
Highimpedance
NZ2016SH-24.000MHZNSC5022C|2016|24M|1.8V~3.3V|-40℃~+125℃，尺寸图
| 原厂编码 | 品牌 | 型号 | 频率 | 电压 | 尺寸 |
| NZ2520SB-32.768KHZ-NSA3534C | NDK晶振 | NZ2520S | 32.768kHz | 1.8V | 4-SMD, No Lead |
| NT2016SA-26.000000MHZ-NBG2 | NDK晶振 | NT2016SA | 26MHz | 1.8V | 4-SMD, No Lead |
| NZ2520SB-32.768KHZ-NSA3536C | NDK晶振 | NZ2520S | 32.768kHz | 3.3V | 4-SMD, No Lead |
| NT3225SA-13.000000MHZ | NDK晶振 | NT3225SA | 13MHz | 3V | 4-SMD, No Lead |
| NT3225SA-19.680000MHZ | NDK晶振 | NT3225SA | 19.68MHz | 3V | 4-SMD, No Lead |
| NT3225SA-26.000000MHZ | NDK晶振 | NT3225SA | 26MHz | 3V | 4-SMD, No Lead |
| NT2016SA-16.368000 MHZ-NTG1 | NDK晶振 | NT2016SA | 16.368MHz | 2.5V | 4-SMD, No Lead |
| NT3225SA-19.200000MHZ | NDK晶振 | NT3225SA | 19.2MHz | 2.8V | 4-SMD, No Lead |
| NT3225SA-19.2M-DJA3002B | NDK晶振 | NT3225SA | 19.2MHz | 2.8V | 4-SMD, No Lead |
| NT2520SA-26.000000MHZ-A1 | NDK晶振 | NT2520SA | 26MHz | 2.4V | 4-SMD, No Lead |
| NZ2520SB-32.768KHZ-NSA3535C | NDK晶振 | NZ2520S | 32.768kHz | 2.5V | 4-SMD, No Lead |
| NZ2520SB-2.750000MHZ | NDK晶振 | NZ2520SB | 2.75MHz | 3V | 4-SMD, No Lead |
| NZ2520SB-7.600000MHZ | NDK晶振 | NZ2520SB | 7.6MHz | 3V | 4-SMD, No Lead |
| NZ2520SB-5.000000MHZ | NDK晶振 | NZ2520SB | 5MHz | 3V | 4-SMD, No Lead |
| NZ2520SB-10.000000MHZ | NDK晶振 | NZ2520SB | 10MHz | 3V | 4-SMD, No Lead |
| NZ2520SB-19.200MHZ | NDK晶振 | NZ2520SB | 19.2MHz | 3V | 4-SMD, No Lead |
| NZ2520SB-20.000000MHZ | NDK晶振 | NZ2520SB | 20MHz | 3V | 4-SMD, No Lead |
| NZ2520SB-22.000000MHZ | NDK晶振 | NZ2520SB | 22MHz | 3V | 4-SMD, No Lead |
| NZ2520SB-25.600MHZ | NDK晶振 | NZ2520SB | 25.6MHz | 3V | 4-SMD, No Lead |
| NZ2520SB-38.900MHZ | NDK晶振 | NZ2520SB | 38.9MHz | 3V | 4-SMD, No Lead |
| NZ2520SB-40.000000MHZ | NDK晶振 | NZ2520SB | 40MHz | 3V | 4-SMD, No Lead |
| NZ2520SB-41.360MHZ | NDK晶振 | NZ2520SB | 41.36MHz | 3V | 4-SMD, No Lead |
| NZ2520SB-44.000000MHZ | NDK晶振 | NZ2520SB | 44MHz | 3V | 4-SMD, No Lead |
| NT3225SA-26.000000MHZ-G5 | NDK晶振 | NT3225SA | 26MHz | 2.4V | 4-SMD, No Lead |
| NT3225SA-26.000000MHZ-G7 | NDK晶振 | NT3225SA | 26MHz | 2.7V | 4-SMD, No Lead |
| NT3225SA-26.000000MHZ-G8 | NDK晶振 | NT3225SA | 26MHz | 2.75V | 4-SMD, No Lead |
| NT3225SA-19.200000MHZ-T3 | NDK晶振 | NT3225SA | 19.2MHz | 2.8V | 4-SMD, No Lead |
| 2775W-2.176 | NDK晶振 | 2775W | 2.176MHz | 5V | 4-SMD, No Lead |
| 2765E-2.457600MHZ | NDK晶振 | 2765E | 2.4576MHz | 3.3V | 4-SMD, No Lead |
| 2765E-16.666700MHZ | NDK晶振 | 2765E | 16.6667MHz | 3.3V | 4-SMD, No Lead |
| 2765E-25.000000MHZ | NDK晶振 | 2765E | 25MHz | 3.3V | 4-SMD, No Lead |
| 2765E-33.333300MHZ | NDK晶振 | 2765E | 33.3333MHz | 3.3V | 4-SMD, No Lead |
| 2765E-40.000000MHZ | NDK晶振 | 2765E | 40MHz | 3.3V | 4-SMD, No Lead |
| 2765E-50.000000MHZ | NDK晶振 | 2765E | 50MHz | 3.3V | 4-SMD, No Lead |
| 2765E-66.000000MHZ | NDK晶振 | 2765E | 66MHz | 3.3V | 4-SMD, No Lead |
| 2765E-66.667000MHZ | NDK晶振 | 2765E | 66.667MHz | 3.3V | 4-SMD, No Lead |
| 2765E-80.000000MHZ | 石英贴片晶振 | 2765E | 80MHz | 3.3V | 4-SMD, No Lead |
| NZ2520SA-2.750000MHZ | NDK晶振 | NZ2520SA | 2.75MHz | 3V | 4-SMD, No Lead |
| NZ2520SA-5.000000MHZ | NDK晶振 | NZ2520SA | 5MHz | 3V | 4-SMD, No Lead |
| NZ2520SA-7.600000MHZ | NDK晶振 | NZ2520SA | 7.6MHz | 3V | 4-SMD, No Lead |
| NZ2520SA-10.000000MHZ | NDK晶振 | NZ2520SA | 10MHz | 3V | 4-SMD, No Lead |
| NZ2520SA-20.000000MHZ | NDK晶振 | NZ2520SA | 20MHz | 3V | 4-SMD, No Lead |
| NZ2520SA-22.000000MHZ | NDK晶振 | NZ2520SA | 22MHz | 3V | 4-SMD, No Lead |
| NZ2520SA-40.000000MHZ | NDK晶振 | NZ2520SA | 40MHz | 3V | 4-SMD, No Lead |
| NZ2520SA-44.000000MHZ | NDK晶振 | NZ2520SA | 44MHz | 3V | 4-SMD, No Lead |
| NT3225SA-52.000000MHZ-S1 | NDK晶振 | NT3225SA | 52MHz | 2.4V | 4-SMD, No Lead |
| NZ2520SA-19.200MHZ | NDK晶振 | NZ2520SA | 19.2MHz | 3V | 4-SMD, No Lead |
| NZ2520SA-25.600MHZ | NDK晶振 | NZ2520SA | 25.6MHz | 3V | 4-SMD, No Lead |
| NZ2520SA-38.900MHZ | NDK晶振 | NZ2520SA | 38.9MHz | 3V | 4-SMD, No Lead |
| NZ2520SA-41.360MHZ | NDK晶振 | NZ2520SA | 41.36MHz | 3V | 4-SMD, No Lead |
