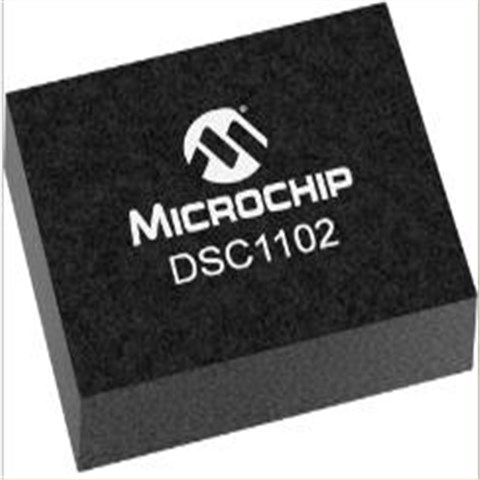

DSC1102CI2-156.2500,低抖动晶体振荡器,6G模块晶振,Microchip石英贴片晶体,DSC1102有源晶振,DSC1102CI2-156.2500晶振,3225贴片晶振,低抖动晶体振荡器,频率156.25MHz,电压3.3V,频率稳定性25ppm,工作温度-40~85°C,耐高温晶振,抗冲击晶振,低功耗晶振,6G模块晶振,光纤通道晶振,无源光网络晶振,以太网晶振.
DSC1102CI2-156.2500,低抖动晶体振荡器,6G模块晶振特点:
•低RMS相位抖动:<1 ps(类型)
•高稳定性:±10 ppm,±20 ppm,±25 ppm,±50 ppm
•宽温度范围:
-汽车:- 55°C至+125°C
-工业外:- 40°C至+105°C
—工业:- 40℃~ +85℃
—商用:- 20℃~ +70℃
•高电源噪声抑制:-50 dBc
•宽频率范围:2.3 MHz至460 MHz
•小的行业标准足迹
- 2.5 mm × 2.0 mm, 3.2 mm × 2.5 mm, 5.0 mm × 3.2 mm, 7.0 mm × 5.0 mm
•卓越的抗冲击和抗振动能力
-符合MIL-STD-883标准
•高可靠性
- MTF比石英振荡器好20倍
•低电流消耗
•电源范围2.25至3.63V
•待机和输出使能功能
•无铅,符合RoHS标准
•LVDS和HCSL版本可用
DSC1102CI2-156.2500,低抖动晶体振荡器,6G模块晶振参数图
项目 | 规格说明 | 条件 |
额定频率 | 156.25MHz | 请联系我们以便获取其它可用频率的相关信息 |
电源电压 | 3.3V |
|
储存温度 | -55℃~+150℃ | 裸存 |
工作温度 | -40℃~ +85℃ |
|
频率稳定度 | ±25ppm | 所有温度范围 |
老化 |
±5ppm |
1 year @ +25°C |
电流 | 0.095mAMax | DSC1102, EN pin low, Output is disabled |
负载 | 15pf |
|
输出逻辑电平低(Vol) | VDD – 1.55VMax |
RL = 50Ω |
输出逻辑电平高(Voh) | VDD – 1.08V Min | |
输出上升下降时间 |
2ns Max |
20% to 80% CL t = 15 pF |
起始时间 | 5ms Max |
T = 25°C |
集成相位噪声 | 0.25psTyp | 200 kHz to 20 MHz @ 156.25 MHzRMS |
周期抖动 |
2.5ps |
RMS |

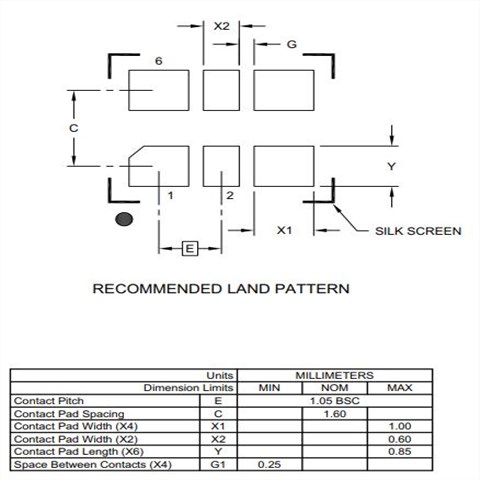

DSC1102CI2-156.2500,低抖动晶体振荡器,6G模块晶振尺寸图
