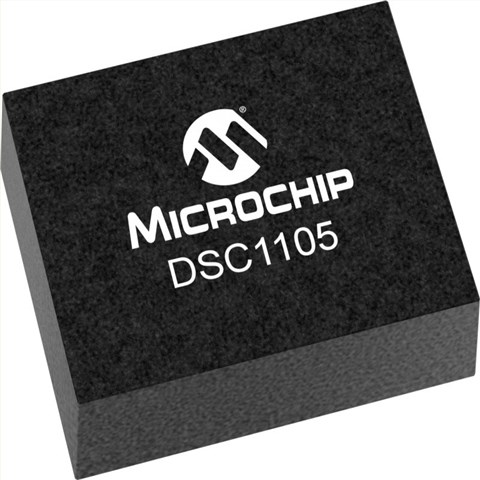

DSC1105AL3-075.0000T,Microchip石英贴片晶体,6G通信晶振,DSC1105进口晶振,Microchip石英贴片晶体,DSC1105AL3-075.0000T晶振,7050mm晶振,低相位抖动晶振,有源晶振,频率75MHz,电压3.3V,频率稳定性20ppm,工作温度-40~105°C,耐高温晶振,低功耗晶振,6G通信晶振,PCI Express晶振,显示端口晶振,存储区域网络晶振,光纤通道晶振,SDI视频和监控晶振.

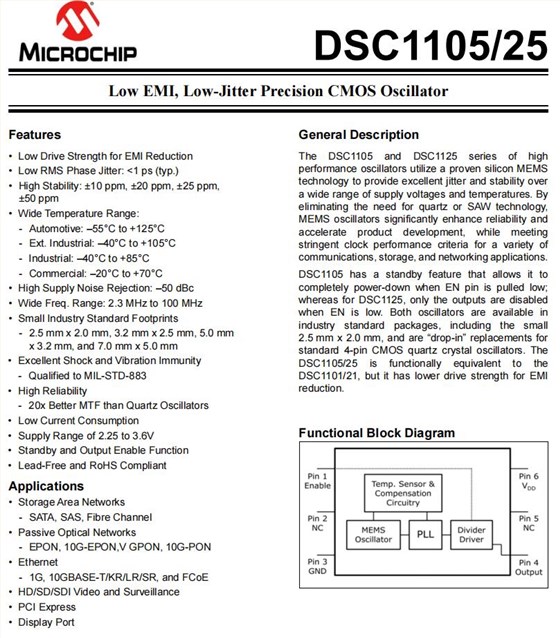

DSC1105AL3-075.0000T,Microchip石英贴片晶体,6G通信晶振特点：
•降低EMI的低驱动强度
•低相位RMS抖动:< 1 ps(典型值)
•高稳定性:10 ppm、20 ppm、25 ppm、 50 ppm
•宽温度范围:
-汽车:–55°C至+125°C
-Ext.工业:–40℃至+105℃
-工业级:–40℃至+85℃ -
-商用:–20℃至+70℃
•高电源噪声抑制:–50 dBc
•宽频率范围:2.3兆赫至100兆赫
•小型工业标准尺寸
- 2.5x 2.0mm、3.2x 2.5mm、5.0 x 3.2mm和7.0x 5.0mm
•出色的抗冲击和振动能力
-符合军用标准883
•高可靠性
-MTF比石英振荡器高20倍
•低电流消耗
•电源电压范围为2.25至3.6V
•待机和输出使能功能
•无铅且符合RoHS标准
DSC1105AL3-075.0000T,Microchip石英贴片晶体,6G通信晶振参数图
| 项目 | 规格说明 | 条件 |
| 额定频率 | 75MHz | 请联系我们以便获取其它可用频率的相关信息 |
| 电源电压 | 3.3V |
|
| 储存温度 | -40℃~+150℃ | 裸存 |
| 工作温度 | -40℃~ +105℃ |
|
| 频率稳定度 | ±20ppm | 所有温度范围 |
| 老化 |
±5ppm |
1 year @ +25°C |
| 电流 | 35mAMax | Output is enabled CL= 15 pF, F0 = 100 MHz |
| 占空比 | 45%~55% |
|
| 输出逻辑电平低（Vol） |
0.1 x VDDV Max |
I=±1.6mA |
| 输出逻辑电平高（Voh） | 0.9x VDDVMin | |
| 起始时间 | 5ms Max |
From 90% VDD to valid clock output, T = +25° C |
| 输出上升下降时间 | 2.0ns Max |
3.3V, CL=15pF; T=25°C 20%/80%*VDD |
| 周期抖动 | 4ps RMS Max |
FOUT = 100 MHz |
|
积分相位噪声 |
0.3ps RMS Typ |
200 kHz to 20 MHz @ 100 MHz |

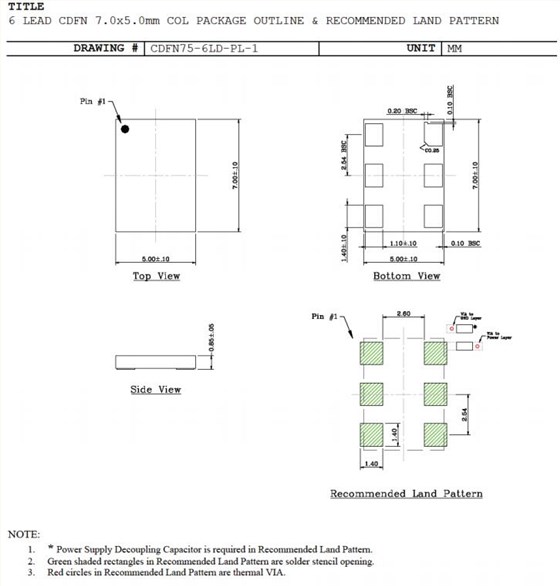

DSC1105AL3-075.0000T,Microchip石英贴片晶体,6G通信晶振尺寸图
