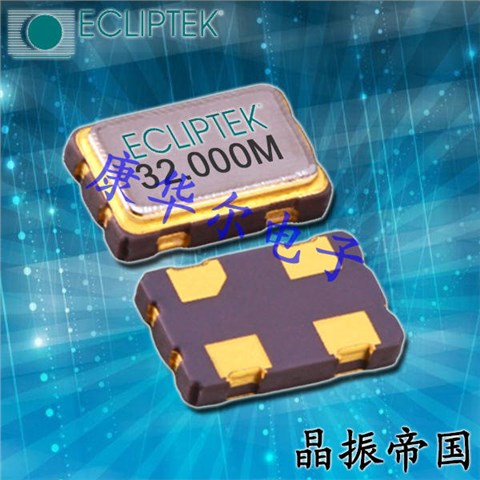

EC3625ETTS-125.000M,5032mm,Ecliptek四脚贴片晶振,无线应用晶振，Ecliptek晶振，日蚀晶振，欧美进口晶振，型号：EC36系列，编码为：EC3625ETTS-125.000M，频率：125.000MHz，电压：3.3V，工作温度范围：-40℃至+85℃，频率稳定性：±25ppm，CMOS输出晶振，小体积晶振尺寸：5.0x3.2x1.3mm表面封装，四脚贴片晶振，时钟振荡器，5032晶振，有源晶振，石英晶振，石英晶体振荡器。具有超小型，轻薄型，高品质，高可靠性，耐热及耐环境等特点。应用于：移动通讯晶振，无线网络晶振，导航仪晶振，汽车电子晶振，安防设备晶振，智能家居等应用。

EC3625ETTS-125.000M,5032mm,Ecliptek四脚贴片晶振,无线应用晶振,参数表

Nominal Frequency		125 MHz
Frequency Tolerance/Stability		Inclusive of all conditions: Calibration Tolerance at 25°C, Frequency Stability over the Operating Temperature Range, Supply Voltage Change, Output Load Change, First Year Aging at 25°C, Shock, and Vibration ±100ppm Maximum ±20ppm Maximum ±25ppm Maximum ±50ppm Maximum
Operating Temperature Range		- 10°C to +70°C -40°C to +85°C
Supply Voltage		3.3Vdc ±10%
Input Current		8mA Maximum over Nominal Frequency of 1MHz to 9.999999MHz 10mA Maximum over Nominal Frequency of 10MHz to 34.999999MHz 25mA Maximum over Nominal Frequency of 35MHz to 49.999999MHz 35mA Maximum over Nominal Frequency of 50MHz to 70MHz 40mA Maximum over Nominal Frequency of 70.000001MHz to 125MHz 50mA Maximum over Nominal Frequency of 125.000001MHz to 170MHz
Output Voltage Logic High (VOh)		IOH = -4mA 90% of Vdd Minimum
Output Voltage Logic Low (VOl)		IOL = +4mA 10% of Vdd Maximum
Rise/Fall Time		Measured at 20% to 80% of waveform 6nSec Maximum over Nominal Frequency of 1MHz to 39.999999MHz 4nSec Maximum over Nominal Frequency of 40MHz to 79.999999MHz 3nSec Maximum over Nominal Frequency of 80MHz to 100MHz 2nSec Maximum over Nominal Frequency of 100.000001MHz to 170MHz
Duty Cycle		Measured at 50% of waveform 50 ±10(%) 50 ±5(%)
Load Drive Capability		15pF Maximum
Output Logic Type		CMOS
Pin 1 Connection		Tri-State (High Impedance)
Tri-State Input Voltage (Vih and Vil)		90% of Vdd Minimum or No Connect to Enable Output, 10% of Vdd Maximum to Disable Output (High Impedance)
Standby Current		Disabled Output: High Impedance 10µA Maximum
RMS Phase Jitter		12kHz to 20MHz offset frequency 1pSec Maximum
Start Up Time		10mSec Maximum
Storage Temperature Range		-55°C to +125°C

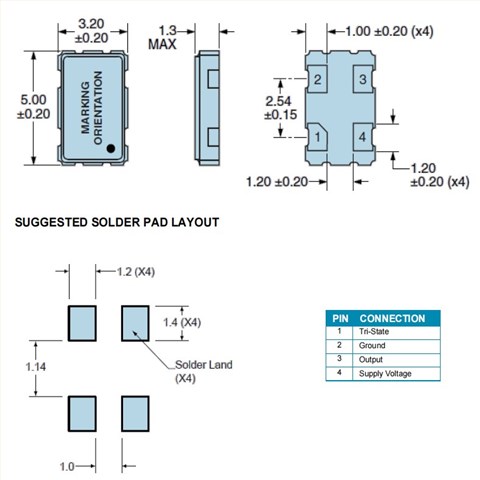

EC3625ETTS-125.000M,5032mm,Ecliptek四脚贴片晶振,无线应用晶振,尺寸图
