ELM8-32.000MHz-9-R40-D1G-T,英国AEL艾尔晶振,3225mm,车载晶振，英国AEL晶振，艾尔晶振，型号：ELM8系列，编码为：ELM8-32.000MHz-9-R40-D1G-T，频率：32.000MHz，负载：9pF，工作温度范围：-40℃至+85℃，频率稳定性：±15ppm，频率容差：±10ppm，小体积晶振尺寸：3.2x2.5mm贴片晶振，四脚晶振，3225晶振，石英晶振，石英晶体谐振器，无源晶振，无铅环保晶振。具有超小型，轻薄型，高品质，高性能，耐热及耐环境等特点。进口晶振被广泛应用于：无线蓝牙晶振，智能手机晶振，平板电脑晶振，车载晶振，仪器设备晶振，儿童玩具等应用。
ELM8-32.000MHz-9-R40-D1G-T,英国AEL艾尔晶振,3225mm,车载晶振,参数表

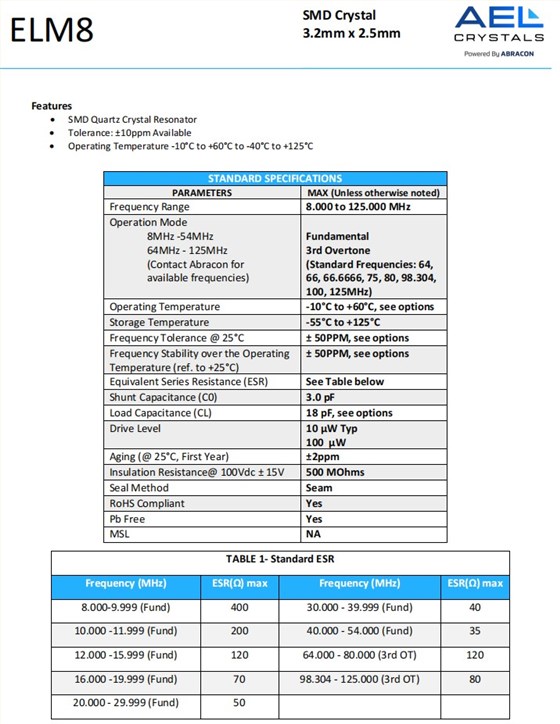

| STANDARD SPECIFICATIONS | ||||||||||
| PARAMETERS | MAX (Unless otherwise noted) | |||||||||
| Frequency Range | 32.000MHz | |||||||||
| Operation Mode 8MHz -54MHz 64MHz - 125MHz (Contact Abracon for available frequencies) |
Fundamental 3rd Overtone (Standard Frequencies: 64, 66, 66.6666, 75, 80, 98.304, 100, 125MHz) |
|||||||||
| Operating Temperature | -10°C to +60°C, see options | |||||||||
| Storage Temperature | -55°C to +125°C | |||||||||
| Frequency Tolerance @ 25°C | ± 50PPM, see options | |||||||||
| Frequency Stability over the Operating Temperature (ref. to +25°C) |
± 50PPM, see options | |||||||||
| Equivalent Series Resistance (ESR) | See Table below | |||||||||
| Shunt Capacitance (C0) | 3.0 pF | |||||||||
| Load Capacitance (CL) | 18 pF, see options | |||||||||
| Drive Level | 10 μW Typ 100 μW |
|||||||||
| Aging (@ 25°C, First Year) | ±2ppm | |||||||||
| Insulation Resistance@ 100Vdc ± 15V | 500 MOhms | |||||||||
| Seal Method | Seam | |||||||||
| RoHS Compliant | Yes | |||||||||
| Pb Free | Yes | |||||||||
| MSL | NA |
|||||||||

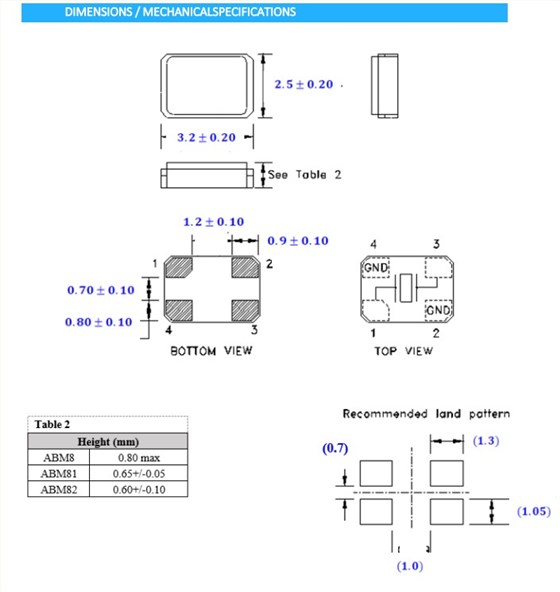

ELM8-32.000MHz-9-R40-D1G-T,英国AEL艾尔晶振,3225mm,车载晶振,尺寸图
| 产品编码 | 品牌 | 型号 | 频率 | 负载电容 | 长度 |
| ELM8-12.000MHz-10-R50-D4Y-T | AEL晶振 | ELM8 | 12 MHz | 10 pF | 3mm |
| ELM8-12.5829MHz-16-R60-1U-T | AEL晶振 | ELM8 | 12.5829 MHz | 16 pF | 3mm |
| ELM8-14.000MHz-16-R150-B1U-T | AEL晶振 | ELM8 | 14.8 MHz | 16 pF | 3mm |
| ELM8-18.432MHz-16-R80-DQ-T | AEL晶振 | ELM8 | 18.432 MHz | 16 pF | 3mm |
| ELM8-24.000MHz-10-R60-D1W-T | AEL晶振 | ELM8 | 24 MHz | 10 pF | 3mm |
| ELM8-24.000MHz-18-R60-B1W-T | AEL晶振 | ELM8 | 24 MHz | 18 pF | 3mm |
| ELM8-24.000MHz-9-R40-N1U-T | 进口晶振 | ELM8 | 24 MHz | 9 pF | 3mm |
| ELM8-26.000MHz-18-R60-B1U-T | AEL晶振 | ELM8 | 26 MHz | 18 pF | 3mm |
| ELM8-32.000MHz-16-R40-B1U-T | AEL晶振 | ELM8 | 32 MHz | 16 pF | 3mm |
| ELM8-32.000MHz-9-R40-D1G-T | AEL晶振 | ELM8 | 32 MHz | 9 pF | 3mm |
| ELS05-32.768kHz-9-T | AEL晶振 | ELS05 | 32.768 kHz | 9 pF | 1.6mm |
| ELS06-32.768kHz-9-T | AEL晶振 | ELS06 | 32.768 kHz | 9 pF | 2mm |
| ELS07-32.768kHz-6-T | AEL晶振 | ELS07 | 32.768 kHz | 6 pF | 3.2mm |
| ELS07-32.768kHz-T | AEL晶振 | ELS07 | 32.768 kHz | 12.5 pF | 3.2mm |
| ELS13-32.768kHz-7-T | AEL晶振 | ELS13 | 32.768 kHz | 7 pF | 7mm |
| ELS13-32.768kHz-9-T | AEL晶振 | ELS13 | 32.768 kHz | 9 pF | 7mm |
| ELS13-32.768kHz-T | AEL晶振 | ELS13 | 32.768 kHz | 12.5 pF | 7mm |
| ELS25-32.768kHz-6-2-T | AEL晶振 | ELS25 | 32.768 kHz | 6 pF | 8mm |
| ELS25-32.768kHz-T | AEL晶振 | ELS25 | 32.768 kHz | 12.5 pF | 8mm |
