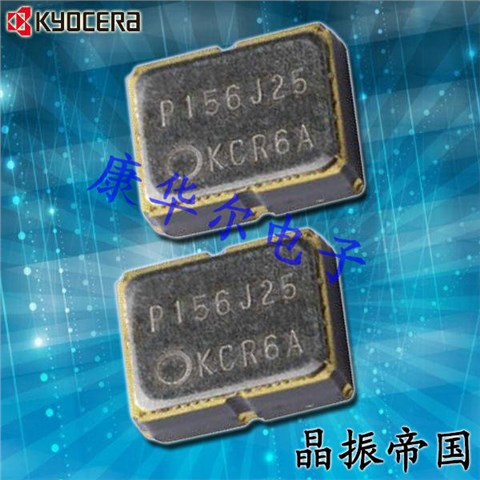

KC3225L100.000P30J00-6G路由器晶振-贴片差分晶振

KC3225L100.000P30J00-6G路由器晶振-贴片差分晶振,日本京瓷晶振,进口石英晶体振荡器,KC3225L-P2有源晶振,KC3225L100.000P30J00晶振,3225mm晶振,小体积石英晶体,6G路由器晶振,贴片差分晶振,频率100MHz,电压3.3V,频率稳定性50ppm,工作温度0~70°C,LV-PECL输出晶振,智能手机晶振,医疗设备应用晶振,可视智能家居晶振,蓝牙模块晶振.

KC3225L100.000P30J00-6G路由器晶振-贴片差分晶振特点：

●小型陶瓷封装类型

●采用缝隙封装的高可靠性

●LV-PECL输出

●电源电压VCC=3.3V

●可支持±25×10

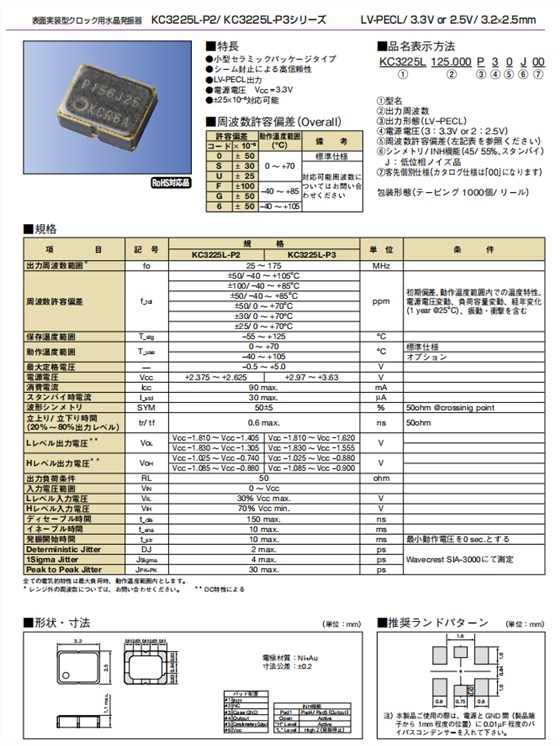

KC3225L100.000P30J00-6G路由器晶振-贴片差分晶振参数图

项目	符号	规格说明	条件
额定频率	f_nom	100MHz	请联系我们以便获取其它可用频率的相关信息
电源电压	Vcc	3.3V
储存温度	T_stg	-55℃~+125℃	裸存
工作温度	T_use	0℃~ +70℃
频率公差（标准）	f_tol	±50ppm	+25℃,超出标准的规格说明请联系我们以便获取相关信息
电流消耗	ICC	90mA Max
禁用消耗电流	IDE	30mAMax
对称性（占空比）	SYM	50±5%	50ohm @crossing point
低位准输出电压	VOH	VCC −1.025V~VCC −0.880V	Typ. 1.1V
高位准输出电压	VOL	VCC −1.810V~VCC −1.620V	Typ.1.43V
输出负载	RL	50Ω	LV-PECL Output
输入电压	VIH	70%Vcc Min	OE terminal
输入电压	VIL	30%Vcc Max	OE terminal
上升下降时间	tr/tf	0.6ns Max	50ohm
起始时间	t str	10ms Max	@Minimum operating voltage to be 0 sec
1 Sigma 抖动	JSigma	4ps Max	Wavecrest SIA-3000にて測定
峰对峰抖动	JPK-PK	30ps Max	Wavecrest SIA-3000にて測定

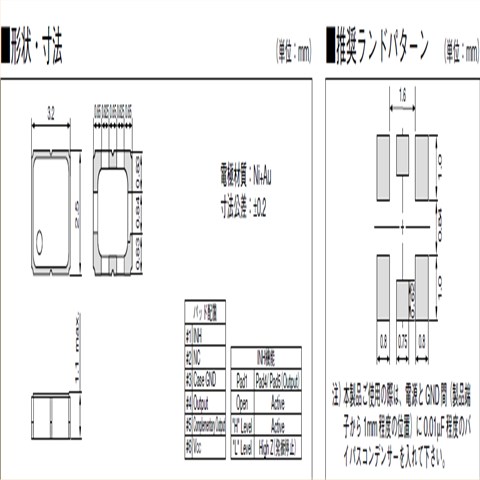

KC3225L100.000P30J00-6G路由器晶振-贴片差分晶振尺寸图

原厂编码	生产厂家	型号	频率	电压	工作温度
KC3225K40.0000C1GE00	AVX Corp/Kyocera Corp	KC3225K, Kyocera	40MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K40.0000C1GE00	AVX Corp/Kyocera Corp	KC3225K, Kyocera	40MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K40.0000C1GE00	AVX Corp/Kyocera Corp	KC3225K, Kyocera	40MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K20.0000C1GE00	AVX Corp/Kyocera Corp	KC3225K, Kyocera	20MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K20.0000C1GE00	AVX Corp/Kyocera Corp	KC3225K, Kyocera	20MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K20.0000C1GE00	AVX Corp/Kyocera Corp	KC3225K, Kyocera	20MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K27.0000C1GE00	AVX Corp/Kyocera Corp	KC3225K, Kyocera	27MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K27.0000C1GE00	AVX Corp/Kyocera Corp	KC3225K, Kyocera	27MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K27.0000C1GE00	AVX Corp/Kyocera Corp	KC3225K, Kyocera	27MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K32.0000C1GE00	AVX Corp/Kyocera Corp	KC3225K, Kyocera	32MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K32.0000C1GE00	AVX Corp/Kyocera Corp	KC3225K, Kyocera	32MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K32.0000C1GE00	AVX Corp/Kyocera Corp	KC3225K, Kyocera	32MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K33.3333C1GE00	AVX Corp/Kyocera Corp	KC3225K, Kyocera	33.3333MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K33.3333C1GE00	AVX Corp/Kyocera Corp	KC3225K, Kyocera	33.3333MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K33.3333C1GE00	AVX Corp/Kyocera Corp	KC3225K, Kyocera	33.3333MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K48.0000C1GE00	AVX Corp/Kyocera Corp	KC3225K, Kyocera	48MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K48.0000C1GE00	AVX Corp/Kyocera Corp	KC3225K, Kyocera	48MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K48.0000C1GE00	AVX Corp/Kyocera Corp	KC3225K, Kyocera	48MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K50.0000C1GE00	AVX Corp/Kyocera Corp	KC3225K, Kyocera	50MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K50.0000C1GE00	AVX Corp/Kyocera Corp	KC3225K, Kyocera	50MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K50.0000C1GE00	AVX Corp/Kyocera Corp	KC3225K, Kyocera	50MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K1.84320C1GE00	AVX Corp/Kyocera Corp	KC3225K, Kyocera	1.8432MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K1.84320C1GE00	AVX Corp/Kyocera Corp	KC3225K, Kyocera	1.8432MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K1.84320C1GE00	AVX Corp/Kyocera Corp	KC3225K, Kyocera	1.8432MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K7.37280C1GE00	AVX Corp/Kyocera Corp	KC3225K, Kyocera	7.3728MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K7.37280C1GE00	AVX Corp/Kyocera Corp	KC3225K, Kyocera	7.3728MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K7.37280C1GE00	AVX Corp/Kyocera Corp	KC3225K, Kyocera	7.3728MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K8.00000C1GE00	AVX Corp/Kyocera Corp	KC3225K, Kyocera	8MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K8.00000C1GE00	AVX Corp/Kyocera Corp	KC3225K, Kyocera	8MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K8.00000C1GE00	AVX Corp/Kyocera Corp	KC3225K, Kyocera	8MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K10.0000C1GE00	AVX Corp/Kyocera Corp	KC3225K, Kyocera	10MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K10.0000C1GE00	AVX Corp/Kyocera Corp	KC3225K, Kyocera	10MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K10.0000C1GE00	AVX Corp/Kyocera Corp	KC3225K, Kyocera	10MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K12.0000C1GE00	AVX Corp/Kyocera Corp	KC3225K, Kyocera	12MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K12.0000C1GE00	AVX Corp/Kyocera Corp	KC3225K, Kyocera	12MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K12.0000C1GE00	AVX Corp/Kyocera Corp	KC3225K, Kyocera	12MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K14.7456C1GE00	AVX Corp/Kyocera Corp	KC3225K, Kyocera	14.7456MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K14.7456C1GE00	AVX Corp/Kyocera Corp	KC3225K, Kyocera	14.7456MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K14.7456C1GE00	AVX Corp/Kyocera Corp	KC3225K, Kyocera	14.7456MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K18.4320C1GE00	AVX Corp/Kyocera Corp	KC3225K, Kyocera	18.432MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K18.4320C1GE00	AVX Corp/Kyocera Corp	KC3225K, Kyocera	18.432MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K18.4320C1GE00	AVX Corp/Kyocera Corp	KC3225K, Kyocera	18.432MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K32.7680C1GE00	AVX Corp/Kyocera Corp	KC3225K, Kyocera	32.768MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K32.7680C1GE00	AVX Corp/Kyocera Corp	KC3225K, Kyocera	32.768MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K32.7680C1GE00	AVX Corp/Kyocera Corp	KC3225K, Kyocera	32.768MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K33.0000C1GE00	AVX Corp/Kyocera Corp	KC3225K, Kyocera	33MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K33.0000C1GE00	AVX Corp/Kyocera Corp	KC3225K, Kyocera	33MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K33.0000C1GE00	AVX Corp/Kyocera Corp	KC3225K, Kyocera	33MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K60.0000C1GE00	AVX Corp/Kyocera Corp	KC3225K, Kyocera	60MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K60.0000C1GE00	AVX Corp/Kyocera Corp	KC3225K, Kyocera	60MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K60.0000C1GE00	AVX Corp/Kyocera Corp	KC3225K, Kyocera	60MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K66.6667C1GE00	AVX Corp/Kyocera Corp	KC3225K, Kyocera	66.6667MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K66.6667C1GE00	AVX Corp/Kyocera Corp	KC3225K, Kyocera	66.6667MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K66.6667C1GE00	AVX Corp/Kyocera Corp	KC3225K, Kyocera	66.6667MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225A50.0000C3GE00	AVX Corp/Kyocera Corp	KC3225A-C3, Kyocera	50MHz	3.3V	-40°C ~ 85°C
KC3225A50.0000C3GE00	AVX Corp/Kyocera Corp	KC3225A-C3, Kyocera	50MHz	3.3V	-40°C ~ 85°C
KC3225A50.0000C3GE00	AVX Corp/Kyocera Corp	KC3225A-C3, Kyocera	50MHz	3.3V	-40°C ~ 85°C
KC3225A16.0000C3GE00	AVX Corp/Kyocera Corp	KC3225A-C3, Kyocera	16MHz	3.3V	-40°C ~ 85°C
KC3225A16.0000C3GE00	AVX Corp/Kyocera Corp	KC3225A-C3, Kyocera	16MHz	3.3V	-40°C ~ 85°C
KC3225A16.0000C3GE00	AVX Corp/Kyocera Corp	KC3225A-C3, Kyocera	16MHz	3.3V	-40°C ~ 85°C
KC3225A12.0000C30E00	AVX Corp/Kyocera Corp	KC3225A-C3, Kyocera	12MHz	3.3V	-10°C ~ 70°C
KC3225A12.0000C30E00	AVX Corp/Kyocera Corp	KC3225A-C3, Kyocera	12MHz	3.3V	-10°C ~ 70°C
KC3225A12.0000C30E00	AVX Corp/Kyocera Corp	KC3225A-C3, Kyocera	12MHz	3.3V	-10°C ~ 70°C
KC3225A25.0000C30E00	AVX Corp/Kyocera Corp	KC3225A-C3, Kyocera	25MHz	3.3V	-10°C ~ 70°C
KC3225A25.0000C30E00	AVX Corp/Kyocera Corp	KC3225A-C3, Kyocera	25MHz	3.3V	-10°C ~ 70°C
KC3225A25.0000C30E00	AVX Corp/Kyocera Corp	KC3225A-C3, Kyocera	25MHz	3.3V	-10°C ~ 70°C
KC3225A50.0000C30E00	AVX Corp/Kyocera Corp	KC3225A-C3, Kyocera	50MHz	3.3V	-10°C ~ 70°C
KC3225A50.0000C30E00	AVX Corp/Kyocera Corp	KC3225A-C3, Kyocera	50MHz	3.3V	-10°C ~ 70°C
KC3225A50.0000C30E00	AVX Corp/Kyocera Corp	KC3225A-C3, Kyocera	50MHz	3.3V	-10°C ~ 70°C
KC3225K24.0000C1GE00	AVX Corp/Kyocera Corp	KC3225K, Kyocera	24MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K24.0000C1GE00	AVX Corp/Kyocera Corp	KC3225K, Kyocera	24MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K24.0000C1GE00	AVX Corp/Kyocera Corp	KC3225K, Kyocera	24MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225A125.000C30E00	AVX Corp/Kyocera Corp	KC3225A-C3, Kyocera	125MHz	3.3V	-10°C ~ 70°C
KC3225A125.000C30E00	AVX Corp/Kyocera Corp	KC3225A-C3, Kyocera	125MHz	3.3V	-10°C ~ 70°C
KC3225A125.000C30E00	AVX Corp/Kyocera Corp	KC3225A-C3, Kyocera	125MHz	3.3V	-10°C ~ 70°C
KC3225A100.000C30E00	AVX Corp/Kyocera Corp	KC3225A-C3, Kyocera	100MHz	3.3V	-10°C ~ 70°C
KC3225A100.000C30E00	AVX Corp/Kyocera Corp	KC3225A-C3, Kyocera	100MHz	3.3V	-10°C ~ 70°C
KC3225A100.000C30E00	AVX Corp/Kyocera Corp	KC3225A-C3, Kyocera	100MHz	3.3V	-10°C ~ 70°C
KC3225A125.000C20E00	AVX Corp/Kyocera Corp	KC3225A-C2, Kyocera	125MHz	2.5V	-10°C ~ 70°C
KC3225A125.000C20E00	AVX Corp/Kyocera Corp	KC3225A-C2, Kyocera	125MHz	2.5V	-10°C ~ 70°C
KC3225A125.000C20E00	AVX Corp/Kyocera Corp	KC3225A-C2, Kyocera	125MHz	2.5V	-10°C ~ 70°C
KC3225K16.0000C1GE00	AVX Corp/Kyocera Corp	KC3225K, Kyocera	16MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K16.0000C1GE00	AVX Corp/Kyocera Corp	KC3225K, Kyocera	16MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K16.0000C1GE00	AVX Corp/Kyocera Corp	KC3225K, Kyocera	16MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K80.0000C1GE00	AVX Corp/Kyocera Corp	KC3225K, Kyocera	80MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K80.0000C1GE00	AVX Corp/Kyocera Corp	KC3225K, Kyocera	80MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K80.0000C1GE00	AVX Corp/Kyocera Corp	KC3225K, Kyocera	80MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225A40.0000C30E00	AVX Corp/Kyocera Corp	KC3225A-C3, Kyocera	40MHz	3.3V	-10°C ~ 70°C
KC3225A40.0000C30E00	AVX Corp/Kyocera Corp	KC3225A-C3, Kyocera	40MHz	3.3V	-10°C ~ 70°C
KC3225A40.0000C30E00	AVX Corp/Kyocera Corp	KC3225A-C3, Kyocera	40MHz	3.3V	-10°C ~ 70°C
KC3225A24.5760C30E00	AVX Corp/Kyocera Corp	KC3225A-C3, Kyocera	24.576MHz	3.3V	-10°C ~ 70°C
KC3225A24.5760C30E00	AVX Corp/Kyocera Corp	KC3225A-C3, Kyocera	24.576MHz	3.3V	-10°C ~ 70°C
KC3225A24.5760C30E00	AVX Corp/Kyocera Corp	KC3225A-C3, Kyocera	24.576MHz	3.3V	-10°C ~ 70°C
