X1G0042410010|SG3225VAN石英贴片晶振|LVDS差分晶振

X1G0042410010|SG3225VAN石英贴片晶振|LVDS差分晶振X1G0042410010|SG3225VAN石英贴片晶振|LVDS差分晶振

产品简介

X1G0042410010|SG3225VAN石英贴片晶振|LVDS差分晶振,日本EPSON晶振,SG3225VAN石英贴片晶振,LVDS差分晶振,X1G0042410010晶振,小体积石英晶振,耐高温晶振,频率148.5MHz,电压3.3V,频率稳定性50ppm,工作温度-40~85°C,尺寸3225mm,卫星通信地面设备晶振,数字地面电视广播设备晶振,工厂自动化晶振,高速转换器晶振.



产品详情

1X1G0042410010|SG3225VAN石英贴片晶振|LVDS差分晶振,日本EPSON晶振,SG3225VAN石英贴片晶振,X1G0042410010晶振,LVDS差分晶振,小体积石英晶振,耐高温晶振,频率148.5MHz,电压3.3V,频率稳定性50ppm,工作温度-40~85°C,尺寸3225mm,卫星通信地面设备晶振,数字地面电视广播设备晶振,工厂自动化晶振,高速转换器晶振.

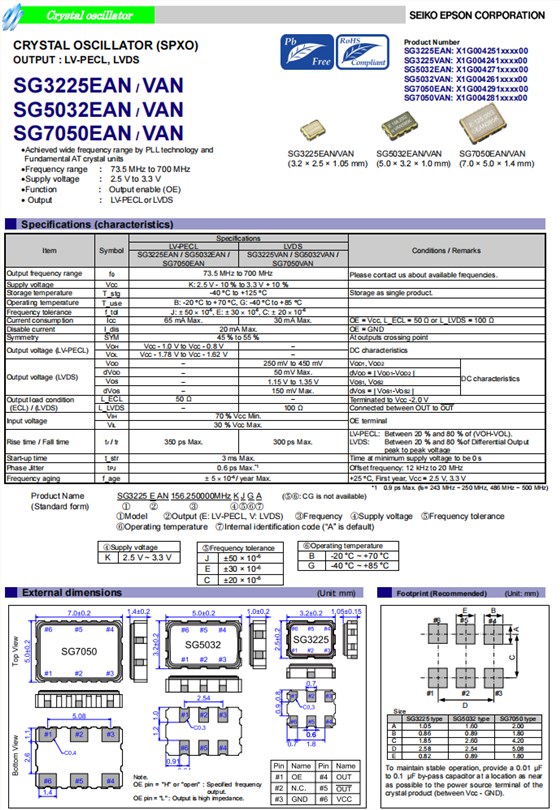

X1G0042410010|SG3225VAN石英贴片晶振|LVDS差分晶振参数图

项目 符号 规格说明 条件
额定频率 f_nom 148.5MHz 请联系我们以便获取其它可用频率的相关信息
电源电压 Vcc 3.3V±0.33V
储存温度 T_stg -55℃~+125℃ 裸存
工作温度 T_use -40℃~ +85℃
频率稳定度 f_tol ±50ppm +25℃,超出标准的规格说明请联系我们以便获取相关信息
电流消耗 f_tem 30mA Max OE=Vcc,L_LVDS = 100 Ω
禁用电流 I_dis 20mA Max OE=GND
对称性（占空比） SYM 45%~55% 在输出交叉点
输出电压（LVDS) VOD
250 mV to 450 mV
DC charactenristics
VOS
1.15 V to 1.35 V
输出负载条件 L _ECL 100Ω
连接到 OUT 与 OUT 之间
输入电压 VIH 70%Vcc Min OE terminal
VIL 30%Vcc Max
上升下降时间 tr/tf 300ps Max
LVDS:Between 20 % and 80 %of Differential Output
peak to peak voltage
起始时间 t str 3ms Max Time at minimum supply voltage to be 0
相位抖动 tpj 0.6psMax.*1
Offset frequency: 12 kHz to 20 MHz
老化 f_age
± 5 × 10-6 / year Max.
+25 °C, First year,VCC=2.5 V, 3.3 V


3

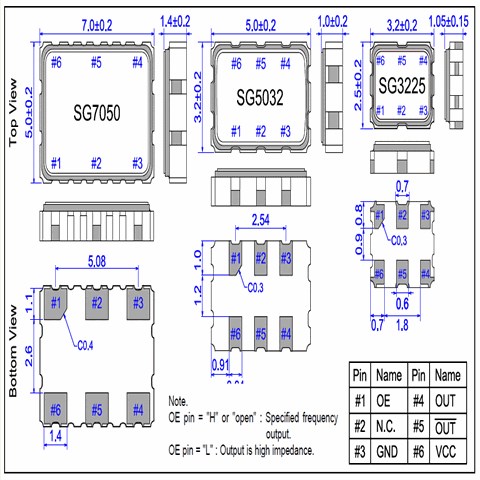

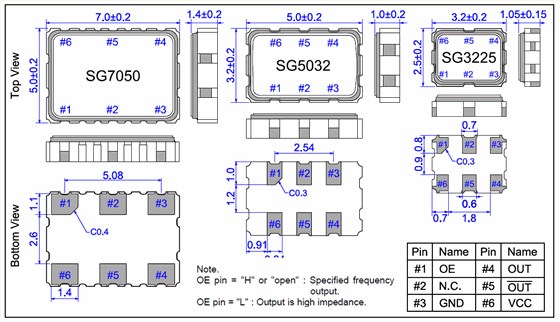

X1G0042410010|SG3225VAN石英贴片晶振|LVDS差分晶振尺寸图

SG3225VAN.SG5032VAN.SG7050VAN

编码 型号 频率 LxWxH/尺寸 输出方式 电源电压 工作温度 频率偏差
X1G0042410001 SG3225VAN 125.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042410002 SG3225VAN 125.006250 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042410004 SG3225VAN 100.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042410005 SG3225VAN 200.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042410006 SG3225VAN 400.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042410007 SG3225VAN 106.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042410008 SG3225VAN 212.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042410009 SG3225VAN 74.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042410010 SG3225VAN 148.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042410011 SG3225VAN 75.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042410012 SG3225VAN 150.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042410014 SG3225VAN 156.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042410015 SG3225VAN 312.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042410016 SG3225VAN 312.515625 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042410017 SG3225VAN 161.132800 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042410020 SG3225VAN 125.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042410021 SG3225VAN 125.006250 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042410023 SG3225VAN 100.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042410024 SG3225VAN 200.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042410025 SG3225VAN 400.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042410026 SG3225VAN 106.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042410027 SG3225VAN 212.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042410028 SG3225VAN 74.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042410029 SG3225VAN 148.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042410030 SG3225VAN 75.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042410031 SG3225VAN 150.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042410033 SG3225VAN 156.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042410034 SG3225VAN 312.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042410035 SG3225VAN 312.515625 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042410036 SG3225VAN 161.132800 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042410039 SG3225VAN 125.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042410040 SG3225VAN 125.006250 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042410042 SG3225VAN 100.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042410043 SG3225VAN 200.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042410044 SG3225VAN 400.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042410045 SG3225VAN 106.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042410046 SG3225VAN 212.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042410047 SG3225VAN 74.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042410048 SG3225VAN 148.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042410049 SG3225VAN 75.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042410050 SG3225VAN 150.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042410052 SG3225VAN 156.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042410053 SG3225VAN 312.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042410054 SG3225VAN 312.515625 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042410055 SG3225VAN 161.132800 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042410058 SG3225VAN 125.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042410059 SG3225VAN 125.006250 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042410061 SG3225VAN 100.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042410062 SG3225VAN 200.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042410063 SG3225VAN 400.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042410064 SG3225VAN 106.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042410065 SG3225VAN 212.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042410066 SG3225VAN 74.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042410067 SG3225VAN 148.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042410068 SG3225VAN 75.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042410069 SG3225VAN 150.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042410071 SG3225VAN 156.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042410072 SG3225VAN 312.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042410073 SG3225VAN 312.515625 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042410074 SG3225VAN 161.132800 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042410079 SG3225VAN 50.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042410080 SG3225VAN 68.750000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042410083 SG3225VAN 50.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042410084 SG3225VAN 68.750000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042410087 SG3225VAN 50.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042410088 SG3225VAN 68.750000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042410092 SG3225VAN 68.750000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042410100 SG3225VAN 133.333333 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042410101 SG3225VAN 148.350000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042410102 SG3225VAN 114.285000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042410103 SG3225VAN 250.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042410104 SG3225VAN 350.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042410105 SG3225VAN 80.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042410106 SG3225VAN 98.304000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042410108 SG3225VAN 297.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042510001 SG3225EAN 100.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042510002 SG3225EAN 156.250000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042510003 SG3225EAN 125.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042510004 SG3225EAN 125.006250 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042510006 SG3225EAN 200.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042510007 SG3225EAN 400.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042510008 SG3225EAN 106.250000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042510009 SG3225EAN 212.500000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042510010 SG3225EAN 74.250000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042510011 SG3225EAN 148.500000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042510012 SG3225EAN 75.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042510013 SG3225EAN 150.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042510014 SG3225EAN 155.520000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042510015 SG3225EAN 156.250000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042510016 SG3225EAN 312.500000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042510017 SG3225EAN 312.515625 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042510018 SG3225EAN 161.132800 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042510021 SG3225EAN 125.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510022 SG3225EAN 125.006250 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510024 SG3225EAN 100.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510025 SG3225EAN 200.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510026 SG3225EAN 400.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510027 SG3225EAN 106.250000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510028 SG3225EAN 212.500000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510029 SG3225EAN 74.250000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510030 SG3225EAN 148.500000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510031 SG3225EAN 75.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510032 SG3225EAN 150.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510033 SG3225EAN 155.520000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510034 SG3225EAN 156.250000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510035 SG3225EAN 312.500000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510036 SG3225EAN 312.515625 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510037 SG3225EAN 161.132800 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510039 SG3225EAN 700.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510040 SG3225EAN 125.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042510041 SG3225EAN 125.006250 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042510043 SG3225EAN 100.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042510044 SG3225EAN 200.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042510045 SG3225EAN 400.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042510046 SG3225EAN 106.250000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042510047 SG3225EAN 212.500000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042510048 SG3225EAN 74.250000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042510049 SG3225EAN 148.500000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042510050 SG3225EAN 75.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042510051 SG3225EAN 150.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042510053 SG3225EAN 156.250000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042510054 SG3225EAN 312.500000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042510055 SG3225EAN 312.515625 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042510056 SG3225EAN 161.132800 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042510059 SG3225EAN 125.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042510060 SG3225EAN 125.006250 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042510062 SG3225EAN 100.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042510063 SG3225EAN 200.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042510064 SG3225EAN 400.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042510065 SG3225EAN 106.250000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042510066 SG3225EAN 212.500000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042510067 SG3225EAN 74.250000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042510068 SG3225EAN 148.500000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042510069 SG3225EAN 75.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042510070 SG3225EAN 150.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042510072 SG3225EAN 312.500000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042510073 SG3225EAN 312.515625 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042510074 SG3225EAN 161.132800 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042510079 SG3225EAN 50.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042510080 SG3225EAN 68.750000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042510083 SG3225EAN 50.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510084 SG3225EAN 68.750000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510087 SG3225EAN 50.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042510088 SG3225EAN 68.750000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042510091 SG3225EAN 50.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042510092 SG3225EAN 68.750000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042510100 SG3225EAN 114.285000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510103 SG3225EAN 644.531200 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042510104 SG3225EAN 250.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510105 SG3225EAN 350.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510106 SG3225EAN 80.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510107 SG3225EAN 98.304000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510111 SG3225EAN 133.330000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510112 SG3225EAN 144.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510113 SG3225EAN 174.703100 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510114 SG3225EAN 320.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510115 SG3225EAN 500.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510121 SG3225EAN 161.132812 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
SG3225EAN



上一页 余下全文

1/5

我要下单

  • 姓名
  • 手机
  • 留言

关于“日本爱普生晶振,进口有源晶振,EG-4104石英晶体振荡器,X1M0001410007晶振,LV-PECL差分晶振,频率312.5MHz,电压3.3V,频率稳定性50ppm,工作温度-40~85°C”的相关产品

BMC-12石英晶体,48.000MHz,6G模块晶振,1210mm晶振BMC-12石英晶体,48.000MHz,6G模块晶振,1210mm晶振LiHom晶振,BMC-20石英晶体,48MHz,6G模块晶振LiHom晶振,BMC-20石英晶体,48MHz,6G模块晶振

BMC-50晶振,5032石英贴片晶振,48MHz,6G常用晶振BMC-50晶振,5032石英贴片晶振,48MHz,6G常用晶振韩国力宏晶振|BMC-60晶振|40.000MHz|6G相关设备晶振韩国力宏晶振|BMC-60晶振|40.000MHz|6G相关设备晶振

1SQ石英晶体,32.768KHz晶振,1610mm晶振,6G常用晶振1SQ石英晶体,32.768KHz晶振,1610mm晶振,6G常用晶振瑞斯克晶振,C3292-50.000石英晶体,7050晶振,6G相关设备晶振瑞斯克晶振,C3292-50.000石英晶体,7050晶振,6G相关设备晶振

Crystek晶振,CCHD-950-50-80.000,HCMOS输出晶振,6G模块晶振Crystek晶振,CCHD-950-50-80.000,HCMOS输出晶振,6G模块晶振瑞萨差分晶振,2520mm,XFL2360312.500000I,6G移动应用晶振瑞萨差分晶振,2520mm,XFL2360312.500000I,6G移动应用晶振

Skyworks晶体,544BCAB000126CCG,3225贴片晶振,6G基站晶振Skyworks晶体,544BCAB000126CCG,3225贴片晶振,6G基站晶振瑞萨进口晶振,XTP332087.000000I晶振,太空空间站晶振瑞萨进口晶振,XTP332087.000000I晶振,太空空间站晶振

热点推荐

全球定位系统专用晶振TXEADLSANF-12.288000TXC微型的无源谐振器7A-27.000MAAJ-T是便携式PC最佳之选存储区域网络专用晶振CPPFXC7T-A7BR-28.63636TS爱普生主流的OSC振荡器SG2520EHN,X1G0059210001特别适合用于导航定位FOXSDLF/0368R-20/TR无线蓝牙模块专用石英晶体
