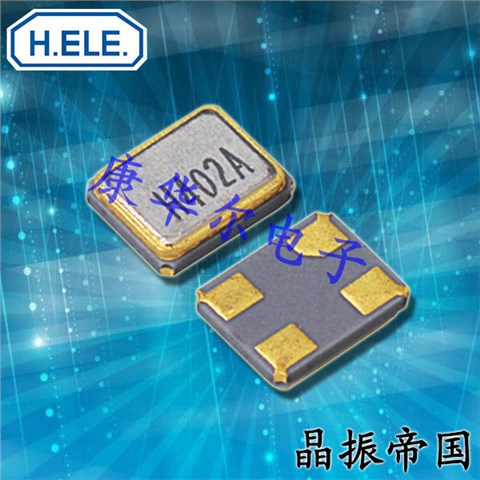

X3S013000BA1HA-U晶振,数码摄像机晶振,加高环保晶体

X3S013000BA1HA-U晶振,数码摄像机晶振,加高环保晶体，台湾HELE晶振公司，小尺寸晶振，耐高温晶振，耐冲击晶振，贴片晶振，3225晶振，石英晶振，超小型晶振，低损耗晶振，高品质晶振，高精度晶振，程控交换机晶振，无人机晶振，加高晶振。特点:超小型贴片型晶体器件。精度高，可靠性好，耐热性好。适用于设计空间有限的智能手机应用程序、初始化无线模块设备、RFID应用程序和其他基于消费者的产品.

X3S013000BA1HA-U晶振,数码摄像机晶振,加高环保晶体

频率范围	12~16MHz	16~32MHz	32~54MHz
工作模式	Fundamental
频率容差	±10ppm
负载电容	7pF Min.
驱动电平	10μW (300μW Max.)
等效串联电子	80Ω Max.	50Ω Max.	40Ω Max.
储存温度范围	-55 ~ +125 C

20180109173140_2357

X3S013000BA1HA-U晶振,数码摄像机晶振,加高环保晶体

原厂编码	生产商	型号	频率	频率容差	负载电容	工作温度
X3S027000BA1H-U	加高晶振	HSX321S	27 MHz	±10ppm	10pF	-30°C ~ 85°C
X3S024000B91H-HS	加高晶振	HSX321S	24 MHz	±10ppm	9pF	-
X3S027120BA1H-X	加高晶振	HSX321S	27.12 MHz	±10ppm	10pF	-40°C ~ 105°C
X3S032000BC1HA-CHPZ	加高晶振	HSX321S	32 MHz	±10ppm	12pF	-30°C ~ 85°C
X3S016000DI1H-HW	加高晶振	HSX321S	16 MHz	±20ppm	18pF	-40°C ~ 105°C
X3S012000FI1H-HV	加高晶振	HSX321S	12 MHz	±30ppm	18pF	-40°C ~ 125°C
X3S025000D81H-HU	加高晶振	HSX321S	25 MHz	±20ppm	8pF	-40°C ~ 105°C
X3S026000B91H-NZ	加高晶振	HSX321S	26 MHz	±10ppm	9pF	-30°C ~ 85°C
X3S008000FA1H-X	加高晶振	HSX321S	8 MHz	±50ppm	10pF	-40°C ~ 85°C
X3S008000BK1H-U	加高晶振	HSX321S	8 MHz	±10ppm	20pF	-20°C ~ 70°C
X3S010000BK1H-X	加高晶振	HSX321S	10 MHz	±30ppm	20pF	-20°C ~ 70°C
X3S011059BA1H-V	加高晶振	HSX321S	11.0592 MHz	±20ppm	10pF	-20°C ~ 75°C
X3S011059DK1H	加高晶振	HSX321S	11.0592 MHz	±30ppm	20pF	-10°C ~ 60°C
X3S011059FK1H-V	加高晶振	HSX321S	11.0592 MHz	±30ppm	20pF	-40°C ~ 85°C
X3S012800DF1H-V	加高晶振	HSX321S	12.8 MHz	±20ppm	15pF	-20°C ~ 75°C
X3S012000BA1HA-X	加高晶振	HSX321S	12 MHz	±50ppm	10pF	-40°C ~ 85°C
X3S012000BA1H-HU	加高晶振	HSX321S	12 MHz	±20ppm	10pF	-40°C ~ 85°C
X3S012000BC1H-HV	加高晶振	HSX321S	12 MHz	±20ppm	12pF	-20°C ~ 75°C
X3S012000DC1H-V	加高晶振	HSX321S	12 MHz	±30ppm	12pF	-40°C ~ 85°C
X3Z012000DC1H-V	加高晶振	HSX321S	12 MHz	±30ppm	12pF	-40°C ~ 85°C
X3S012000DG1H-H	加高晶振	HSX321S	12 MHz	±30ppm	16pF	-10°C ~ 60°C
X3S012000BI1H-R	加高晶振	HSX321S	12 MHz	±10ppm	18pF	-20°C ~ 75°C
X3S012000BK1H	加高晶振	HSX321S	12 MHz	±20ppm	20pF	-10°C ~ 60°C
X3S012000DK1H	加高晶振	HSX321S	12 MHz	±30ppm	20pF	-10°C ~ 60°C
X3S012000DK1HA-X	加高晶振	HSX321S	12 MHz	±50ppm	20pF	-40°C ~ 85°C
X3S012000FK1H-HV	加高晶振	HSX321S	12 MHz	±30ppm	20pF	-30°C ~ 85°C
X3S013560DA1H-HU	加高晶振	HSX321S	13.56 MHz	±20ppm	10pF	-30°C ~ 85°C
X3S013560BK1H-V	加高晶振	HSX321S	13.56 MHz	±30ppm	20pF	-40°C ~ 85°C
X3S013000BA1HA-U	加高晶振	HSX321S	13 MHz	±10ppm	10pF	-20°C ~ 70°C
X3S013000BA1H-V	加高晶振	HSX321S	13 MHz	±10ppm	10pF	-10°C ~ 60°C
X3S01431AFK1H	加高晶振	HSX321S	14.31818 MHz	±30ppm	20pF	-10°C ~ 60°C
X3S016000B81H-DHU	加高晶振	HSX321S	16 MHz	±20ppm	8pF	-30°C ~ 90°C
X3S016000B91H-X	加高晶振	HSX321S	16 MHz	±20ppm	9pF	-30°C ~ 85°C
X3S016000BC1H-V	加高晶振	HSX321S	16 MHz	±10ppm	12pF	-10°C ~ 60°C
X3S016000DC1H-U	加高晶振	HSX321S	16 MHz	±20ppm	12pF	-40°C ~ 85°C
X3S016000DC1H‐V	加高晶振	HSX321S	16 MHz	±30ppm	12pF	-40°C ~ 85°C
X3S019200BZ1H-CHZ	加高晶振	HSX321S	19.2 MHz	±12ppm	7pF	-30°C ~ 85°C
X3S020000BA1H-V	加高晶振	HSX321S	20 MHz	±10ppm	10pF	-10°C ~ 60°C
X3S020000BF1HA‐V	加高晶振	HSX321S	20 MHz	±30ppm	15pF	-40°C ~ 85°C
X3S020000BI1H-HZ	加高晶振	HSX321S	20 MHz	±10ppm	18pF	-30°C ~ 85°C
X3S024000D81H-X	加高晶振	HSX321S	24 MHz	±30ppm	8pF	-20°C ~ 70°C
X3S024000B91HA-R	加高晶振	HSX321S	24 MHz	±10ppm	9pF	-20°C ~ 75°C
X3S024000B91H-DEPV	加高晶振	HSX321S	24 MHz	±10ppm	9pF	-10°C ~ 60°C
X3S024000B91H-V	加高晶振	HSX321S	24 MHz	±10ppm	9pF	-10°C ~ 60°C
X3S024000BA1H-V	加高晶振	HSX321S	24 MHz	±10ppm	10pF	-10°C ~ 60°C
X3S024000BC1HA-V	加高晶振	HSX321S	24 MHz	±30ppm	12pF	-40°C ~ 85°C
X3S024000DC1H	加高晶振	HSX321S	24 MHz	±30ppm	12pF	-10°C ~ 60°C
X3S024000DC1H-X	加高晶振	HSX321S	24 MHz	±20ppm	12pF	-10°C ~ 60°C
X3S024000BG1HA-Z	加高晶振	HSX321S	24 MHz	±10ppm	16pF	-30°C ~ 85°C
X3S024000BK1H	加高晶振	HSX321S	24 MHz	±30ppm	20pF	-10°C ~ 60°C
X3S024000BK1H-V	加高晶振	HSX321S	24 MHz	±20ppm	20pF	-20°C ~ 75°C
X3S024000BK1H-Z	加高晶振	HSX321S	24 MHz	±10ppm	20pF	-30°C ~ 85°C
X3S025000BA1H-U	加高晶振	HSX321S	25 MHz	±10ppm	10pF	-20°C ~ 70°C
X3S025000BA1H-R	加高晶振	HSX321S	25 MHz	±10ppm	12pF	-20°C ~ 75°C
X3S025000DC1H-U	加高晶振	HSX321S	25 MHz	±20ppm	12pF	-20°C ~ 70°C
X3S025000FC1H-HV	加高晶振	HSX321S	25 MHz	±30ppm	12pF	-40°C ~ 85°C
X3S025000BK1H	加高晶振	HSX321S	25 MHz	±20ppm	20pF	-30°C ~ 85°C
X3S026000B71HZ-HPR	加高晶振	HSX321S	26 MHz	±10ppm	7.2pF	-20°C ~ 75°C
X3S026000B71HA-R	加高晶振	HSX321S	26 MHz	±10ppm	7.5pF	-20°C ~ 75°C
X3S026000B71HZ-NCHPR	加高晶振	HSX321S	26 MHz	±10ppm	7.9pF	-20°C ~ 75°C
X3S026000B81H-NCHZ	加高晶振	HSX321S	26 MHz	±11ppm	8pF	-30°C ~ 85°C
X3S026000B91H-NZ	加高晶振	HSX321S	26 MHz	±10ppm	9pF	-30°C ~ 85°C
X3S026000B71HZ-NHPZ	加高晶振	HSX321S	26 MHz	±10ppm	10.9pF	-20°C ~ 85°C
X3S026000BC1H-NR	加高晶振	HSX321S	26 MHz	±10ppm	12pF	-20°C ~ 75°C
X3S026000BZ1HZ-HU	加高晶振	HSX321S	26 MHz	±10ppm	12pF	-20°C ~ 70°C
X3S026000BG1S-HU	加高晶振	HSX321S	26 MHz	±10ppm	16pF	-20°C ~ 70°C
X3S027120BA1H-X	加高晶振	HSX321S	27.12 MHz	±20ppm	10pF	-10°C ~ 60°C
X3S027120DC1H-V	加高晶振	HSX321S	27.12 MHz	±30ppm	12pF	-30°C ~ 85°C
X3S027000BA1H-U	加高晶振	HSX321S	27 MHz	±10ppm	10pF	-20°C ~ 70°C
X3S027000BA1H-X	加高晶振	HSX321S	27 MHz	±50ppm	10pF	-30°C ~ 90°C
X3S027000FC1H-V	加高晶振	HSX321S	27 MHz	±30ppm	12pF	-30°C ~ 85°C
X3S027000BK1H	加高晶振	HSX321S	27 MHz	±30ppm	20pF	-10°C ~ 60°C
X3S027000BK1HA-Z	加高晶振	HSX321S	27 MHz	±10ppm	20pF	-30°C ~ 85°C
X3S027000BK1H-V	加高晶振	HSX321S	27 MHz	±30ppm	20pF	-40°C ~ 85°C
X3S027000DK1H-V	加高晶振	HSX321S	27 MHz	±30ppm	20pF	-40°C ~ 85°C
X3S028375DK1H	加高晶振	HSX321S	28.375 MHz	±30ppm	20pF	-10°C ~ 60°C
X3S02863ADA1H-W	加高晶振	HSX321S	28.6363 MHz	±20ppm	10pF	-20°C ~ 70°C
X3S030000BA1H-S	加高晶振	HSX321S	30 MHz	±15ppm	10pF	-40°C ~ 85°C
