卫星通讯晶振,Renesas高品质晶体,XLH526050.000000X六脚晶振

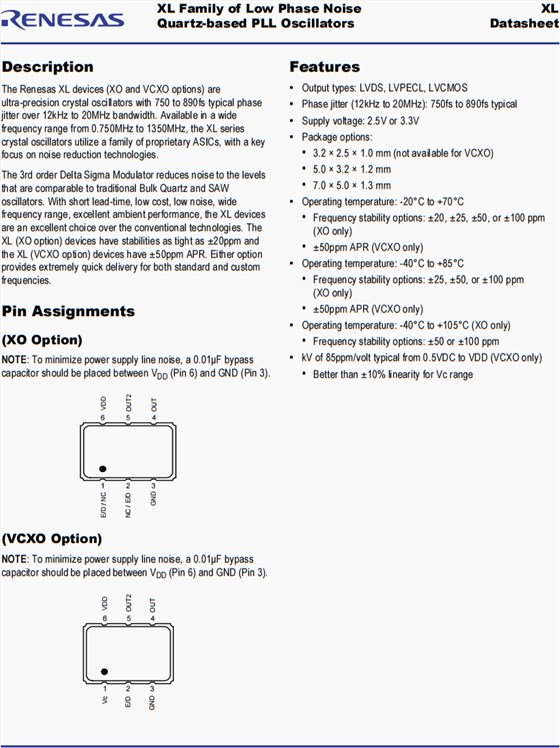

卫星通讯晶振,Renesas高品质晶体,XLH526050.000000X六脚晶振，瑞萨XL器件(XO和VCXO选项)是超精密晶体振荡器，典型相位抖动为750至890fs，带宽为12kHz至20MHz。XL系列晶体振荡器的频率范围从0.750MHz到1350MHz，瑞萨晶振采用一系列专有的asic，重点关注降噪技术。三阶δ σ调制器将噪声降低到与传统的大块石英和SAW振荡器相当的水平。XL设备交货时间短，成本低，噪音低，频率范围宽，环境性能优异，是传统技术的绝佳选择。XL (XO选项)设备的稳定性为±20ppm, XL (VCXO选项)设备的apr为±50ppm。瑞萨晶振公司，进口晶振，有源晶振，贴片晶振，石英晶振，SMD晶振，低损耗晶振，低插损晶振，OSC晶振，高品质晶振，高性能晶振，无人机晶振，航空航天晶振.

标志	参数	Test Condition	Minimum	Typical	Maximum	Units
F	输出频率范围	LVDS.	0.75	-	1350	MHz
		LVPECL.	0.75	-	1350
		LVCMOS.	0.75	-	250
	频率容差	Temperature = -20°C to +70°C.	-20 -25 -50 -100	-	+20 +25 +50 +100	ppm
		Temperature = -40°C to +85°C.	-25 -50 -100	-	+25 +50 +100	ppm
		Temperature = -40°C to +105°C.	-50 -100	-	+50 +100	ppm
	输出负载	LVDS.	-	100	-	Ω
		LVPECL.	-	50	-	Ω
		LVCMOS.	-	15	-	pF
TST	启动时间	Output valid time after VDDmeets minimum specified level.	-	-	10	ms
tR	输出上升时间	LVDS.	-	-	400	ps
		LVPECL.	-	-	400	ps
		LVCMOS.	-	-	3	ns
tF	输出下降时间	LVDS.	-	-	400	ps
		LVPECL.	-	-	400	ps
		LVCMOS.	-	-	3	ns
ODC	输出时钟占空比	LVDS.	47	-	53	%
		LVPECL.	47	-	53
		LVCMOS.	47	-	53
TOE	输出启动/禁用时间	-	-	-	100	ns
JPER	周期抖动，RMS	LVDS.	-	3	-	ps
		LVPECL.	-	5.8	-
		LVCMOS.	-	5	-
RJ	随机抖动	LVDS.	-	1.3	-	ps
		LVPECL.	-	1.29	-
		LVCMOS.	-	0.6	-

卫星通讯晶振,Renesas高品质晶体,XLH526050.000000X六脚晶振

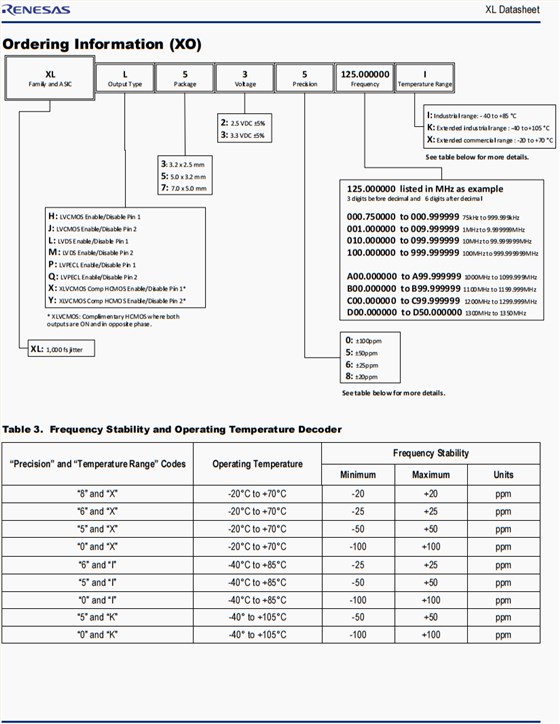

Renesas原厂编码	生产商品牌	型号	频率	输出	电源电压	频率稳定度	工作温度
XLL525212.500000I	Renesas晶振	XL	212.5 MHz	LVDS	2.5V	±50ppm	-40°C ~ 85°C
XLL530108.000000I	Renesas晶振	XL	108 MHz	LVDS	3.3V	±100ppm	-40°C ~ 85°C
XLH526020.000000X	Renesas晶振	XL	20 MHz	HCMOS	2.5V	±25ppm	-20°C ~ 70°C
XLH526040.000000I	Renesas晶振	XL	40 MHz	HCMOS	2.5V	±25ppm	-40°C ~ 85°C
XLH526012.000000I	Renesas晶振	XL	12 MHz	HCMOS	2.5V	±25ppm	-40°C ~ 85°C
XLH536016.000JS4I	Renesas晶振	XL	16 MHz	LVCMOS	3.3V	±25ppm	-40°C ~ 85°C
XLH526030.000000X	Renesas晶振	XL	30 MHz	HCMOS	2.5V	±25ppm	-20°C ~ 70°C
XLH526027.000000X	Renesas晶振	XL	27 MHz	HCMOS	2.5V	±25ppm	-20°C ~ 70°C
XLH526026.000000X	Renesas晶振	XL	26 MHz	HCMOS	2.5V	±25ppm	-20°C ~ 70°C
XLH520012.000000X	Renesas晶振	XL	12 MHz	HCMOS	2.5V	±100ppm	-20°C ~ 70°C
XLH520026.000000X	Renesas晶振	XL	26 MHz	HCMOS	2.5V	±100ppm	-20°C ~ 70°C
XLH520030.000000X	Renesas晶振	XL	30 MHz	HCMOS	2.5V	±100ppm	-20°C ~ 70°C
XLH520025.000000X	Renesas晶振	XL	25 MHz	HCMOS	2.5V	±100ppm	-20°C ~ 70°C
XLH520050.000000X	Renesas晶振	XL	50 MHz	HCMOS	2.5V	±100ppm	-20°C ~ 70°C
XLH526024.000000X	Renesas晶振	XL	24 MHz	HCMOS	2.5V	±25ppm	-20°C ~ 70°C
XLH520016.000000X	Renesas晶振	XL	16 MHz	HCMOS	2.5V	±100ppm	-20°C ~ 70°C
XLH525024.000000X	Renesas晶振	XL	24 MHz	HCMOS	2.5V	±50ppm	-20°C ~ 70°C
XLH525030.000000X	Renesas晶振	XL	30 MHz	HCMOS	2.5V	±50ppm	-20°C ~ 70°C
XLH520048.000000X	Renesas晶振	XL	48 MHz	HCMOS	2.5V	±100ppm	-20°C ~ 70°C
XLH520040.000000X	Renesas晶振	XL	40 MHz	HCMOS	2.5V	±100ppm	-20°C ~ 70°C
XLH525012.000000X	Renesas晶振	XL	12 MHz	HCMOS	2.5V	±50ppm	-20°C ~ 70°C
XLH526050.000000X	Renesas晶振	XL	50 MHz	HCMOS	2.5V	±25ppm	-20°C ~ 70°C
XLH525010.000000X	Renesas晶振	XL	10 MHz	HCMOS	2.5V	±50ppm	-20°C ~ 70°C
XLH525001.000000X	Renesas晶振	XL	1 MHz	HCMOS	2.5V	±50ppm	-20°C ~ 70°C
XLH526016.000000X	Renesas晶振	XL	16 MHz	HCMOS	2.5V	±25ppm	-20°C ~ 70°C
XLH526040.000000X	Renesas晶振	XL	40 MHz	HCMOS	2.5V	±25ppm	-20°C ~ 70°C
XLH526033.333000X	Renesas晶振	XL	33.333 MHz	HCMOS	2.5V	±25ppm	-20°C ~ 70°C
XLH520027.000000X	Renesas晶振	XL	27 MHz	HCMOS	2.5V	±100ppm	-20°C ~ 70°C
XLH520024.000000X	Renesas晶振	XL	24 MHz	HCMOS	2.5V	±100ppm	-20°C ~ 70°C
XLH525020.000000X	Renesas晶振	XL	20 MHz	HCMOS	2.5V	±50ppm	-20°C ~ 70°C
XLH525040.000000X	Renesas晶振	XL	40 MHz	HCMOS	2.5V	±50ppm	-20°C ~ 70°C
XLH520020.000000X	Renesas晶振	XL	20 MHz	HCMOS	2.5V	±100ppm	-20°C ~ 70°C
XLH525027.000000X	Renesas晶振	XL	27 MHz	HCMOS	2.5V	±50ppm	-20°C ~ 70°C
XLH520033.333000X	Renesas晶振	XL	33.333 MHz	HCMOS	2.5V	±100ppm	-20°C ~ 70°C
XLH526012.000000X	Renesas晶振	XL	12 MHz	HCMOS	2.5V	±25ppm	-20°C ~ 70°C
XLH525033.333000X	Renesas晶振	XL	33.333 MHz	HCMOS	2.5V	±50ppm	-20°C ~ 70°C
XLH525016.000000X	Renesas晶振	XL	16 MHz	HCMOS	2.5V	±50ppm	-20°C ~ 70°C
XLH526010.000000X	Renesas晶振	XL	10 MHz	HCMOS	2.5V	±25ppm	-20°C ~ 70°C
XLH526001.000000X	Renesas晶振	XL	1 MHz	HCMOS	2.5V	±25ppm	-20°C ~ 70°C
XLH525026.000000X	Renesas晶振	XL	26 MHz	HCMOS	2.5V	±50ppm	-20°C ~ 70°C
XLH525048.000000X	Renesas晶振	XL	48 MHz	HCMOS	2.5V	±50ppm	-20°C ~ 70°C
XLH530030.000000X	Renesas晶振	XL	30 MHz	HCMOS	3.3V	±100ppm	-20°C ~ 70°C
XLH520001.000000X	Renesas晶振	XL	1 MHz	HCMOS	2.5V	±100ppm	-20°C ~ 70°C
XLH530033.333000X	Renesas晶振	XL	33.333 MHz	HCMOS	3.3V	±100ppm	-20°C ~ 70°C
XLH536148.511000X	Renesas晶振	XL	148.511 MHz	HCMOS	3.3V	±25ppm	-20°C ~ 70°C
XLH536121.500000I	Renesas晶振	XL	121.5 MHz	HCMOS	3.3V	±25ppm	-40°C ~ 85°C
XLH536110.000000I	Renesas晶振	XL	110 MHz	HCMOS	3.3V	±25ppm	-40°C ~ 85°C
XLH528040.000000X	Renesas晶振	XL	40 MHz	HCMOS	2.5V	±20ppm	-20°C ~ 70°C
XLH526080.000000I	Renesas晶振	XL	80 MHz	HCMOS	2.5V	±25ppm	-40°C ~ 85°C
XLH535003.686000I	Renesas晶振	XL	3.686 MHz	LVCMOS	3.3V	±50ppm	-40°C ~ 85°C
XLH535013.330000I	Renesas晶振	XL	13.33 MHz	LVCMOS	3.3V	±50ppm	-40°C ~ 85°C
XLH528031.250000X	Renesas晶振	XL	31.25 MHz	LVCMOS	2.5V	±20ppm	-20°C ~ 70°C
XLH526031.250000I	Renesas晶振	XL	31.25 MHz	LVCMOS	2.5V	±25ppm	-40°C ~ 85°C
XLH53V026.000000I	Renesas晶振	XL	26 MHz	LVCMOS	3.3V	-	-40°C ~ 85°C
XLH535133.333333I	Renesas晶振	XL	133.333333 MHz	LVCMOS	3.3V	±50ppm	-40°C ~ 85°C
XLH535133.330000I	Renesas晶振	XL	133.33 MHz	LVCMOS	3.3V	±50ppm	-40°C ~ 85°C
XLH535036.000000K	Renesas晶振	XL	36 MHz	LVCMOS	3.3V	±50ppm	-40°C ~ 105°C
XLH530133.330000X	Renesas晶振	XL	133.33 MHz	HCMOS	3.3V	±100ppm	-20°C ~ 70°C
XLH536072.000000X	Renesas晶振	XL	72 MHz	HCMOS	3.3V	±25ppm	-20°C ~ 70°C
XLH535004.915200I	Renesas晶振	XL	4.9152 MHz	HCMOS	3.3V	±50ppm	-40°C ~ 85°C
XLH535120.000000I	Renesas晶振	XL	120 MHz	HCMOS	3.3V	±50ppm	-40°C ~ 85°C
XLH525074.250000I	Renesas晶振	XL	74.25 MHz	HCMOS	2.5V	±50ppm	-40°C ~ 85°C
XLH536026.600000X	Renesas晶振	XL	26.6 MHz	HCMOS	3.3V	±25ppm	-20°C ~ 70°C
XLH535101.000000I	Renesas晶振	XL	101 MHz	HCMOS	3.3V	±50ppm	-40°C ~ 85°C
XLH535022.579200I	Renesas晶振	XL	22.5792 MHz	HCMOS	3.3V	±50ppm	-40°C ~ 85°C
XLH536005.560000X	Renesas晶振	XL	5.56 MHz	HCMOS	3.3V	±25ppm	-20°C ~ 70°C
XLH535025.175000I	Renesas晶振	XL	25.175 MHz	HCMOS	3.3V	±50ppm	-40°C ~ 85°C
XLH530003.570000I	Renesas晶振	XL	3.57 MHz	HCMOS	3.3V	±100ppm	-40°C ~ 85°C
