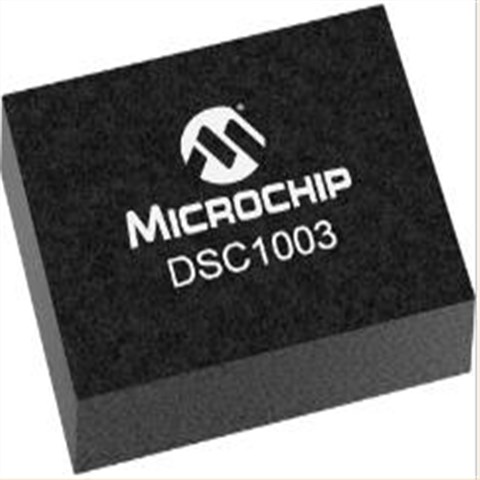

DSC1003CI3-100.0000|3225mm有源晶振|6G相关设备晶振,Microchip晶振,欧美进口晶振,型号DSC1003,编码DSC1003CI3-100.0000,石英晶体振荡器,低功耗晶振,低抖动晶振,3225mm贴片石英晶振,频率100MHz,电压3.3V,频率稳定性20ppm,工作温度-40~85°C,6G相关设备晶振,消费电子产品晶振,移动应用晶振,便携式电子设备晶振,工业应用晶振.

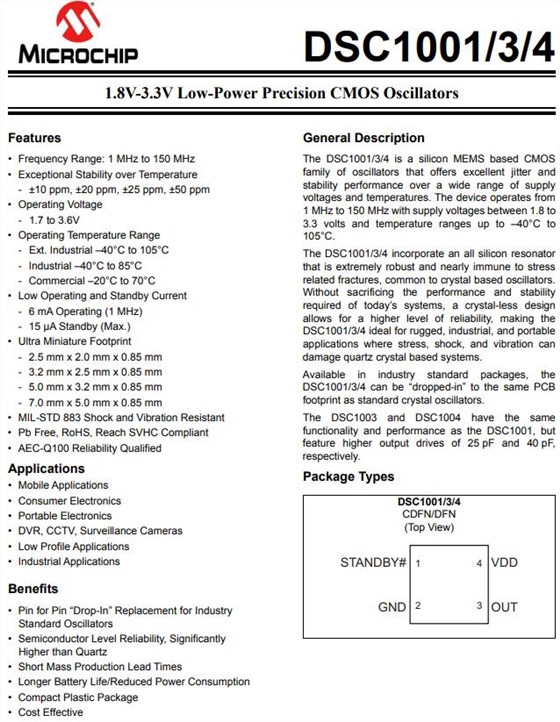

DSC1003CI3-100.0000|3225mm有源晶振|6G相关设备晶振特点：
•频率范围:1mhz ~ 150mhz
•特殊的温度稳定性-±10ppm，±20ppm，±25ppm，±50ppm
•工作电压- 1.7 ~ 3.6V
•工作温度范围
-Ext.工业- 40°C至105°C
-工业用- 40℃~ 85℃
-商用—20℃~ 70℃
•低工作和待机电流
- 6ma工作(1mhz)
- 15µA待机(最大)
•超微型足迹
- 2.5 mm × 2.0 mm × 0.85 mm
- 3.2 mm × 2.5 mm × 0.85 mm
- 5.0 mm × 3.2 mm × 0.85 mm
- 7.0 mm × 5.0 mm × 0.85 mm
•MIL-STD 883抗冲击和振动
•无铅，符合RoHS、Reach SVHC标准
•通过AEC-Q100可靠性认证
DSC1003CI3-100.0000|3225mm有源晶振|6G相关设备晶振参数图
| 项目 | 规格说明 | 条件 |
| 额定频率 | 100MHz | 请联系我们以便获取其它可用频率的相关信息 |
| 电源电压 | 3.3V |
|
| 储存温度 | -55℃~+150℃ | 裸存 |
| 工作温度 | -40℃~ +85℃ |
|
| 频率稳定度 | ±20ppm | 包括由初始公差、温度和电源电压引起的频率变化 |
| 老化 |
±5ppm |
1 year @ +25°C |
| 电流 | 15µAMax | T = +25°C |
| 负载 | 15pf |
|
| 空载电流 | 16.6mA |
150 MHz |
| 输出逻辑电平低（Vol） | 0.1x VDD Max |
–6mA, DSC1003, CL = 25 pF |
| 输出逻辑电平高（Voh） | 0.9x VDD Max |
–6 mA, DSC1003, CL = 25 pF |
|
输出上升下降时间 |
2ns Max |
DSC1003, CL = 25 pF |
| 起始时间 | 10ms Max |
|
| 抖动最大Cycle-to-Cycle | 50psTyp | f = 100 MHz |
|
周期抖动 |
10ps |
100MHz,RMS |

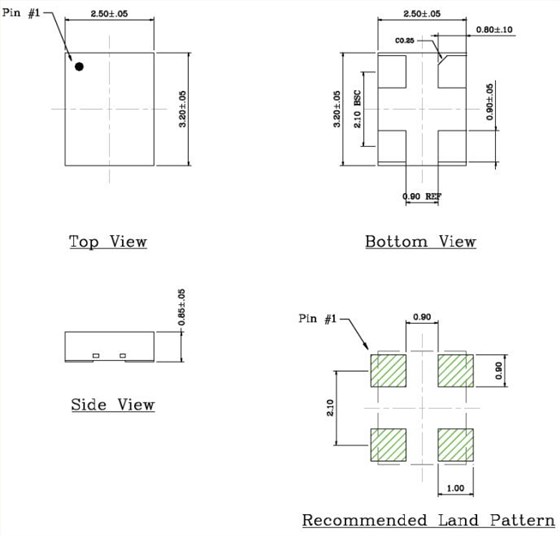

DSC1003CI3-100.0000|3225mm有源晶振|6G相关设备晶振尺寸图
