3225有源晶振X1G004241006200罗拉无线模块高性能晶振

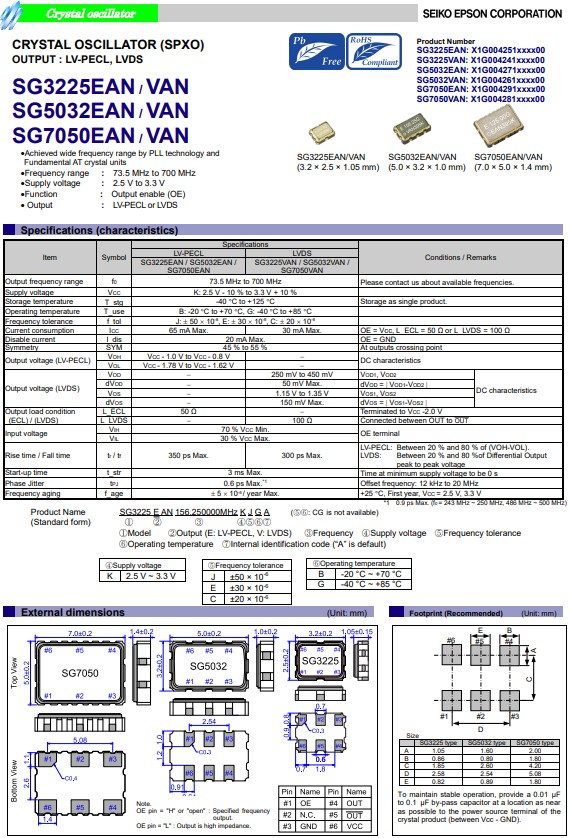

爱普生晶振SG3225VAN，是一款LVDS输出差分晶体振荡器，小体积尺寸3.2x2.5mm有源晶振，六脚贴片晶振，电源电压2.5V,3.3V，宽频率范围73.5MHz至700MHz。其中200MHz，±20ppm晶振是爱普生的一款额定频率200MHz的石英晶体振荡器，3225封装常规有源晶振，原厂编码X1G004241006200，在美国等北美市场销售的同一产品编码为SG3225VAN 200.0000M KCBA3，爱普生常规有源晶振中的热销型号之一。具有超小型，轻薄型，低抖动，低功耗，低电源电压，低相位噪声，高性能，高稳定性等特点。该款晶体振荡器，可以在-20℃至+70℃的温度内稳定工作,频率公差为±20ppm，广泛应用于5G移动通讯设备，机顶盒，光端机，安防设备，罗拉无线模块，路由器/交换机，仪器仪表，光纤通信，10G以太网及各种频率控制设备上。
3225有源晶振X1G004241006200罗拉无线模块高性能晶振
| 产品编码 |
   型号
|
   频率
|
   尺寸
|
   输出波
|
   电源电压
|
   工作温度
|
| X1G004241000100 | SG3225VAN | 125.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241000400 | SG3225VAN | 100.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241000500 | SG3225VAN | 200.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241000600 | SG3225VAN | 400.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241000800 | SG3225VAN | 212.500000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241001000 | SG3225VAN | 148.500000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241001200 | SG3225VAN | 150.000000MHz | 3.20x2.50x1.20mm | LVDS差分晶振 | 2.250 to 3.630V | -40 to 85°C |
| X1G004241001400 | SG3225VAN | 156.250000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241002000 | SG3225VAN | 125.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241002300 | SG3225VAN | 100.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241002400 | SG3225VAN | 200.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241002500 | SG3225VAN | 400.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241002600 | SG3225VAN | 106.250000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241002800 | SG3225VAN | 74.250000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241002900 | SG3225VAN | 148.500000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241003100 | SG3225VAN | 150.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241003200 | SG3225VAN | 155.520000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241003300 | SG3225VAN | 156.250000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241003400 | SG3225VAN | 312.500000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241003900 | SG3225VAN | 125.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -20 to 70°C |
| X1G004241005200 | SG3225VAN | 156.250000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -20 to 70°C |
| X1G004241006100 | SG3225VAN | 100.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -20 to 70°C |
| X1G004241006200 | SG3225VAN | 200.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -20 to 70°C |
| X1G004241006500 | SG3225VAN | 212.500000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -20 to 70°C |
| X1G004241006900 | SG3225VAN | 150.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -20 to 70°C |
| X1G004241007100 | SG3225VAN | 156.250000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -20 to 70°C |
| X1G004241010000 | SG3225VAN | 133.333333MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -20 to 70°C |
| X1G004241010300 | SG3225VAN | 250.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241010500 | SG3225VAN | 80.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241010800 | SG3225VAN | 297.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241010900 | SG3225VAN | 133.330000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241011300 | SG3225VAN | 125.003125MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241011700 | SG3225VAN | 126.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241012000 | SG3225VAN | 322.265625MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241012300 | SG3225VAN | 90.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -20 to 70°C |
| X1G004241012400 | SG3225VAN | 135.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241012500 | SG3225VAN | 76.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241012600 | SG3225VAN | 360.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241012700 | SG3225VAN | 644.531250MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -20 to 70°C |
| X1G004241012900 | SG3225VAN | 322.265625MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -20 to 70°C |
| X1G004241013000 | SG3225VAN | 115.200000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241013100 | SG3225VAN | 600.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241013500 | SG3225VAN | 240.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
差分晶振是普通贴片晶振所不能够达到的,差分晶振具有低电平,低抖动,低功耗等特性.差分晶振作为目前行业中高要求,高技术石英晶体振荡器,具有相位低,损耗低的特点,爱普生差分晶振使用于产品中能够很容易地识别小信号,能够从容精确地处理双级信号,对外部电磁干扰(EMI)是高度免疫的,差分石英贴片晶振满足市场需求,实现高频高精度等要求,更加保障了各种系统参考时钟的可靠性。
