9HT10-32.768KDZF-T是各种汽车产品参考时钟的应用
TXC晶振目前专业从事这些类别的产品:晶体(32.768kHz,基本兆赫,高精度的兆赫,汽车级晶振)
TXC晶振9HT10系列,编码9HT10-32.768KBZF-T,小体积晶振尺寸3.2x1.5x0.75mm,频率32.768k晶振,两脚贴片晶振,石英晶体谐振器,具有超小型,轻薄型,耐热及耐环境特性,高可靠的环境性能,符合RoHS标准/无铅,9HT10-32.768KDZF-T是各种汽车产品参考时钟的应用
9HT10-32.768KDZF-T是各种汽车产品参考时钟的应用
Manufacturer Part Number原厂编码
Manufacturer厂家
Series型号
Type 系列
Frequency
Operating Temperature 工作温度
9HT10-32.768KBZF-T
TXC CORPORATION
9HT10
kHz Crystal (Tuning Fork)
32.768kHz
-40°C ~ 85°C
9HT10-32.768KBZF-T
TXC CORPORATION
9HT10
kHz Crystal (Tuning Fork)
32.768kHz
-40°C ~ 85°C
9HT10-32.768KBZF-T
TXC CORPORATION
9HT10
kHz Crystal (Tuning Fork)
32.768kHz
-40°C ~ 85°C
9HT10-32.768KDZF-T
TXC CORPORATION
9HT10
kHz Crystal (Tuning Fork)
32.768kHz
-40°C ~ 85°C
9HT10-32.768KDZF-T
TXC CORPORATION
9HT10
kHz Crystal (Tuning Fork)
32.768kHz
-40°C ~ 85°C
9HT10-32.768KDZF-T
TXC晶振
9HT10
kHz Crystal (Tuning Fork)
32.768kHz
-40°C ~ 85°C
9HT10-32.768KEZF-T
TXC CORPORATION
9HT10
kHz Crystal (Tuning Fork)
32.768kHz
-40°C ~ 85°C
9HT10-32.768KEZF-T
TXC CORPORATION
9HT10
kHz Crystal (Tuning Fork)
32.768kHz
-40°C ~ 85°C
9HT10-32.768KEZF-T
TXC CORPORATION
9HT10
kHz Crystal (Tuning Fork)
32.768kHz
-40°C ~ 85°C
9HT10-32.768KAZF-T
TXC CORPORATION
9HT10
kHz Crystal (Tuning Fork)
32.768kHz
-40°C ~ 85°C
9HT10-32.768KAZF-T
TXC CORPORATION
9HT10
kHz Crystal (Tuning Fork)
32.768kHz
-40°C ~ 85°C
9HT10-32.768KAZF-T
TXC CORPORATION
9HT10
kHz Crystal (Tuning Fork)
32.768kHz
-40°C ~ 85°C
9HT10-32.768KBZB-T
TXC CORPORATION
9HT10
kHz Crystal (Tuning Fork)
32.768kHz
-40°C ~ 85°C
9HT10-32.768KBZB-T
TXC CORPORATION
9HT10
kHz Crystal (Tuning Fork)
32.768kHz
-40°C ~ 85°C
9HT10-32.768KBZB-T
TXC CORPORATION
9HT10
kHz Crystal (Tuning Fork)
32.768kHz
-40°C ~ 85°C
9HT10-32.768KBZC-T
TXC CORPORATION
9HT10
kHz Crystal (Tuning Fork)
32.768kHz
-40°C ~ 85°C
9HT10-32.768KBZC-T
TXC CORPORATION
9HT10
kHz Crystal (Tuning Fork)
32.768kHz
-40°C ~ 85°C
9HT10-32.768KBZC-T
TXC CORPORATION
9HT10
kHz Crystal (Tuning Fork)
32.768kHz
-40°C ~ 85°C
9HT10-32.768KBZY-T
TXC CORPORATION
9HT10
kHz Crystal (Tuning Fork)
32.768kHz
-40°C ~ 85°C

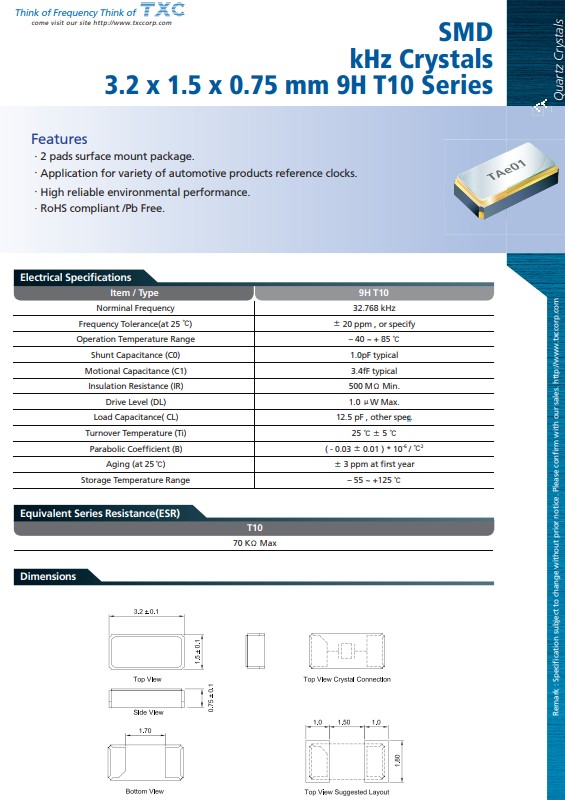

参数:
正常频率:32.768KHz钟表晶振
频率公差(25 ℃时):20ppm,或指定
工作温度范围:–40℃至+85℃
并联电容(C0):1.0pF(典型值)
运动电容(C1):典型值3.4fF
绝缘电阻(IR):最小500mω。
驱动电平(DL):最大1.0 μW。
负载电容:12.5 pF,其他规格。
翻转温度(Ti):25℃±5℃
抛物线系数(B):(-0.03±0.01)10-6/℃
老化(25 ℃时):第一年为3ppm
储存温度范围:–55℃至+125℃
石英晶体谐振器是使用石英组件所制造之电子被动组件,具备最高的质量因子(Quality factor)与不同温度变化下的频率稳定度,目前广泛运用于需求参考时钟,同步讯号等各类有线及无线电子产品或系统之上,例如:机械,通讯,电子,医疗以及消费性等市场,都有使用石英晶体谐振器各种应用产品。
9HT10-32.768KBZY-T | TXC CORPORATION | 9HT10 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
9HT10-32.768KBZY-T | TXC CORPORATION | 9HT10 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
9HT10-32.768KAZB-T | TXC CORPORATION | 9HT10 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
9HT10-32.768KAZB-T | TXC CORPORATION | 9HT10 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
9HT10-32.768KAZB-T | TXC CORPORATION | 9HT10 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
9HT10-32.768KAZC-T | TXC CORPORATION | 9HT10 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
9HT10-32.768KAZC-T | TXC CORPORATION | 9HT10 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
9HT10-32.768KAZC-T | TXC CORPORATION | 9HT10 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
9HT10-32.768KAZY-T | TXC CORPORATION | 9HT10 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
9HT10-32.768KAZY-T | TXC CORPORATION | 9HT10 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
9HT10-32.768KAZY-T | TXC CORPORATION | 9HT10 | kHz Crystal (Tuning Fork) | 32.768k | -40°C ~ 85°C |
9HT10-32.768KDZB-T | TXC CORPORATION | 9HT10 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
9HT10-32.768KDZB-T | TXC CORPORATION | 9HT10 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
9HT10-32.768KDZB-T | TXC CORPORATION | 9HT10 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
9HT10-32.768KDZY-T | TXC CORPORATION | 9HT10 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
9HT10-32.768KDZY-T | TXC CORPORATION | 9HT10 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
9HT10-32.768KDZY-T | TXC CORPORATION | 9HT10 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
9HT10-32.768KDZC-T | TXC CORPORATION | 9HT10 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
9HT10-32.768KDZC-T | TXC CORPORATION | 9HT10 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
9HT10-32.768KDZC-T | TXC CORPORATION | 9HT10 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
石英晶体谐振器是一种生活中随处可见的电子器件,诞生于20世纪20年代初,因具有较高的品质因数及良好的频率稳定性,被广泛应用于航天、通信、军事等工业领域。顾名思义,制造石英晶体谐振器的原材料就是石英,一种非常重要的压电材料。其主要特征是其原子或分子有规律排列,反映在宏观上是外形的对称性,在电场的作用下,石英晶体内部产生应力而形变,从而产生机械振动,获得特定的频率。
