可穿戴设备专用晶振CM8V-T1A0.332.768kHz12.5pF±20ppmTAQC

返回列表 来源：精工富士 查看手机网址
扫一扫!可穿戴设备专用晶振CM8V-T1A0.332.768kHz12.5pF±20ppmTAQC扫一扫!
 浏览：- 发布日期：2023-05-25 18:27:18【大 中 小】
分享到：

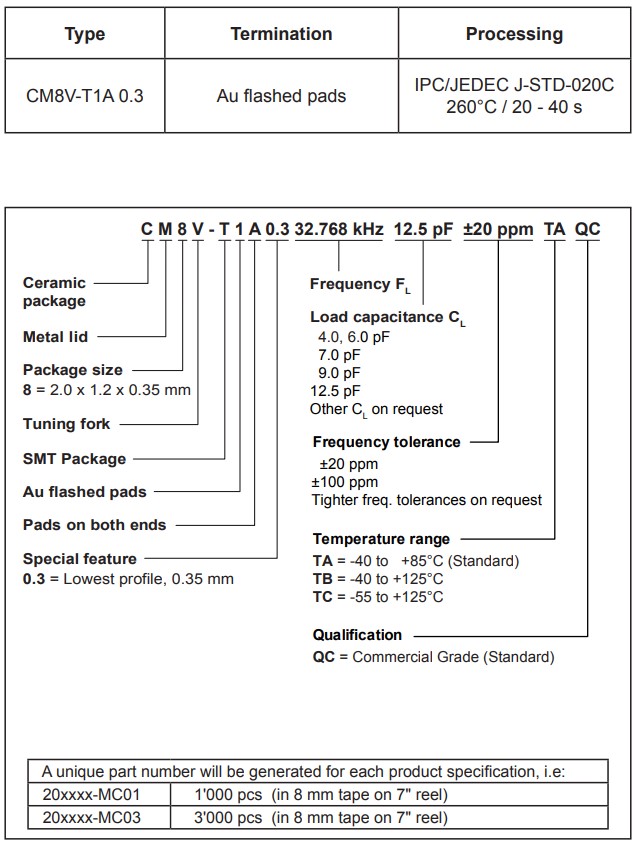

瑞士Microcrystal微晶推出新产品CM8V-T1A 0.3，小体积晶振尺寸2.0x1.2x0.35mm两脚贴片晶振，32.768K贴片晶振，无源晶振，石英晶体谐振器，石英贴片晶振，无铅环保晶振，是一个低频SMT石英晶体单元，包含一个音叉石英晶体谐振器。它在带金属盖的密封陶瓷封装中的真空下工作。小体积石英晶体具有超小型，轻薄型，耐振、耐冲击等优良的耐环境特性，满足无铅焊接的高温回流温度曲线要求，100%无铅，符合RoHS标准。应用于：智能卡，物联网，可穿戴设备，便携式设备，卫生保健，测量，产业用，超小型设备等应用。可穿戴设备专用晶振CM8V-T1A0.332.768kHz12.5pF±20ppmTAQC

CM8V-T1A 0.3.-1

微晶晶振 制造商零件编号 描述 频率
Micro Crystal CM7V-T1A-32.768kHz-7pF-100PPM-TA-QC  32.768 kHz 7.0 pF +/-100 PPM -40/+85C 32.768 kHz
Micro Crystal CM8V-T1A-32.768kHz-9pF-20PPM-TA-QC  32.768 kHz 9.0 pF +/-20 PPM -40/+85C 32.768 kHz
Micro Crystal CM7V-T1A-32.768kHz-7pF-20PPM-TA-QC  32.768 kHz 7.0 pF +/-20 PPM -40/+85C 32.768 kHz
Micro Crystal CM7V-T1A-32.768kHz-12.5pF-20PPM-TA-QC  32.768 kHz 12.5 pF +/-20 PPM -40/+85C 32.768 kHz
Micro Crystal CM8V-T1A-32.768k-12.5pF-20PPM-TB-QA  32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 32.768 kHz
Micro Crystal CM8V-T1A-32.768k-9pF-20PPM-TB-QA  32.768 kHz 9.0 pF +/-20 PPM -40/+125C 32.768 kHz
Micro Crystal CM8V-T1A-32.768kHz-12.5pF-20PPM-TA-QC  32.768 kHz 12.5 pF +/-20 PPM -40/+85C 32.768 kHz
Micro Crystal CM7V-T1A-32.768kHz-9pF-20PPM-TA-QC  32.768 kHz 9.0 pF +/-20 PPM -40/+85C 32.768 kHz
Micro Crystal CM8V-T1A-32.768kHz-7pF-20PPM-TA-QC  32.768 kHz 7.0 pF +/-20 PPM -40/+85C 32.768 kHz
Micro Crystal CM7V-T1A-Low-ESR-32.768kHz-9pF-20-TA-QC  32.768 kHz 9.0 pF +/-20 PPM LOW ESR 32.768 kHz
Micro Crystal CM7VT1A-LowESR-32.768kHz-12.5pF-20-TA-QC  32.768 kHz 12.5 pF +/-20 PPM LOW ESR 32.768 kHz
Micro Crystal CM7V-T1A-Low-ESR-32.768kHz-7pF-20-TA-QC  32.768 kHz 7.0 pF +/-20 PPM LOW ESR 32.768 kHz
Micro Crystal CM7V-T1A-32.768k-12.5pF-20PPM-TA-QA  32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 32.768 kHz
Micro Crystal CM7V-T1A-32.768k-7pF-20PPM-TA-QA  32.768 kHz 7.0 pF +/-20 PPM AEC-Q200 32.768 kHz
Micro Crystal CM7V-T1A-32.768k-7pF-100PPM-TB-QA  32.768 kHz 7.0 pF +/-100 PPM AEC-Q200 32.768 kHz
Micro Crystal CM7V-T1A-32.768kHz-12.5pF-100PPM-TC-QC  32.768 kHz 12.5 pF 100 PPM -55/+125C 32.768 kHz
Micro Crystal CM7V-T1A-32.768k-12.5pF-20PPM-TB-QA  32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 32.768 kHz
Micro Crystal CM7V-T1A-32.768k-9pF-20PPM-TB-QA  32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 32.768 kHz
Micro Crystal CM7V-T1A-32.768kHz-9pF-20PPM-TC-QC  32.768 kHz 9.0 pF +/-20 PPM -55/+125C 32.768 kHz
Micro Crystal CM7V-T1A-Low-ESR-32.768kHz-6pF-20-TA-QC  32.768 kHz 6.0 pF +/-20 PPM LOW ESR 32.768 kHz
Micro Crystal CM7V-T1A-32.768kHz-6pF-20PPM-TA-QC  32.768 kHz 6.0 pF +/-20 PPM -40/+85C 32.768 kHz
Micro Crystal CM7V-T1A-32.768k-7pF-20PPM-TC-QA  32.768 kHz 7.0 pF +/-20 PPM AEC-Q200 32.768 kHz
Micro Crystal CM7V-T1A-32.768k-9pF-20PPM-TC-QA  32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 32.768 kHz
Micro Crystal CM7V-T1A-32.768kHz-6pF-10PPM-TA-QC  32.768 kHz 6.0 pF +/-10 PPM -40/+85C 32.768k
Micro Crystal CM8V-T1A-32.768kHz-6pF-20PPM-TA-QC  32.768 kHz 6.0 pF +/-20 PPM -40/+85C 32.768 kHz
Micro Crystal CM8V-T1A-32.768kHz-12.5pF-20PPM-TB-QC  32.768 kHz 12.5 pF +/-20 PPM -40/+125C 32.768 kHz
Micro Crystal CM8V-T1A-32.768kHz-7pF-20PPM-TB-QC  32.768 kHz 7.0 pF +/-20 PPM -40/+125C 32.768 kHz
Micro Crystal CM9V-T1A-32.768kHz-7pF-100PPM-TA-QC  32.768 kHz 7.0 pF +/-100 PPM -40/+85C 32.768 kHz
Micro Crystal CM9V-T1A-32.768kHz-7pF-20PPM-TA-QC  32.768 kHz 7.0 pF +/-20 PPM -40/+85C 32.768 kHz
Micro Crystal CM7V-T1A-0.3-32.768kHz-7pF-20PPM-TA-QC  32.768 kHz 7.0 pF +/-20 PPM 0.3mm 32.768 kHz
Micro Crystal CM7V-T1A-0.3-32.768kHz-9pF-20PPM-TA-QC  32.768 kHz 9.0 pF +/-20 PPM 0.3mm 32.768 kHz
Micro Crystal CM7VT1A-0.3-32.768kHz-12.5pF-20PPM-TA-QC  32.768 kHz 12.5 pF +/-20 PPM 0.3mm 32.768 kHz
Micro Crystal CM7V-T1A-100.000kHz-9pF-100PPM-TA-QC  100.000 kHz 9.0 pF +/-100 PPM -40/+85C 100 kHz
Micro Crystal CM7V-T1A-32.768kHz-12.5pF-10PPM-TA-QC  32.768 kHz 12.5 pF +/-10 PPM -40/+85C 32.768 kHz
Micro Crystal CM7V-T1A-32.768kHz-9pF-10PPM-TA-QC  32.768 kHz 9.0 pF +/-10 PPM -40/+85C 32.768 kHz
Micro Crystal CM9V-T1A-32.768kHz-12.5pF-20PPM-TA-QC  32.768 kHz 12.5 pF +/-20 PPM -40/+85C 32.768 kHz
Micro Crystal CM7V-T1A-32.768kHz-12.5pF-20PPM-TB-QC  32.768 kHz 12.5 pF +/-20 PPM -40/+125C 32.768 kHz
Micro Crystal CM7V-T1A-32.768kHz-7pF-20PPM-TB-QC  32.768 kHz 7.0 pF +/-20 PPM -40/+125C 32.768 kHz
Micro Crystal CM9V-T1A-32.768kHz-9pF-20PPM-TA-QC  32.768 kHz 9.0 pF +/-20 PPM -40/+85C 32.768 kHz
Micro Crystal CM7V-T1A-32.768kHz-7pF-10PPM-TA-QC  32.768 kHz 7.0 pF +/-10 PPM -40/+85C 32.768 kHz
Micro Crystal CM7V-T1A-32.768kHz-12.5pF-20PPM-TC-QC  32.768 kHz 12.5 pF +/-20 PPM -55/+125C 32.768 kHz
Micro Crystal CM7V-T1A-32.768k-12.5pF-20PPM-TC-QA  32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 32.768 kHz
Micro Crystal CM8V-T1A-32.768k-12.5pF-20PPM-TA-QA  32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 32.768 kHz
Micro Crystal CM8V-T1A-32.768kHz-9pF-20PPM-TB-QC  32.768 kHz 9.0 pF +/-20 PPM -40/+125C 32.768 kHz
Micro Crystal CM7V-T1A-32.768k-9pF-20PPM-TA-QA  32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 32.768 kHz
Micro Crystal CM7V-T1A-32.768kHz-9pF-20PPM-TB-QC  32.768 kHz 9.0 pF +/-20 PPM -40/+125C 32.768 kHz
Micro Crystal CM7V-T1A-32.768k-12.5pF-10PPM-TA-QA  32.768 kHz 12.5 pF +/-10 PPM -40/+85C 32.768 kHz
Micro Crystal CM7V-T1A-32.768kHz-12.5pF-10PPM-TB-QC  32.768 kHz 12.5 pF +/-10 PPM -40/+125C 32.768 kHz
Micro Crystal CM7V-T1A-32.768kHz-9pF-10PPM-TB-QC  32.768 kHz 9.0 pF +/-10 PPM -40/+125C 32.768 kHz
无源晶振 CM8V-T1A-32.768kHz-7pF-100PPM-TA-QC  32.768 kHz 7.0 pF +/-100 PPM -40/+85C 32.768 kHz
Micro Crystal CM8V-T1A-32.768kHz-12.5pF-20PPM-TC-QC  32.768 kHz 12.5 pF +/-20 PPM -55/+125C 32.768 kHz
Micro Crystal CM7V-T1A-32.768kHz-12.5pF-100PPM-TA-QC  32.768 kHz 12.5 pF +/-100 PPM -40/+85C 32.768 kHz
Micro Crystal CM7V-T1A-Low-ESR-32.768k-7pF-10-TB-QA  32.768 kHz 7.0 pF +/-10 PPM LOW ESR 32.768 kHz
Micro Crystal CM7V-T1A-32.768kHz-9pF-100PPM-TA-QC  32.768 kHz 9.0 pF +/-100 PPM -40/+85C 32.768 kHz
Micro Crystal CM7V-T1A-32.768kHz-12.5pF-100PPM-TB-QC  32.768 kHz 12.5 pF 100 PPM -40/+125C 32.768 kHz
Micro Crystal CM7V-T1A-Low-ESR-32.768k-9pF-20-TB-QA  32.768 kHz 9.0 pF +/-20 PPM LOW ESR 32.768 kHz
Micro Crystal CM7V-T1A-32.768k-9pF-100PPM-TC-QA  32.768 kHz 9.0 pF +/-100 PPM AEC-Q200 32.768 kHz
Micro Crystal CM8V-T1A-32.768kHz-9pF-100PPM-TA-QC  32.768 kHz 9.0 pF +/-100 PPM -40/+85C 32.768 kHz
Micro Crystal CM8V-T1A-100.000kHz-9pF-100PPM-TA-QC  100.000 kHz 9.0 pF +/-100 PPM -40/+85C 100 kHz
Micro Crystal CM7V-T1A-32.768k-6pF-20PPM-TB-QA  32.768 kHz 6.0 pF +/-20 PPM AEC-Q200 32.768 kHz
Micro Crystal CM7V-T1A-32.768kHz-7pF-20PPM-TB-QA  32.768 kHz 7.0 pF +/-20 PPM AEC-Q200 32.768 kHz
Micro Crystal CM7V-T1A-32.768k-9pF-20PPM-TA-QA T3  32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 32.768 kHz
可穿戴设备专用晶振CM8V-T1A0.332.768kHz12.5pF±20ppmTAQC

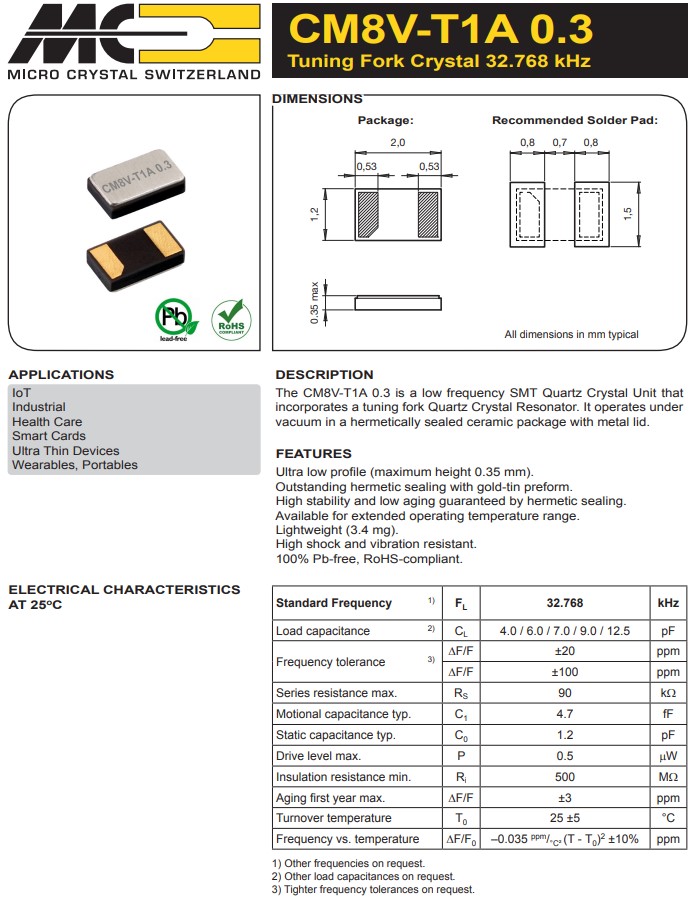

CM8V-T1A 0.3晶振特征：
超低剖面最大高度0.35毫米贴片晶振
金锡预制件的出色密封
密封保证了高稳定性和低老化
适用于扩展的工作温度范围
重量轻:3.4毫克
高抗冲击和振动
100%无铅，符合RoHS标准

微晶陶瓷或金属封装的32.768kHz和低频(LF)石英晶体单元。有低ESR和宽负载电容(CL)范围的音叉晶体可供选择。这些XTAL产品满足市场对振荡器或微控制器等低功耗定时器件、高可靠性、扩展工作温度和符合AEC-Q200汽车认证的要求。

CM8V-T1A 0.3
