世界上最小的LVDS差分振荡器由IQD公司研发
One of the world’s smallest LVDS / LVPECL oscillators
The demand for smaller, higher performance and more reliable electronic solutions is ever-growing. This is driving frequency product manufacturers to produce even smaller, higher frequency devices to reach design goals and support downsizing PCBs.

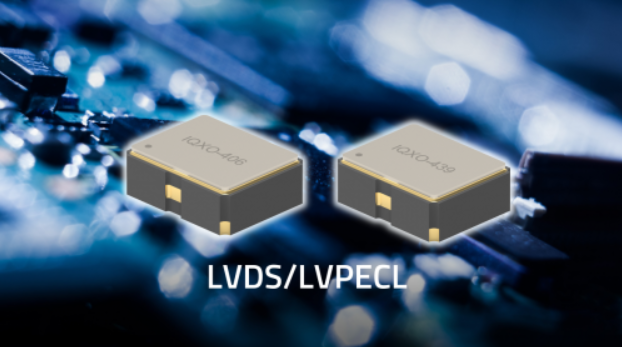

IQD presents its newest LVDS / LVPECL clock oscillators, the IQXO-406 & IQXO-439, housed in a ultra-miniature 2.0 x 1.6 mm package. Available in a frequency range from 50 MHz to 250 MHz the new clock oscillators provide both miniaturisation and higher speed operation in one complete device. Common applications include 5G, Ethernet (10G/100G/1000G), Fibre Channel, IoT, SONET/SDH and Wearables.
The LVPECL and LVDS差分晶振 outputs provide a ‘complementary-pair’ logic to help with noise reduction at higher frequencies compared with CMOS logic signals.
The demand for smaller, higher performance and more reliable electronic solutions is ever-growing. This is driving frequency product manufacturers to produce even smaller, higher frequency devices to reach design goals and support downsizing PCBs.
IQD presents its newest LVDS / LVPECL clock oscillators, the IQXO-406 & IQXO-439, housed in a ultra-miniature 2.0 x 1.6 mm package. Available in a frequency range from 50 MHz to 250 MHz the new clock oscillators provide both miniaturisation and higher speed operation in one complete device. Common applications include 5G, Ethernet (10G/100G/1000G), Fibre Channel, IoT, SONET/SDH and Wearables.
The LVPECL and LVDS差分晶振 outputs provide a ‘complementary-pair’ logic to help with noise reduction at higher frequencies compared with CMOS logic signals.

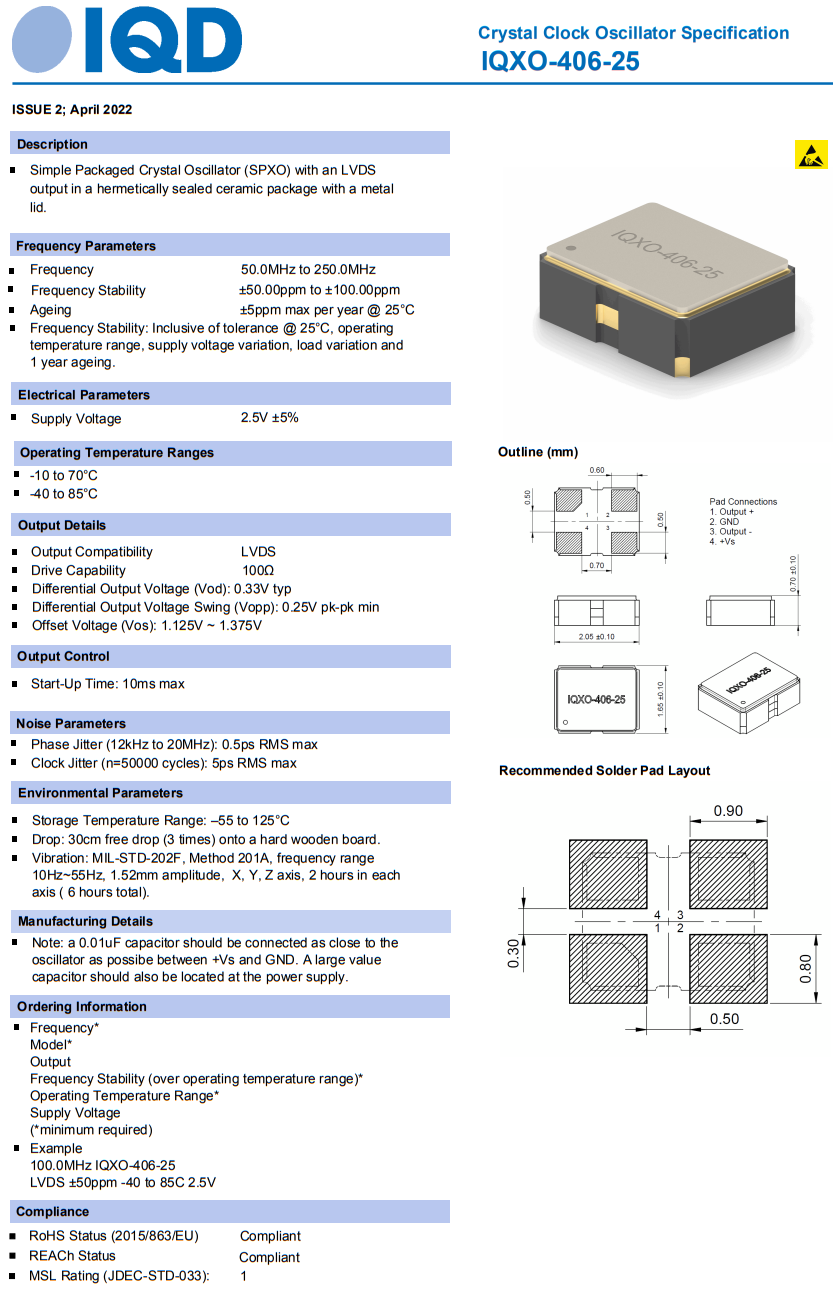

The new clock oscillators are available at either 2.5 V or 3.3 V with a phase jitter of less than 0.5 ps RMS (over 12 kHz to 20 MHz) irrespective of which output is specified. There is also a 2.5 x 2.0 mm package option where required.
世界上最小的LVDS / LVPECL振荡器之一
对更小、更高性能和更可靠的电子解决方案的需求不断增长。这促使频率产品制造商生产更小，更高频率的设备，以达到设计目标并支持小型化pcb。
IQD推出其最新的LVDS / LVPECL时钟振荡器IQXO-406和IQXO-439，采用超小型2.0 x 1.6 mm封装。在50 MHz至250 MHz的频率范围内，新的时钟振荡器在一个完整的设备中提供小型化和更高的速度操作。常见的应用包括5G、以太网(10G/100G/1000G)、光纤通道、物联网、SONET/SDH和可穿戴设备。
与CMOS逻辑信号相比，LVPECL和LVDS输出提供“互补对”逻辑，有助于在更高频率下降低噪声。
IQD进口晶体振荡器新的时钟振荡器可在2.5 V或3.3 V下使用，相位抖动小于0.5 ps RMS(超过12 kHz至20 MHz)，无论指定哪个输出。在需要的地方也有2.5 x 2.0 mm封装选项。
