编码Q22FA2380098716超小型无源晶振专用于小米手机无线充电器，这是一家具有深远影响力的知名制造商，也是一家持续不断成长的优秀企业，能够适应这个多变的市场，并且针对市场开发多样化的应对策略，公司主推石英晶体产品，产品性能优越，成本低，符合认证要求，同时得到广大用户的深深支持，又与广大用户建立起合作关系。

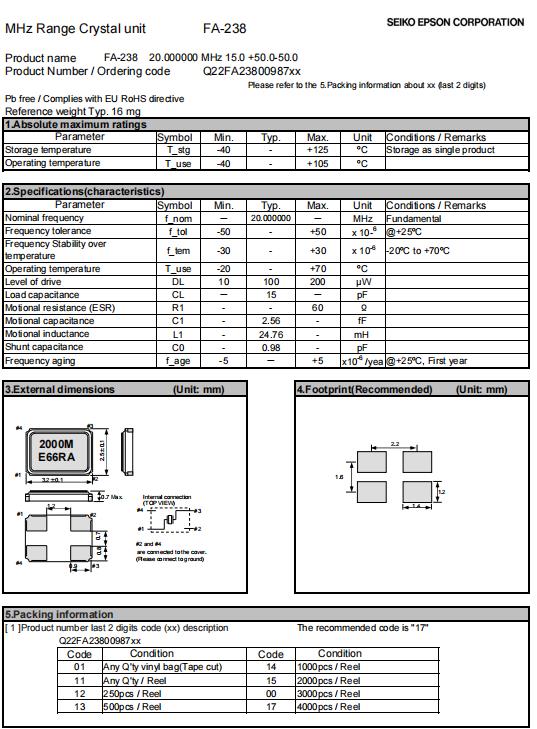

编码Q22FA2380098716超小型无源晶振专用于小米手机无线充电器，爱普生通过自身的努力推出这款石英晶体谐振器FA-238晶振，编码Q22FA2380098716，频率20.000000兆赫，尺寸(LxWxH)3.2 x 2.5 x 0.7 mm，客户负载电容15pf，频率公差+ / -50 ppm，Fo / temp。特征公差+ / -30 ppm，温度范围-20至+70°C，具有超高的可靠性能，超级适合用于小米手机无线充电器，车载控制器，仪器设备等领域。

EPSON晶振	尺寸	型号	频率	负载	Freq.tol. @+25°C	Freq.tol./Temp.range	Temperature range	ESR [Max]
Q22FA2380089616	3.2 x 2.5 x 0.7mm	FA-238	18.432000 MHz	20 pF	+/-30 ppm	+/-30 ppm	-20 to +70 °C	≤ 80 Ω
Q22FA2380089916	3.2 x 2.5 x 0.7mm	FA-238	16.257000 MHz	10 pF	+/-50 ppm	+/-30 ppm	-20 to +70 °C	≤ 80 Ω
Q22FA2380090316	3.2 x 2.5 x 0.7mm	FA-238	27.000000 MHz	12.5 pF	+/-50 ppm	+/-30 ppm	-20 to +70 °C	≤ 50 Ω
Q22FA2380090916	3.2 x 2.5 x 0.7mm	FA-238	27.000000 MHz	20 pF	+/-50 ppm	+/-30 ppm	-20 to +70 °C	≤ 50 Ω
Q22FA2380091016	3.2 x 2.5 x 0.7mm	FA-238	20.000000 MHz	8 pF	+/-50 ppm	+/-30 ppm	-20 to +70 °C	≤ 60 Ω
Q22FA2380091216	3.2 x 2.5 x 0.7mm	FA-238	27.120000 MHz	10 pF	+/-50 ppm	+/-30 ppm	-20 to +70 °C	≤ 50 Ω
Q22FA2380091516	3.2 x 2.5 x 0.7mm	FA-238	16.934400 MHz	16 pF	+/-50 ppm	+/-30 ppm	-20 to +70 °C	≤ 80 Ω
Q22FA2380093916	3.2 x 2.5 x 0.7mm	FA-238	33.333300 MHz	7 pF	+/-50 ppm	+/-30 ppm	-20 to +70 °C	≤ 40 Ω
Q22FA2380094016	3225石英晶振	FA-238	27.120000 MHz	10 pF	+/-30 ppm	+/-30 ppm	-20 to +70 °C	≤ 50 Ω
Q22FA2380096716	3.2 x 2.5 x 0.7mm	FA-238	17.250000 MHz	14 pF	+/-50 ppm	+/-30 ppm	-20 to +70 °C	≤ 80 Ω
Q22FA2380097416	3.2 x 2.5 x 0.7mm	FA-238	25.000000 MHz	7.5 pF	+/-50 ppm	+/-30 ppm	-20 to +70 °C	≤ 50 Ω
Q22FA2380097516	3.2 x 2.5 x 0.7mm	FA-238	30.000000 MHz	7 pF	+/-50 ppm	+/-30 ppm	-20 to +70 °C	≤ 40 Ω
Q22FA2380098016	3.2 x 2.5 x 0.7mm	FA-238	16.000000 MHz	22 pF	+/-50 ppm	+/-30 ppm	-20 to +70 °C	≤ 80 Ω
Q22FA2380098616	3.2 x 2.5 x 0.7mm	FA-238	25.000000 MHz	33 pF	+/-50 ppm	+/-30 ppm	-20 to +70 °C	≤ 50 Ω
Q22FA2380098716	3.2 x 2.5 x 0.7mm	FA-238	20.000000 MHz	15 pF	+/-50 ppm	+/-30 ppm	-20 to +70 °C	≤ 60 Ω
Q22FA2380099216	3.2 x 2.5 x 0.7mm	FA-238	22.000000 MHz	10 pF	+/-50 ppm	+/-30 ppm	-20 to +70 °C	≤ 60 Ω
Q22FA2380101616	3.2 x 2.5 x 0.7mm	FA-238	20.000000 MHz	16 pF	+/-30 ppm	+/-30 ppm	-20 to +70 °C	≤ 60 Ω
Q22FA2380102116	3.2 x 2.5 x 0.7mm	FA-238	25.000000 MHz	7 pF	+/-30 ppm	+/-30 ppm	-20 to +70 °C	≤ 50 Ω
Q22FA2380102616	3.2 x 2.5 x 0.7mm	FA-238	16.384000 MHz	18 pF	+/-50 ppm	+/-30 ppm	-20 to +70 °C	≤ 80 Ω
Q22FA2380103716	3.2 x 2.5 x 0.7mm	FA-238	16.000000 MHz	14 pF	+/-50 ppm	+/-30 ppm	-20 to +70 °C	≤ 80 Ω
