SG3225EAN差分晶振X1G004251003400适用于网络电视机顶盒应用

来源：精工富士查看手机网址

扫一扫!

SG3225EAN差分晶振X1G004251003400适用于网络电视机顶盒应用

扫一扫!

浏览：- 发布日期：2022-10-11 14:11:57【大中小】

分享到：

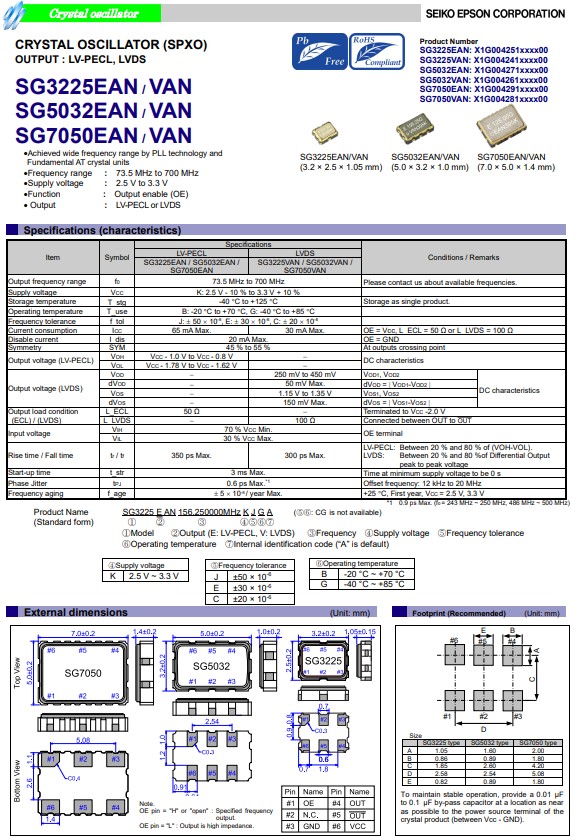

日本爱普生晶振SG3225EAN，是一款LV-PECL输出贴片差分晶振，小体积尺寸3.2x2.5mm六脚贴片晶振，有源晶振，低电源电压2.5V至3.3V，宽频率范围73.5MHz至700MHz任意一频点具有低电源电压，满足产品低消耗电流特点。作为目前行业中高要求、高技术石英晶体振荡器，该产品具有超小型，轻薄型，低抖动，低功耗，低耗能，低损耗，低电平，低相位噪声的特点。因此也被称之为“低抖动振荡器，低抖动石英晶振，低相位晶振，低损耗晶振”。被广泛应用于5G通讯设备、机顶盒、光端机、安防设备、路由器/交换机、仪器仪表、SATA，SAS，光纤通信，10G以太网及各种频率控制设备上。

SG3225EAN差分晶振X1G004251003400适用于网络电视机顶盒应用

爱普生晶振	型号	频率	尺寸	输出波	电源电压	工作温度
X1G004251000100	SG3225EAN	100.000000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004251000200	SG3225EAN	156.250000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G004251000900	SG3225EAN	212.500000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004251001200	SG3225EAN	75.000000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004251001500	SG3225EAN	156.250000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004251002000	SG3225EAN	700.000000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004251002100	SG3225EAN	125.000000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004251002400	SG3225EAN	100.000000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004251002600	SG3225EAN	400.000000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004251002800	SG3225EAN	212.500000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004251003200	SG3225EAN	150.000000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004251003400	SG3225EAN	156.250000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004251003500	SG3225EAN	312.500000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004251006200	SG3225EAN	100.000000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G004251010000	SG3225EAN	114.285000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C

X1G004251012100	SG3225EAN	161.132812MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004251012200	SG3225EAN	155.520000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G004251012300	SG3225EAN	133.330000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004251012400	SG3225EAN	322.562500MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004251012500	SG3225EAN	133.000000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004251012600	SG3225EAN	322.265625MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004251012700	SG3225EAN	425.000000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004251012800	SG3225EAN	156.253906MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004251013100	SG3225EAN	360.500000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G004251013200	SG3225EAN	644.531200MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004251013800	SG3225EAN	644.531250MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004251013900	SG3225EAN	121.500000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004251014000	SG3225EAN	650.000000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C

SG3225EAN差分晶振X1G004251003400适用于网络电视机顶盒应用

常用的差分晶振输出均属于方波，输出功率比较大，驱动能力较强，但谐波分量非常多。这两种输出模式是差分晶振的输出逻辑，两者的相位刚好相反，因此它们能够组成更高性能的系统，同时还能消除共模噪声。差分晶体振荡器输出（例如PECL，LVDS，HCSL) 可以满足高速数据传输，应用于高速计算机，数字通信系统，雷达，测量仪器，频率合成器等。
