无人机模块应用晶振TG2016SMN温补晶振X1G005441030100

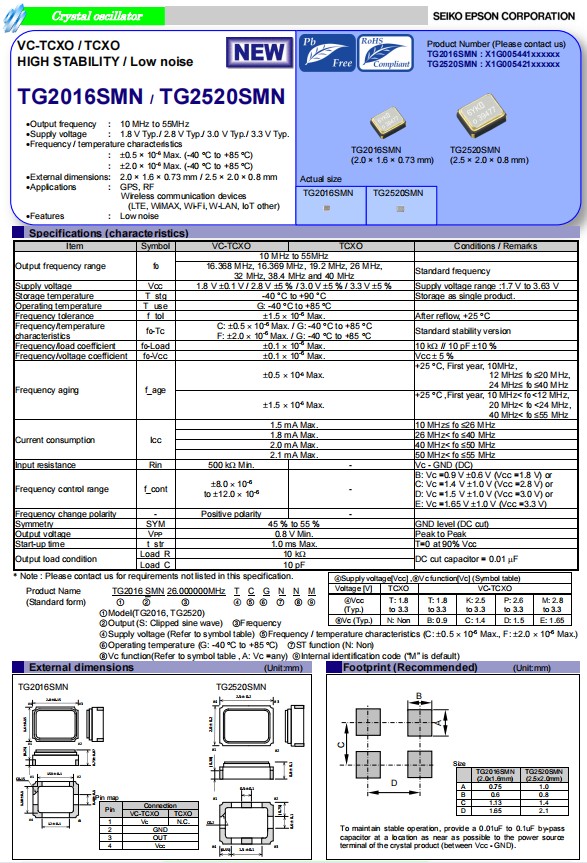

爱普生晶振TG2016SMN是一款超小型尺寸2.0x1.6mm高精度温补晶体振荡器,四脚贴片晶振,在-40℃到+85℃温度范围内,频率精度可达±0.5ppm,同时提供±2ppm精度的型号可供选择,为无线通信提供高精度时钟,确保了无线频率的稳定,保证了接收灵敏度,提升通信可靠性和通信距离,让无人机飞的更高更远。频率范围10MHz至55MHz。TG2016SMN贴片晶振可以提供例如无人机无线通信常用的16MHz,19.2MHz,24MHz,25MHz,38.4MHZ等频点,工作电源电压1.7V至3.63V,可以满足1.8V,2.8V,3.0V,3.3V不同电压应用需求。同时具备低工作电流1.5mA左右,可以减少无人机电流消耗,提升电池使用时间,提升无人机飞行时间。
无人机模块应用晶振TG2016SMN温补晶振X1G005441030100
![]() |
![]() ![]() |
![]() ![]() |
![]() ![]() |
![]() ![]() |
![]() ![]() |
![]() ![]() |
![]() |
X1G005441001200 | TG2016SMN | 40.000000MHz | 2.00x1.60x0.61mm | Clippedsinewave | 2.800 to 3.630V | +/-1.5ppm | 40 to +85°C |
X1G005441003100 | TG2016SMN | 19.200000MHz | 2.00x1.60x0.61mm | Clippedsinewave | 2.660 to 2.940V | +/-1.5ppm | 40 to +85°C |
X1G005441003300 | TG2016SMN | 39.000000MHz | 2.00x1.60x0.61mm | Clippedsinewave | 3.135 to 3.465V | +/-1.5ppm | 40 to +85°C |
X1G005441004700 | TG2016SMN | 19.200000MHz | 2.00x1.60x0.61mm | Clippedsinewave | 3.135 to 3.465V | +/-1.5ppm | 40 to +85°C |
X1G005441006500 | TG2016SMN | 38.400000MHz | 2.00x1.60x0.61mm | Clippedsinewave | 1.700 to 1.900V | +/-1.5ppm | 40 to +85°C |
X1G005441020100 | TG2016SMN | 16.368000MHz | 2.00x1.60x0.73mm | Clippedsinewave | 1.700 to 1.900V | +/-1.5ppm | -40 to +85°C |
X1G005441020200 | TG2016SMN | 16.369000MHz | 2.00x1.60x0.73mm | Clippedsinewave | 1.700 to 1.900V | +/-1.5ppm | -40 to +85°C |
X1G005441020300 | TG2016SMN | 19.200000MHz | 2.00x1.60x0.73mm | Clippedsinewave | 1.700 to 1.900V | +/-1.5ppm | -40 to +85°C |
X1G005441020400 | TG2016SMN | 26.000000MHz | 2.00x1.60x0.73mm | Clippedsinewave | 1.700 to 1.900V | +/-1.5ppm | -40 to +85°C |
X1G005441020500 | TG2016SMN | 32.000000MHz | 2.00x1.60x0.73mm | Clippedsinewave | 1.700 to 1.900V | +/-1.5ppm | -40 to +85°C |
X1G005441020600 | TG2016SMN | 38.400000MHz | 2.00x1.60x0.73mm | Clippedsinewave | 1.700 to 1.900V | +/-1.5ppm | -40 to +85°C |
X1G005441020700 | TG2016SMN | 40.000000MHz | 2.00x1.60x0.73mm | Clippedsinewave | 1.700 to 1.900V | +/-1.5ppm | -40 to +85°C |
X1G005441020800 | TG2016SMN | 16.000000MHz | 2.00x1.60x0.73mm | Clippedsinewave | 1.700 to 1.900V | +/-1.5ppm | -40 to +85°C |
X1G005441021100 | TG2016SMN | 20.000000MHz | 2.00x1.60x0.73mm | Clippedsinewave | 1.700 to 1.900V | +/-1.5ppm | -40 to +85°C |
X1G005441021200 | TG2016SMN | 24.000000MHz | 2.00x1.60x0.73mm | Clippedsinewave | 1.700 to 1.900V | +/-1.5ppm | -40 to +85°C |
X1G005441021300 | TG2016SMN | 25.000000MHz | 2.00x1.60x0.73mm | Clippedsinewave | 1.700 to 1.900V | +/-1.5ppm | -40 to +85°C |
X1G005441021400 | TG2016SMN | 27.000000MHz | 2.00x1.60x0.73mm | Clippedsinewave | 1.700 to 1.900V | +/-1.5ppm | -40 to +85°C |
X1G005441021500 | TG2016SMN | 30.000000MHz | 2.00x1.60x0.73mm | Clippedsinewave | 1.700 to 1.900V | +/-1.5ppm | -40 to +85°C |
X1G005441021600 | TG2016SMN | 48.000000MHz | 2.00x1.60x0.73mm | Clippedsinewave | 1.700 to 1.900V | +/-1.5ppm | -40 to +85°C |
X1G005441022000 | TG2016SMN | 52.000000MHz | 2.00x1.60x0.73mm | Clippedsinewave | 1.700 to 1.900V | +/-1.5ppm | -40 to +85°C |
X1G005441022100 | TG2016SMN | 27.600000MHz | 2.00x1.60x0.73mm | Clippedsinewave | 1.700 to 1.900V | +/-1.5ppm | -40 to +85°C |
X1G005441030100 | TG2016SMN | 16.368000MHz | 2.00x1.60x0.73mm | Clippedsinewave | 2.660 to 3.465V | +/-1.5ppm | -40 to +85°C |
X1G005441030200 | TG2016SMN | 16.369000MHz | 2.00x1.60x0.73mm | Clippedsinewave | 2.660 to 3.465V | +/-1.5ppm | -40 to +85°C |
X1G005441030300 | TG2016SMN | 19.200000MHz | 2.00x1.60x0.73mm | Clippedsinewave | 2.660 to 3.465V | +/-1.5ppm | -40 to +85°C |
X1G005441030400 | TG2016SMN | 26.000000MHz | 2.00x1.60x0.73mm | Clippedsinewave | 2.660 to 3.465V | +/-1.5ppm | -40 to +85°C |
X1G005441030500 | TG2016SMN | 32.000000MHz | 2.00x1.60x0.73mm | Clippedsinewave | 2.660 to 3.465V | +/-1.5ppm | -40 to +85°C |
X1G005441030600 | TG2016SMN | 38.400000MHz | 2.00x1.60x0.73mm | Clippedsinewave | 2.660 to 3.465V | +/-1.5ppm | -40 to +85°C |
X1G005441030700 | TG2016SMN | 40.000000MHz | 2.00x1.60x0.73mm | Clippedsinewave | 2.660 to 3.465V | +/-1.5ppm | -40 to +85°C |
X1G005441030800 | TG2016SMN | 16.000000MHz | 2.00x1.60x0.73mm | Clippedsinewave | 2.660 to 3.465V | +/-1.5ppm | -40 to +85°C |
X1G005441031100 | TG2016SMN | 20.000000MHz | 2.00x1.60x0.73mm | Clippedsinewave | 2.660 to 3.465V | +/-1.5ppm | -40 to +85°C |
X1G005441031200 | TG2016SMN | 24.000000MHz | 2.00x1.60x0.73mm | Clippedsinewave | 2.660 to 3.465V | +/-1.5ppm | -40 to +85°C |
X1G005441031300 | TG2016SMN | 25.000000MHz | 2.00x1.60x0.73mm | Clippedsinewave | 2.660 to 3.465V | +/-1.5ppm | -40 to +85°C |
X1G005441031400 | TG2016SMN | 27.000000MHz | 2.00x1.60x0.73mm | Clippedsinewave | 2.660 to 3.465V | +/-1.5ppm | -40 to +85°C |
X1G005441031500 | TG2016SMN | 30.000000MHz | 2.00x1.60x0.73mm | Clippedsinewave | 2.660 to 3.465V | +/-1.5ppm | -40 to +85°C |
X1G005441031600 | TG2016SMN | 48.000000MHz | 2.00x1.60x0.73mm | Clippedsinewave | 2.660 to 3.465V | +/-1.5ppm | -40 to +85°C |
X1G005441032000 | TG2016SMN | 52.000000MHz | 2.00x1.60x0.73mm | Clippedsinewave | 2.660 to 3.465V | +/-1.5ppm | -40 to +85°C |
X1G005441032100 | TG2016SMN | 27.600000MHz | 2.00x1.60x0.73mm | Clippedsinewave | 2.660 to 3.465V | +/-1.5ppm | -40 to +85°C |
无人机模块的上面布满了密密麻麻的电子元器件,其中就包括了“晶振”电子元器件,其作用是控制CPU的时钟频率的,每个单片机系统里都有晶振,贴片晶振提供时钟频率越高,单片机的运行速度也就越快。晶振用一种能把电能和机械能相互转化的晶体在共振的状态下工作。
