差分晶振Q3805CA00001100是一款超低抖动表面声波(SAW)晶体振荡器
爱普生是日本有名的频率元件制造商,专业生产销售石英晶振,石英晶体振荡器,贴片晶振,晶体滤波器等.发展至今已是国际有名的晶体元件制造商,致力于为客户提供高性能,高可靠,高品质晶振产品。

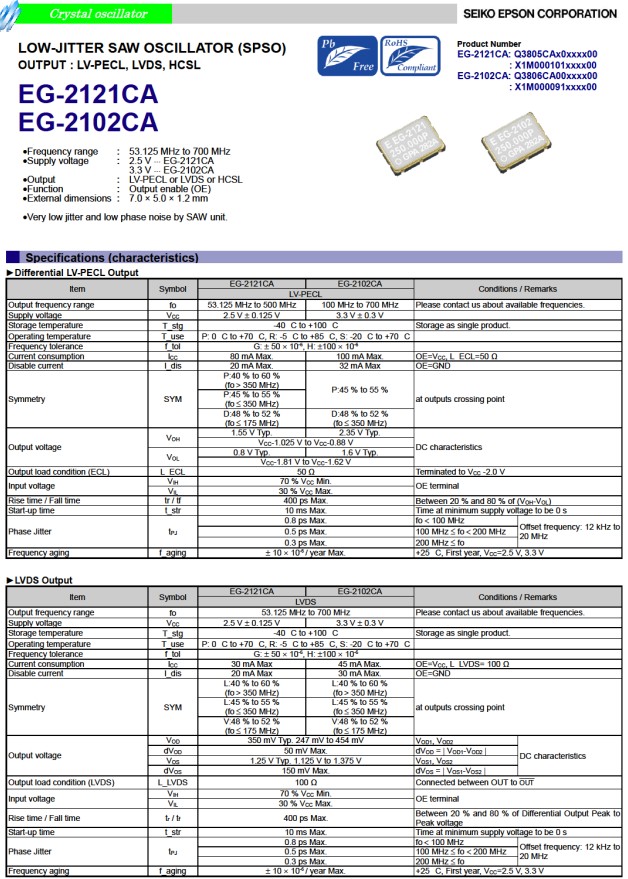

日本爱普生晶振EG-2121CA是一款超低抖动表面声波(SAW)晶体振荡器,支持LV-PECL输出差分晶体振荡器,小体积尺寸7.0x5.0mm有源晶振,六脚贴片晶振,适用于使用2.5V电源电压,宽频率范围:53.125MHz到700MHz,任意一频点,具有低电源电压,满足产品低消耗电流的特点。具有小体积轻薄型,低电源电压,低抖动,低功耗,低耗能,低损耗,低电平,高精度,高品质等特点。被广泛应用于5G通讯设备、机顶盒、光端机、安防设备、路由器/交换机、仪器仪表、光纤通信,10G以太网及各种频率控制设备上。
差分晶振Q3805CA00001100是一款超低抖动表面声波(SAW)晶体振荡器
产品编码 |
![]() ![]() ![]() |
![]() ![]() ![]() |
![]() ![]() ![]() |
![]() ![]() ![]() |
![]() ![]() ![]() |
![]() ![]() ![]() |
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
EG-2121CA | 125.000000MHz | 7.00x5.00x1.20mm | LV-PECL | 2.375 to 2.625 V | 0 to 70 °C |
Q3805CA00000200 | EG-2121CA | 125.000000MHz | 7.00x5.00x1.20mm | LV-PECL | 2.375 to 2.625 V | 0 to 70 °C |
Q3805CA00000300 | EG-2121CA | 53.125000MHz | 7.00x5.00x1.20mm | LV-PECL | 2.375 to 2.625 V | 0 to 70 °C |
Q3805CA00000400 | EG-2121CA | 200.000000MHz | 7.00x5.00x1.20mm | LV-PECL | 2.375 to 2.625 V | 0 to 70 °C |
Q3805CA00000500 | EG-2121CA | 100.000000MHz | 7.00x5.00x1.20mm | LV-PECL | 2.375 to 2.625 V | 0 to 70 °C |
Q3805CA00000600 | EG-2121CA | 106.250000MHz | 7.00x5.00x1.20mm | LV-PECL | 2.375 to 2.625 V | 0 to 70 °C |
Q3805CA00000700 | EG-2121CA | 100.000000MHz | 7.00x5.00x1.20mm | LV-PECL | 2.375 to 2.625 V | 0 to 70 °C |
Q3805CA00000800 | EG-2121CA | 62.500000MHz | 7.00x5.00x1.20mm | LV-PECL | 2.375 to 2.625 V | 0 to 70 °C |
Q3805CA00000900 | EG-2121CA | 100.000000MHz | 7.00x5.00x1.20mm | LV-PECL | 2.375 to 2.625 V | 0 to 70 °C |
Q3805CA00001000 | EG-2121CA | 125.000000MHz | 7.00x5.00x1.20mm | LV-PECL | 2.375 to 2.625 V | -5 to 85 °C |
Q3805CA00001100 | EG-2121CA | 125.000000MHz | 7.00x5.00x1.20mm | LV-PECL | 2.375 to 2.625 V | -5 to 85 °C |
Q3805CA00001200 | EG-2121CA | 80.000000MHz | 7.00x5.00x1.20mm | LV-PECL | 2.375 to 2.625 V | 0 to 70 °C |
Q3805CA00001300 | EG-2121CA | 125.000000MHz | 7.00x5.00x1.20mm | LV-PECL | 2.375 to 2.625 V | 0 to 70 °C |
Q3805CA00001400 | EG-2121CA | 125.000000MHz | 7.00x5.00x1.20mm | LV-PECL | 2.375 to 2.625 V | 0 to 70 °C |
Q3805CA00001500 | EG-2121CA | 250.000000MHz | 7.00x5.00x1.20mm | LV-PECL | 2.375 to 2.625 V | 0 to 70 °C |
Q3805CA00001600 | EG-2121CA | 106.250000MHz | 7.00x5.00x1.20mm | LV-PECL | 2.375 to 2.625 V | -5 to 85 °C |
Q3805CA00001800 | EG-2121CA | 66.666700MHz | 7.00x5.00x1.20mm | LV-PECL | 2.375 to 2.625 V | 0 to 70 °C |
Q3805CA00001900 | EG-2121CA | 62.500000MHz | 7.00x5.00x1.20mm | LV-PECL | 2.375 to 2.625 V | 0 to 70 °C |
Q3805CA00002000 | EG-2121CA | 125.000000MHz | 7.00x5.00x1.20mm | LV-PECL | 2.375 to 2.625 V | -5 to 85 °C |
Q3805CA00002100 | EG-2121CA | 106.250000MHz | 7.00x5.00x1.20mm | LV-PECL | 2.375 to 2.625 V | 0 to 70 °C |
Q3805CA00002200 | EG-2121CA | 156.250000MHz | 7.00x5.00x1.20mm | LV-PECL | 2.375 to 2.625 V | 0 to 70 °C |
Q3805CA00002300 | EG-2121CA | 53.125000MHz | 7.00x5.00x1.20mm | LV-PECL | 2.375 to 2.625 V | 0 to 70 °C |
Q3805CA00002400 | EG-2121CA | 106.250000MHz | 7.00x5.00x1.20mm | LV-PECL | 2.375 to 2.625 V | 0 to 70 °C |
Q3805CA00002500 | EG-2121CA | 200.000000MHz | 7.00x5.00x1.20mm | LV-PECL | 2.375 to 2.625 V | 0 to 70 °C |
Q3805CA00002600 | EG-2121CA | 125.000000MHz | 7.00x5.00x1.20mm | LV-PECL | 2.375 to 2.625 V | 0 to 70 °C |
Q3805CA00002700 | EG-2121CA | 100.000000MHz | 7.00x5.00x1.20mm | LV-PECL | 2.375 to 2.625 V | 0 to 70 °C |
Q3805CA00002800 | EG-2121CA | 106.250000MHz | 7.00x5.00x1.20mm | LV-PECL | 2.375 to 2.625 V | 0 to 70 °C |
Q3805CA00002900 | EG-2121CA | 500.000000MHz | 7.00x5.00x1.20mm | LV-PECL | 2.375 to 2.625 V | 0 to 70 °C |
Q3805CA00003000 | EG-2121CA | 400.000000MHz | 7.00x5.00x1.20mm | LV-PECL | 2.375 to 2.625 V | -5 to 85 °C |
Q3805CA00003100 | EG-2121CA | 500.000000MHz | 7.00x5.00x1.20mm | LV-PECL | 2.375 to 2.625 V | -5 to 85 °C |
Q3805CA00003200 | EG-2121CA | 100.000000MHz | 7.00x5.00x1.20mm | LV-PECL | 2.375 to 2.625 V | -5 to 85 °C |
Q3805CA00003300 | EG-2121CA | 212.500000MHz | 7.00x5.00x1.20mm | LV-PECL | 2.375 to 2.625 V | 0 to 70 °C |
Q3805CA00003400 | EG-2121CA | 106.250000MHz | 7.00x5.00x1.20mm | LV-PECL | 2.375 to 2.625 V | 0 to 70 °C |
Q3805CA00003500 | EG-2121CA | 80.000000MHz | 7.00x5.00x1.20mm | LV-PECL | 2.375 to 2.625 V | 0 to 70 °C |
Q3805CA00003600 | EG-2121CA | 312.500000MHz | 7.00x5.00x1.20mm | LV-PECL | 2.375 to 2.625 V | 0 to 70 °C |
Q3805CA00003800 | EG-2121CA | 156.250000MHz | 7.00x5.00x1.20mm | LV-PECL | 2.375 to 2.625 V | 0 to 70 °C |
Q3805CA00004000 | EG-2121CA | 156.250000MHz | 7.00x5.00x1.20mm | LV-PECL | 2.375 to 2.625 V | 0 to 70 °C |
Q3805CA00004300 | EG-2121CA | 62.500000MHz | 7.00x5.00x1.20mm | LV-PECL | 2.375 to 2.625 V | 0 to 70 °C |
Q3805CA00004400 | EG-2121CA | 75.000000MHz | 7.00x5.00x1.20mm | LV-PECL | 2.375 to 2.625 V | 0 to 70 °C |
Q3805CA00004600 | EG-2121CA | 161.132800MHz | 7.00x5.00x1.20mm | LV-PECL | 2.375 to 2.625 V | 0 to 70 °C |
Q3805CA00004700 | EG-2121CA | 156.250000MHz | 7.00x5.00x1.20mm | LV-PECL | 2.375 to 2.625 V | -5 to 85 °C |
Q3805CA00004800 | EG-2121CA | 100.000000MHz | 7.00x5.00x1.20mm | LV-PECL | 2.375 to 2.625 V | 0 to 70 °C |
Q3805CA00004900 | EG-2121CA | 350.000000MHz | 7.00x5.00x1.20mm | LV-PECL | 2.375 to 2.625 V | 0 to 70 °C |
Q3805CA00005000 | EG-2121CA | 175.000000MHz | 7.00x5.00x1.20mm | LV-PECL | 2.375 to 2.625 V | 0 to 70 °C |
Q3805CA00005100 | EG-2121CA | 400.000000MHz | 7.00x5.00x1.20mm | LV-PECL | 2.375 to 2.625 V | 0 to 70 °C |
Q3805CA00005200 | EG-2121CA | 156.250000MHz | 7.00x5.00x1.20mm | LV-PECL | 2.375 to 2.625 V | -5 to 85 °C |
Q3805CA00005300 | EG-2121CA | 100.000000MHz | 7.00x5.00x1.20mm | LV-PECL | 2.375 to 2.625 V | -5 to 85 °C |
Q3805CA00005400 | EG-2121CA | 100.000000MHz | 7.00x5.00x1.20mm | LV-PECL | 2.375 to 2.625 V | 0 to 70 °C |
Q3805CA00005500 | EG-2121CA | 159.375000MHz | 7.00x5.00x1.20mm | LV-PECL | 2.375 to 2.625 V | 0 to 70 °C |
Q3805CA00005600 | EG-2121CA | 311.040000MHz | 7.00x5.00x1.20mm | LV-PECL | 2.375 to 2.625 V | -5 to 85 °C |
Q3805CA00005700 | EG-2121CA | 175.000000MHz | 7.00x5.00x1.20mm | LV-PECL | 2.375 to 2.625 V | 0 to 70 °C |
Q3805CA00005800 | EG-2121CA | 350.000000MHz | 7.00x5.00x1.20mm | LV-PECL | 2.375 to 2.625 V | 0 to 70 °C |
Q3805CA00005900 | EG-2121CA | 125.000000MHz | 7.00x5.00x1.20mm | LV-PECL | 2.375 to 2.625 V | 0 to 70 °C |
Q3805CA00006000 | EG-2121CA | 312.500000MHz | 7.00x5.00x1.20mm | LV-PECL | 2.375 to 2.625 V | 0 to 70 °C |
Q3805CA00006100 | EG-2121CA | 156.250000MHz | 7.00x5.00x1.20mm | LV-PECL | 2.375 to 2.625 V | 0 to 70 °C |
Q3805CA00006200 | EG-2121CA | 100.000000MHz | 7.00x5.00x1.20mm | LV-PECL | 2.375 to 2.625 V | 0 to 70 °C |
Q3805CA00006300 | EG-2121CA | 156.250000MHz | 7.00x5.00x1.20mm | LV-PECL | 2.375 to 2.625 V | 0 to 70 °C |
Q3805CA00006400 | EG-2121CA | 133.000000MHz | 7.00x5.00x1.20mm | LV-PECL | 2.375 to 2.625 V | -5 to 85 °C |
Q3805CA00006500 | EG-2121CA | 125.000000MHz | 7.00x5.00x1.20mm | LV-PECL | 2.375 to 2.625 V | 0 to 70 °C |
Q3805CA00006600 | EG-2121CA | 159.375000MHz | 7.00x5.00x1.20mm | LV-PECL | 2.375 to 2.625 V | 0 to 70 °C |
Q3805CA00006700 | EG-2121CA | 230.000000MHz | 7.00x5.00x1.20mm | LV-PECL | 2.375 to 2.625 V | 0 to 70 °C |
Q3805CA00006800 | EG-2121CA | 350.000000MHz | 7.00x5.00x1.20mm | LV-PECL | 2.375 to 2.625 V | 0 to 70 °C |
Q3805CA00006900 | EG-2121CA | 150.000000MHz | 7.00x5.00x1.20mm | LV-PECL | 2.375 to 2.625 V | -5 to 85 °C |
Q3805CA00007000 | EG-2121CA | 156.250000MHz | 7.00x5.00x1.20mm | LV-PECL | 2.375 to 2.625 V | 0 to 70 °C |
Q3805CA00007100 | EG-2121CA | 155.520000MHz | 7.00x5.00x1.20mm | LV-PECL | 2.375 to 2.625 V | 0 to 70 °C |
Q3805CA00007200 | EG-2121CA | 62.500000MHz | 7.00x5.00x1.20mm | LV-PECL | 2.375 to 2.625 V | 0 to 70 °C |
Q3805CA00007300 | EG-2121CA | 328.710900MHz | 7.00x5.00x1.20mm | LV-PECL | 2.375 to 2.625 V | 0 to 70 °C |
差分晶振常见的是3225晶振,5032晶振,7050晶振三种封装尺寸,文中所列举的是爱普生7050体积的部分贴片差分晶振编码.均为较高的频率点,为输出LV-PECL方式,电源电压范围2.5V/3.3V,振荡启动时间在电源电压最低时,所需时间为0秒.爱普生差分晶振具有性能强,精密稳定,低电压的特征,普遍用于对于高速网络要求的应用.
