DSA1101BL2-027.0000TVAO|低功耗CMOS振荡器|汽车摄像头模块晶振
频率：27MHz
尺寸：5.0×3.2mm
DSA1101BL2-027.0000TVAO|低功耗CMOS振荡器|汽车摄像头模块晶振,Microchip晶振,DSA1101低功耗晶振,DSA1101BL2-027.0000TVAO晶振,5032贴片晶振,低相噪晶振,低抖动晶振,CMOS石英晶体振荡器,频率27MHz,电压3.3V,频率稳定性25ppm,工作温度-40~105°C,汽车信息娱乐系统晶振, 汽车ADAS应用晶振, 汽车摄像头模块晶振,汽车激光雷达和雷达晶振.
订购热线：0755-27838351
DSA1101BL2-027.0000TVAO|低功耗CMOS振荡器|汽车摄像头模块晶振,Microchip晶振,DSA1101低功耗晶振,DSA1101BL2-027.0000TVAO晶振,5032贴片晶振,低相噪晶振,低抖动晶振,CMOS石英晶体振荡器,频率27MHz,电压3.3V,频率稳定性25ppm,工作温度-40~105°C,汽车信息娱乐系统晶振, 汽车ADAS应用晶振, 汽车摄像头模块晶振,汽车激光雷达和雷达晶振.

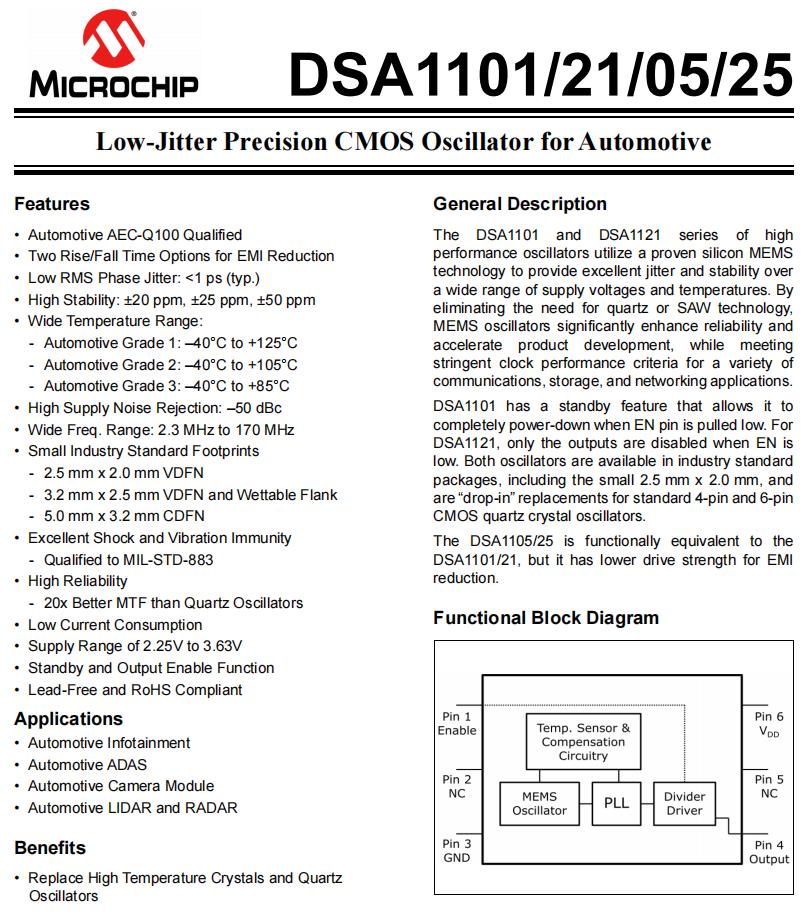

DSA1101BL2-027.0000TVAO|低功耗CMOS振荡器|汽车摄像头模块晶振特点：
•汽车AEC-Q100认证
•两个上升/下降时间选项，用于降低EMI
•低均方根相位抖动:< 1 ps(典型值)
•频率范围:2.3 MHz至170 MHz
•高稳定性 - 20 ppm、25 ppm、50 ppm
•工作电压范围2.25至3.63V
•高电源噪声抑制:–50 dBc
•工作温度范围
-汽车级1:–40°C至+125°
-汽车级2:–40°C至105°C
-汽车级3:–40°C至85°C
•低工作和待机电流
- 6mA工作电流(1MHz)
- 15µA待机(最大值)
•超小型尺寸
-2.5x 2.0mmVDFN
- 3.2x 2.5mmVDFN
- 5.0x 3.2x mmCDFN
•出色的抗冲击和振动能力
-符合MIL-STD 883
•无铅、符合RoHS、Reach SVHC标准
•高可靠性
-MTF比石英振荡器高20倍
DSA1101BL2-027.0000TVAO|低功耗CMOS振荡器|汽车摄像头模块晶振参数图
| 项目 | 规格说明 | 条件 |
| 额定频率 | 27MHz | 请联系我们以便获取其它可用频率的相关信息 |
| 电源电压 | 3.3V |
|
| 储存温度 | -40℃~+150℃ | 裸存 |
| 工作温度 | -40℃~ +105℃ |
|
| 频率稳定度 | ±25ppm | 所有温度范围 |
| 老化 |
±5ppm |
1 year @ +25°C |
| 电流 | 35mA Max | EN pin high, output is enabled CL = 15 pF, FO = 100 MHz |
| 占空比 | 45%~55% |
|
| 输出逻辑电平低（Vol） |
0.1 x VDDV Max |
I = ±6 mA |
| 输出逻辑电平高（Voh） | 0.9 x VDDV Min | |
| 起始时间 | 5ms Max |
T = +25°C |
| 输出上升下降时间 | 2.0ns Max |
3.3V, CL=15pF; T=25°C 20%/80%*VDD |
| 周期抖动 | 3ps RMS Max |
f= 125 MHz |
| 积分相位噪声 | 0.3ps Typ |
200 kHz to 20 MHz @ 125 MHz |

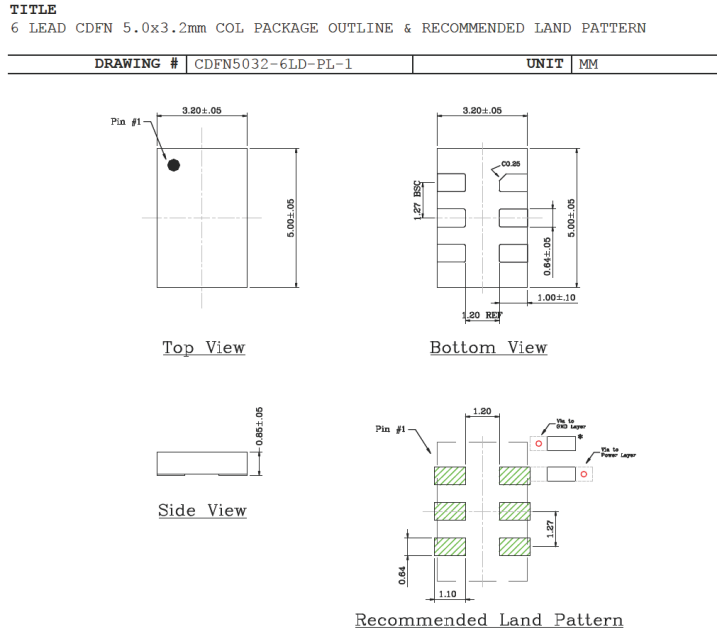

DSA1101BL2-027.0000TVAO|低功耗CMOS振荡器|汽车摄像头模块晶振尺寸图
| 原厂代码 | 晶振品牌 | 型号 | 类型 | 频率 | 电压 | 尺寸 |
| DSC1123BL2-125.0000 | Microchip Technology | DSC1123 | MEMS (Silicon) | 125MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1030BC1-008.0000 | Microchip Technology | DSC1030 | MEMS (Silicon) | 8MHz | 3V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BC1-024.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 24MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1033BC1-026.6000 | Microchip Technology | DSC1033 | MEMS (Silicon) | 26MHz | 3.3V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1033BE2-024.0000 | Microchip Technology | DSC1033 | MEMS (Silicon) | 24MHz | 3.3V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1101BI5-133.0000 | Microchip Technology | DSC1101 | MEMS (Silicon) | 133MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1123BL5-156.2500 | Microchip Technology | DSC1123 | MEMS (Silicon) | 156.25MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1123BI2-100.0000 | Microchip Technology | DSC1123 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1103BI2-148.5000 | Microchip Technology | DSC1103 | MEMS (Silicon) | 148.5MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1103BI2-135.0000 | Microchip Technology | DSC1103 | MEMS (Silicon) | 135MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1102BI2-125.0000 | Microchip Technology | DSC1102 | MEMS (Silicon) | 125MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1102BI2-153.6000 | Microchip Technology | DSC1102 | MEMS (Silicon) | 153.6MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| MX553BBD156M250 | Microchip Technology | MX55 | XO (Standard) | 156.25MHz | 2.375 V ~ 3.63 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| MX554BBD322M265 | Microchip Technology | MX55 | XO (Standard) | 322.265625MHz | 2.375 V ~ 3.63 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BM1-024.0000 | Microchip Technology | DSC1121 | MEMS (Silicon) | 24MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1104BE2-100.0000 | Microchip Technology | DSC1104 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1103BI2-100.0000T | Microchip Technology | DSC1103 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1103BI2-100.0000T | Microchip Technology | DSC1103 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1103BI2-100.0000T | Microchip Technology | DSC1103 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BI2-080.0000 | Microchip Technology | DSC1121 | MEMS (Silicon) | 80MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1122BE1-156.2500T | Microchip Technology | DSC1122 | MEMS (Silicon) | 156.25MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1122BE1-156.2500T | Microchip Technology | DSC1122 | MEMS (Silicon) | 156.25MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1122BE1-156.2500T | Microchip Technology | DSC1122 | MEMS (Silicon) | 156.25MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1122BI1-100.0000 | Microchip Technology | DSC1122 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1122BI2-100.0000 | Microchip Technology | DSC1122 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1122BI2-114.2850 | Microchip Technology | DSC1122 | MEMS (Silicon) | 114.285MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1122BI2-155.5200 | Microchip Technology | DSC1122 | MEMS (Silicon) | 155.52MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1122BI2-156.2500 | Microchip Technology | DSC1122 | MEMS (Silicon) | 156.25MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1102BI1-100.0000 | Microchip Technology | DSC1102 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1123BI5-156.2500T | Microchip Technology | DSC1123 | MEMS (Silicon) | 156.25MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1123BI5-156.2500T | Microchip Technology | DSC1123 | MEMS (Silicon) | 156.25MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1123BI5-156.2500T | Microchip Technology | DSC1123 | MEMS (Silicon) | 156.25MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1103BL5-062.5000 | Microchip Technology | DSC1103 | MEMS (Silicon) | 62.5MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| MX553BBA312M500 | Microchip Technology | MX55 | XO (Standard) | 312.5MHz | 2.375 V ~ 3.63 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1033BE1-050.0000 | Microchip Technology | DSC1033 | MEMS (Silicon) | 50MHz | 3.3V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1033BI2-027.1200 | Microchip Technology | DSC1033 | MEMS (Silicon) | 27.12MHz | 3.3V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BE2-010.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 10MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI1-048.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 48MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI1-010.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 10MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI1-020.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 20MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI1-024.5760 | Microchip Technology | DSC1001 | MEMS (Silicon) | 24.576MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI1-027.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 27MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-014.3181 | Microchip Technology | DSC1001 | MEMS (Silicon) | 14.3181MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-014.7456 | Microchip Technology | DSC1001 | MEMS (Silicon) | 14.7456MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-016.3840 | Microchip Technology | DSC1001 | MEMS (Silicon) | 16.384MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-040.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 40MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI1-024.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 24MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI1-025.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 25MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-012.5000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 12.5MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI1-040.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 40MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI1-050.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 50MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-024.5760 | Microchip Technology | DSC1001 | MEMS (Silicon) | 24.576MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1033BI1-025.0000 | Microchip Technology | DSC1033 | MEMS (Silicon) | 25MHz | 3.3V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-005.5296 | Microchip Technology | DSC1001 | MEMS (Silicon) | 5.5296MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-025.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 25MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-004.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 4MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-010.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 10MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-013.0810 | Microchip Technology | DSC1001 | MEMS (Silicon) | 13.081MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-054.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 54MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-012.2888 | Microchip Technology | DSC1001 | MEMS (Silicon) | 12.2888MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BL1-060.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 60MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BE1-125.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 125MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BL2-020.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 20MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-125.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 125MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BE5-064.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 64MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124BI1-100.0000 | Microchip Technology | DSC1124 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI5-013.5600 | Microchip Technology | DSC1001 | MEMS (Silicon) | 13.56MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI5-040.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 40MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124BI2-100.0000 | Microchip Technology | DSC1124 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BL5-010.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 10MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BL5-016.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 16MHz | 1.7 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BL5-064.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 64MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BL5-095.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 95MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI5-090.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 90MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| MX555ABA50M0000 | Microchip Technology | MX55 | XO (Standard) | 50MHz | 2.375 V ~ 3.63 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BI2-012.2880 | Microchip Technology | DSC1121 | MEMS (Silicon) | 12.288MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1033BC2-012.0000 | Microchip Technology | DSC1033 | MEMS (Silicon) | 12MHz | 3.3V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BC1-020.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 20MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI1-004.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 4MHz | 1.7 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI1-033.3330 | Microchip Technology | DSC1001 | MEMS (Silicon) | 33.333MHz | 1.7 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-006.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 6MHz | 1.7 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-030.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 30MHz | 1.7 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1033BI1-004.0000 | Microchip Technology | DSC1033 | MEMS (Silicon) | 4MHz | 3.3V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-026.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 26MHz | 1.7 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-033.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 33MHz | 1.7 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-018.4320 | Microchip Technology | DSC1001 | MEMS (Silicon) | 18.432MHz | 1.7 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1033BI1-032.0000 | Microchip Technology | DSC1033 | MEMS (Silicon) | 32MHz | 3.3V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-012.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 12MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-050.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 50MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI1-008.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 8MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1018BC1-054.0000 | Microchip Technology | DSC1018 | MEMS (Silicon) | 54MHz | 1.8V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1018BC1-100.0000 | Microchip Technology | DSC1018 | MEMS (Silicon) | 100MHz | 1.8V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BL1-016.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 16MHz | 1.7 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI1-100.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 100MHz | 1.7 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-133.3330T | Microchip Technology | DSC1001 | MEMS (Silicon) | 133.333MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-133.3330T | Microchip Technology | DSC1001 | MEMS (Silicon) | 133.333MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-133.3330T | Microchip Technology | DSC1001 | MEMS (Silicon) | 133.333MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BI2-100.0000T | Microchip Technology | DSC1121 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BI2-100.0000T | Microchip Technology | DSC1121 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BI2-100.0000T | Microchip Technology | DSC1121 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI5-008.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 8MHz | 1.7 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI5-020.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 20MHz | 1.7 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI5-010.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 10MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124BI2-125.0000 | Microchip Technology | DSC1124 | MEMS (Silicon) | 125MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BL5-050.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 50MHz | 1.7 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI5-133.3330 | Microchip Technology | DSC1001 | MEMS (Silicon) | 133.333MHz | 1.7 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1122BI5-036.7000 | Microchip Technology | DSC1122 | MEMS (Silicon) | 36.7MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1123BI5-156.2500 | Microchip Technology | DSC1123 | MEMS (Silicon) | 156.25MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BL2-050.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 50MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BE2-100.0000T | Microchip Technology | DSC1121 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BE2-100.0000 | Microchip Technology | DSC1121 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1101BI5-050.0000T | Microchip Technology | DSC1101 | MEMS (Silicon) | 50MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BI2-013.0000T | Microchip Technology | DSC1121 | MEMS (Silicon) | 13MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BI2-025.0000T | Microchip Technology | DSC1121 | MEMS (Silicon) | 25MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BI2-025.0007T | Microchip Technology | DSC1121 | MEMS (Silicon) | 25MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BI2-048.0000T | Microchip Technology | DSC1121 | MEMS (Silicon) | 48MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BI2-050.0000T | Microchip Technology | DSC1121 | MEMS (Silicon) | 50MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BI2-012.2880T | Microchip Technology | DSC1121 | MEMS (Silicon) | 12.288MHz | 2.25 V ~ 3.6V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BI2-050.0000 | Microchip Technology | DSC1121 | MEMS (Silicon) | 50MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BI2-025.0000 | Microchip Technology | DSC1121 | MEMS (Silicon) | 25MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1033BC2-012.0000T | Microchip Technology | DSC1033 | MEMS (Silicon) | 12MHz | 3.3V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1033BC2-024.0000T | Microchip Technology | DSC1033 | MEMS (Silicon) | 24MHz | 3.3V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BC1-020.0000T | Microchip Technology | DSC1001 | MEMS (Silicon) | 20MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BC1-024.0000T | Microchip Technology | DSC1001 | MEMS (Silicon) | 24MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1030BC1-008.0000T | Microchip Technology | DSC1030 | MEMS (Silicon) | 8MHz | 3V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1030BC1-025.0000T | Microchip Technology | DSC1030 | MEMS (Silicon) | 25MHz | 3V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1030BC1-027.0000T | Microchip Technology | DSC1030 | MEMS (Silicon) | 27MHz | 3V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1030BC1-040.0000T | Microchip Technology | DSC1030 | MEMS (Silicon) | 40MHz | 3V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1030BC1-050.0000T | Microchip Technology | DSC1030 | MEMS (Silicon) | 50MHz | 3V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1030BE1-012.0000T | Microchip Technology | DSC1030 | MEMS (Silicon) | 12MHz | 3V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1033BC1-026.6000T | Microchip Technology | DSC1033 | MEMS (Silicon) | 26MHz | 3.3V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1033BE1-026.0000T | Microchip Technology | DSC1033 | MEMS (Silicon) | 26MHz | 3.3V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1030BC1-024.5760 | Microchip Technology | DSC1030 | MEMS (Silicon) | 24.576MHz | 3V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1033BE1-004.0625 | Microchip Technology | DSC1033 | MEMS (Silicon) | 4.0625MHz | 3.3V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1033BE1-004.0960 | Microchip Technology | DSC1033 | MEMS (Silicon) | 4.096MHz | 3.3V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BC1-050.0000T | Microchip Technology | DSC1001 | MEMS (Silicon) | 50MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1030BC1-003.6864T | Microchip Technology | DSC1030 | MEMS (Silicon) | 3.6864MHz | 3V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BE1-024.0000T | Microchip Technology | DSC1001 | MEMS (Silicon) | 24MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BE1-016.0000T | Microchip Technology | DSC1001 | MEMS (Silicon) | 16MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BE1-025.0000T | Microchip Technology | DSC1001 | MEMS (Silicon) | 25MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BE1-048.0000T | Microchip Technology | DSC1001 | MEMS (Silicon) | 48MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BE2-012.0000T | Microchip Technology | DSC1001 | MEMS (Silicon) | 12MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI1-004.0000T | Microchip Technology | DSC1001 | MEMS (Silicon) | 4MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BE1-025.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 25MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1033BI2-024.0000T | Microchip Technology | DSC1033 | MEMS (Silicon) | 24MHz | 3.3V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1033BI2-025.0000T | Microchip Technology | DSC1033 | MEMS (Silicon) | 25MHz | 3.3V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1033BI2-027.0000T | Microchip Technology | DSC1033 | MEMS (Silicon) | 27MHz | 3.3V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1033BI2-048.0000T | Microchip Technology | DSC1033 | MEMS (Silicon) | 48MHz | 3.3V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1033BI2-048.4610T | Microchip Technology | DSC1033 | MEMS (Silicon) | 48.461MHz | 3.3V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1033BI2-025.0000 | Microchip Technology | DSC1033 | MEMS (Silicon) | 25MHz | 3.3V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BE1-050.0000T | Microchip Technology | DSC1001 | MEMS (Silicon) | 50MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1004BI2-010.0000T | Microchip Technology | DSC1004 | MEMS (Silicon) | 10MHz | 1.8 ~ 3.3V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BE1-040.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 40MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BE1-048.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 48MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BE1-050.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 50MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BE2-024.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 24MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BE2-025.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 25MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BE2-033.3330 | Microchip Technology | DSC1001 | MEMS (Silicon) | 33.333MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
精工富士晶振-康华尔正规渠道指定供应商
服务热线：0755-27838351
手机联系：138-2330-0879
Q Q联系：632862232
邮 箱：konuaer@163.com
地 址：广东深圳市宝安区宝安大道东95号浙商大厦1905

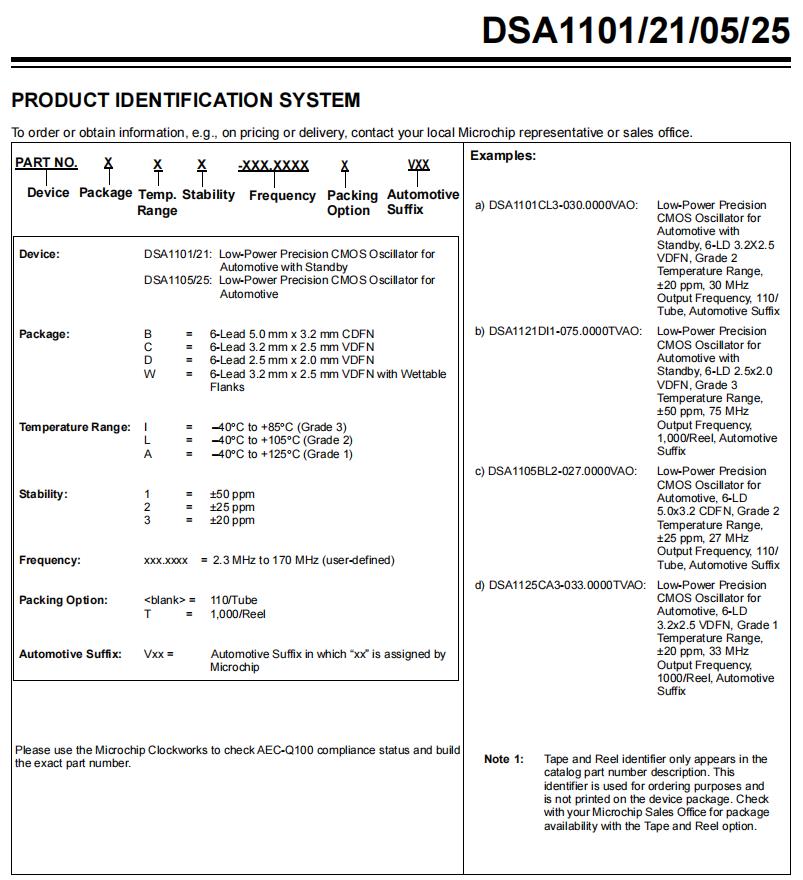

采购：DSA1101BL2-027.0000TVAO|低功耗CMOS振荡器|汽车摄像头模块晶振
- *联系人：
- *手机：
- 公司名称：
- 邮箱：
- *采购意向：
-
*验证码：
跟此产品相关的产品 / Related Products
- 百利通亚陶晶振,石英晶振,FYQ晶振
- 贴片石英晶体,体积小,焊接可采用自动贴片系统,产品本身小型,表面贴片晶振,特别适用于有小型化要求的电子数码产品市场领域,因产品小型,薄型优势,耐环境特性,包括耐高温,耐冲击性等,在移动通信领域得到了广泛的应用,晶振产品本身可发挥优良的电气特性,满足无铅焊接的高温回流温度曲线要求.
- 500DABB156M250ACHR,Si500D,Skyworks差分晶振,LVPECL输出振荡器
- 500DABB156M250ACHR,Si500D,Skyworks差分晶振,LVPECL输出振荡器，Skyworks晶振，思佳讯晶振，美国进口晶振，型号：Si500D系列贴片晶振，编码为：500DABB156M250ACHR，频率为：156.25MHz，电压：3.3V，频率稳定性：±250ppm，工作温度范围：0℃至+85℃，小体积晶振尺寸：5.0x3.2mm封装，六脚贴片晶振，石英晶振，有源晶振，LVPECL输出贴片差分晶振，差分晶体振荡器，石英晶体振荡器。具有超小型，轻薄型，低抖动，低功耗，低损耗，低耗能，低电源电压，低电平等特点。被广泛用于：通讯设备，无线网络，路由器晶振，以太网晶振，光纤通信晶振，物联网等应用。
- ABDFTCXO-24.576MHZ-L-2-T2,Abracon温补晶振,低电压晶振
- ABDFTCXO-24.576MHZ-L-2-T2,Abracon温补晶振,低电压晶振，美国进口晶振，Abracon晶振，艾博康晶振，型号：ABDFTCXO系列，编码为：ABDFTCXO-24.576MHZ-L-2-T2，频率：24.576MHz，电压：3.3V，频率稳定性：±280ppb，工作温度范围：-40℃至+85℃，LVCMOS输出TCXO温补晶振，小体积晶振尺寸：14.0x9.0x3.0mm封装，10垫脚贴片晶振，石英晶振，有源晶振，石英晶体振荡器。具有低抖动，低功耗，低耗能，低损耗，低电源电压，低电平等特点。应用程序：通信晶振，网络晶振，同步以太网晶振，IEEE1588，仪器晶振、测试和测量晶振，车载控制器晶振等应用。
康华尔产品中心
Product Center
精工晶振
富士晶振
雾化片
石英晶振
石英晶体振荡器
贴片晶振
32.768KHz晶振
欧美进口晶振
- KDS晶振
- 爱普生晶振
- NDK晶振
- 京瓷晶振
- 西铁城晶振
- 村田晶振
- 大河晶振
- CTS晶振
- 微晶晶振
- 瑞康晶振
- 康纳温菲尔德晶振
- 高利奇晶振
- Jauch晶振
- AbraconCrystal
- 维管晶振
- ECS晶振
- 日蚀晶振
- 拉隆晶振
- 格林雷晶振
- SiTime晶振
- IDT晶振
- Statek晶振
- Pletronics晶振
- ACT晶振
- MTI-Milliren晶振
- LiHom晶振
- 美国Rubyquartz晶振
- Oscilent晶振
- 日本纳卡晶振
- SHINSUNG晶振
- ITTI晶振
- SMI晶振
- PDI晶振
- C-TECH晶振
- NJR晶振
- IQD晶振
- Microchip晶振
- Silicon晶振
- Fortiming晶振
- CORE晶振
- NIPPON晶振
- NIC晶振
- QVS晶振
- Bomar晶振
- Bliley晶振
- GED晶振
- Filtronetics晶振
- STD晶振
- Q-Tech晶振
- Anderson晶振
- Wenzel晶振
- NEL晶振
- EM晶振
- PETERMANN晶振
- FCD-Tech晶振
- HEC晶振
- FMI晶振
- Macrobizes晶振
- AXTAL晶振
- SUNNY晶振
- ARGO晶振
- Skyworks晶振
- 瑞萨renesas晶振
谐振器/滤波器
数码电子产品
汽车电子产品
新增进口品牌
温补晶振
差分晶振
恒温晶振
联系康华尔Contact us
咨询热线
0755-27838351
电话：0755-27838351
手机：138 2330 0879
QQ：632862232
邮箱： konuaer@163.com
地址：广东深圳市宝安区宝安大道东95号浙商大厦1905
康华尔公众号
