DSC1001DE5-150.0000|Microchip石英贴片晶体|6G基站晶振
频率：150MHz
尺寸：2.5×2.0mm
DSC1001DE5-150.0000|Microchip石英贴片晶体|6G基站晶振,美国Microchip石英贴片晶体,型号DSC1001,编码DSC1001DE5-150.0000,是一款基于硅MEMS的CMOS有源晶振系列,在广泛的电源电压和温度范围内提供出色的抖动和稳定性性能,尺寸2520mm,频率150MHz,电压3.3V,频率稳定性10ppm,工作温度-20~70°C,6G基站晶振,消费电子产品晶振,便携式电子产品晶振,工业应用晶振.
订购热线：0755-27838351
DSC1001DE5-150.0000|Microchip石英贴片晶体|6G基站晶振,美国Microchip石英贴片晶体,型号DSC1001,编码DSC1001DE5-150.0000,是一款基于硅MEMS的CMOS振荡器系列,在广泛的电源电压和温度范围内提供出色的抖动和稳定性性能,尺寸2520mm,频率150MHz,电压3.3V,频率稳定性10ppm,工作温度-20~70°C,6G基站晶振,消费电子产品晶振,便携式电子产品晶振,工业应用晶振.
DSC1001DE5-150.0000|Microchip石英贴片晶体|6G基站晶振特点：
•频率范围:1mhz ~ 150mhz
•特殊的温度稳定性-±10ppm，±20ppm，±25ppm，±50ppm
•工作电压- 1.7 ~ 3.6V
•工作温度范围
-Ext.工业- 40°C至105°C
-工业用- 40℃~ 85℃
-商用—20℃~ 70℃
•低工作和待机电流
- 6ma工作(1mhz)
- 15µA待机(最大)
•超微型足迹
- 2.5 mm × 2.0 mm × 0.85 mm
- 3.2 mm × 2.5 mm × 0.85 mm
- 5.0 mm × 3.2 mm × 0.85 mm
- 7.0 mm × 5.0 mm × 0.85 mm
•MIL-STD 883抗冲击和振动
•无铅，RoHS，达到SVHC标准
•AEC-Q100
DSC1001DE5-150.0000|Microchip石英贴片晶体|6G基站晶振参数图
| 项目 | 规格说明 | 条件 |
| 额定频率 | 150MHz | 请联系我们以便获取其它可用频率的相关信息 |
| 电源电压 | 3.3V |
|
| 储存温度 | -55℃~+150℃ | 裸存 |
| 工作温度 | -20℃~ +70℃ |
|
| 频率稳定度 | ±10ppm | 包括由初始公差、温度和电源电压引起的频率变化 |
| 老化 |
±5ppm |
1 year @ +25°C |
| 电流 | 15µA Max | T = +25°C |
| 负载 | 15pf |
|
| 空载电流 | 16.6mA |
150 MHz |
| 输出逻辑电平低（Vol） | 0.2x VDD Max |
–4 mA, DSC1001, CL = 15 pF |
| 输出逻辑电平高（Voh） | 0.8x VDD Max |
–4 mA, DSC1001, CL = 15 pF |
|
输出上升下降时间 |
2ns Max |
DSC1001, CL = 15 pF |
| 起始时间 | 10ms Max |
|
| 抖动最大Cycle-to-Cycle | 50ps Typ | f = 100 MHz |
|
周期抖动 |
10ps |
100MHz,RMS |

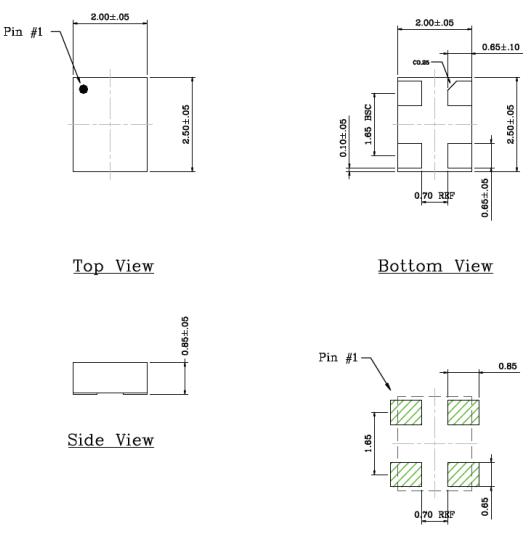

DSC1001DE5-150.0000|Microchip石英贴片晶体|6G基站晶振 尺寸图
| 原厂代码 | 晶振品牌 | 型号 | 类型 | 频率 | 电压 | 尺寸 |
| DSC1123CI2-125.0000 | Microchip Technology | DSC1123 | MEMS (Silicon) | 125MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1123CI2-200.0000 | Microchip Technology | DSC1123 | MEMS (Silicon) | 200MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI2-027.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 27MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1123CE1-156.2500 | Microchip Technology | DSC1123 | MEMS (Silicon) | 156.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1123CI2-150.0000 | Microchip Technology | DSC1123 | MEMS (Silicon) | 150MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1123CI2-100.0000 | Microchip Technology | DSC1123 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1123CI2-156.2500 | Microchip Technology | DSC1123 | MEMS (Silicon) | 156.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1123CI5-125.0000 | Microchip Technology | DSC1123 | MEMS (Silicon) | 125MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CI5-300.0000 | Microchip Technology | DSC1103 | MEMS (Silicon) | 300MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI2-018.4320 | Microchip Technology | DSC1001 | MEMS (Silicon) | 18.432MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1123CI1-200.0000 | Microchip Technology | DSC1123 | MEMS (Silicon) | 200MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1123CI1-156.2500 | Microchip Technology | DSC1123 | MEMS (Silicon) | 156.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1122CE1-125.0000 | Microchip Technology | DSC1122 | MEMS (Silicon) | 125MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CI1-075.0000 | Microchip Technology | DSC1103 | MEMS (Silicon) | 75MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC6003CI1A-033.0000 | Microchip Technology | DSC60XX | MEMS (Silicon) | 33MHz | 1.71 V ~ 3.63 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC6111CI1A-008.0000 | Microchip Technology | DSC6100 | MEMS (Silicon) | 8MHz | 1.71 V ~ 3.63 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC6083CI2A-032K800 | Microchip Technology | DSC60XX | MEMS (Silicon) | 32.8kHz | 1.71 V ~ 3.63 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC6083CI2A-307K000 | Microchip Technology | DSC60XX | MEMS (Silicon) | 307kHz | 1.71 V ~ 3.63 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC6001CI2A-004.0000 | Microchip Technology | DSC60XX | MEMS (Silicon) | 4MHz | 1.71 V ~ 3.63 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC6001CI2A-032.0000 | Microchip Technology | DSC60XX | MEMS (Silicon) | 32MHz | 1.71 V ~ 3.63 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC6083CI2A-250K000 | Microchip Technology | DSC60XX | MEMS (Silicon) | 250kHz | 1.71 V ~ 3.63 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC6083CI2A-002K000 | Microchip Technology | DSC60XX | MEMS (Silicon) | 2kHz | 1.71 V ~ 3.63 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CC1-047.3333 | Microchip Technology | DSC1001 | MEMS (Silicon) | 47.3333MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1033CI1-048.0000 | Microchip Technology | DSC1033 | MEMS (Silicon) | 48MHz | 3.3V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1033CI1-024.0000 | Microchip Technology | DSC1033 | MEMS (Silicon) | 24MHz | 3.3V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI1-027.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 27MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1033CI1-050.0000 | Microchip Technology | DSC1033 | MEMS (Silicon) | 50MHz | 3.3V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC6001CI1A-011.0592 | Microchip Technology | DSC60XX | MEMS (Silicon) | 11.0592MHz | 1.71 V ~ 3.63 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI2-024.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 24MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI5-033.3333 | Microchip Technology | DSC1001 | MEMS (Silicon) | 33.3333MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124CI5-100.0000 | Microchip Technology | DSC1124 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CM2-040.0000 | Microchip Technology | DSC1121 | MEMS (Silicon) | 40MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1101CL5-100.0000 | Microchip Technology | DSC1101 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1123CE1-125.0000 | Microchip Technology | DSC1123 | MEMS (Silicon) | 125MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1123CI2-333.3333 | Microchip Technology | DSC1123 | MEMS (Silicon) | 333.3333MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1123CI2-020.0000 | Microchip Technology | DSC1123 | MEMS (Silicon) | 20MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CE1-125.0000 | Microchip Technology | DSC1103 | MEMS (Silicon) | 125MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1123CI1-027.0000 | Microchip Technology | DSC1123 | MEMS (Silicon) | 27MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1123CI2-333.3300 | Microchip Technology | DSC1123 | MEMS (Silicon) | 333.33MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1123CI5-100.0000 | Microchip Technology | DSC1123 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1123CI5-156.2500 | Microchip Technology | DSC1123 | MEMS (Silicon) | 156.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI2-066.6666B | Microchip Technology | DSC1001 | MEMS (Silicon) | 66.6666MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI2-066.6666B | Microchip Technology | DSC1001 | MEMS (Silicon) | 66.6666MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI2-066.6666B | Microchip Technology | DSC1001 | MEMS (Silicon) | 66.6666MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1101CM2-062.2080T | Microchip Technology | DSC1101 | MEMS (Silicon) | 62.208MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1101CM2-062.2080T | Microchip Technology | DSC1101 | MEMS (Silicon) | 62.208MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1101CM2-062.2080T | Microchip Technology | DSC1101 | MEMS (Silicon) | 62.208MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1101CI5-020.0000T | Microchip Technology | DSC1101 | MEMS (Silicon) | 20MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1101CI5-020.0000T | Microchip Technology | DSC1101 | MEMS (Silicon) | 20MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1101CI5-020.0000T | Microchip Technology | DSC1101 | MEMS (Silicon) | 20MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1123CI2-125.0000T | Microchip Technology | DSC1123 | MEMS (Silicon) | 125MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1101CL5-014.7456 | Microchip Technology | DSC1101 | MEMS (Silicon) | 14.7456MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124CI2-156.2500 | Microchip Technology | DSC1124 | MEMS (Silicon) | 156.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124CI5-100.0000T | Microchip Technology | DSC1124 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124CI5-100.0000T | Microchip Technology | DSC1124 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124CI5-100.0000T | Microchip Technology | DSC1124 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1104CI5-125.0000 | Microchip Technology | DSC1104 | MEMS (Silicon) | 125MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1123CI1-022.8800T | Microchip Technology | DSC1123 | MEMS (Silicon) | 22.88MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1123CI1-022.8800T | Microchip Technology | DSC1123 | MEMS (Silicon) | 22.88MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1123CI1-022.8800T | Microchip Technology | DSC1123 | MEMS (Silicon) | 22.88MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1123CI2-212.5000 | Microchip Technology | DSC1123 | MEMS (Silicon) | 212.5MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1122CI2-103.1250 | Microchip Technology | DSC1122 | MEMS (Silicon) | 103.125MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1123CI1-122.8800 | Microchip Technology | DSC1123 | MEMS (Silicon) | 122.88MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CE1-200.0000T | Microchip Technology | DSC1103 | MEMS (Silicon) | 200MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CE1-200.0000T | Microchip Technology | DSC1103 | MEMS (Silicon) | 200MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CE1-200.0000T | Microchip Technology | DSC1103 | MEMS (Silicon) | 200MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CE1-156.2500T | Microchip Technology | DSC1103 | MEMS (Silicon) | 156.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CE1-156.2500T | Microchip Technology | DSC1103 | MEMS (Silicon) | 156.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CE1-156.2500T | Microchip Technology | DSC1103 | MEMS (Silicon) | 156.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1122CI1-156.2500 | Microchip Technology | DSC1122 | MEMS (Silicon) | 156.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1101CM1-075.0000 | Microchip Technology | DSC1101 | MEMS (Silicon) | 75MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1101CM1-033.3333 | Microchip Technology | DSC1101 | MEMS (Silicon) | 33.3333MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1101CM1-005.0000 | Microchip Technology | DSC1101 | MEMS (Silicon) | 5MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1123CE5-100.0000 | Microchip Technology | DSC1123 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1102CI5-150.0000T | Microchip Technology | DSC1102 | MEMS (Silicon) | 150MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1102CI5-150.0000T | Microchip Technology | DSC1102 | MEMS (Silicon) | 150MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1102CI5-150.0000T | Microchip Technology | DSC1102 | MEMS (Silicon) | 150MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CI5-224.8200 | Microchip Technology | DSC1103 | MEMS (Silicon) | 224.82MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CL5-106.2500T | Microchip Technology | DSC1103 | MEMS (Silicon) | 106.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CL5-106.2500T | Microchip Technology | DSC1103 | MEMS (Silicon) | 106.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CL5-106.2500T | Microchip Technology | DSC1103 | MEMS (Silicon) | 106.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124CI1-156.2500TA | Microchip Technology | DSC1124 | MEMS (Silicon) | 156.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124CI1-156.2500TA | Microchip Technology | DSC1124 | MEMS (Silicon) | 156.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124CI1-156.2500TA | Microchip Technology | DSC1124 | MEMS (Silicon) | 156.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC6111CI1A-016.0000 | Microchip Technology | DSC6100 | MEMS (Silicon) | 16MHz | 1.71 V ~ 3.63 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CL2-012.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 12MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI2-033.3300 | Microchip Technology | DSC1001 | MEMS (Silicon) | 33.33MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CE2-006.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 6MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI1-050.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 50MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI2-012.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 12MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI2-033.3333 | Microchip Technology | DSC1001 | MEMS (Silicon) | 33.3333MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI5-004.9152 | Microchip Technology | DSC1001 | MEMS (Silicon) | 4.9152MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1122CI5-200.0000 | Microchip Technology | DSC1122 | MEMS (Silicon) | 200MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI1-048.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 48MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI1-026.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 26MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC6083CI2A-032K768 | Microchip Technology | DSC60XX | MEMS (Silicon) | 32.768kHz | 1.71 V ~ 3.63 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC6001CI2A-016.0000 | Microchip Technology | DSC60XX | MEMS (Silicon) | 16MHz | 1.71 V ~ 3.63 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC6003CI2A-012.0000 | Microchip Technology | DSC60XX | MEMS (Silicon) | 12MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC6003CI2A-024.0000 | Microchip Technology | DSC60XX | MEMS (Silicon) | 24MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
