DSC1101BL2-075.0000T-6G以太网晶振-75MHz-5032mm
频率：75MHz
尺寸：5.0×3.2mm
DSC1101BL2-075.0000T-6G以太网晶振-75MHz-5032mm,美国Microchip晶振,DSC1101石英晶体振荡器,DSC1101BL2-075.0000T晶振,5032mm进口贴片晶振,频率75MHz,电压3.3V,频率稳定性25ppm,工作温度-40~105°C,低相位抖动晶振,高稳定性晶振,存储区域网络晶振,6G以太网晶振,HD/SD/SDI视频和监控晶振,显示端口晶振.
订购热线：0755-27838351
DSC1101BL2-075.0000T-6G以太网晶振-75MHz-5032mm,美国Microchip晶振,DSC1101石英晶体振荡器,DSC1101BL2-075.0000T晶振,5032mm进口贴片晶振,频率75MHz,电压3.3V,频率稳定性25ppm,工作温度-40~105°C,低相位抖动晶振,高稳定性晶振,存储区域网络晶振,6G以太网晶振,HD/SD/SDI视频和监控晶振,显示端口晶振.

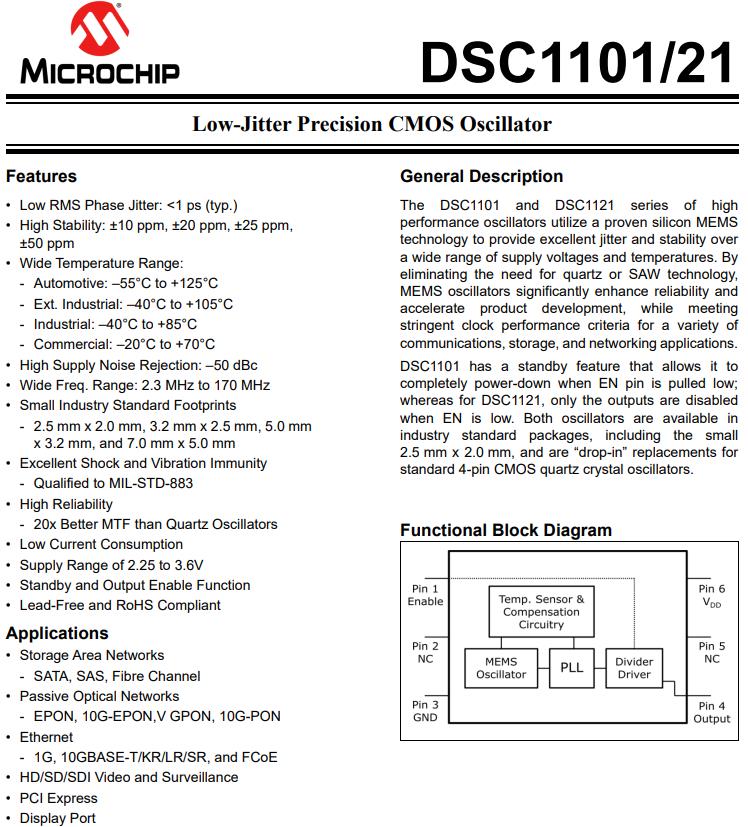

DSC1101BL2-075.0000T-6G以太网晶振-75MHz-5032mm特点：
•低RMS相位抖动:<1 ps(类型)
•高稳定性:±10 ppm，±20 ppm，±25 ppm，±50 ppm
•宽温度范围:
-汽车:- 55°C至+125°C
-工业外:- 40°C至+105°C
—工业:- 40℃~ +85℃
—商用:- 20℃~ +70℃
•高电源噪声抑制:-50 dBc
•宽频率范围:2.3 MHz至170 MHz
•小的行业标准足迹
- 2.5 mm × 2.0 mm, 3.2 mm × 2.5 mm, 5.0 mm × 3.2 mm, 7.0 mm × 5.0 mm
•卓越的抗冲击和抗振动能力
-符合MIL-STD-883标准
•高可靠性
- MTF比石英振荡器好20倍
•低电流消耗
•电源范围2.25至3.6V
•待机和输出使能功能
•无铅，符合RoHS标准
DSC1101BL2-075.0000T-6G以太网晶振-75MHz-5032mm参数图
| 项目 | 规格说明 | 条件 |
| 额定频率 | 75MHz | 请联系我们以便获取其它可用频率的相关信息 |
| 电源电压 | 3.3V |
|
| 储存温度 | -55℃~+150℃ | 裸存 |
| 工作温度 | -40℃~ +105℃ |
|
| 频率稳定度 | ±25ppm | 所有温度范围 |
| 老化 |
±5ppm |
1 year @ +25°C |
| 电流 | 35mA Max | Output enabled, CL = 15 pF, F0 = 100 MHz |
| 负载 | 15pf |
|
| 占空比 | 45%~55% |
150 MHz |
| 输出逻辑电平低（Vol） | 0.1x VDD Max |
I = ±6 mA |
| 输出逻辑电平高（Voh） | 0.9x VDD Max | |
|
输出上升下降时间 |
2ns Max |
20% to 80% CL t = 15 pF |
| 起始时间 | 5ms Max |
T = 25°C |
| 集成相位噪声 | 0.3ps Typ | 200 kHz to 20 MHz @ 125 MHz RMS |
|
周期抖动 |
3ps |
100MHz,RMS |
DSC1101BL2-075.0000T-6G以太网晶振-75MHz-5032mm 尺寸图
| 原厂代码 | 晶振品牌 | 型号 | 类型 | 频率 | 电压 | 尺寸 |
| DSC1123BL2-125.0000 | Microchip Technology | DSC1123 | MEMS (Silicon) | 125MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1030BC1-008.0000 | Microchip Technology | DSC1030 | MEMS (Silicon) | 8MHz | 3V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BC1-024.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 24MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1033BC1-026.6000 | Microchip Technology | DSC1033 | MEMS (Silicon) | 26MHz | 3.3V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1033BE2-024.0000 | Microchip Technology | DSC1033 | MEMS (Silicon) | 24MHz | 3.3V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1101BI5-133.0000 | Microchip Technology | DSC1101 | MEMS (Silicon) | 133MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1123BL5-156.2500 | Microchip Technology | DSC1123 | MEMS (Silicon) | 156.25MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1123BI2-100.0000 | Microchip Technology | DSC1123 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1103BI2-148.5000 | Microchip Technology | DSC1103 | MEMS (Silicon) | 148.5MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1103BI2-135.0000 | Microchip Technology | DSC1103 | MEMS (Silicon) | 135MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1102BI2-125.0000 | Microchip Technology | DSC1102 | MEMS (Silicon) | 125MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1102BI2-153.6000 | Microchip Technology | DSC1102 | MEMS (Silicon) | 153.6MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BM1-024.0000 | Microchip Technology | DSC1121 | MEMS (Silicon) | 24MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1104BE2-100.0000 | Microchip Technology | DSC1104 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1103BI2-100.0000T | Microchip Technology | DSC1103 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1103BI2-100.0000T | Microchip Technology | DSC1103 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1103BI2-100.0000T | Microchip Technology | DSC1103 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BI2-080.0000 | Microchip Technology | DSC1121 | MEMS (Silicon) | 80MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1122BE1-156.2500T | Microchip Technology | DSC1122 | MEMS (Silicon) | 156.25MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1122BE1-156.2500T | Microchip Technology | DSC1122 | MEMS (Silicon) | 156.25MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1122BE1-156.2500T | Microchip Technology | DSC1122 | MEMS (Silicon) | 156.25MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1122BI1-100.0000 | Microchip Technology | DSC1122 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1122BI2-100.0000 | Microchip Technology | DSC1122 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1122BI2-114.2850 | Microchip Technology | DSC1122 | MEMS (Silicon) | 114.285MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1122BI2-155.5200 | Microchip Technology | DSC1122 | MEMS (Silicon) | 155.52MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1122BI2-156.2500 | Microchip Technology | DSC1122 | MEMS (Silicon) | 156.25MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1102BI1-100.0000 | Microchip Technology | DSC1102 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1123BI5-156.2500T | Microchip Technology | DSC1123 | MEMS (Silicon) | 156.25MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1123BI5-156.2500T | Microchip Technology | DSC1123 | MEMS (Silicon) | 156.25MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1123BI5-156.2500T | Microchip Technology | DSC1123 | MEMS (Silicon) | 156.25MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1103BL5-062.5000 | Microchip Technology | DSC1103 | MEMS (Silicon) | 62.5MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| MX553BBA312M500 | Microchip Technology | MX55 | XO (Standard) | 312.5MHz | 2.375 V ~ 3.63 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1033BE1-050.0000 | Microchip Technology | DSC1033 | MEMS (Silicon) | 50MHz | 3.3V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1033BI2-027.1200 | Microchip Technology | DSC1033 | MEMS (Silicon) | 27.12MHz | 3.3V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BE2-010.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 10MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI1-048.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 48MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI1-010.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 10MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI1-020.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 20MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI1-024.5760 | Microchip Technology | DSC1001 | MEMS (Silicon) | 24.576MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI1-027.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 27MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-014.3181 | Microchip Technology | DSC1001 | MEMS (Silicon) | 14.3181MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-014.7456 | Microchip Technology | DSC1001 | MEMS (Silicon) | 14.7456MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-016.3840 | Microchip Technology | DSC1001 | MEMS (Silicon) | 16.384MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-040.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 40MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI1-024.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 24MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI1-025.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 25MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-012.5000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 12.5MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI1-040.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 40MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI1-050.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 50MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-024.5760 | Microchip Technology | DSC1001 | MEMS (Silicon) | 24.576MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1033BI1-025.0000 | Microchip Technology | DSC1033 | MEMS (Silicon) | 25MHz | 3.3V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-005.5296 | Microchip Technology | DSC1001 | MEMS (Silicon) | 5.5296MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-025.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 25MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-004.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 4MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-010.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 10MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-013.0810 | Microchip Technology | DSC1001 | MEMS (Silicon) | 13.081MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-054.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 54MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-012.2888 | Microchip Technology | DSC1001 | MEMS (Silicon) | 12.2888MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BL1-060.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 60MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BE1-125.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 125MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BL2-020.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 20MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-125.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 125MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BE5-064.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 64MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124BI1-100.0000 | Microchip Technology | DSC1124 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI5-013.5600 | Microchip Technology | DSC1001 | MEMS (Silicon) | 13.56MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI5-040.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 40MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124BI2-100.0000 | Microchip Technology | DSC1124 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BL5-010.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 10MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BL5-016.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 16MHz | 1.7 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BL5-064.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 64MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BL5-095.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 95MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI5-090.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 90MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| MX555ABA50M0000 | Microchip Technology | MX55 | XO (Standard) | 50MHz | 2.375 V ~ 3.63 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BI2-012.2880 | Microchip Technology | DSC1121 | MEMS (Silicon) | 12.288MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1033BC2-012.0000 | Microchip Technology | DSC1033 | MEMS (Silicon) | 12MHz | 3.3V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BC1-020.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 20MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI1-004.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 4MHz | 1.7 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI1-033.3330 | Microchip Technology | DSC1001 | MEMS (Silicon) | 33.333MHz | 1.7 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-006.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 6MHz | 1.7 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-030.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 30MHz | 1.7 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1033BI1-004.0000 | Microchip Technology | DSC1033 | MEMS (Silicon) | 4MHz | 3.3V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-026.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 26MHz | 1.7 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-033.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 33MHz | 1.7 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-018.4320 | Microchip Technology | DSC1001 | MEMS (Silicon) | 18.432MHz | 1.7 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1033BI1-032.0000 | Microchip Technology | DSC1033 | MEMS (Silicon) | 32MHz | 3.3V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-012.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 12MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-050.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 50MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI1-008.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 8MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1018BC1-054.0000 | Microchip Technology | DSC1018 | MEMS (Silicon) | 54MHz | 1.8V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1018BC1-100.0000 | Microchip Technology | DSC1018 | MEMS (Silicon) | 100MHz | 1.8V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BL1-016.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 16MHz | 1.7 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI1-100.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 100MHz | 1.7 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-133.3330T | Microchip Technology | DSC1001 | MEMS (Silicon) | 133.333MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-133.3330T | Microchip Technology | DSC1001 | MEMS (Silicon) | 133.333MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-133.3330T | Microchip Technology | DSC1001 | MEMS (Silicon) | 133.333MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BI2-100.0000T | Microchip Technology | DSC1121 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BI2-100.0000T | Microchip Technology | DSC1121 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BI2-100.0000T | Microchip Technology | DSC1121 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI5-008.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 8MHz | 1.7 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI5-020.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 20MHz | 1.7 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI5-010.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 10MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124BI2-125.0000 | Microchip Technology | DSC1124 | MEMS (Silicon) | 125MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BL5-050.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 50MHz | 1.7 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI5-133.3330 | Microchip Technology | DSC1001 | MEMS (Silicon) | 133.333MHz | 1.7 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1122BI5-036.7000 | Microchip Technology | DSC1122 | MEMS (Silicon) | 36.7MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1123BI5-156.2500 | Microchip Technology | DSC1123 | MEMS (Silicon) | 156.25MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BL2-050.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 50MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BE2-100.0000T | Microchip Technology | DSC1121 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BE2-100.0000 | Microchip Technology | DSC1121 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1101BI5-050.0000T | Microchip Technology | DSC1101 | MEMS (Silicon) | 50MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BI2-013.0000T | Microchip Technology | DSC1121 | MEMS (Silicon) | 13MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BI2-025.0000T | Microchip Technology | DSC1121 | MEMS (Silicon) | 25MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BI2-025.0007T | Microchip Technology | DSC1121 | MEMS (Silicon) | 25MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BI2-048.0000T | Microchip Technology | DSC1121 | MEMS (Silicon) | 48MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BI2-050.0000T | Microchip Technology | DSC1121 | MEMS (Silicon) | 50MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BI2-012.2880T | Microchip Technology | DSC1121 | MEMS (Silicon) | 12.288MHz | 2.25 V ~ 3.6V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BI2-050.0000 | Microchip Technology | DSC1121 | MEMS (Silicon) | 50MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BI2-025.0000 | Microchip Technology | DSC1121 | MEMS (Silicon) | 25MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1033BC2-012.0000T | Microchip Technology | DSC1033 | MEMS (Silicon) | 12MHz | 3.3V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1033BC2-024.0000T | Microchip Technology | DSC1033 | MEMS (Silicon) | 24MHz | 3.3V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BC1-020.0000T | Microchip Technology | DSC1001 | MEMS (Silicon) | 20MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BC1-024.0000T | Microchip Technology | DSC1001 | MEMS (Silicon) | 24MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1030BC1-008.0000T | Microchip Technology | DSC1030 | MEMS (Silicon) | 8MHz | 3V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1030BC1-025.0000T | Microchip Technology | DSC1030 | MEMS (Silicon) | 25MHz | 3V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1030BC1-027.0000T | Microchip Technology | DSC1030 | MEMS (Silicon) | 27MHz | 3V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1030BC1-040.0000T | Microchip Technology | DSC1030 | MEMS (Silicon) | 40MHz | 3V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1030BC1-050.0000T | Microchip Technology | DSC1030 | MEMS (Silicon) | 50MHz | 3V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1030BE1-012.0000T | Microchip Technology | DSC1030 | MEMS (Silicon) | 12MHz | 3V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1033BC1-026.6000T | Microchip Technology | DSC1033 | MEMS (Silicon) | 26MHz | 3.3V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1033BE1-026.0000T | Microchip Technology | DSC1033 | MEMS (Silicon) | 26MHz | 3.3V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1030BC1-024.5760 | Microchip Technology | DSC1030 | MEMS (Silicon) | 24.576MHz | 3V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1033BE1-004.0625 | Microchip Technology | DSC1033 | MEMS (Silicon) | 4.0625MHz | 3.3V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1033BE1-004.0960 | Microchip Technology | DSC1033 | MEMS (Silicon) | 4.096MHz | 3.3V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BC1-050.0000T | Microchip Technology | DSC1001 | MEMS (Silicon) | 50MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1030BC1-003.6864T | Microchip Technology | DSC1030 | MEMS (Silicon) | 3.6864MHz | 3V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BE1-024.0000T | Microchip Technology | DSC1001 | MEMS (Silicon) | 24MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BE1-016.0000T | Microchip Technology | DSC1001 | MEMS (Silicon) | 16MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BE1-025.0000T | Microchip Technology | DSC1001 | MEMS (Silicon) | 25MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BE1-048.0000T | Microchip Technology | DSC1001 | MEMS (Silicon) | 48MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BE2-012.0000T | Microchip Technology | DSC1001 | MEMS (Silicon) | 12MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI1-004.0000T | Microchip Technology | DSC1001 | MEMS (Silicon) | 4MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BE1-025.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 25MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1033BI2-024.0000T | Microchip Technology | DSC1033 | MEMS (Silicon) | 24MHz | 3.3V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1033BI2-025.0000T | Microchip Technology | DSC1033 | MEMS (Silicon) | 25MHz | 3.3V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1033BI2-027.0000T | Microchip Technology | DSC1033 | MEMS (Silicon) | 27MHz | 3.3V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1033BI2-048.0000T | Microchip Technology | DSC1033 | MEMS (Silicon) | 48MHz | 3.3V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1033BI2-048.4610T | Microchip Technology | DSC1033 | MEMS (Silicon) | 48.461MHz | 3.3V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1033BI2-025.0000 | Microchip Technology | DSC1033 | MEMS (Silicon) | 25MHz | 3.3V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
精工富士晶振-康华尔正规渠道指定供应商
服务热线：0755-27838351
手机联系：138-2330-0879
Q Q联系：632862232
邮 箱：konuaer@163.com
地 址：广东深圳市宝安区宝安大道东95号浙商大厦1905

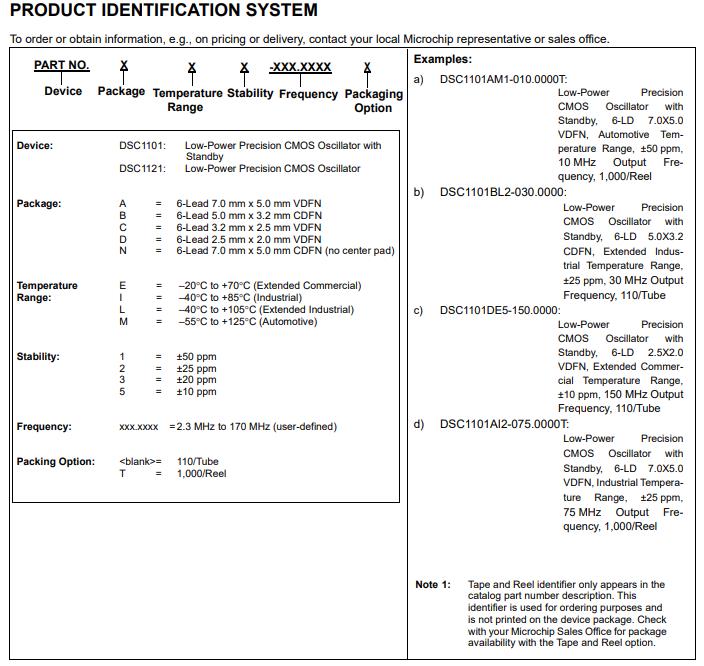

采购：DSC1101BL2-075.0000T-6G以太网晶振-75MHz-5032mm
- *联系人：
- *手机：
- 公司名称：
- 邮箱：
- *采购意向：
-
*验证码：
跟此产品相关的产品 / Related Products
- DSC6001JI2A-125.0000T,6G以太网晶振,2520mm,低功耗晶振
DSC6001JI2A-125.0000T,6G以太网晶振,2520mm,低功耗晶振,美国晶振,Microchip石英贴片晶体,DSC60XX有源晶振,DSC6001JI2A-125.0000T晶振,2520mm晶振,超小型晶体振荡器,频率125MHz,电压3.3V,频率稳定性25ppm,工作温度-40~85°C,高可靠性晶振,无铅环保晶振,低功耗晶振,6G以太网晶振,物联网晶振,智能设备晶振,家庭医疗保健晶振,健身设备晶振,汽车信息娱乐系统晶振.
- 松图晶振,SXT324晶振,SXT32420FD27-24.576M,6G以太网晶振
- 松图晶振,SXT324晶振,SXT32420FD27-24.576M,6G以太网晶振,松图晶振,欧美进口晶振,SXT324石英晶体,SXT32420FD27-24.576M晶振,3225贴片晶振,无源晶振,频率24.576MHz,负载20pF,频率偏差10ppm,工作温度-20~70°C,高稳定性晶振,轻薄小晶振,6G以太网晶振,智能手机晶振,平板电脑晶振,网络终端晶振.
- 鸿星晶振,E49B32E000022E,HC-49SMD晶振,6G以太网晶振
- 鸿星晶振,E49B32E000022E,HC-49SMD晶振,6G以太网晶振,台湾鸿星晶振,E49B进口晶振,E49B32E000022E晶振,HC-49SMD晶振,石英晶体谐振器,无源晶振,频率32MHz,负载18pF,频率偏差30ppm,工作温度-20~70°C,低成本晶振,无铅环保晶振,6G以太网晶振,电视机顶盒晶振,无线路由器晶振,录音笔晶振.
康华尔产品中心
Product Center
精工晶振
富士晶振
雾化片
石英晶振
石英晶体振荡器
贴片晶振
32.768KHz晶振
欧美进口晶振
- KDS晶振
- 爱普生晶振
- NDK晶振
- 京瓷晶振
- 西铁城晶振
- 村田晶振
- 大河晶振
- CTS晶振
- 微晶晶振
- 瑞康晶振
- 康纳温菲尔德晶振
- 高利奇晶振
- Jauch晶振
- AbraconCrystal
- 维管晶振
- ECS晶振
- 日蚀晶振
- 拉隆晶振
- 格林雷晶振
- SiTime晶振
- IDT晶振
- Statek晶振
- Pletronics晶振
- ACT晶振
- MTI-Milliren晶振
- LiHom晶振
- 美国Rubyquartz晶振
- Oscilent晶振
- 日本纳卡晶振
- SHINSUNG晶振
- ITTI晶振
- SMI晶振
- PDI晶振
- C-TECH晶振
- NJR晶振
- IQD晶振
- Microchip晶振
- Silicon晶振
- Fortiming晶振
- CORE晶振
- NIPPON晶振
- NIC晶振
- QVS晶振
- Bomar晶振
- Bliley晶振
- GED晶振
- Filtronetics晶振
- STD晶振
- Q-Tech晶振
- Anderson晶振
- Wenzel晶振
- NEL晶振
- EM晶振
- PETERMANN晶振
- FCD-Tech晶振
- HEC晶振
- FMI晶振
- Macrobizes晶振
- AXTAL晶振
- SUNNY晶振
- ARGO晶振
- Skyworks晶振
- 瑞萨renesas晶振
谐振器/滤波器
数码电子产品
汽车电子产品
新增进口品牌
温补晶振
差分晶振
恒温晶振
联系康华尔Contact us
咨询热线
0755-27838351
电话：0755-27838351
手机：138 2330 0879
QQ：632862232
邮箱： konuaer@163.com
地址：广东深圳市宝安区宝安大道东95号浙商大厦1905
康华尔公众号
