DSC1123AI2-074.2500,6G模块晶振,LVDS差分晶振,Microchip晶振,DSC1123有源晶振,DSC1123AI2-074.2500晶振,7050进口贴片晶振,LVDS差分晶振,低相位抖动晶振,频率74.25MHz,电压3.3V,频率稳定性25ppm,工作温度-40~85°C,高稳定性晶振,低功耗晶振,6G模块晶振,存储区域网络晶振,光纤通道晶振,无源光网络晶振,以太网晶振,智能影音系统晶振.

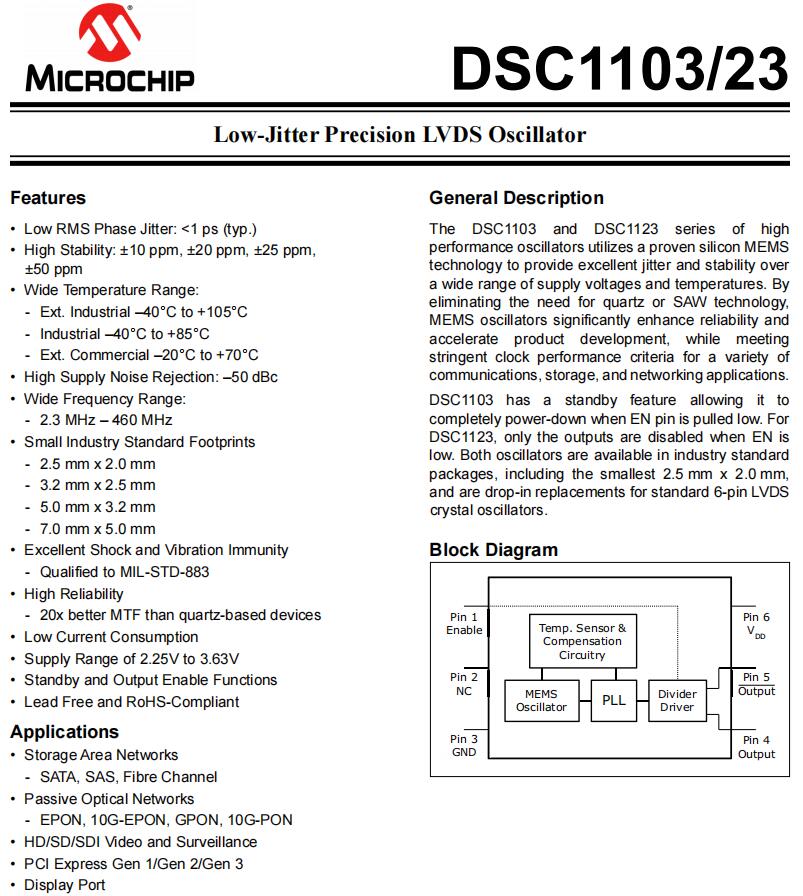

DSC1123AI2-074.2500,6G模块晶振,LVDS差分晶振特点：
•低RMS相位抖动:<1 ps(类型)
•高稳定性:±10 ppm，±20 ppm，±25 ppm，±50 ppm
•宽温度范围:
-汽车:- 55°C至+125°C
-工业外:- 40°C至+105°C
—工业:- 40℃~ +85℃
—商用:- 20℃~ +70℃
•高电源噪声抑制:-50 dBc
•宽频率范围:2.3 MHz至460 MHz
•小的行业标准足迹
- 2.5 mm × 2.0 mm, 3.2 mm × 2.5 mm, 5.0 mm × 3.2 mm, 7.0 mm × 5.0 mm
•卓越的抗冲击和抗振动能力
-符合MIL-STD-883标准
•高可靠性
- MTF比石英振荡器好20倍
•低电流消耗
•电源范围2.25至3.63V
•待机和输出使能功能
•无铅，符合RoHS标准
DSC1123AI2-074.2500,6G模块晶振,LVDS差分晶振参数图
| 项目 | 规格说明 | 条件 |
| 额定频率 | 156.25MHz | 请联系我们以便获取其它可用频率的相关信息 |
| 电源电压 | 3.3V |
|
| 储存温度 | -55℃~+150℃ | 裸存 |
| 工作温度 | -40℃~ +85℃ |
|
| 频率稳定度 | ±25ppm | 所有温度范围 |
| 老化 |
±5ppm |
1 year @ +25°C |
| 电流 | 22mA Max | DSC1123, EN pin low, all outputs disabled |
| 输出电流 |
32mA Max |
Output enabled, RL = 100Ω |
| 占空比 | 48%~52% |
Differential |
| 输入逻辑电平高（VlH） | 0.75×VDD Min |
|
| 输入逻辑电平低（VIL） | 0.25×VDD Max | |
|
输出上升下降时间 |
200ps Typ |
20% to 80% RL = 50Ω, CL = 2 pF |
| 起始时间 | 5ms Max |
T = 25°C |
| 集成相位噪声 | 0.28ps Typ | 200 kHz to 20 MHz @ 156.25 MHz RMS |
|
周期抖动 |
2.5ps |
RMS |

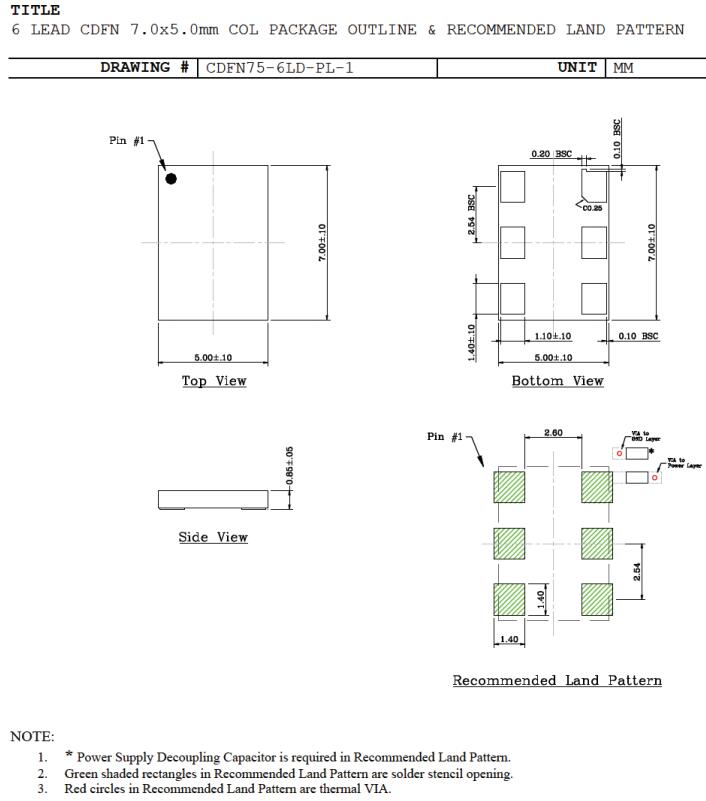

DSC1123AI2-074.2500,6G模块晶振,LVDS差分晶振 尺寸图
| 原厂代码 | 晶振品牌 | 型号 | 类型 | 频率 | 电压 | 尺寸 |
| DSC1123AE2-100.0000 | Microchip晶振 | DSC1123 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1123NL5-100.0000 | Microchip晶振 | DSC1123 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| MX574BBD322M265 | Microchip晶振 | MX57 | XO (Standard) | 322.265625MHz | 2.375 V ~ 3.63 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1123AE2-300.0000 | Microchip晶振 | DSC1123 | MEMS (Silicon) | 300MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1123AI1-125.0000 | Microchip晶振 | DSC1123 | MEMS (Silicon) | 125MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1123AI2-125.0000 | Microchip晶振 | DSC1123 | MEMS (Silicon) | 125MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1123AE2-200.0000 | Microchip晶振 | DSC1123 | MEMS (Silicon) | 200MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1123AI2-150.0000 | Microchip晶振 | DSC1123 | MEMS (Silicon) | 150MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1123AI1-200.0000 | Microchip晶振 | DSC1123 | MEMS (Silicon) | 200MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1101AI2-040.0000 | Microchip晶振 | DSC1101 | MEMS (Silicon) | 40MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1101AI2-080.0000 | Microchip晶振 | DSC1101 | MEMS (Silicon) | 80MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1101AI2-064.0000 | Microchip晶振 | DSC1101 | MEMS (Silicon) | 64MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1122NE1-025.0000 | Microchip晶振 | DSC1122 | MEMS (Silicon) | 25MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1123AI2-156.2570 | Microchip晶振 | DSC1123 | MEMS (Silicon) | 156.257MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1123AI2-148.5000 | Microchip晶振 | DSC1123 | MEMS (Silicon) | 148.5MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| MX575ABC70M0000 | Microchip晶振 | MX57 | XO (Standard) | 70MHz | 2.375 V ~ 3.63 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| MX575ABB50M0000 | Microchip晶振 | MX57 | XO (Standard) | 50MHz | 2.375 V ~ 3.63 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| MX573LBB148M500 | Microchip晶振 | MX57 | XO (Standard) | 148.5MHz | 2.375 V ~ 3.63 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| MX573NBB311M040 | Microchip晶振 | MX57 | XO (Standard) | 311.04MHz | 2.375 V ~ 3.63 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| MX573NBD311M040 | Microchip晶振 | MX57 | XO (Standard) | 311.04MHz | 2.375 V ~ 3.63 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| MX573NBA622M080 | Microchip晶振 | MX57 | XO (Standard) | 622.08MHz | 2.375 V ~ 3.63 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1123AI2-062.5000T | Microchip晶振 | DSC1123 | MEMS (Silicon) | 62.5MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1123AI2-062.5000T | Microchip晶振 | DSC1123 | MEMS (Silicon) | 62.5MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1123AI2-062.5000T | Microchip晶振 | DSC1123 | MEMS (Silicon) | 62.5MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1123AE1-125.0000T | Microchip晶振 | DSC1123 | MEMS (Silicon) | 125MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1123AE1-125.0000T | Microchip晶振 | DSC1123 | MEMS (Silicon) | 125MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1123AE1-125.0000T | Microchip晶振 | DSC1123 | MEMS (Silicon) | 125MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1122AE2-156.2500 | Microchip晶振 | DSC1122 | MEMS (Silicon) | 156.25MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1123AE2-040.0000 | Microchip晶振 | DSC1123 | MEMS (Silicon) | 40MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1123AI2-040.0000 | Microchip晶振 | DSC1123 | MEMS (Silicon) | 40MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1122AI2-150.0000 | Microchip晶振 | DSC1122 | MEMS (Silicon) | 150MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1122NI5-025.0020 | Microchip晶振 | DSC1122 | MEMS (Silicon) | 25.002MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1123AL1-150.0000 | Microchip晶振 | DSC1123 | MEMS (Silicon) | 150MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1122AI5-025.0020 | Microchip晶振 | DSC1122 | MEMS (Silicon) | 25.002MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AI2-050.0000 | Microchip晶振 | DSC1001 | MEMS (Silicon) | 50MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AL2-027.0000 | Microchip晶振 | DSC1001 | MEMS (Silicon) | 27MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AE2-025.0000 | Microchip晶振 | DSC1121 | MEMS (Silicon) | 25MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1033AE1-024.0000 | Microchip晶振 | DSC1033 | MEMS (Silicon) | 24MHz | 3.3V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AC1-027.0000 | Microchip晶振 | DSC1001 | MEMS (Silicon) | 27MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AC1-008.0000 | Microchip晶振 | DSC1001 | MEMS (Silicon) | 8MHz | 1.7 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AE1-027.0000 | Microchip晶振 | DSC1001 | MEMS (Silicon) | 27MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AE1-014.3182 | Microchip晶振 | DSC1001 | MEMS (Silicon) | 14.3182MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AE1-024.5761 | Microchip晶振 | DSC1001 | MEMS (Silicon) | 24.5761MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AE1-054.0000 | Microchip晶振 | DSC1001 | MEMS (Silicon) | 54MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AE1-003.6864 | Microchip晶振 | DSC1001 | MEMS (Silicon) | 3.6864MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AE1-055.0000 | Microchip晶振 | DSC1001 | MEMS (Silicon) | 55MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1004AI2-001.0000 | Microchip晶振 | DSC1004 | MEMS (Silicon) | 1MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AI2-064.0000 | Microchip晶振 | DSC1001 | MEMS (Silicon) | 64MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AI1-033.0000 | Microchip晶振 | DSC1001 | MEMS (Silicon) | 33MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AI2-001.0000 | Microchip晶振 | DSC1001 | MEMS (Silicon) | 1MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AE2-002.0480 | Microchip晶振 | DSC1001 | MEMS (Silicon) | 2.048MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AI2-011.7000 | Microchip晶振 | DSC1001 | MEMS (Silicon) | 11.7MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AI2-012.3667 | Microchip晶振 | DSC1001 | MEMS (Silicon) | 12.3667MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC6111CI1A-008.0000 | Microchip晶振 | DSC6100 | MEMS (Silicon) | 8MHz | 1.71 V ~ 3.63 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC6083CI2A-307K000 | Microchip晶振 | DSC60XX | MEMS (Silicon) | 307kHz | 1.71 V ~ 3.63 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC6001CI2A-004.0000 | Microchip晶振 | DSC60XX | MEMS (Silicon) | 4MHz | 1.71 V ~ 3.63 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC6101JI2A-024.0000 | Microchip晶振 | DSC6100 | MEMS (Silicon) | 24MHz | 1.71 V ~ 3.63 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1033CI1-048.0000 | Microchip晶振 | DSC1033 | MEMS (Silicon) | 48MHz | 3.3V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1033CI1-024.0000 | Microchip晶振 | DSC1033 | MEMS (Silicon) | 24MHz | 3.3V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC6001CI1A-011.0592 | Microchip晶振 | DSC60XX | MEMS (Silicon) | 11.0592MHz | 1.71 V ~ 3.63 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001CI2-024.0000 | Microchip晶振 | DSC1001 | MEMS (Silicon) | 24MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1101DM2-012.0000 | Microchip晶振 | DSC1101 | MEMS (Silicon) | 12MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1101AI2-064.0000 | Microchip晶振 | DSC1101 | MEMS (Silicon) | 64MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1124CI5-100.0000 | Microchip晶振 | DSC1124 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121CM2-040.0000 | Microchip晶振 | DSC1121 | MEMS (Silicon) | 40MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1101DL5-020.0000 | Microchip晶振 | DSC1101 | MEMS (Silicon) | 20MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1101BI5-133.0000 | Microchip晶振 | DSC1101 | MEMS (Silicon) | 133MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1101CL5-100.0000 | Microchip晶振 | DSC1101 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1122NE1-025.0000 | Microchip晶振 | DSC1122 | MEMS (Silicon) | 25MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1123CI2-333.3333 | Microchip晶振 | DSC1123 | MEMS (Silicon) | 333.3333MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1123CI5-156.2500 | Microchip晶振 | DSC1123 | MEMS (Silicon) | 156.25MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1101CI5-020.0000T | Microchip晶振 | DSC1101 | MEMS (Silicon) | 20MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1122BI2-156.2500 | Microchip晶振 | DSC1122 | MEMS (Silicon) | 156.25MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1102BI1-100.0000 | Microchip晶振 | DSC1102 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1122AI2-150.0000 | Microchip晶振 | DSC1122 | MEMS (Silicon) | 150MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001DL5-133.3330 | Microchip晶振 | DSC1001 | MEMS (Silicon) | 133.333MHz | 1.7 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001DI5-080.0000 | Microchip晶振 | DSC1001 | MEMS (Silicon) | 80MHz | 1.7 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1123CE5-100.0000 | Microchip晶振 | DSC1123 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1122NI5-025.0020 | Microchip晶振 | DSC1122 | MEMS (Silicon) | 25.002MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1124CI1-156.2500TA | Microchip晶振 | DSC1124 | MEMS (Silicon) | 156.25MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC6101JI2A-050.0000 | Microchip晶振 | DSC6100 | MEMS (Silicon) | 50MHz | 1.71 V ~ 3.63 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121CI2-025.0000 | Microchip晶振 | DSC1121 | MEMS (Silicon) | 25MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121BI2-025.0007 | Microchip晶振 | DSC1121 | MEMS (Silicon) | 25.0007MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AE2-025.0000 | Microchip晶振 | DSC1121 | MEMS (Silicon) | 25MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1101CI1-025.0000 | Microchip晶振 | DSC1101 | MEMS (Silicon) | 25MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001CE1-019.2000 | Microchip晶振 | DSC1001 | MEMS (Silicon) | 19.2MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001DI1-004.9152 | Microchip晶振 | DSC1001 | MEMS (Silicon) | 4.9152MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1033AE1-024.0000 | Microchip晶振 | DSC1033 | MEMS (Silicon) | 24MHz | 3.3V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AC1-027.0000 | Microchip晶振 | DSC1001 | MEMS (Silicon) | 27MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1033CE2-074.2500 | Microchip晶振 | DSC1033 | MEMS (Silicon) | 74.25MHz | 3.3V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001DI1-048.0000 | Microchip晶振 | DSC1001 | MEMS (Silicon) | 48MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1033DI1-064.0000 | Microchip晶振 | DSC1033 | MEMS (Silicon) | 64MHz | 3.3V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1033CI1-008.1920 | Microchip晶振 | DSC1033 | MEMS (Silicon) | 8.192MHz | 3.3V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1033DI1-024.0000 | Microchip晶振 | DSC1033 | MEMS (Silicon) | 24MHz | 3.3V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1033DI1-016.0000 | Microchip晶振 | DSC1033 | MEMS (Silicon) | 16MHz | 3.3V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001DI1-020.0000 | Microchip晶振 | DSC1001 | MEMS (Silicon) | 20MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001DI1-038.4000 | Microchip晶振 | DSC1001 | MEMS (Silicon) | 38.4MHz | 1.7 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001BI2-016.3840 | Microchip晶振 | DSC1001 | MEMS (Silicon) | 16.384MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001BI2-005.5296 | Microchip晶振 | DSC1001 | MEMS (Silicon) | 5.5296MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001CI2-049.1520 | Microchip晶振 | DSC1001 | MEMS (Silicon) | 49.152MHz | 1.7 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001CI2-025.0000 | Microchip晶振 | DSC1001 | MEMS (Silicon) | 25MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001CE2-012.0000 | Microchip晶振 | DSC1001 | MEMS (Silicon) | 12MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001DI2-045.1584 | Microchip晶振 | DSC1001 | MEMS (Silicon) | 45.1584MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AI2-024.0000T | Microchip晶振 | DSC1121 | MEMS (Silicon) | 24MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AI2-025.0000T | Microchip晶振 | DSC1121 | MEMS (Silicon) | 25MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AI2-029.4912T | Microchip晶振 | DSC1121 | MEMS (Silicon) | 29.4912MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AI2-048.0000T | Microchip晶振 | DSC1121 | MEMS (Silicon) | 48MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AI2-050.0000T | Microchip晶振 | DSC1121 | MEMS (Silicon) | 50MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
