VC-840A-EAE-FAAN-50M0000000TR|2520mm超小型晶振|6G放大器晶振
频率：50MHz
尺寸：2.5×2.0mm
VC-840A-EAE-FAAN-50M0000000TR|2520mm超小型晶振|6G放大器晶振,Microchip晶振,VC-840A有源晶振,VC-840A-EAE-FAAN-50M0000000TR晶振,2520mm贴片晶振,超小型晶振,频率50MHz,电压3.3V,频率稳定性25ppm,工作温度-40~85°C,频率稳定性强,超低抖动晶振,6G放大器晶振,存储区域网络晶振,光纤通道晶振,数字视频晶振.
订购热线：0755-27838351
VC-840A-EAE-FAAN-50M0000000TR|2520mm超小型晶振|6G放大器晶振,Microchip晶振,VC-840A有源晶振,VC-840A-EAE-FAAN-50M0000000TR晶振,2520mm贴片晶振,超小型晶振,频率50MHz,电压3.3V,频率稳定性25ppm,工作温度-40~85°C,频率稳定性强,超低抖动晶振,6G放大器晶振,存储区域网络晶振,光纤通道晶振,数字视频晶振.

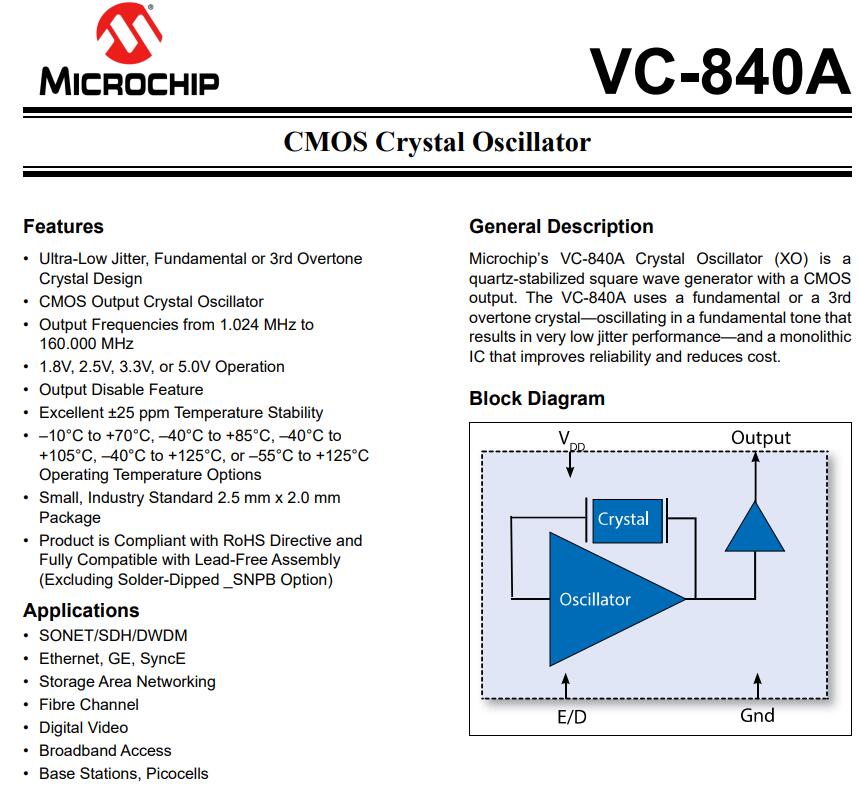

VC-840A-EAE-FAAN-50M0000000TR|2520mm超小型晶振|6G放大器晶振特点：
•超低抖动，基本或第三泛音水晶设计
•CMOS输出晶体振荡器
•输出频率从1.024 MHz到160.000MHz
•1.8V, 2.5V, 3.3V, 5.0V操作
•输出禁用功能
•卓越的±25 ppm温度稳定性
•工作温度选项：-10°C至+70°C， -40°C至+85°C， -40°C至+105°C， -40°C至+125°C或-55°C至+125°C
•2.5mmx 2.0mm小型工业标准包装
•产品符合RoHS指令和与无铅组件完全兼容（不包括焊浸_SNPB选项)
VC-840A-EAE-FAAN-50M0000000TR|2520mm超小型晶振|6G放大器晶振 参数图
| 项目 | 规格说明 | 条件 |
| 额定频率 | 50MHz | 请联系我们以便获取其它可用频率的相关信息 |
| 电源电压 | 3.3V |
|
| 储存温度 | -55℃~+125℃ | 裸存 |
| 工作温度 | -40℃~ +85℃ |
|
| 频率稳定度 | ±25ppm | -40 to +85°C |
| 电流 | 18mA Max | 40.001~65MHz |
| 占空比 | 45%~55% |
@ 50% of Vod |
| 负载 | 15pf |
|
| 输出逻辑电平低（Vol） | 0.1x VDD Typ |
|
| 输出逻辑电平高（Voh） | 0.9x VDD Typ |
|
|
输出上升下降时间 |
5ns Max |
20.001~50MHz |
| 起始时间 | 10ms Max |
|
| RMS抖动 | 115fs Max | 12KHz~20MHz |
|
周期抖动 |
2.8ps |
RMS |
| 25ps |
Peak-to-peak |

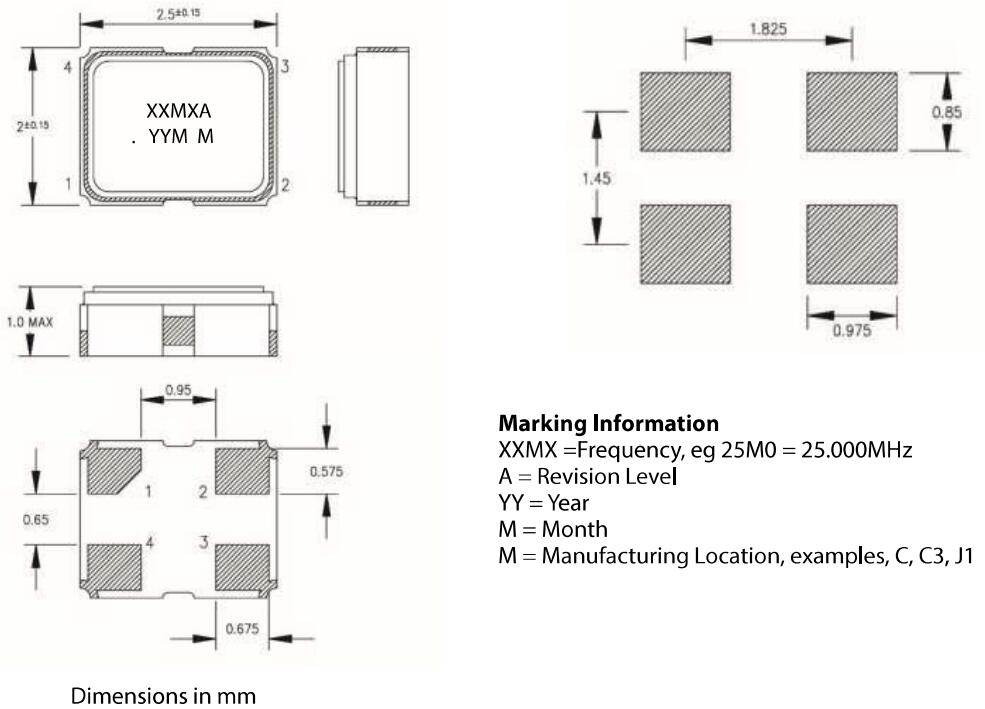

VC-840A-EAE-FAAN-50M0000000TR|2520mm超小型晶振|6G放大器晶振 尺寸图
| 原厂代码 | 晶振品牌 | 型号 | 类型 | 频率 | 电压 | 尺寸 |
| DSC1103DI2-312.5000 | Microchip Technology | DSC1103 | MEMS (Silicon) | 312.5MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1123DI2-050.0000 | Microchip Technology | DSC1123 | MEMS (Silicon) | 50MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1123DL5-200.0000 | Microchip Technology | DSC1123 | MEMS (Silicon) | 200MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC6011JI1A-024.0000 | Microchip Technology | DSC60XX | MEMS (Silicon) | 24MHz | 1.71 V ~ 3.63 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC6101JI2A-024.0000 | Microchip Technology | DSC6100 | MEMS (Silicon) | 24MHz | 1.71 V ~ 3.63 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI1-001.8432 | Microchip Technology | DSC1001 | MEMS (Silicon) | 1.8432MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1033DI1-012.0000 | Microchip Technology | DSC1033 | MEMS (Silicon) | 12MHz | 3.3V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1033DI1-036.0000 | Microchip Technology | DSC1033 | MEMS (Silicon) | 36MHz | 3.3V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI2-038.4000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 38.4MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1101DM2-012.0000 | Microchip Technology | DSC1101 | MEMS (Silicon) | 12MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DE5-018.4320 | Microchip Technology | DSC1001 | MEMS (Silicon) | 18.432MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1101DL5-020.0000 | Microchip Technology | DSC1101 | MEMS (Silicon) | 20MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1123DL1-125.0000 | Microchip Technology | DSC1123 | MEMS (Silicon) | 125MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1033DC1-012.0000 | Microchip Technology | DSC1033 | MEMS (Silicon) | 12MHz | 3.3V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI1-026.0000T | Microchip Technology | DSC1001 | MEMS (Silicon) | 26MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI1-026.0000T | Microchip Technology | DSC1001 | MEMS (Silicon) | 26MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI1-026.0000T | Microchip Technology | DSC1001 | MEMS (Silicon) | 26MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1121DM1-033.3333 | Microchip Technology | DSC1121 | MEMS (Silicon) | 33.3333MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI2-004.0960T | Microchip Technology | DSC1001 | MEMS (Silicon) | 4.096MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI2-004.0960T | Microchip Technology | DSC1001 | MEMS (Silicon) | 4.096MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI2-004.0960T | Microchip Technology | DSC1001 | MEMS (Silicon) | 4.096MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1101DL5-052.8000 | Microchip Technology | DSC1101 | MEMS (Silicon) | 52.8MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DL5-020.0000T | Microchip Technology | DSC1001 | MEMS (Silicon) | 20MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DL5-020.0000T | Microchip Technology | DSC1001 | MEMS (Silicon) | 20MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DL5-020.0000T | Microchip Technology | DSC1001 | MEMS (Silicon) | 20MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DL5-024.0000T | Microchip Technology | DSC1001 | MEMS (Silicon) | 24MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DL5-024.0000T | Microchip Technology | DSC1001 | MEMS (Silicon) | 24MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DL5-024.0000T | Microchip Technology | DSC1001 | MEMS (Silicon) | 24MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1123DI2-100.0000B | Microchip Technology | DSC1123 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1123DI2-100.0000B | Microchip Technology | DSC1123 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1123DI2-100.0000B | Microchip Technology | DSC1123 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DL5-075.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 75MHz | 1.7 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DL5-133.3330 | Microchip Technology | DSC1001 | MEMS (Silicon) | 133.333MHz | 1.7 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI5-080.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 80MHz | 1.7 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1103DI5-171.8181T | Microchip Technology | DSC1103 | MEMS (Silicon) | 171.8181MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1103DI5-171.8181T | Microchip Technology | DSC1103 | MEMS (Silicon) | 171.8181MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1103DI5-171.8181T | Microchip Technology | DSC1103 | MEMS (Silicon) | 171.8181MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1103DI5-171.8181 | Microchip Technology | DSC1103 | MEMS (Silicon) | 171.8181MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI1-050.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 50MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI1-024.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 24MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI1-025.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 25MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI5-100.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 100MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DL5-025.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 25MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC6003JI2A-048.0000 | Microchip Technology | DSC60XX | MEMS (Silicon) | 48MHz | 1.71 V ~ 3.63 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC6101JI2A-026.0000 | Microchip Technology | DSC6100 | MEMS (Silicon) | 26MHz | 1.71 V ~ 3.63 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC6101JI2A-048.0000 | Microchip Technology | DSC6100 | MEMS (Silicon) | 48MHz | 1.71 V ~ 3.63 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC6003JI2A-016.0000 | Microchip Technology | DSC60XX | MEMS (Silicon) | 16MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC6101JI2A-012.2880 | Microchip Technology | DSC6100 | MEMS (Silicon) | 12.288MHz | 1.71 V ~ 3.63 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC6101JI2A-050.0000 | Microchip Technology | DSC6100 | MEMS (Silicon) | 50MHz | 1.71 V ~ 3.63 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC6102JI2A-100.0000 | Microchip Technology | DSC6100 | MEMS (Silicon) | 100MHz | 1.71 V ~ 3.63 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC6111JI2A-024.0000 | Microchip Technology | DSC6100 | MEMS (Silicon) | 24MHz | 1.71 V ~ 3.63 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC6101JI2A-012.0000 | Microchip Technology | DSC6100 | MEMS (Silicon) | 12MHz | 1.71 V ~ 3.63 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC6101JI2A-027.0000 | Microchip Technology | DSC6100 | MEMS (Silicon) | 27MHz | 1.71 V ~ 3.63 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1101DL1-027.0000 | Microchip Technology | DSC1101 | MEMS (Silicon) | 27MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI1-004.9152 | Microchip Technology | DSC1001 | MEMS (Silicon) | 4.9152MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1033DI1-048.0000 | Microchip Technology | DSC1033 | MEMS (Silicon) | 48MHz | 3.3V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI1-012.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 12MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI1-048.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 48MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1033DI1-064.0000 | Microchip Technology | DSC1033 | MEMS (Silicon) | 64MHz | 3.3V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1033DI1-025.0000 | Microchip Technology | DSC1033 | MEMS (Silicon) | 25MHz | 3.3V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1033DI1-050.0000 | Microchip Technology | DSC1033 | MEMS (Silicon) | 50MHz | 3.3V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1033DI1-024.0000 | Microchip Technology | DSC1033 | MEMS (Silicon) | 24MHz | 3.3V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1033DI1-016.0000 | Microchip Technology | DSC1033 | MEMS (Silicon) | 16MHz | 3.3V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1001DI1-020.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 20MHz | 1.8 V ~ 3.3 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
