VCC1A-B3F-25M000000TR|6G光纤通道晶振|7050mm有源晶振
prevnext

VCC1A-B3F-25M000000TR|6G光纤通道晶振|7050mm有源晶振

频率：25MHz

尺寸：7.0×5.0mm

VCC1A-B3F-25M000000TR|6G光纤通道晶振|7050mm有源晶振,MICROCHIP进口石英晶振,VCC1A贴片晶体振荡器,VCC1A-B3F-25M000000TR晶振,超低抖动晶振,CMOS输出晶振,无铅环保晶振,频率25MHz,电压3.3V,频率稳定性25ppm,工作温度-40~85°C,尺寸7050mm,耐高温晶振,6G光纤通道晶振,存储区域网络晶振,数字视频晶振,宽带接入晶振,测试与测量设备晶振,驱动A/D, D/A, fpga晶振,COTS晶振.


订购热线：0755-27838351
QQ咨询 点击这里给我发消息

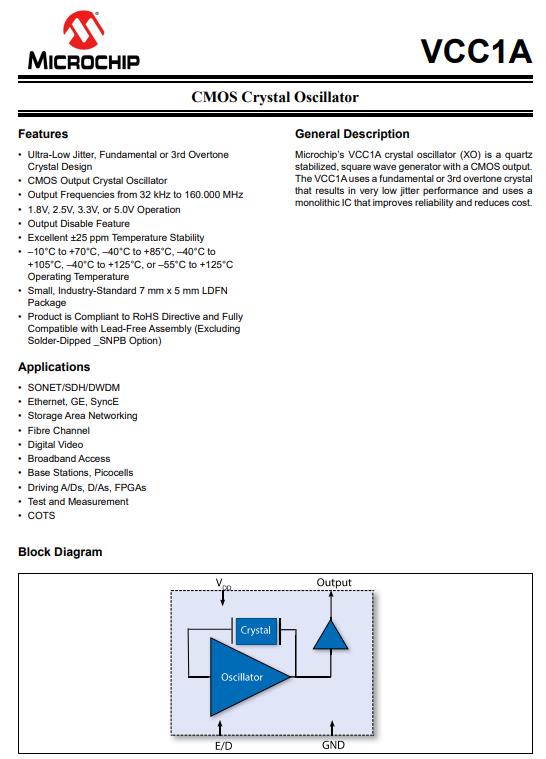

1VCC1A-B3F-25M000000TR|6G光纤通道晶振|7050mm有源晶振,MICROCHIP进口石英晶振,VCC1A贴片晶体振荡器,VCC1A-B3F-25M000000TR晶振,超低抖动晶振,CMOS输出晶振,无铅环保晶振,频率25MHz,电压3.3V,频率稳定性25ppm,工作温度-40~85°C,尺寸7050mm,耐高温晶振,6G光纤通道晶振,存储区域网络晶振,数字视频晶振,宽带接入晶振,测试与测量设备晶振,驱动A/D, D/A, fpga晶振,COTS晶振.

VCC1A-B3F-25M000000TR|6G光纤通道晶振|7050mm有源晶振特点：

•超低抖动，基本或第三泛音水晶设计

•CMOS输出晶体振荡器

•输出频率从32千赫到160.000兆赫

•1.8V, 2.5V, 3.3V, 5.0V操作

•输出禁用功能

•卓越的±25 ppm温度稳定性

•工作温度-10°C至+70°C， -40°C至+85°C， -40°C至+105°C， -40°C至+125°C或-55°C至+125°C

•工业标准7毫米x 5毫米LDFN小型包装

•产品完全符合RoHS指令兼容无铅组件(不包括焊锡浸镀_SNPB选项)VCC1A-B3F-25M000000TR|6G光纤通道晶振|7050mm有源晶振 参数图

项目 规格说明 条件
额定频率 25MHz 请联系我们以便获取其它可用频率的相关信息
电源电压 3.3V±0.33V
储存温度 -55℃~+125℃ 裸存
工作温度 -40℃~ +85℃
频率稳定度 ±25ppm -40 to +85°C
电流 12mA Max 20.001 MHz to 65 MHz
电流，输出禁用 10µA
占空比 45%~55%
输出负载 15pf
输出逻辑电平高
 0.9 x VDD min
输出逻辑电平低
 0.1 x VDD max
上升下降时间
 5ns
 20.001 MHz to 50.000 MHz
起始时间 10ms Max
周期抖动 2.8ps Max
RMS
25ps Max
 Peak-to-peak
RMS抖动
115fs max
12 kHz to 20 MHz


3

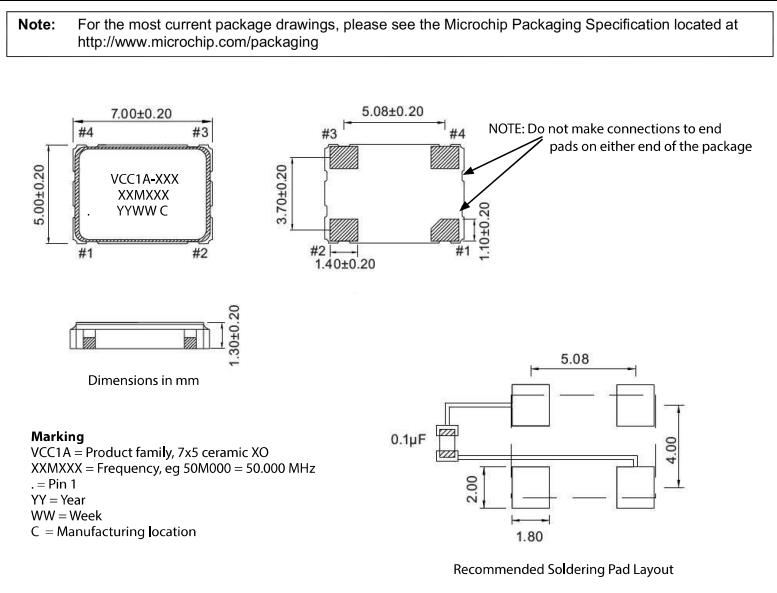

VCC1A-B3F-25M000000TR|6G光纤通道晶振|7050mm有源晶振 尺寸图

VCC1A尺寸图
