345LB3I1562T,156.25MHz,345系列VCXO晶振,5032mm,CTS差分晶振
频率：156.25MHz
尺寸：5.0x3.2x1.2mm
345LB3I1562T,156.25MHz,345系列VCXO晶振,5032mm,CTS差分晶振，美国进口晶振，CTS晶振，西迪斯晶振，型号：345系列晶振，编码为：345LB3I1562T，频率：156.25MHz，工作电压：3.3V，频率稳定性：±50ppm，工作温度范围：-40℃至+85℃，小体积晶振尺寸：5.0x3.2x1.2mm，六脚贴片晶振，石英晶振，有源晶振，LVPECL输出VCXO压控晶振，石英晶体振荡器，CTS 345型是一款低成本、小尺寸、高性能的VCXO车型。M345采用最新的IC技术，再加上高频基晶，具有优异的稳定性和低抖动/相位噪声性能。应用于： 无线通信，宽带接入，SONET/SDH/DWDM，基站，以太网/GbE/SyncE，数字视频，测试和测量等应用。
订购热线：0755-27838351
345LB3I1562T,156.25MHz,345系列VCXO晶振,5032mm,CTS差分晶振，美国进口晶振，CTS晶振，西迪斯晶振，型号：345系列晶振，编码为：345LB3I1562T，频率：156.25MHz，工作电压：3.3V，频率稳定性：±50ppm，工作温度范围：-40℃至+85℃，小体积晶振尺寸：5.0x3.2x1.2mm，六脚贴片晶振，石英晶振，有源晶振，LVPECL输出VCXO压控晶振，石英晶体振荡器，CTS 345型是一款低成本、小尺寸、高性能的VCXO车型。M345采用最新的IC技术，再加上高频基晶，具有优异的稳定性和低抖动/相位噪声性能。应用于： 无线通信，宽带接入，SONET/SDH/DWDM，基站，以太网/GbE/SyncE，数字视频，测试和测量等应用。

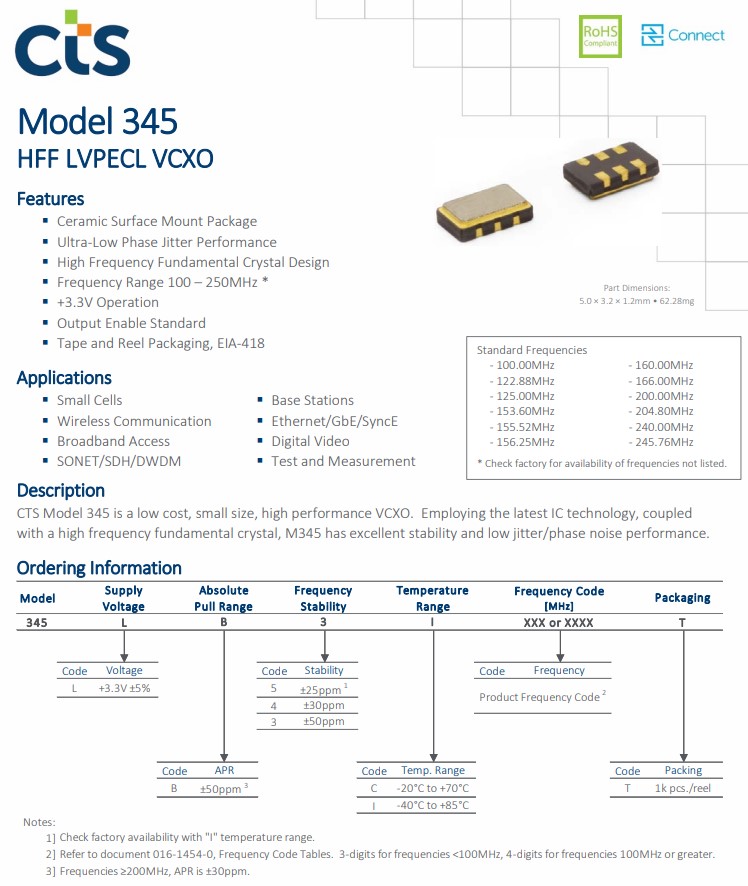

345LB3I1562T,156.25MHz,345系列VCXO晶振,5032mm,CTS差分晶振，产品特征：
陶瓷表面安装封装
超低相位抖动性能
高频基本晶体设计
频率范围100–250MHz
+3.3V操作有源贴片晶振
输出启用标准
带卷包装，EIA-418
345LB3I1562T,156.25MHz,345系列VCXO晶振,5032mm,CTS差分晶振
| PARAMETER | SYMBO L | CO NDITIO NS | MIN | TY P | MAX | UNIT | ||||||||||||||||
| Freq uency Range | fO | - | 156.25 | MHz | ||||||||||||||||||
|
Freq uency Stability [Note 1] |
Δf/fO | ±25ppm stability, -20°C to +70°C only | 25, 30 or 50 | ±ppm | ||||||||||||||||||
| Abso l ute P u ll Range | APR | Frequencies <200MHz | 50 | - | - | ±ppm | ||||||||||||||||
| [Note 2] | APR | Frequencies ≥200MHz | 30 | - | - | ±ppm | ||||||||||||||||
| Agi ng | Δf/f25 | First Year @ +25°C, nominal VCC and VC | -3 | - | 3 | ppm | ||||||||||||||||
|
1.] Inclusive of initial tolerance at time of shipment, changes in supply voltage, load, temperature and 1st year aging. 2.] Minimum guaranteed frequency shift from f O over variations in temperature, aging, power supply and load. |
||||||||||||||||||||||
| Output Parameters | ||||||||||||||||||||||
| PARAMETER | SYMBO L | CO NDITIO NS | MIN | TY P | MAX | UNIT | ||||||||||||||||
| O utp ut Type | - | - | LVPECL | - | ||||||||||||||||||
| O utp ut Vo ltage Levels |
VOH VOL |
LVPECL Load, -40°C to +85°C LVPECL Load, -40°C to +85°C |
VCC - 1.085 VCC - 1.810 |
- - |
VCC - 0.880 VCC - 1.620 |
V | ||||||||||||||||
| O utp ut D uty Cyc le | SYM | @ VCC - 1.3V | 45 | - | 55 | % | ||||||||||||||||
| Rise and Fall Time | TR, TF | @ 20%/80% Levels | - | 0.3 | 1.0 | ns | ||||||||||||||||
| Start Up Ti me | TS | Application of VCC | - | 5 | 10 | ms | ||||||||||||||||
| Enable Fu nctio n | ||||||||||||||||||||||
| Enable In p ut Vo ltage | VIH | Pin 2 Logic '1', Output Enabled | 0.7VCC | - | - | V | ||||||||||||||||
| Disable In p ut Vo ltage | VIL | Pin 2 Logic '0', Output Disabled | - | - | 0.3VCC | V | ||||||||||||||||
| Standby Cu rrent | ISTB | Pin 2 Logic '0', Output Standby | - | - | 10 | µA | ||||||||||||||||
| Enable Ti me | TPLZ | Pin 2 Logic '1' | - | - | 20 | µs | ||||||||||||||||
| Phase Jitter, RMS | tjrms | Bandwidth 12kHz - 20MHz | - | 90 | 200 | fs | ||||||||||||||||
| Phase Noise | - | See Typical Plots | - | - | - | - | ||||||||||||||||
345LB3I1562T,156.25MHz,345系列VCXO晶振,5032mm,CTS差分晶振
| 贴片差分晶振 | 品牌 | 型号 | 频率 | 频率稳定度 | 包装/封装 |
| 345LB3I1228T | CTS西迪斯晶振 | 345 | 122.88MHz | ±50ppm | 6-SMD, No Lead |
| 345LB3I1562T | CTS西迪斯晶振 | 345 | 156.25MHz | ±50ppm | 6-SMD, No Lead |
| 345LB3C1228T | CTS西迪斯晶振 | 345 | 122.88MHz | ±50ppm | 6-SMD, No Lead |
| 345LB3C1000T | CTS西迪斯晶振 | 345 | 100MHz | ±50ppm | 6-SMD, No Lead |
| 345LB5C1000T | CTS西迪斯晶振 | 345 | 100MHz | ±25ppm | 6-SMD, No Lead |
| 345LB3I1000T | CTS西迪斯晶振 | 345 | 100MHz | ±50ppm | 6-SMD, No Lead |
| 345LB5I1000T | CTS西迪斯晶振 | 345 | 100MHz | ±25ppm | 6-SMD, No Lead |
| 345LB6C1000T | CTS西迪斯晶振 | 345 | 100MHz | ±20ppm | 6-SMD, No Lead |
| 345LB3C1250T | CTS西迪斯晶振 | 345 | 125MHz | ±50ppm | 6-SMD, No Lead |
| 345LB3I1250T | CTS西迪斯晶振 | 345 | 125MHz | ±50ppm | 6-SMD, No Lead |
| 345LB5C1228T | CTS西迪斯晶振 | 345 | 122.88MHz | ±25ppm | 6-SMD, No Lead |
| 345LB5C1250T | CTS西迪斯晶振 | 345 | 125MHz | ±25ppm | 6-SMD, No Lead |
| 345LB5I1228T | CTS西迪斯晶振 | 345 | 122.88MHz | ±25ppm | 6-SMD, No Lead |
| 345LB6C1228T | CTS西迪斯晶振 | 345 | 122.88MHz | ±20ppm | 6-SMD, No Lead |
| 345LB5I1250T | CTS西迪斯晶振 | 345 | 125MHz | ±25ppm | 6-SMD, No Lead |
| 345LB6C1250T | CTS西迪斯晶振 | 345 | 125MHz | ±20ppm | 6-SMD, No Lead |
| 345LB5C1536T | CTS西迪斯晶振 | 345 | 153.6MHz | ±25ppm | 6-SMD, No Lead |
| 345LB5I1536T | CTS西迪斯晶振 | 345 | 153.6MHz | ±25ppm | 6-SMD, No Lead |
| 345LB6C1536T | CTS西迪斯晶振 | 345 | 153.6MHz | ±20ppm | 6-SMD, No Lead |
| 345LB3C1536T | CTS西迪斯晶振 | 345 | 153.6MHz | ±50ppm | 6-SMD, No Lead |
| 345LB5C1555T | CTS晶振 | 345 | 155.52MHz | ±25ppm | 6-SMD, No Lead |
| 345LB5I1555T | CTS西迪斯晶振 | 345 | 155.52MHz | ±25ppm | 6-SMD, No Lead |
| 345LB6C1555T | CTS西迪斯晶振 | 345 | 155.52MHz | ±20ppm | 6-SMD, No Lead |
| 345LB3I1536T | CTS西迪斯晶振 | 345 | 153.6MHz | ±50ppm | 6-SMD, No Lead |
| 345LB3C1555T | CTS西迪斯晶振 | 345 | 155.52MHz | ±50ppm | 6-SMD, No Lead |
| 345LB3C1562T | CTS西迪斯晶振 | 345 | 156.25MHz | ±50ppm | 6-SMD, No Lead |
| 345LB3I1555T | CTS西迪斯晶振 | 345 | 155.52MHz | ±50ppm | 6-SMD, No Lead |
| 345LB5C1562T | CTS西迪斯晶振 | 345 | 156.25MHz | ±25ppm | 6-SMD, No Lead |
| 345LB5I1562T | CTS西迪斯晶振 | 345 | 156.25MHz | ±25ppm | 6-SMD, No Lead |
| 345LB6C1562T | CTS西迪斯晶振 | 345 | 156.25MHz | ±20ppm | 6-SMD, No Lead |
| 345LB3C1660T | CTS西迪斯晶振 | 345 | 166MHz | ±50ppm | 6-SMD, No Lead |
| 345LB5C1660T | CTS西迪斯晶振 | 345 | 166MHz | ±25ppm | 6-SMD, No Lead |
| 345LB3I1660T | CTS西迪斯晶振 | 345 | 166MHz | ±50ppm | 6-SMD, No Lead |
| 345LB5I1660T | CTS西迪斯晶振 | 345 | 166MHz | ±25ppm | 6-SMD, No Lead |
| 345LB6C1660T | CTS西迪斯晶振 | 345 | 166MHz | ±20ppm | 6-SMD, No Lead |
| 345LB3C2000T | CTS西迪斯晶振 | 345 | 200MHz | ±50ppm | 6-SMD, No Lead |
| 345LB3C2048T | CTS西迪斯晶振 | 345 | 204.8MHz | ±50ppm | 6-SMD, No Lead |
| 345LB3I2000T | CTS西迪斯晶振 | 345 | 200MHz | ±50ppm | 6-SMD, No Lead |
| 345LB3I2048T | CTS西迪斯晶振 | 345 | 204.8MHz | ±50ppm | 6-SMD, No Lead |
| 345LB5C2000T | CTS西迪斯晶振 | 345 | 200MHz | ±25ppm | 6-SMD, No Lead |
| 345LB5I2000T | CTS西迪斯晶振 | 345 | 200MHz | ±25ppm | 6-SMD, No Lead |
| 345LB6C2000T | CTS西迪斯晶振 | 345 | 200MHz | ±20ppm | 6-SMD, No Lead |
| 345LB5C2048T | CTS西迪斯晶振 | 345 | 204.8MHz | ±25ppm | 6-SMD, No Lead |
| 345LB5I2048T | CTS西迪斯晶振 | 345 | 204.8MHz | ±25ppm | 6-SMD, No Lead |
| 345LB6C2048T | CTS西迪斯晶振 | 345 | 204.8MHz | ±20ppm | 6-SMD, No Lead |
| 345LB3C2457T | CTS西迪斯晶振 | 345 | 245.76MHz | ±50ppm | 6-SMD, No Lead |
| 345LB3I2457T | CTS西迪斯晶振 | 345 | 245.76MHz | ±50ppm | 6-SMD, No Lead |
| 345LB5C2457T | CTS西迪斯晶振 | 345 | 245.76MHz | ±25ppm | 6-SMD, No Lead |
| 345LB5I2457T | CTS西迪斯晶振 | 345 | 245.76MHz | ±25ppm | 6-SMD, No Lead |
| 345LB6C2457T | CTS西迪斯晶振 | 345 | 245.76MHz | ±20ppm | 6-SMD, No Lead |
