Skyworks晶体,544BCAB000126CCG,3225贴片晶振,6G基站晶振
频率：20MHz
尺寸：3.2×2.5mm
Skyworks晶体,544BCAB000126CCG,3225贴片晶振,6G基站晶振,Skyworks晶体,Si544进口有源晶振,LVDS差分晶振,3225贴片晶振,544BCAB000126CCG晶振,频率20MHz,电压3.3V,频率偏差7ppm,工作温度-40~85°C,高精度晶振,低相噪晶振,6G基站晶振,网络服务器晶振,电信交换机晶振,数据中心晶振.
订购热线：0755-27838351
Skyworks晶体,544BCAB000126CCG,3225贴片晶振,6G基站晶振,Skyworks晶体,Si544进口有源晶振,544BCAB000126CCG晶振,LVDS差分晶振,3225贴片晶振,频率20MHz,电压3.3V,频率偏差7ppm,工作温度-40~85°C,高精度晶振,低相噪晶振,6G基站晶振,网络服务器晶振,电信交换机晶振,数据中心晶振.
Skyworks晶体,544BCAB000126CCG,3225贴片晶振,6G基站晶振特点：
•I2C可编程到任何频率从0.2到1500 MHz，分辨率< 1 ppb
•非常低的抖动:150 fs类型RMS (12 kHz - 20 MHz)
•配置多达4引脚可选择的启动频率
•I2C接口支持100kbps、400kbps和1Mbps(快速模式+)
•出色的PSNR和电源抗噪性:-80 dBc类型
•3.3 V, 2.5 V和1.8 V VDD供电操作从相同的零件号
•LVPECL, LVDS, CML, HCSL, CMOS和DualCMOS输出选项
•2.5x3.2, 3.2x5, 5x7 mm包装选项
•样品交付周期为1-2周
Skyworks晶体,544BCAB000126CCG,3225贴片晶振,6G基站晶振参数图
| 项目 | 符号 | 规格说明 | 条件 |
| 额定频率 | f_nom | 20MHz | 请联系我们以便获取其它可用频率的相关信息 |
| 电源电压 | Vcc | 3.3V |
|
| 储存温度 | T_stg | -55℃~+125℃ | 裸存 |
| 工作温度 | T_use | -40℃~ +85℃ |
|
| 频率稳定性 | f_tol | ±7 ppm | +25℃,超出标准的规格说明请联系我们以便获取相关信息 |
| 电源电流 | IDD | 111mA Max |
LVDS
|
| 对称性（占空比） | SYM | 45%~55% | 在输出交叉点 |
| 输出电压 | VOC | 1.275V Max |
LVDS
|
| VO | 1.9Vpp Max | ||
| 输入电压 | VIH | 70%VDD Min |
|
| VIL | 30%VDD Max | ||
| 上升下降时间 | tr/tf | 350ps Max |
LVDS
|
| 起始时间 | t str | 3ms Max |
|
| 相位抖动 | tpj | 200fs Max |
100 MHz ≤ FCLK < 200 MHz
|

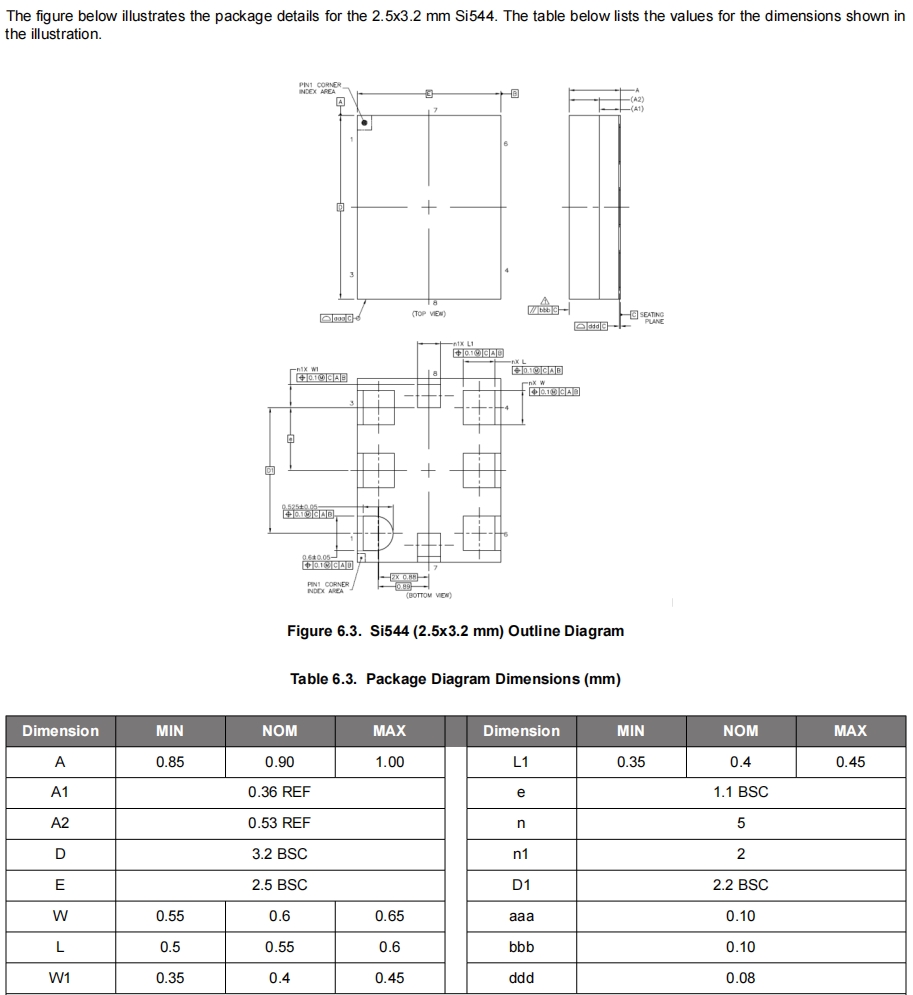

Skyworks晶体,544BCAB000126CCG,3225贴片晶振,6G基站晶振尺寸图
| 原厂编码 | 品牌 | 型号 | 频率 | 输出 | 电压 | 频率稳定性 | 工作温度 |
| 544DABB001892BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 100 MHz | CML | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544DABB001893BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 100 MHz | CML | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544BACC000112ACG | Skyworks Solutions Inc. | Ultra™ Si544 | 10 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544AAAA000118ACG | Skyworks Solutions Inc. | Ultra™ Si544 | 156.25 MHz | LVPECL | 2.5V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544AADA000163ACG | Skyworks Solutions Inc. | Ultra™ Si544 | 20 MHz | LVPECL | 2.5V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544BADB001939ACG | Skyworks Solutions Inc. | Ultra™ Si544 | 150.060024 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544BACB001962ACG | Skyworks Solutions Inc. | Ultra™ Si544 | 121.3056 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544CACC000306ACG | Skyworks Solutions Inc. | Ultra™ Si544 | 22.5792 MHz | CMOS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544AAAA000798ACG | Skyworks Solutions Inc. | Ultra™ Si544 | 1 MHz | LVPECL | 2.5V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544BAAC001713ACG | Skyworks Solutions Inc. | Ultra™ Si544 | 325 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544CACC000627ACG | Skyworks Solutions Inc. | Ultra™ Si544 | 10 MHz | CMOS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544BACB001952ACG | Skyworks Solutions Inc. | Ultra™ Si544 | 202.5 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544BACB001808ACG | Skyworks Solutions Inc. | Ultra™ Si544 | 270 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544BACB001939ACG | Skyworks Solutions Inc. | Ultra™ Si544 | 150.060024 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544BAAC000627ACG | Skyworks Solutions Inc. | Ultra™ Si544 | 10 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544BACC001530ACG | Skyworks Solutions Inc. | Ultra™ Si544 | 148.5 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544BACB001961ACG | Skyworks Solutions Inc. | Ultra™ Si544 | 121.306 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544AAAA000126ACG | Skyworks Solutions Inc. | Ultra™ Si544 | 200 MHz | LVPECL | 2.5V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544BACB001960ACG | Skyworks Solutions Inc. | Ultra™ Si544 | 227.272727 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544CAAC000306ACG | Skyworks Solutions Inc. | Ultra™ Si544 | 22.5792 MHz | CMOS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544BAAC001741ACG | Skyworks Solutions Inc. | Ultra™ Si544 | 70.656 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544BADB000991ACG | Skyworks Solutions Inc. | Ultra™ Si544 | 135 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544ACAA001427BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 157 MHz | LVPECL | 2.5V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 544DABB001897BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 100 MHz | CML | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544CAAA000956BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 6.78 MHz | CMOS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544AAAA000121BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 100 MHz | LVPECL | 2.5V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544DABB001896BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 100 MHz | CML | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544DABB001895BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 100 MHz | CML | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544BACC000118BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 156.25 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544BACB001960ACGR | Skyworks Solutions Inc. | Ultra™ Si544 | 227.272727 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544BAAB001011BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 148.5 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544DABB001890BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 100 MHz | CML | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544CBCB000112BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 10 MHz | CMOS | 1.8V ~ 3.3V | ±10ppm | -40°C ~ 85°C |
| 544GAAA000112BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 10 MHz | CMOS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544BCAC002065BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 272.8 MHz | LVDS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 544BBAC001541BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 96 MHz | LVDS | 1.8V ~ 3.3V | ±10ppm | -40°C ~ 85°C |
| 544BCAA000126BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 200 MHz | LVDS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 544DABB001894BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 100 MHz | CML | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544BCAA000136BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 160 MHz | LVDS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 544BAAC000111BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 25 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544AADA000163ACGR | Skyworks Solutions Inc. | Ultra™ Si544 | 20 MHz | LVPECL | 2.5V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544BAAA000137BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 1.024 GHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544ACAC000112BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 10 MHz | LVPECL | 2.5V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 544BACA000420BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 644.53125 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544AAAA000112BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 10 MHz | LVPECL | 2.5V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544BAAA000137BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 1.024 GHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544AAAA000126ACGR | Skyworks Solutions Inc. | Ultra™ Si544 | 200 MHz | LVPECL | 2.5V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544CCAC000121BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 100 MHz | CMOS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 544ACAC000112BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 10 MHz | LVPECL | 2.5V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 544DABB001897BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 100 MHz | CML | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544BAAC000157BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 50 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544CAAC000887BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 24 MHz | CMOS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544BAAB000482BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 148.35 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544BBCC000121BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 100 MHz | LVDS | 1.8V ~ 3.3V | ±10ppm | -40°C ~ 85°C |
| 544DABB001890BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 100 MHz | CML | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544CAAC000887BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 24 MHz | CMOS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544ABAC001975BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 40.8 MHz | LVPECL | 2.5V ~ 3.3V | ±10ppm | -40°C ~ 85°C |
| 544BAAC001713ACGR | Skyworks Solutions Inc. | Ultra™ Si544 | 325 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544CACC000627ACGR | Skyworks Solutions Inc. | Ultra™ Si544 | 10 MHz | CMOS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544CCAC000121BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 100 MHz | CMOS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 544BCBA000544BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 156.25 MHz | LVDS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 544BAAC001808BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 270 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544BCAA001541BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 96 MHz | LVDS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 544BAAB000482BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 148.35 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544ACAA000131BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 120 MHz | LVPECL | 2.5V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 544AAAA000112BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 10 MHz | LVPECL | 2.5V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544BAAC001808BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 270 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544BCAA000136BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 160 MHz | LVDS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 544AAAA000798ACGR | Skyworks Solutions Inc. | Ultra™ Si544 | 1 MHz | LVPECL | 2.5V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544CBAC000912BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 24.8832 MHz | CMOS | 1.8V ~ 3.3V | ±10ppm | -40°C ~ 85°C |
| 544BACC000112ACGR | Skyworks Solutions Inc. | Ultra™ Si544 | 10 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544AAAA000110BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 74.25 MHz | LVPECL | 2.5V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544BAAC000157BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 50 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544DABB001895BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 100 MHz | CML | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544BACB001952ACGR | Skyworks Solutions Inc. | Ultra™ Si544 | 202.5 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544CAAC000306BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 22.5792 MHz | CMOS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544BADB000991ACGR | Skyworks Solutions Inc. | Ultra™ Si544 | 135 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544AADC000112BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 10 MHz | LVPECL | 2.5V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544ABAA000112BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 10 MHz | LVPECL | 2.5V ~ 3.3V | ±10ppm | -40°C ~ 85°C |
| 544AAAA000118BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 156.25 MHz | LVPECL | 2.5V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544AAAA000118ACGR | Skyworks Solutions Inc. | Ultra™ Si544 | 156.25 MHz | LVPECL | 2.5V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544DABB001891BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 100 MHz | CML | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544AAAA000118BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 156.25 MHz | LVPECL | 2.5V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544ACAA002065BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 272.8 MHz | LVPECL | 2.5V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 544BACB001961ACGR | Skyworks Solutions Inc. | Ultra™ Si544 | 121.306 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544BAAB001011BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 148.5 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544AADC000112BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 10 MHz | LVPECL | 2.5V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544BAAC000111BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 25 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544DAAA000121BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 100 MHz | CML | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544DABB001892BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 100 MHz | CML | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544ACAA002065BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 272.8 MHz | LVPECL | 2.5V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 544ACAA000112BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 10 MHz | LVPECL | 2.5V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 544DAAA000121BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 100 MHz | CML | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544BACB001939ACGR | Skyworks Solutions Inc. | Ultra™ Si544 | 150.060024 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544BACC001530ACGR | Skyworks Solutions Inc. | Ultra™ Si544 | 148.5 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544CAAC000306BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 22.5792 MHz | CMOS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544BCAA001541BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 96 MHz | LVDS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 544BAAA001741BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 70.656 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544DAAA000485BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 625 MHz | CML | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544BAAC000215BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 27 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544DABB001894BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 100 MHz | CML | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544BACA000420BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 644.53125 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544BAAC001741ACGR | Skyworks Solutions Inc. | Ultra™ Si544 | 70.656 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544CAAC000306ACGR | Skyworks Solutions Inc. | Ultra™ Si544 | 22.5792 MHz | CMOS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544BBCB000112BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 10 MHz | LVDS | 1.8V ~ 3.3V | ±10ppm | -40°C ~ 85°C |
| 544BAAC000627ACGR | Skyworks Solutions Inc. | Ultra™ Si544 | 10 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544GAAA000956BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 6.78 MHz | CMOS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544BBCC000121BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 100 MHz | LVDS | 1.8V ~ 3.3V | ±10ppm | -40°C ~ 85°C |
| 544BAAC000544BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 156.25 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544CAAC000148BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 24.576 MHz | CMOS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544BBAC001541BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 96 MHz | LVDS | 1.8V ~ 3.3V | ±10ppm | -40°C ~ 85°C |
| 544BAAC000544BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 156.25 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544DAAA000485BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 625 MHz | CML | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544CBCB000112BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 10 MHz | CMOS | 1.8V ~ 3.3V | ±10ppm | -40°C ~ 85°C |
| 544DABB001893BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 100 MHz | CML | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544BAAC000215BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 27 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544ACAA000131BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 120 MHz | LVPECL | 2.5V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 544BCAA000112BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 10 MHz | LVDS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 544DABB001891BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 100 MHz | CML | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544AAAA000110BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 74.25 MHz | LVPECL | 2.5V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544CBAC000912BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 24.8832 MHz | CMOS | 1.8V ~ 3.3V | ±10ppm | -40°C ~ 85°C |
| 544BBCB000112BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 10 MHz | LVDS | 1.8V ~ 3.3V | ±10ppm | -40°C ~ 85°C |
| 544CACC000306ACGR | Skyworks Solutions Inc. | Ultra™ Si544 | 22.5792 MHz | CMOS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544DABB001896BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 100 MHz | CML | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544ABAA000112BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 10 MHz | LVPECL | 2.5V ~ 3.3V | ±10ppm | -40°C ~ 85°C |
| 544CCAC000157BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 50 MHz | CMOS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 544BCBA000544BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 156.25 MHz | LVDS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 544ACAA000112BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 10 MHz | LVPECL | 2.5V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 544BAAA001741BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 70.656 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544BACB001962ACGR | Skyworks Solutions Inc. | Ultra™ Si544 | 121.3056 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544ABAA001982BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 133.3125 MHz | LVPECL | 2.5V ~ 3.3V | ±10ppm | -40°C ~ 85°C |
| 544BBCB000126BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 200 MHz | LVDS | 1.8V ~ 3.3V | ±10ppm | -40°C ~ 85°C |
| 544BACB001808ACGR | Skyworks Solutions Inc. | Ultra™ Si544 | 270 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544BBCB000126BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 200 MHz | LVDS | 1.8V ~ 3.3V | ±10ppm | -40°C ~ 85°C |
| 544BCAC002065BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 272.8 MHz | LVDS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 544GAAA000112BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 10 MHz | CMOS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544BCAB000313BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 300 MHz | LVDS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 544ABAC001975BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 40.8 MHz | LVPECL | 2.5V ~ 3.3V | ±10ppm | -40°C ~ 85°C |
| 544GAAA000956BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 6.78 MHz | CMOS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544BCAB000313BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 300 MHz | LVDS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 544ABAA001982BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 133.3125 MHz | LVPECL | 2.5V ~ 3.3V | ±10ppm | -40°C ~ 85°C |
| 544BACC000118BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 156.25 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544BCAA000126BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 200 MHz | LVDS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 544CAAA000956BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 6.78 MHz | CMOS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544CCAC000157BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 50 MHz | CMOS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 544CAAC000148BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 24.576 MHz | CMOS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544AAAA000121BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 100 MHz | LVPECL | 2.5V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544BADB001939ACGR | Skyworks Solutions Inc. | Ultra™ Si544 | 150.060024 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 544BCAA000112BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 10 MHz | LVDS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 544ACAA001427BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 157 MHz | LVPECL | 2.5V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 544BBCB000177BBG | Skyworks Solutions Inc. | Ultra™ Si544 | 297 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±10ppm | -40°C ~ 85°C |
| 544AAAA000110BBGR | Skyworks Solutions Inc. | Ultra™ Si544 | 74.25 MHz | LVPECL | 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 544AAAA000112BBGR | Skyworks Solutions Inc. | Ultra™ Si544 | 10 MHz | LVPECL | 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 544AAAA000121BBGR | Skyworks Solutions Inc. | Ultra™ Si544 | 100 MHz | LVPECL | 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 544AAAA000126ABGR | Skyworks Solutions Inc. | Ultra™ Si544 | 200 MHz | LVPECL | 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 544AAAA000798ABGR | Skyworks Solutions Inc. | Ultra™ Si544 | 1 MHz | LVPECL | 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
精工富士晶振-康华尔正规渠道指定供应商
服务热线：0755-27838351
手机联系：138-2330-0879
Q Q联系：632862232
邮 箱：konuaer@163.com
地 址：广东深圳市宝安区宝安大道东95号浙商大厦1905
采购：Skyworks晶体,544BCAB000126CCG,3225贴片晶振,6G基站晶振
- *联系人：
- *手机：
- 公司名称：
- 邮箱：
- *采购意向：
-
*验证码：
跟此产品相关的产品 / Related Products
- Pletronics晶振,3225晶振,PE44F/PE44G晶振
- 小尺寸的TCXO温补晶振内部晶片焊接模式采用了，高精密点胶技术，晶片胶点的位置、大小：位置准确度以及胶点大小一致性，通过图像识别及高精密度数字定位系统的运用、使晶片的点胶的精度在±0.02mm之内，确保TCXO晶体产品精度，稳定性能良好发挥功能。
- 253进口49SMD晶振,奥斯康利环保晶体,253-7.3728M-SR-S-TR行车电脑晶振
- 253进口49SMD晶振,奥斯康利环保晶体,253-7.3728M-SR-S-TR行车电脑晶振，美国Oscilent晶振公司，奥斯康利晶振，253晶振，253-7.3728M-SR-S-TR晶振，贴片晶振，无源晶振，贴片晶振，无源晶振，高精度晶振，6G通讯设备晶振，无线传输晶振，汽车晶振，小型晶振，低损耗晶振，石英晶振，欧美进口晶振，高品质晶振，无人机晶振，6G无线网晶振，高精度晶振，局域网晶振，小体积晶振，低损耗晶振，北斗卫星定位模块晶振，成本效益，低配置，节省空间的设计，磁带和卷轴，符合RoHs/无铅标准。
- Oscilent环保无铅晶振,278小体积晶振,278-24.545454M-12-W-TR智能手表晶振
- Oscilent环保无铅晶振,278小体积晶振,278-24.545454M-12-W-TR智能手表晶振，美国Oscilent晶振公司，奥斯康利晶振，3225晶振，276晶振，278-24.545454M-12-W-TR晶振，超薄型晶振，低损耗晶振，石英晶振，欧美进口晶振，高品质晶振，北斗卫星定位模块晶振，紧凑和薄(0.65mm型材)，耐热和耐冲击，适用于包括电信设备，短距离无线电链路模块，DVC, DSC, PDA和PC，符合RoHs/无铅标准，无人机晶振，6G无线网晶振，高精度晶振，贴片晶振，无源晶振，高精度晶振，6G通讯设备晶振，无线传输晶振，局域网晶振，小体积晶振，低损耗晶振 。
康华尔产品中心
Product Center
精工晶振
富士晶振
雾化片
石英晶振
石英晶体振荡器
贴片晶振
32.768KHz晶振
欧美进口晶振
- KDS晶振
- 爱普生晶振
- NDK晶振
- 京瓷晶振
- 西铁城晶振
- 村田晶振
- 大河晶振
- CTS晶振
- 微晶晶振
- 瑞康晶振
- 康纳温菲尔德晶振
- 高利奇晶振
- Jauch晶振
- AbraconCrystal
- 维管晶振
- ECS晶振
- 日蚀晶振
- 拉隆晶振
- 格林雷晶振
- SiTime晶振
- IDT晶振
- Statek晶振
- Pletronics晶振
- ACT晶振
- MTI-Milliren晶振
- LiHom晶振
- 美国Rubyquartz晶振
- Oscilent晶振
- 日本纳卡晶振
- SHINSUNG晶振
- ITTI晶振
- SMI晶振
- PDI晶振
- C-TECH晶振
- NJR晶振
- IQD晶振
- Microchip晶振
- Silicon晶振
- Fortiming晶振
- CORE晶振
- NIPPON晶振
- NIC晶振
- QVS晶振
- Bomar晶振
- Bliley晶振
- GED晶振
- Filtronetics晶振
- STD晶振
- Q-Tech晶振
- Anderson晶振
- Wenzel晶振
- NEL晶振
- EM晶振
- PETERMANN晶振
- FCD-Tech晶振
- HEC晶振
- FMI晶振
- Macrobizes晶振
- AXTAL晶振
- SUNNY晶振
- ARGO晶振
- Skyworks晶振
- 瑞萨renesas晶振
谐振器/滤波器
数码电子产品
汽车电子产品
新增进口品牌
温补晶振
差分晶振
恒温晶振
联系康华尔Contact us
咨询热线
0755-27838351
电话：0755-27838351
手机：138 2330 0879
QQ：632862232
邮箱： konuaer@163.com
地址：广东深圳市宝安区宝安大道东95号浙商大厦1905
康华尔公众号
