X1G0042410010|SG3225VAN石英贴片晶振|LVDS差分晶振
prevnext

X1G0042410010|SG3225VAN石英贴片晶振|LVDS差分晶振

频率：148.5MHz

尺寸：3.2 × 2.5 × 1.05 mm

X1G0042410010|SG3225VAN石英贴片晶振|LVDS差分晶振,日本EPSON晶振,SG3225VAN石英贴片晶振,LVDS差分晶振,X1G0042410010晶振,小体积石英晶振,耐高温晶振,频率148.5MHz,电压3.3V,频率稳定性50ppm,工作温度-40~85°C,尺寸3225mm,卫星通信地面设备晶振,数字地面电视广播设备晶振,工厂自动化晶振,高速转换器晶振.



订购热线：0755-27838351
QQ咨询 点击这里给我发消息

1X1G0042410010|SG3225VAN石英贴片晶振|LVDS差分晶振,日本EPSON晶振,SG3225VAN石英贴片晶振,X1G0042410010晶振,LVDS差分晶振,小体积石英晶振,耐高温晶振,频率148.5MHz,电压3.3V,频率稳定性50ppm,工作温度-40~85°C,尺寸3225mm,卫星通信地面设备晶振,数字地面电视广播设备晶振,工厂自动化晶振,高速转换器晶振.

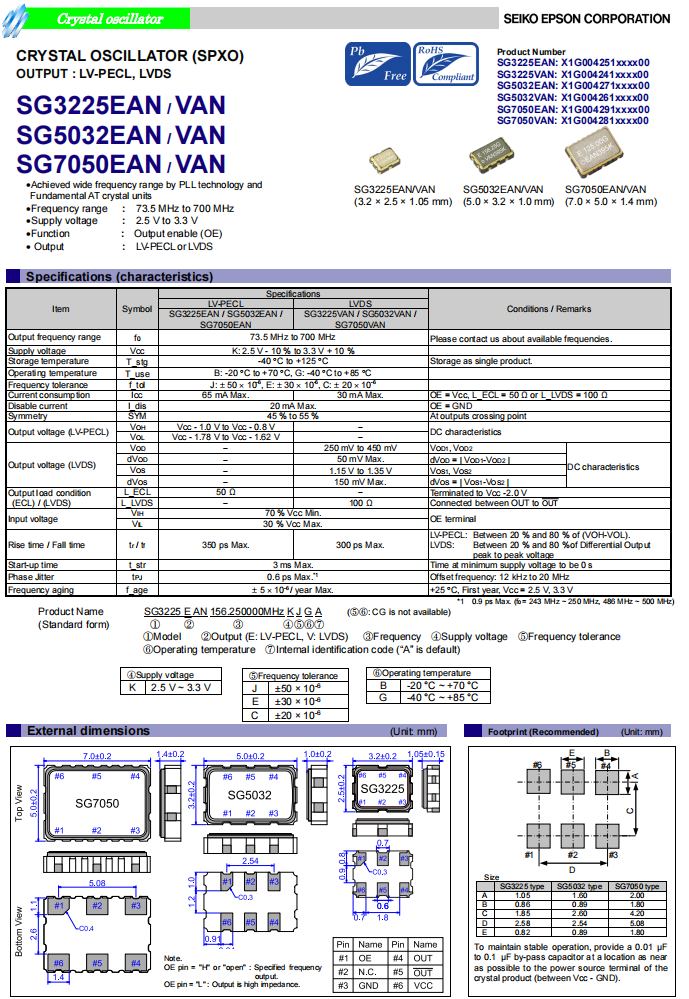

X1G0042410010|SG3225VAN石英贴片晶振|LVDS差分晶振 参数图

项目 符号 规格说明 条件
额定频率 f_nom 148.5MHz 请联系我们以便获取其它可用频率的相关信息
电源电压 Vcc 3.3V±0.33V
储存温度 T_stg -55℃~+125℃ 裸存
工作温度 T_use -40℃~ +85℃
频率稳定度 f_tol ±50 ppm +25℃,超出标准的规格说明请联系我们以便获取相关信息
电流消耗 f_tem 30mA Max OE=Vcc, L_LVDS = 100 Ω
禁用电流 I_dis 20mA Max OE=GND
对称性（占空比） SYM 45%~55% 在输出交叉点
输出电压（LVDS) VOD
250 mV to 450 mV
DC  charactenristics
VOS
1.15 V to 1.35 V
输出负载条件 L _ECL 100Ω
连接到 OUT 与 OUT 之间
输入电压 VIH 70%Vcc Min OE terminal
VIL 30%Vcc Max
上升下降时间 tr/tf 300ps Max
LVDS:Between 20 % and 80 %of Differential Output
peak to peak voltage
起始时间 t str 3ms Max Time at minimum supply voltage to be 0
相位抖动 tpj 0.6ps Max.*1
Offset frequency: 12 kHz to 20 MHz
老化 f_age
± 5 × 10-6 / year Max.
+25 °C, First year,VCC=2.5 V, 3.3 V


3

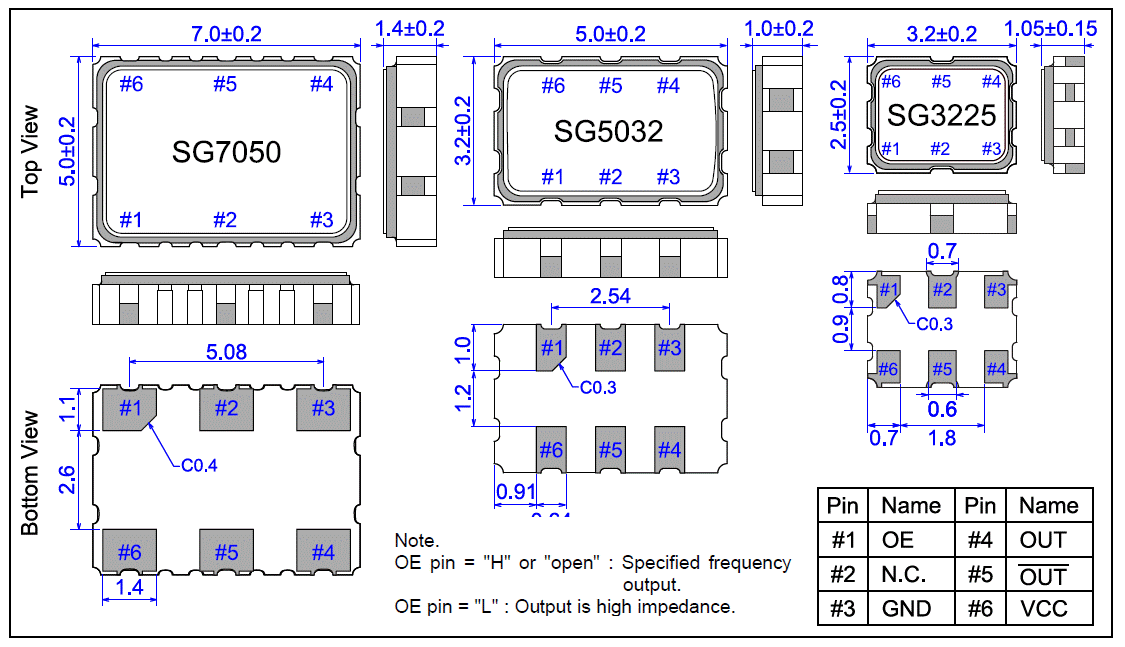

X1G0042410010|SG3225VAN石英贴片晶振|LVDS差分晶振尺寸图

SG3225VAN.SG5032VAN.SG7050VAN

编码 型号 频率 LxWxH/尺寸 输出方式 电源电压 工作温度 频率偏差
X1G0042410001 SG3225VAN 125.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042410002 SG3225VAN 125.006250 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042410004 SG3225VAN 100.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042410005 SG3225VAN 200.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042410006 SG3225VAN 400.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042410007 SG3225VAN 106.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042410008 SG3225VAN 212.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042410009 SG3225VAN 74.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042410010 SG3225VAN 148.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042410011 SG3225VAN 75.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042410012 SG3225VAN 150.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042410014 SG3225VAN 156.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042410015 SG3225VAN 312.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042410016 SG3225VAN 312.515625 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042410017 SG3225VAN 161.132800 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042410020 SG3225VAN 125.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042410021 SG3225VAN 125.006250 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042410023 SG3225VAN 100.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042410024 SG3225VAN 200.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042410025 SG3225VAN 400.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042410026 SG3225VAN 106.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042410027 SG3225VAN 212.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042410028 SG3225VAN 74.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042410029 SG3225VAN 148.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042410030 SG3225VAN 75.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042410031 SG3225VAN 150.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042410033 SG3225VAN 156.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042410034 SG3225VAN 312.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042410035 SG3225VAN 312.515625 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042410036 SG3225VAN 161.132800 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042410039 SG3225VAN 125.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042410040 SG3225VAN 125.006250 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042410042 SG3225VAN 100.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042410043 SG3225VAN 200.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042410044 SG3225VAN 400.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042410045 SG3225VAN 106.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042410046 SG3225VAN 212.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042410047 SG3225VAN 74.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042410048 SG3225VAN 148.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042410049 SG3225VAN 75.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042410050 SG3225VAN 150.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042410052 SG3225VAN 156.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042410053 SG3225VAN 312.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042410054 SG3225VAN 312.515625 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042410055 SG3225VAN 161.132800 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042410058 SG3225VAN 125.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042410059 SG3225VAN 125.006250 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042410061 SG3225VAN 100.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042410062 SG3225VAN 200.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042410063 SG3225VAN 400.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042410064 SG3225VAN 106.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042410065 SG3225VAN 212.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042410066 SG3225VAN 74.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042410067 SG3225VAN 148.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042410068 SG3225VAN 75.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042410069 SG3225VAN 150.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042410071 SG3225VAN 156.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042410072 SG3225VAN 312.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042410073 SG3225VAN 312.515625 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042410074 SG3225VAN 161.132800 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042410079 SG3225VAN 50.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042410080 SG3225VAN 68.750000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042410083 SG3225VAN 50.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042410084 SG3225VAN 68.750000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042410087 SG3225VAN 50.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042410088 SG3225VAN 68.750000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042410092 SG3225VAN 68.750000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042410100 SG3225VAN 133.333333 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042410101 SG3225VAN 148.350000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042410102 SG3225VAN 114.285000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042410103 SG3225VAN 250.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042410104 SG3225VAN 350.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042410105 SG3225VAN 80.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042410106 SG3225VAN 98.304000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042410108 SG3225VAN 297.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042510001 SG3225EAN 100.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042510002 SG3225EAN 156.250000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042510003 SG3225EAN 125.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042510004 SG3225EAN 125.006250 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042510006 SG3225EAN 200.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042510007 SG3225EAN 400.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042510008 SG3225EAN 106.250000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042510009 SG3225EAN 212.500000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042510010 SG3225EAN 74.250000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042510011 SG3225EAN 148.500000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042510012 SG3225EAN 75.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042510013 SG3225EAN 150.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042510014 SG3225EAN 155.520000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042510015 SG3225EAN 156.250000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042510016 SG3225EAN 312.500000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042510017 SG3225EAN 312.515625 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042510018 SG3225EAN 161.132800 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042510021 SG3225EAN 125.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510022 SG3225EAN 125.006250 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510024 SG3225EAN 100.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510025 SG3225EAN 200.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510026 SG3225EAN 400.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510027 SG3225EAN 106.250000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510028 SG3225EAN 212.500000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510029 SG3225EAN 74.250000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510030 SG3225EAN 148.500000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510031 SG3225EAN 75.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510032 SG3225EAN 150.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510033 SG3225EAN 155.520000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510034 SG3225EAN 156.250000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510035 SG3225EAN 312.500000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510036 SG3225EAN 312.515625 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510037 SG3225EAN 161.132800 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510039 SG3225EAN 700.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510040 SG3225EAN 125.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042510041 SG3225EAN 125.006250 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042510043 SG3225EAN 100.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042510044 SG3225EAN 200.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042510045 SG3225EAN 400.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042510046 SG3225EAN 106.250000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042510047 SG3225EAN 212.500000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042510048 SG3225EAN 74.250000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042510049 SG3225EAN 148.500000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042510050 SG3225EAN 75.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042510051 SG3225EAN 150.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042510053 SG3225EAN 156.250000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042510054 SG3225EAN 312.500000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042510055 SG3225EAN 312.515625 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042510056 SG3225EAN 161.132800 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042510059 SG3225EAN 125.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042510060 SG3225EAN 125.006250 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042510062 SG3225EAN 100.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042510063 SG3225EAN 200.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042510064 SG3225EAN 400.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042510065 SG3225EAN 106.250000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042510066 SG3225EAN 212.500000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042510067 SG3225EAN 74.250000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042510068 SG3225EAN 148.500000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042510069 SG3225EAN 75.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042510070 SG3225EAN 150.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042510072 SG3225EAN 312.500000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042510073 SG3225EAN 312.515625 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042510074 SG3225EAN 161.132800 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042510079 SG3225EAN 50.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042510080 SG3225EAN 68.750000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042510083 SG3225EAN 50.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510084 SG3225EAN 68.750000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510087 SG3225EAN 50.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042510088 SG3225EAN 68.750000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042510091 SG3225EAN 50.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042510092 SG3225EAN 68.750000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042510100 SG3225EAN 114.285000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510103 SG3225EAN 644.531200 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042510104 SG3225EAN 250.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510105 SG3225EAN 350.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510106 SG3225EAN 80.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510107 SG3225EAN 98.304000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510111 SG3225EAN 133.330000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510112 SG3225EAN 144.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510113 SG3225EAN 174.703100 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510114 SG3225EAN 320.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510115 SG3225EAN 500.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510121 SG3225EAN 161.132812 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
SG3225EAN



精工富士晶振-康华尔正规渠道指定供应商

服务热线：0755-27838351

手机联系：138-2330-0879

Q Q联系：632862232

邮 箱：konuaer@163.com

地 址：广东深圳市宝安区宝安大道东95号浙商大厦1905

X1G0042410010 SG3225VAN石英贴片晶振 LVDS差分晶振

采购：X1G0042410010|SG3225VAN石英贴片晶振|LVDS差分晶振

  • *联系人：
  • *手机：
  • 公司名称：
  • 邮箱：
  • *采购意向：
  • *验证码：验证码

跟此产品相关的产品 / Related Products

DSC6001JI2A-125.0000T,6G以太网晶振,2520mm,低功耗晶振
DSC6001JI2A-125.0000T,6G以太网晶振,2520mm,低功耗晶振

DSC6001JI2A-125.0000T,6G以太网晶振,2520mm,低功耗晶振,美国晶振,Microchip石英贴片晶体,DSC60XX有源晶振,DSC6001JI2A-125.0000T晶振,2520mm晶振,超小型晶体振荡器,频率125MHz,电压3.3V,频率稳定性25ppm,工作温度-40~85°C,高可靠性晶振,无铅环保晶振,低功耗晶振,6G以太网晶振,物联网晶振,智能设备晶振,家庭医疗保健晶振,健身设备晶振,汽车信息娱乐系统晶振.


瑞萨进口晶振,XTP332087.000000I晶振,太空空间站晶振
瑞萨进口晶振,XTP332087.000000I晶振,太空空间站晶振
瑞萨进口晶振,XTP332087.000000I晶振,太空空间站晶振，瑞萨晶振公司，Renesas晶振，石英晶振，进口晶振，SMD晶振，空间站晶振，航空航天晶振，电脑主板晶振，智能手表晶振，小体积晶振，3225晶振，XT器件是超低相位噪声石英基锁相环振荡器，支持大范围的频率和输出接口类型。XT设备可编程为产生15MHz至2100MHz的输出频率，分辨率低至1Hz精度。该系列设备的可配置性为样品和大型生产订单提供了快速交付时间。部件可能是工厂编程的固定频率应用，或者可能是现场配置使用I2C接口。6G室外基站晶振，无人机晶振，6G路由器晶振，6G通讯终端晶振

Skyworks晶体,544BCAB000126CCG,3225贴片晶振,6G基站晶振
Skyworks晶体,544BCAB000126CCG,3225贴片晶振,6G基站晶振
Skyworks晶体,544BCAB000126CCG,3225贴片晶振,6G基站晶振,Skyworks晶体,Si544进口有源晶振,LVDS差分晶振,3225贴片晶振,544BCAB000126CCG晶振,频率20MHz,电压3.3V,频率偏差7ppm,工作温度-40~85°C,高精度晶振,低相噪晶振,6G基站晶振,网络服务器晶振,电信交换机晶振,数据中心晶振.
康华尔产品中心 Product Center

精工晶振

富士晶振

雾化片

石英晶振

石英晶体振荡器

贴片晶振

32.768KHz晶振

欧美进口晶振

谐振器/滤波器

数码电子产品

汽车电子产品

新增进口品牌

温补晶振

差分晶振

恒温晶振

联系康华尔Contact us

咨询热线


0755-27838351

电话：0755-27838351

手机：138 2330 0879

QQ：632862232

邮箱： konuaer@163.com

地址：广东深圳市宝安区宝安大道东95号浙商大厦1905

首页精工晶振富士晶振石英晶体振荡器32.768K石英晶振常见问题行业新闻企业介绍联系我们网址地图

Copyright © 2016-2017

深圳市康华尔电子有限公司版权所有

备案号：粤ICP备17109239号
