X1M0001410007|6G路由器晶振|LV-PECL差分晶振

当前位置：首页 » 欧美进口晶振 » 爱普生晶振 » X1M0001410007|6G路由器晶振|LV-PECL差分晶振

prevnext

X1M0001410007|6G路由器晶振|LV-PECL差分晶振

频率：312.5MHz

尺寸：7.0×5.0mm

X1M0001410007|6G路由器晶振|LV-PECL差分晶振,日本爱普生晶振,进口有源晶振,EG-4104石英晶体振荡器,X1M0001410007晶振,LV-PECL差分晶振,频率312.5MHz,电压3.3V,频率稳定性50ppm,工作温度-40~85°C,尺寸7050mm,低抖动晶振,6G路由器晶振,网络系统晶振,测试与测量设备晶振,服务器和存储系统晶振,专业视频设备晶振.

订购热线：0755-27838351

X1M0001410007|6G路由器晶振|LV-PECL差分晶振,日本爱普生晶振,进口有源晶振,EG-4104石英晶体振荡器,X1M0001410007晶振,LV-PECL差分晶振,频率312.5MHz,电压3.3V,频率稳定性50ppm,工作温度-40~85°C,尺寸7050mm,低抖动晶振,6G路由器晶振,网络系统晶振,测试与测量设备晶振,服务器和存储系统晶振,专业视频设备晶振.

X1M0001410007|6G路由器晶振|LV-PECL差分晶振参数图

项目	符号	规格说明	条件
额定频率	f_nom	312.5MHz	请联系我们以便获取其它可用频率的相关信息
电源电压	Vcc	3.3V±0.33V
储存温度	T_stg	-55℃~+125℃	裸存
工作温度	T_use	-40℃~ +85℃
频率稳定度	f_tol	±50 ppm	+25℃,超出标准的规格说明请联系我们以便获取相关信息
电流消耗	f_tem	60mA Max	OE=Vcc,L ECL=50Ω
禁用电流	I_dis	2mA Max	OE=GND
对称性（占空比）	SYM	45%~55%	在输出交叉点
输出电压（ECL)	VOH	2.35V Typ	DC charactenristics
输出电压（ECL)	VOL	1.6V Typ	DC charactenristics
输出负载条件	L _ECL	50Ω	连接到 OUT 与 OUT 之间
输入电压	VIH	70%Vcc Min	OE terminal
输入电压	VIL	30%Vcc Max	OE terminal
上升下降时间	tr/tf	400ps Max	20 % ~ 80 % (VOH-VOL). 20 % ~ 80 % 微分输出峰-峰值
起始时间	t str	10ms Max	Time at minimum supply voltage to be 0
相位抖动	tpj	0.18ps Max	300MHz≤fo<400MHz
老化	f_aging	频率稳定度包含	最高工作温度，5 年，VCC=2.5 V, 3.3 V

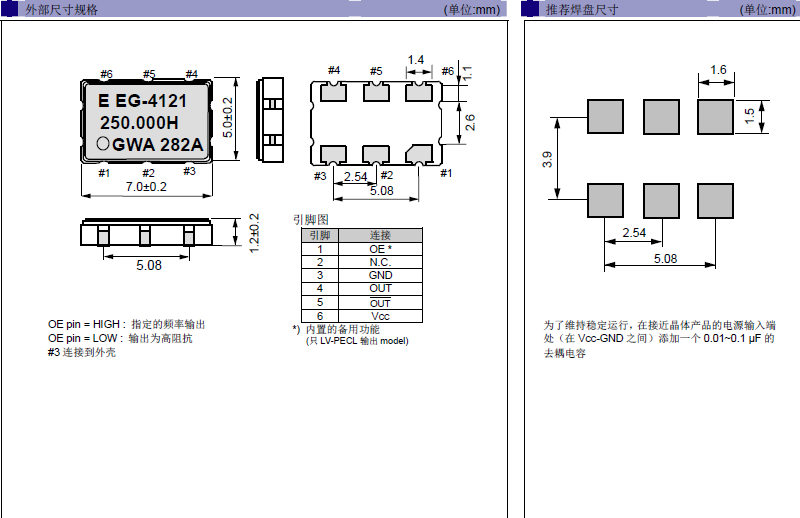

X1M0001410007|6G路由器晶振|LV-PECL差分晶振尺寸图

编码	型号	频率	LxWxH/尺寸	输出方式	电源电压	Ope Temperature/工作温度	频率偏差
X1M0001410001	EG-4101CA	212.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1M0001410002	EG-4101CA	281.333300 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1M0001410003	EG-4101CA	106.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1M0001410004	EG-4101CA	698.812300 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1M0001410007	EG-4101CA	312.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1M0001410008	EG-4101CA	400.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1M0001410010	EG-4101CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1M0001410013	EG-4101CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1M0001410014	EG-4101CA	644.531200 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1M0001410017	EG-4101CA	156.253906 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1M0001510002	EG-4101CA	200.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.465 V	-40 to 85 °C	+/-50 ppm
X1M0001510003	EG-4101CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.465 V	-40 to 85 °C	+/-50 ppm
X1M0001510004	EG-4101CA	125.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.465 V	-40 to 85 °C	+/-50 ppm
X1M0001510005	EG-4101CA	148.500000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.465 V	-40 to 85 °C	+/-50 ppm
X1M0001510006	EG-4101CA	240.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.465 V	-40 to 85 °C	+/-50 ppm
X1M0001510007	EG-4101CA	312.500000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.465 V	-40 to 85 °C	+/-50 ppm
X1M0001510008	EG-4101CA	148.351640 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.465 V	-40 to 85 °C	+/-50 ppm
X1M0001510009	EG-4101CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.465 V	-40 to 85 °C	+/-50 ppm
X1M0001810001	EG-4121CA	212.500000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-40 to 85 °C	+/-50 ppm
X1M0001810002	EG-4121CA	125.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-40 to 85 °C	+/-50 ppm
X1M0001810003	EG-4121CA	148.500000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-40 to 85 °C	+/-50 ppm
X1M0001810004	EG-4121CA	375.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-40 to 85 °C	+/-50 ppm
X1M0001810005	EG-4121CA	200.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-40 to 85 °C	+/-50 ppm
X1M0001810006	EG-4121CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-40 to 85 °C	+/-50 ppm
X1M0004110002	MG7050EAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C	+/-50 ppm
X1M0004110005	MG7050EAN	150.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C	+/-50 ppm
X1M0004110006	MG7050EAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V	-20 to 70 °C	+/-50 ppm
X1M0004110007	MG7050EAN	669.325580 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V	-20 to 70 °C	+/-50 ppm
X1M0004110008	MG7050EAN	150.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C	+/-100 ppm
X1M0004110009	MG7050EAN	150.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V	-20 to 70 °C	+/-100 ppm
X1M0004110010	MG7050EAN	150.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C	+/-100 ppm
X1M0004110011	MG7050EAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C	+/-50 ppm
X1M0004110012	MG7050EAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C	+/-50 ppm
X1M0004110013	MG7050EAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.375 to 2.625 V	-5 to 85 °C	+/-50 ppm
X1M0004110014	MG7050EAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C	+/-50 ppm
X1M0004110015	MG7050EAN	125.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C	+/-50 ppm
X1M0004110016	MG7050EAN	200.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C	+/-50 ppm
X1M0004110017	MG7050EAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C	+/-50 ppm
X1M0004110018	MG7050EAN	125.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C	+/-50 ppm
X1M0004110019	MG7050EAN	200.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C	+/-50 ppm
X1M0004110020	MG7050EAN	156.253906 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.375 to 2.625 V	-5 to 85 °C	+/-50 ppm
X1M0004110021	MG7050EAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.375 to 2.625 V	-5 to 85 °C	+/-50 ppm
X1M0004110022	MG7050EAN	125.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.375 to 2.625 V	-5 to 85 °C	+/-50 ppm
X1M0004110023	MG7050EAN	156.253906 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C	+/-50 ppm
X1M0004110024	MG7050EAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V	-20 to 70 °C	+/-50 ppm
X1M0004110025	MG7050EAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.375 to 2.625 V	-20 to 70 °C	+/-50 ppm
X1M0004110026	MG7050EAN	312.500000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C	+/-50 ppm
X1M0004210002	MG7050VAN	212.500000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.970 to 3.630 V	0 to 70 °C	+/-50 ppm
X1M0004210003	MG7050VAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.970 to 3.630 V	0 to 70 °C	+/-50 ppm
X1M0004210004	MG7050VAN	125.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.375 to 2.625 V	-20 to 70 °C	+/-50 ppm
X1M0004210005	MG7050VAN	644.531250 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.375 to 2.625 V	-20 to 70 °C	+/-50 ppm
X1M0004210006	MG7050VAN	322.265625 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.375 to 2.625 V	-20 to 70 °C	+/-50 ppm
X1M0004210007	MG7050VAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C	+/-100 ppm
X1M0004210008	MG7050VAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C	+/-50 ppm
X1M0004210009	MG7050VAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C	+/-50 ppm
X1M0004210010	MG7050VAN	125.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C	+/-50 ppm
X1M0004210011	MG7050VAN	125.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C	+/-50 ppm
X1M0004210012	MG7050VAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C	+/-50 ppm
X1M0004210013	MG7050VAN	200.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C	+/-50 ppm
X1M0004210014	MG7050VAN	200.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C	+/-50 ppm
X1M0004210015	MG7050VAN	322.265625 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.970 to 3.630 V	0 to 70 °C	+/-50 ppm
X1M0004210016	MG7050VAN	125.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C	+/-50 ppm
X1M0004310004	MG7050HAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	HCSL	2.970 to 3.630 V	-5 to 85 °C	+/-100 ppm
X1M0004310006	MG7050HAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	HCSL	2.970 to 3.630 V	-5 to 85 °C	+/-50 ppm
X1M0004310007	MG7050HAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	HCSL	2.970 to 3.630 V	0 to 70 °C	+/-50 ppm
X1M0004310008	MG7050HAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	HCSL	2.970 to 3.630 V	-5 to 85 °C	+/-50 ppm
X1M0004310009	MG7050HAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	HCSL	2.970 to 3.630 V	-20 to 70 °C	+/-50 ppm
X1M0004310010	MG7050HAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	HCSL	2.970 to 3.630 V	-20 to 70 °C	+/-50 ppm
X1M0004310011	MG7050HAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	HCSL	2.970 to 3.630 V	-20 to 70 °C	+/-50 ppm
